| Explosion protection marking | 1Ex d IIB T6 Gb |
| Ingress protection | IP67 |
| Operating temperature range | -40C<Ta<+50C |
| Detecting range | 8-100 m |
| Protected area | up to 900 m2 |
| Operating voltage | 8-28 V |
| Input current at operating voltage 12 V: | |
| transmitter (without/with heating) | 6 mA / 20 mA |
| receiver (without/with heating) | 20 mA / 40 mA |
| Warm-up time after powering up, max. | 15 s |
| Characteristics of 'Fire' and 'Fault' optical relays: | |
| switched current, max | 100 mA |
| switched voltage, max | 100 V |
| Open relay resistance, min | 15 M Ω |
| Closed relay resistance, max | 16 Ω |
| galvanic isolation voltage, min. | 1500 V |
| Enclosure material | aluminium alloy, stainless steel |
| Overall dimensions: | |
| receiver unit, transmitter unit | 220х210х82 mm |
| switching units without cable glands | 136х136х80 mm |
Features:

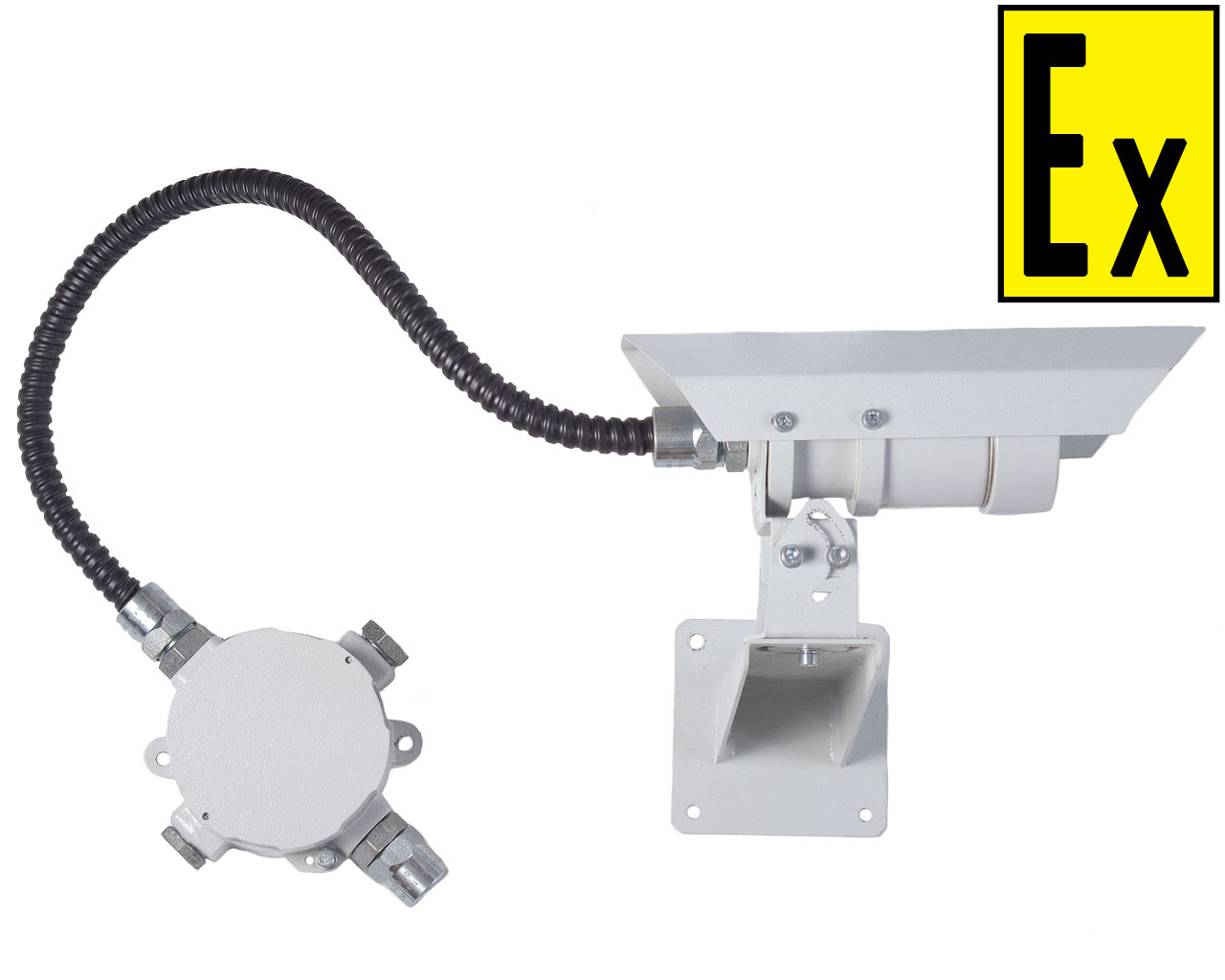

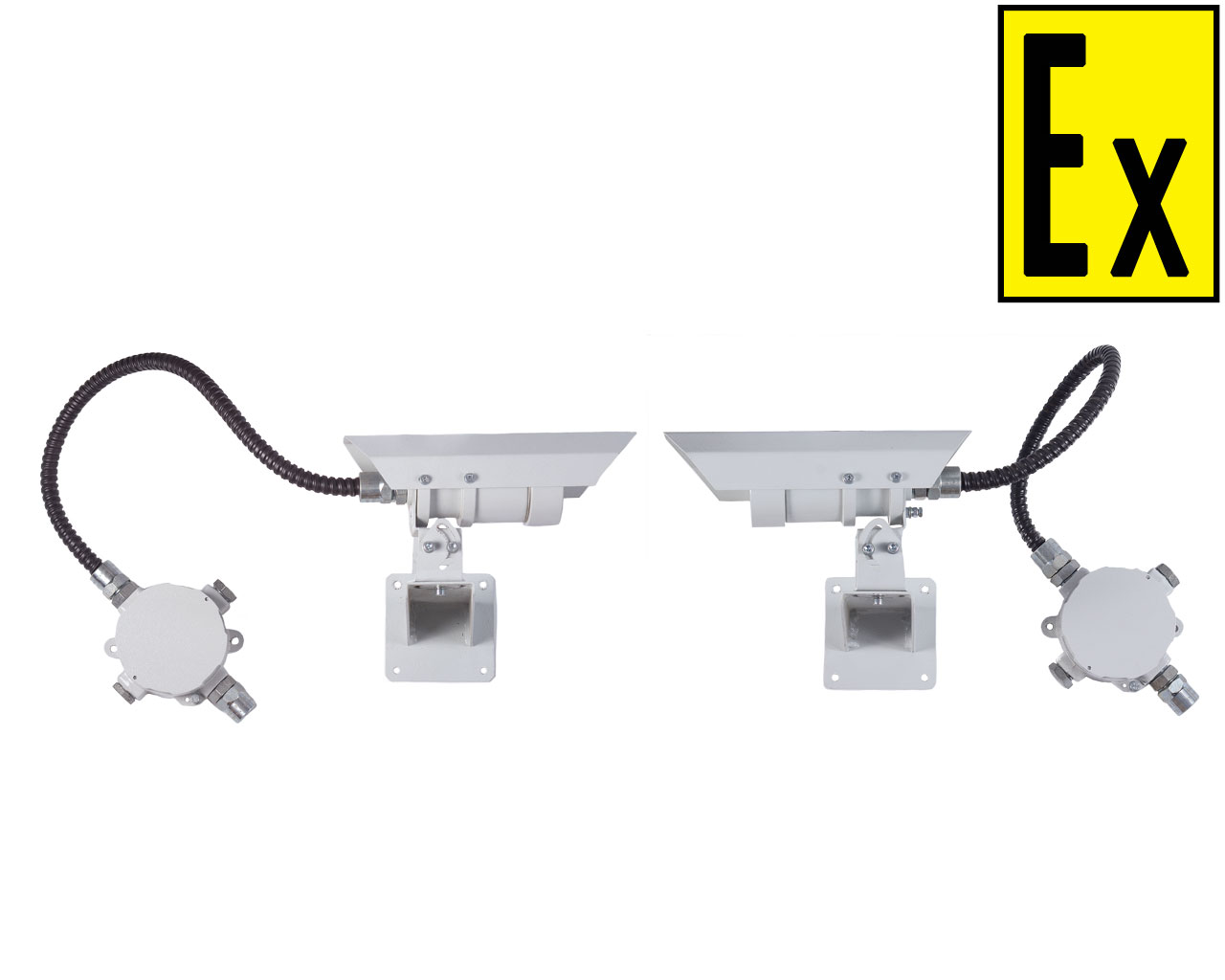

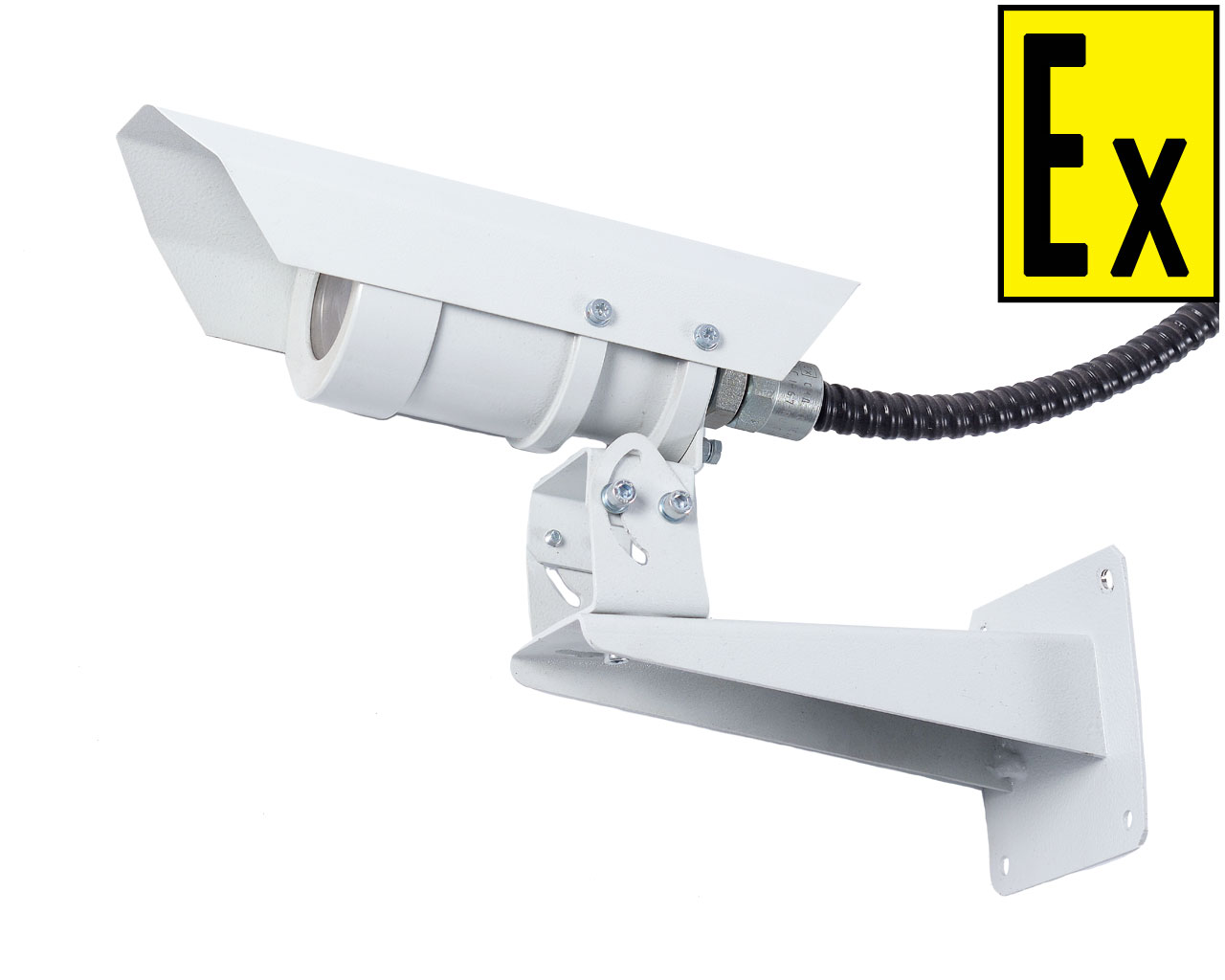

Detector consists of four units: receiver unit; receiver unit; receiver switching unit; transmitter switching unit. Relay contacts 'Fire' and 'Fault' are galvanically isolated from each other and from power supply line. The detectors trip alarm by short circuit and are wired in parallel to the alarm loop. Receiver connection method: 4-wire with separate power supply line.
Detectors are supplied with cable glands of various versions:
A cable with a diameter of 8-12 mm can be inserted into the cable entry. The scope of supply includes rubber seals.
______________________________________________
Example of the detector designation when ordering:
| IP212 Trion-Л2 МК | - Т-1/2 |
| 1 | 2 |
