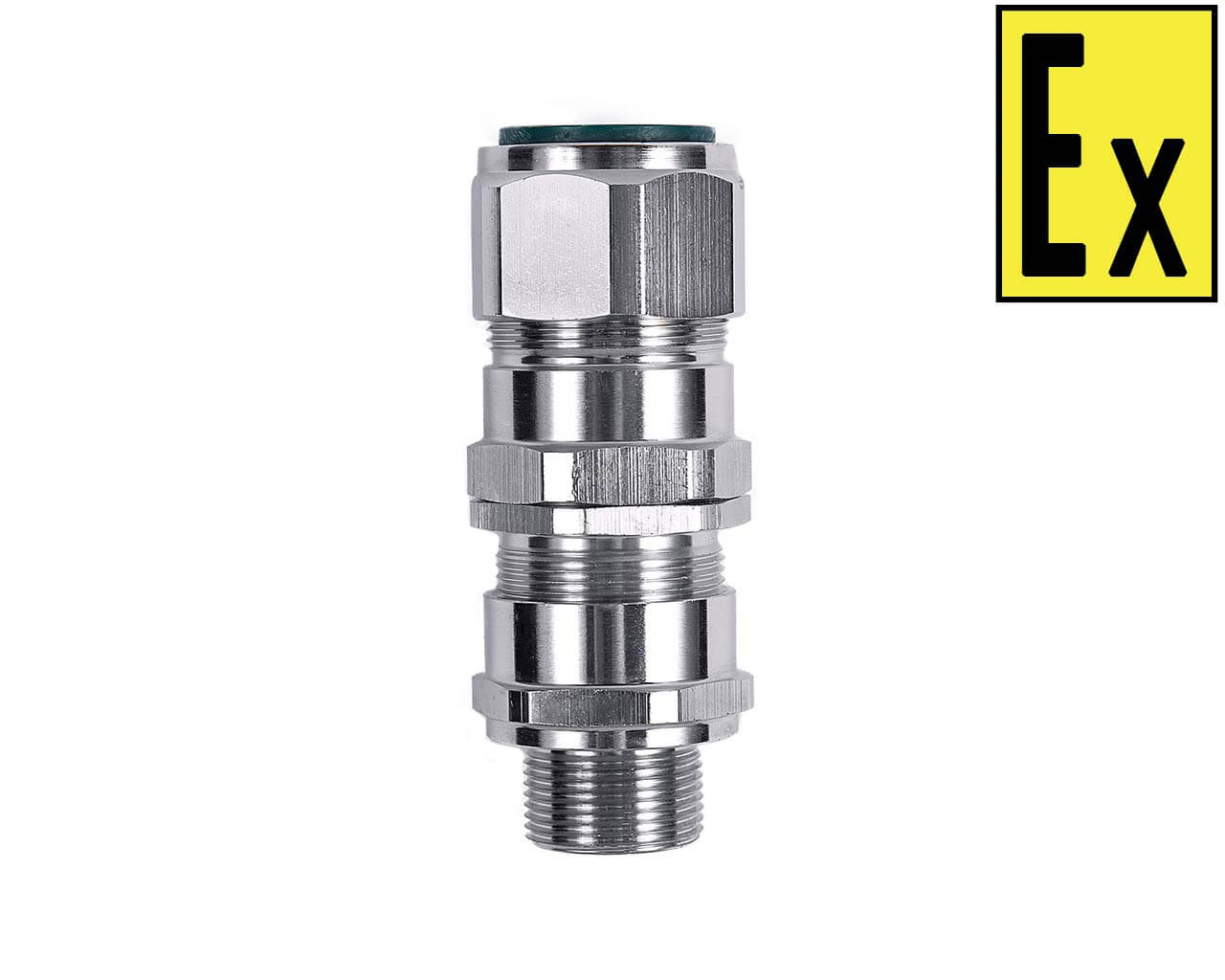

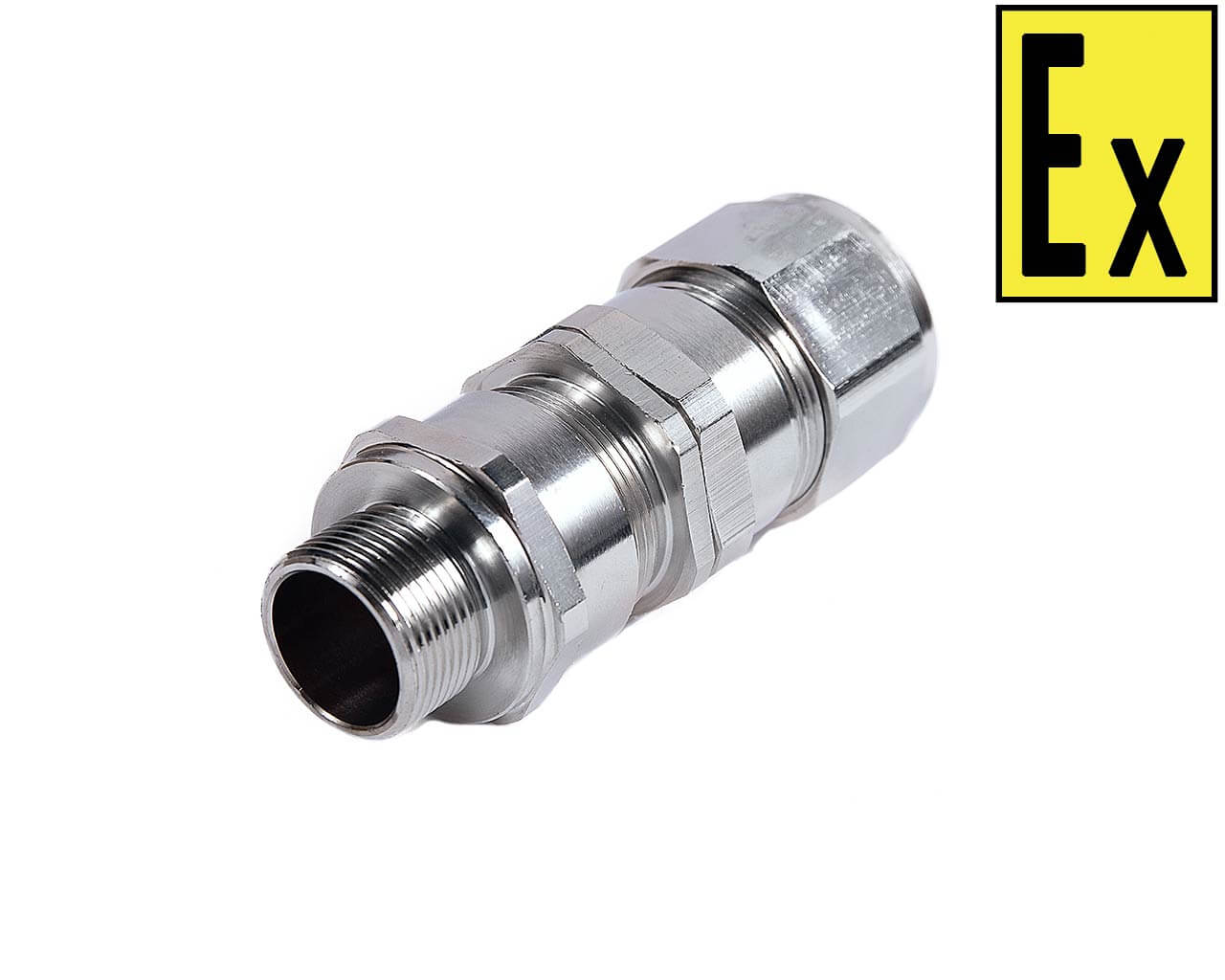

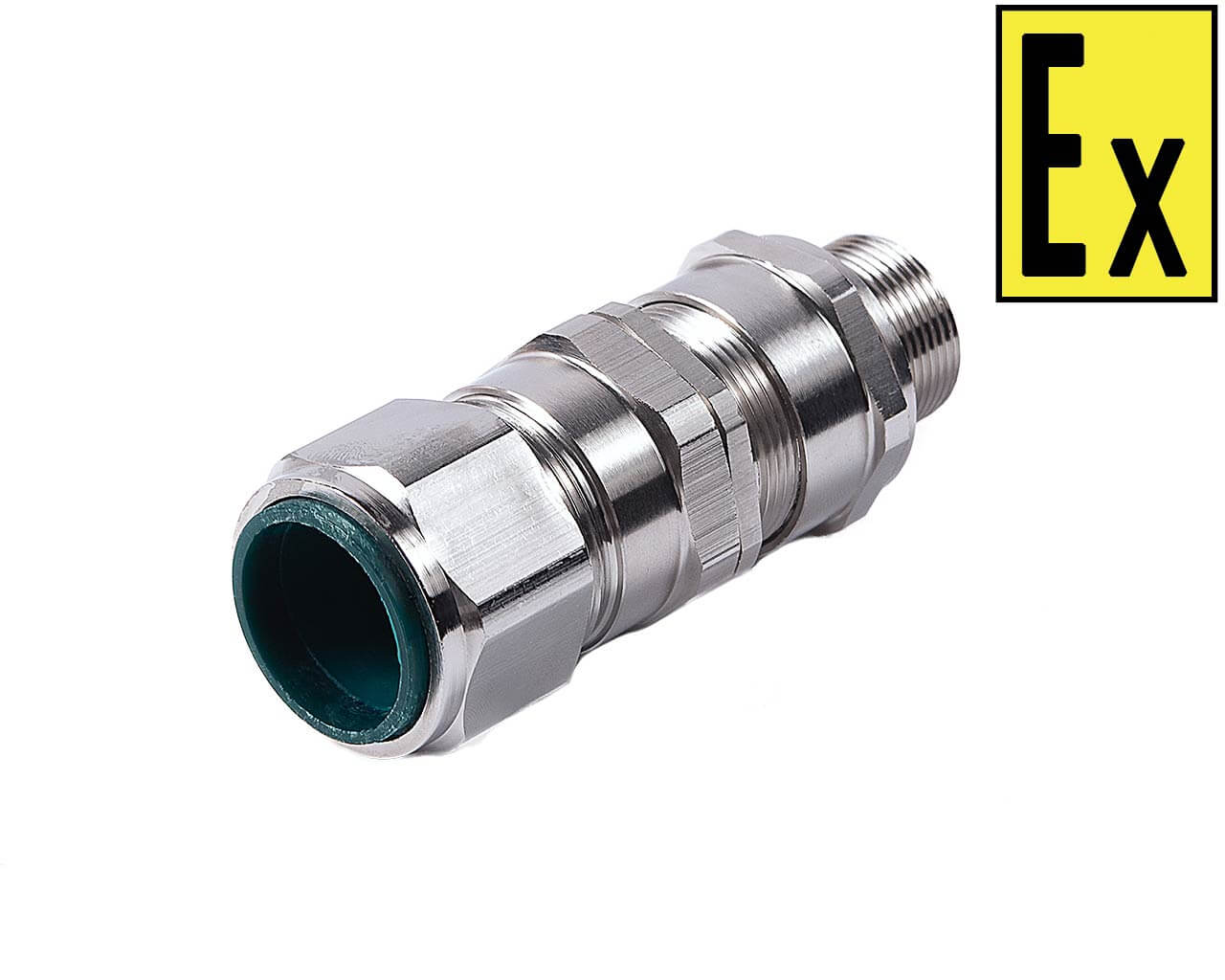

Cable glands for laying armored cable with double seal

Name Thread, DxP, L Wrench size S, mm External (internal) cable Ø, mm
KV M20Б2 M20х1.5, 15mm 30 12.50-20.90(6.50-13.90)
KV M25Б2 M25х1.5, 15mm 36 19.90-26.20(11.30-19.90)
KV M32Б2 M32х1.5, 15mm 46 23.70-33.90(17.00-26.20)
KV M40Б2 M40х1.5, 15mm 55 27.90-40.40(23.60-32.10)
KV M50Б2 M50х1.5, 15mm 70 40.40-53.00(35.80-44.00)
KV M63Б2 M63х1.5, 15mm 80 54.60-65.80(47.50-56.00)
KV M75Б2 M75х1.5, 15mm 100 66.70-78.40(62.00-68.00)
KV M90Б2 M90х1.5, 15mm 112 76.20-90.30(67.00-79.00)

KV NPT1/2Б2 NPT1/2, 15mm 30 12.50-20.90(6.50-13.90)
KV NPT3/4Б2 NPT3/4, 15mm 36 19.90-26.20(11.30-19.90)
KV NPT1Б2 NPT1, 15mm 46 23.70-33.90(17.00-26.20)
KV NPT11/4Б2 NPT11/4, 15mm 55 27.90-40.40(23.60-32.10)
KV NPT2Б2 NPT2, 15mm 70 40.40-53.00(35.80-44.00)
KV NPT21/2Б2 NPT21/2, 15mm 80 54.60-65.80(47.50-56.00)
KV NPT3Б2 NPT3х1.5, 15mm 100 66.70-78.40(62.00-68.00)
KV NPT31/2Б2 NPT31/2, 15mm 112 76.20-90.30(67.00-79.00)



Cable glands of the KV series in various designs are Ex-cable glands and meet the requirements of GOST 31610.0-2014 (IEC 60079-0: 2011)

Inputs are intended for input of flexible cables into explosion-proof electrical equipment.

An example of an entry when ordering and in the documentation: KV (1) M75 (2) B2 (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (B2 - for armored cable with double sealing);

4 - Case material (L - nickel-plated brass; N - stainless steel).

Cable glands of the KV series combine four types of explosion protection and are marked with explosion protection:

«1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db/ РВ Ex d I Mb»

Ex components:

«Ex d IIC U / Ex e IIC U / Ex tb IIIC U/ РВ Ex d I Mb U»

The above products of the KV series are available in versions differing in: size and type of connecting thread; case material, cable entries additionally by the type of cable to be connected.

Cable entries can be used in hazardous areas of classes 1 and 2 according to GOST IEC 60079-10-1-2011 and in accordance with explosion protection marking. The environment may contain explosive mixtures of gases and vapors with air of category IIA, IIB, IIC, and are also electrical equipment of group III, designed for use in hazardous locations with explosive dust environments, subgroup IIIC (conductive dust), IIIB (non-conductive dust) and IIIA (flammable volatile particles) and complies with GOST IEC 60079-31-2013.

Explosion protection marking 1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db/ РВ Ex d I Mb
Climatic rating UHL1
Material:

nickel plated brass

stainless steel

Operating temperature: -60С <Ta<+135С
Type of thread:

metric (M)

conical pipe (NPT).

All cable entries can be equipped with protective covers (sheaths)

An example of an entry when ordering and in the documentation: KV (1) M75 (2) B2 (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (B2 - for armored cable with double sealing);

4 - Case material (L - nickel-plated brass; N - stainless steel).
