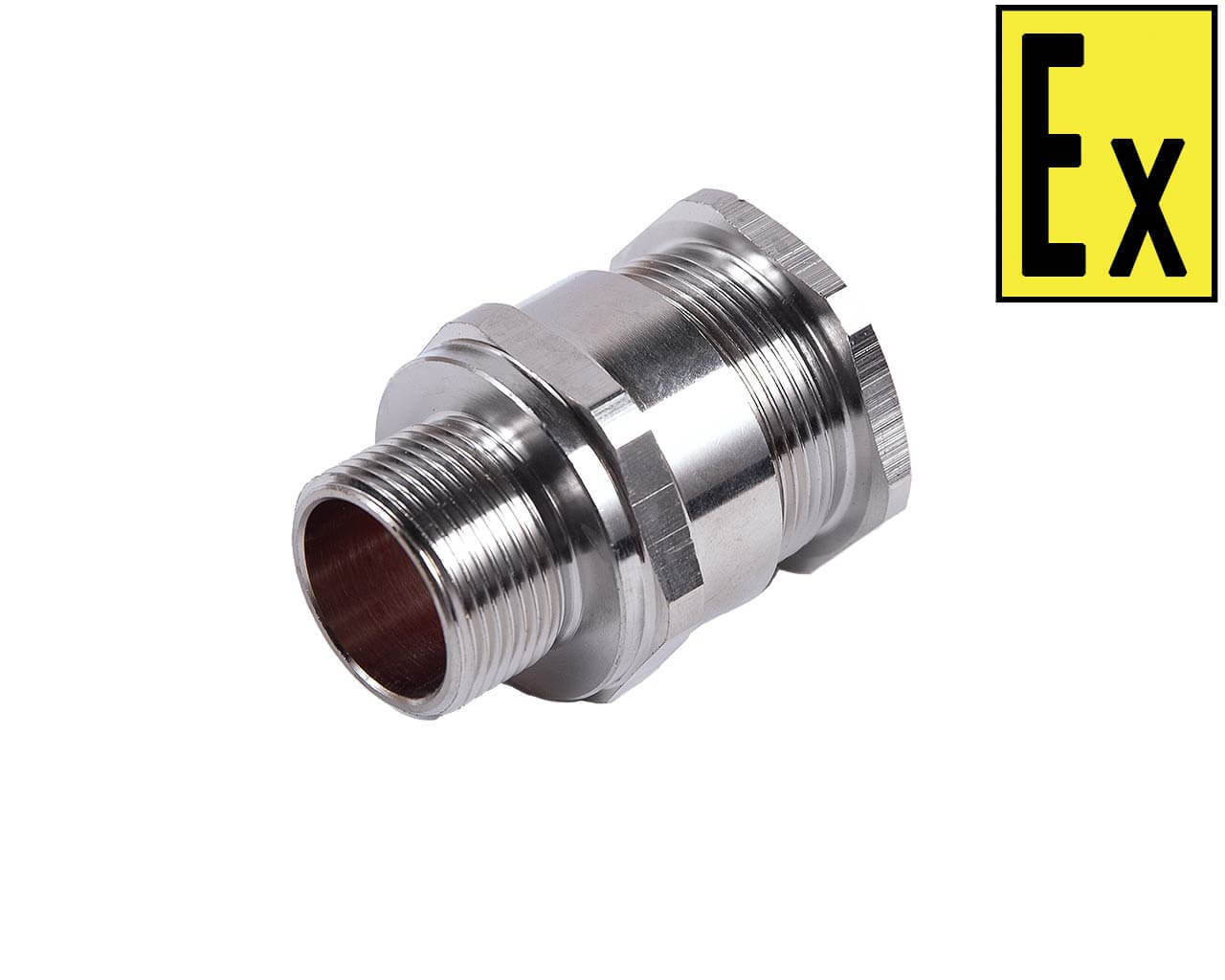

Cable glands for laying round cable

Name Thread, DxP, L Wrench size S, mm External cable Ø, mm
KV M20К M20х1.5, 15mm 27 6.50 - 13.90
KV M25К M25х1.5, 15mm 36 11.30-19.90
KV M32К M32х1.5, 15mm 41 17.00-26.20
KV M40К M40х1.5, 15mm 50 23.60-31.10
KV M50К M50х1.5, 15mm 55 31.50-38.20
KV M63К M63х1.5, 15mm 70 41.70-50.00
KV M75К M75х1.5, 15mm 85 55.00-62.00
KV M90К M90х1.5, 15mm 110 67.00-79.00

KV NPT1/2К NPT1/2, 15mm 27 6.50 - 13.90
KV NPT3/4К NPT3/4, 15mm 36 11.30-19.90
KV NPT1К NPT1, 15mm 41 17.00-26.20
KV NPT11/4К NPT11/4, 15mm 50 23.60-31.10
KV NPT11/2К NPT11/2, 15mm 55 31.50-38.20
KV NPT2К NPT2, 15mm 70 41.70-50.00
KV NPT21/2К NPT21/2, 15mm 85 55.00-62.00
KV NPT31/2К NPT31/2, 15mm 110 67.00-79.00



Cable glands of the KV series in various designs are Ex-cable glands and meet the requirements of GOST 31610.0-2014 (IEC 60079-0: 2011)

Inputs are intended for input of flexible cables into explosion-proof electrical equipment.

An example of an entry when ordering and in the documentation: KV (1) M75 (2) K (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (K - for laying round cable);

4 - Case material (L - nickel-plated brass; N - stainless steel).

Cable glands of the KV series combine four types of explosion protection and are marked with explosion protection:

«1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db/ РВ Ex d I Mb»

Ex components:

«Ex d IIC U / Ex e IIC U / Ex tb IIIC U/ РВ Ex d I Mb U»

The above products of the KV series are available in versions differing in: size and type of connecting thread; case material, cable entries additionally by the type of cable to be connected.

Cable entries can be used in hazardous areas of classes 1 and 2 according to GOST IEC 60079-10-1-2011 and in accordance with explosion protection marking. The environment may contain explosive mixtures of gases and vapors with air of category IIA, IIB, IIC, and are also electrical equipment of group III, designed for use in hazardous locations with explosive dust environments, subgroup IIIC (conductive dust), IIIB (non-conductive dust) and IIIA (flammable volatile particles) and complies with GOST IEC 60079-31-2013.

Explosion protection marking 1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db / РВ Ex d I Mb
Climatic rating UHL1
Material:

nickel plated brass

stainless steel

Operating temperature: -60С <Ta<+135С
Type of thread:

metric (M)

conical pipe (NPT).

All cable entries can be equipped with protective covers (sheaths)



An example of an entry when ordering and in the documentation: KV (1) M75 (2) K (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (K - for laying round cable);

4 - Case material (L - nickel-plated brass; N - stainless steel).
