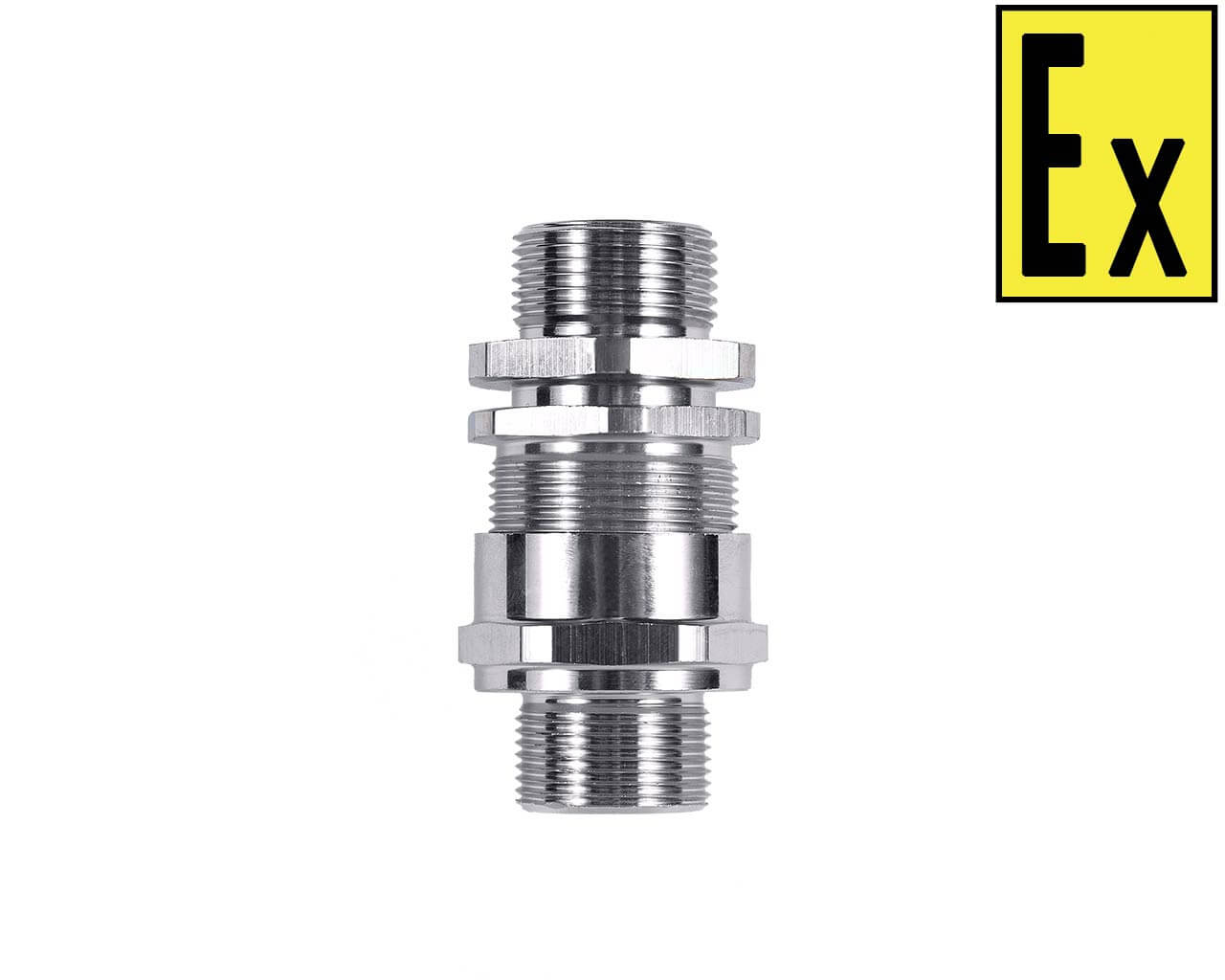

			CABLE GLANDS <br/> FOR CABLE IN PIPE <br/> MALE THREAD
CABLE GLANDS FOR CABLE IN PIPE - MALE THREAD CABLE GLANDS FOR CABLE IN PIPE - MALE THREAD CABLE GLANDS FOR CABLE IN PIPE - MALE THREAD
CABLE GLANDS FOR CABLE IN PIPE - MALE THREAD
Thread Size for External Connection
  • М20х1.5 (cable crimp diameter 6.50 - 13.90 mm)
  • М25х1.5 (cable crimp diameter 11.30-19.90 mm)
  • М32х1.5 (cable crimp diameter 17.00-26.20 mm)
  • М40х1.5 (cable crimp diameter 23.60-31.10 mm)
  • М50х1.5 (cable crimp diameter 31.50-38.20 mm)
  • М63х1.5 (cable crimp diameter 41.70-50.00 mm)
  • М75х1.5 (cable crimp diameter 55.00-62.00 mm)
  • М90х1.5 (cable crimp diameter 67.00-79.00 mm)
  • NPT1/2 (cable crimp diameter 6.50 - 13.90 mm)
  • NPT3/4 (cable crimp diameter 11.30-19.90 mm)
  • NPT1 (cable crimp diameter 17.00-26.20 mm)
  • NPT1 1/4 (cable crimp diameter 23.60-31.10 mm)
  • NPT1 1/2 (cable crimp diameter 31.50-38.20 mm)
  • NPT2 (cable crimp diameter 41.70-50.00 mm)
  • NPT2 1/2 (cable crimp diameter 55.00-62.00 mm)
  • NPT3 1/2 (cable crimp diameter 67.00-79.00 mm)
You choosed:
  • Thread Size for External Connection

  • Cable Entry Thread Type

  • Material

Cable glands for laying unarmoured round cable,
laid in a pipe with an external connecting thread

Name Thread, DxP, L Wrench size S, mm External cable Ø, mm
KV M20TN1/2 M20х1.5, 15mm 27 6.50 - 13.90
KV M20TN20 M20х1.5, 15mm 27 6.50 - 13.90
KV M25TN3/4 M25х1.5, 15mm 36 11.30-19.90
KV M25TN25 M25х1.5, 15mm 36 11.30-19.90
KV M32TN1 M32х1.5, 15mm 41 17.00-26.20
KV M32TN32 M32х1.5, 15mm 41 17.00-26.20
KV M40TN11/4 M40х1.5, 15mm 50 23.60-31.10
KV M40TN40 M40х1.5, 15mm 50 23.60-31.10
KV M50TN11/2 M50х1.5, 15mm 55 31.50-38.20
KV M50TN50 M50х1.5, 15mm 55 31.50-38.20
KV M63TN2 M63х1.5, 15mm 70 41.70-50.00
KV M63TN63 M63х1.5, 15mm 70 41.70-50.00
KV M75TN21/2 M75х1.5, 15mm 80 55.00-62.00
KV M75TN75 M75х1.5, 15mm 80 55.00-62.00
KV M90TN3 M90х1.5, 15mm 110 67.00-79.00
KV M90TN90 M90х1.5, 15mm 110 67.00-79.00

KV NPT1/2TN1/2 NPT1/2, 15mm 27 6.50 - 13.90
KV NPT1/2TN20 NPT1/2, 15mm 27 6.50 - 13.90
KV NPT3/4TN3/4 NPT3/4, 15mm 36 11.30-19.90
KV NPT3/4TN25 NPT3/4, 15mm 36 11.30-19.90
KV NPT1TN1 NPT1, 15mm 41 17.00-26.20
KV NPT1TN32 NPT1, 15mm 41 17.00-26.20
KV NPT11/4TN11/4 NPT11/4, 15mm 50 23.60-31.10
KV NPT11/4TN40 NPT11/4, 15mm 50 23.60-31.10
KV NPT11/2TN11/2 NPT11/2, 15mm 55 31.50-38.20
KV NPT11/2TN50 NPT11/2, 15mm 55 31.50-38.20
KV NPT2TN2 NPT2, 15mm 70 41.70-50.00
KV NPT2TN63 NPT2, 15mm 70 41.70-50.00
KV NPT21/2TN21/2 NPT21/2, 15mm 80 55.00-62.00
KV NPT21/2TN75 NPT21/2, 15mm 80 55.00-62.00
KV NPT31/2TN3 NPT31/2, 15mm 110 67.00-79.00
KV NPT31/2TN90 NPT31/2, 15mm 110 67.00-79.00



The cable glands of the K series in various designs are Ex-cable glands and meet the requirements of GOST 31610.0-2014 (IEC 60079-0: 2011)

Inputs are intended for input of flexible cables into explosion-proof electrical equipment.

An example of an entry when ordering and in the documentation: KV (1) M75 (2) TN21 / 2 (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (TN21 / 2 - for unarmoured cable for pipe connection, external thread of input G2 ½);

4 - Case material (L - nickel-plated brass; N - stainless steel).

Cable glands of the KV series combine four types of explosion protection and are marked with explosion protection:

«1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db/ РВ Ex d I Mb»

Ex components:

«Ex d IIC U / Ex e IIC U / Ex tb IIIC U/ РВ Ex d I Mb U»

The above products of the KV series are available in versions differing in: size and type of connecting thread; case material, cable entries additionally by the type of cable to be connected.

Cable entries can be used in hazardous areas of classes 1 and 2 according to GOST IEC 60079-10-1-2011 and in accordance with explosion protection marking. The environment may contain explosive mixtures of gases and vapors with air of category IIA, IIB, IIC, and are also electrical equipment of group III, designed for use in hazardous locations with explosive dust environments, subgroup IIIC (conductive dust), IIIB (non-conductive dust) and IIIA (flammable volatile particles) and complies with GOST IEC 60079-31-2013.

Explosion protection marking 1Ex d IIC Gb / 1Ex e IIC Gb / Ex tb IIIC Db / РВ Ex d I Mb
Climatic rating UHL1
Material:

nickel plated brass

stainless steel

Operating temperature: -60С <Ta<+135С
Type of thread:

metric (M)

conical pipe (NPT).

All cable entries can be equipped with protective covers (sheaths)

An example of an entry when ordering and in the documentation: KV (1) M75 (2) TN21 / 2 (3) - L (4)

1 - Series designation;

2 - Designation of the attached thread (M75 - M75x1.5);

3 - Designation of input type (TN21 / 2 - for unarmoured cable for pipe connection, external thread of input G2 ½);

4 - Case material (L - nickel-plated brass; N - stainless steel).
