SFERA VZ <br> 1ExmbibIIBT4GbХ
SFERA VZ <br> 1ExmbibIIBT4GbХ SFERA VZ <br> 1ExmbibIIBT4GbХ SFERA VZ <br> 1ExmbibIIBT4GbХ SFERA VZ <br> 1ExmbibIIBT4GbХ SFERA VZ <br> 1ExmbibIIBT4GbХ SFERA VZ <br> 1ExmbibIIBT4GbХ
SFERA VZ
1ExmbibIIBT4GbХ
Kit
  • Kit 1 ( 12-30V)
  • Kit 2 (~ 220V)
  • Kit 3 (audible alerts,  12-30V, ~ 220V)
  • Kit 4 (Battery,  12-30V, ~ 220V)
You choosed:
  • Kit

  • Text for display

  • Text color

  • Background color

  • Hidden text

  • Metal arm length

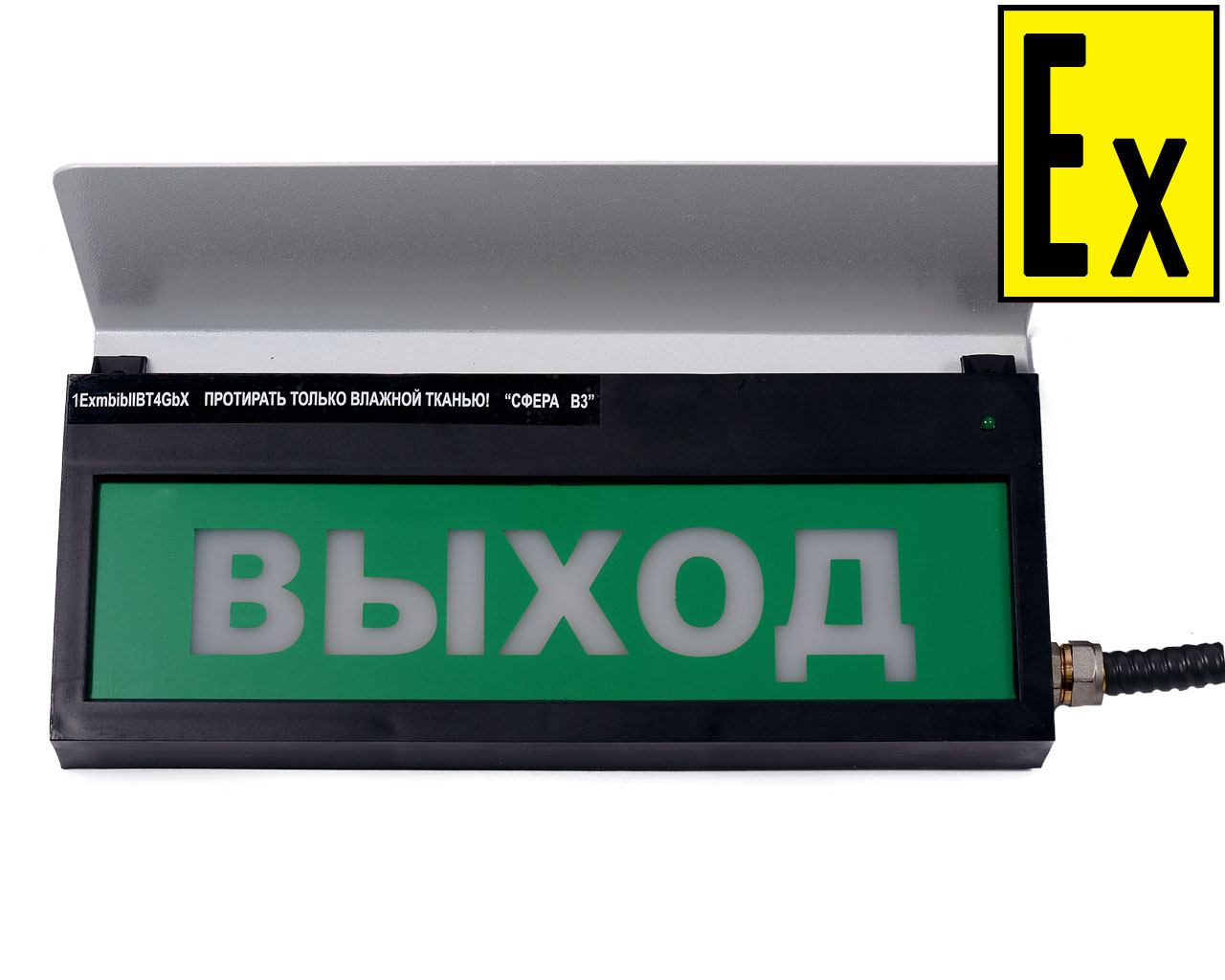

  • Visor

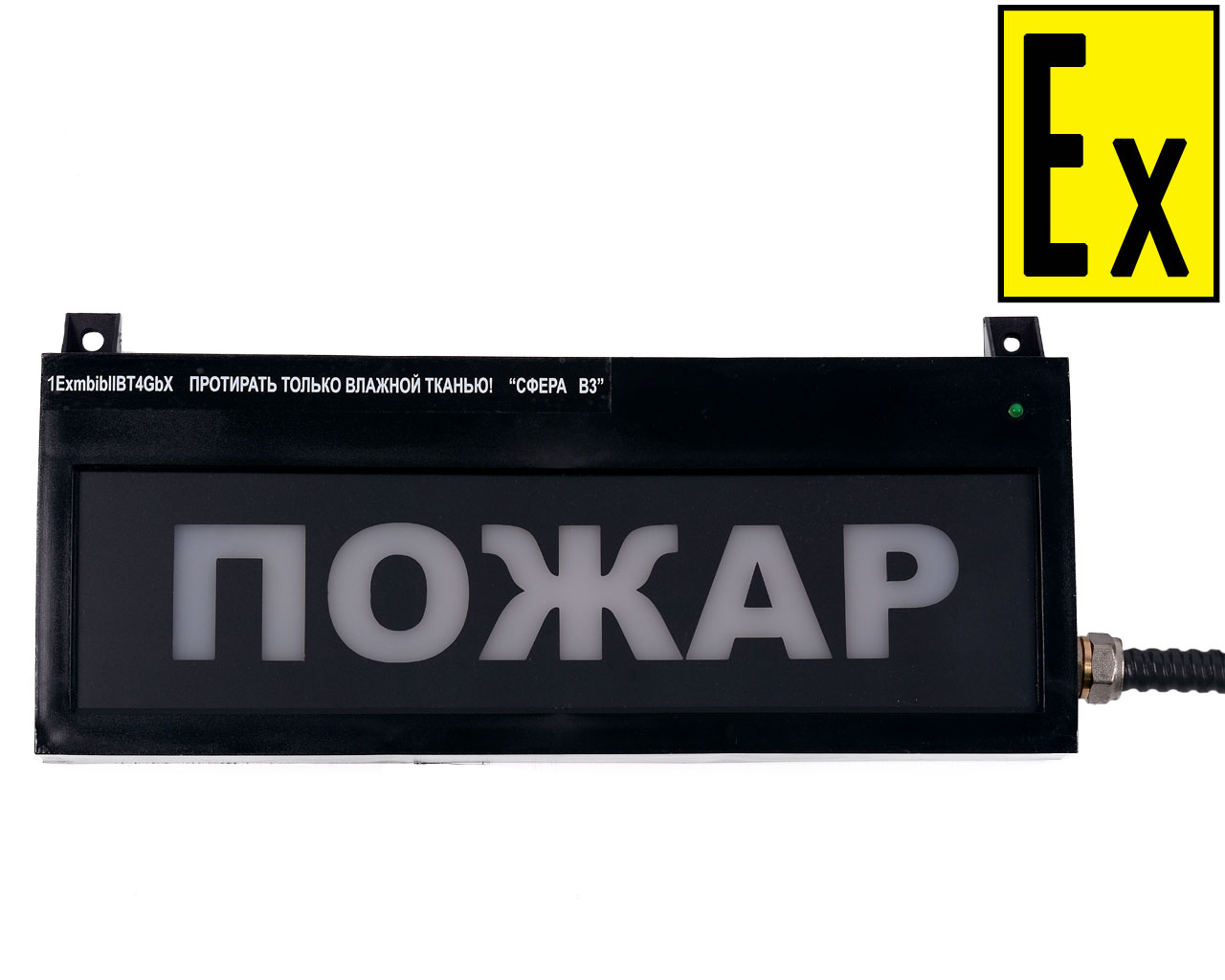

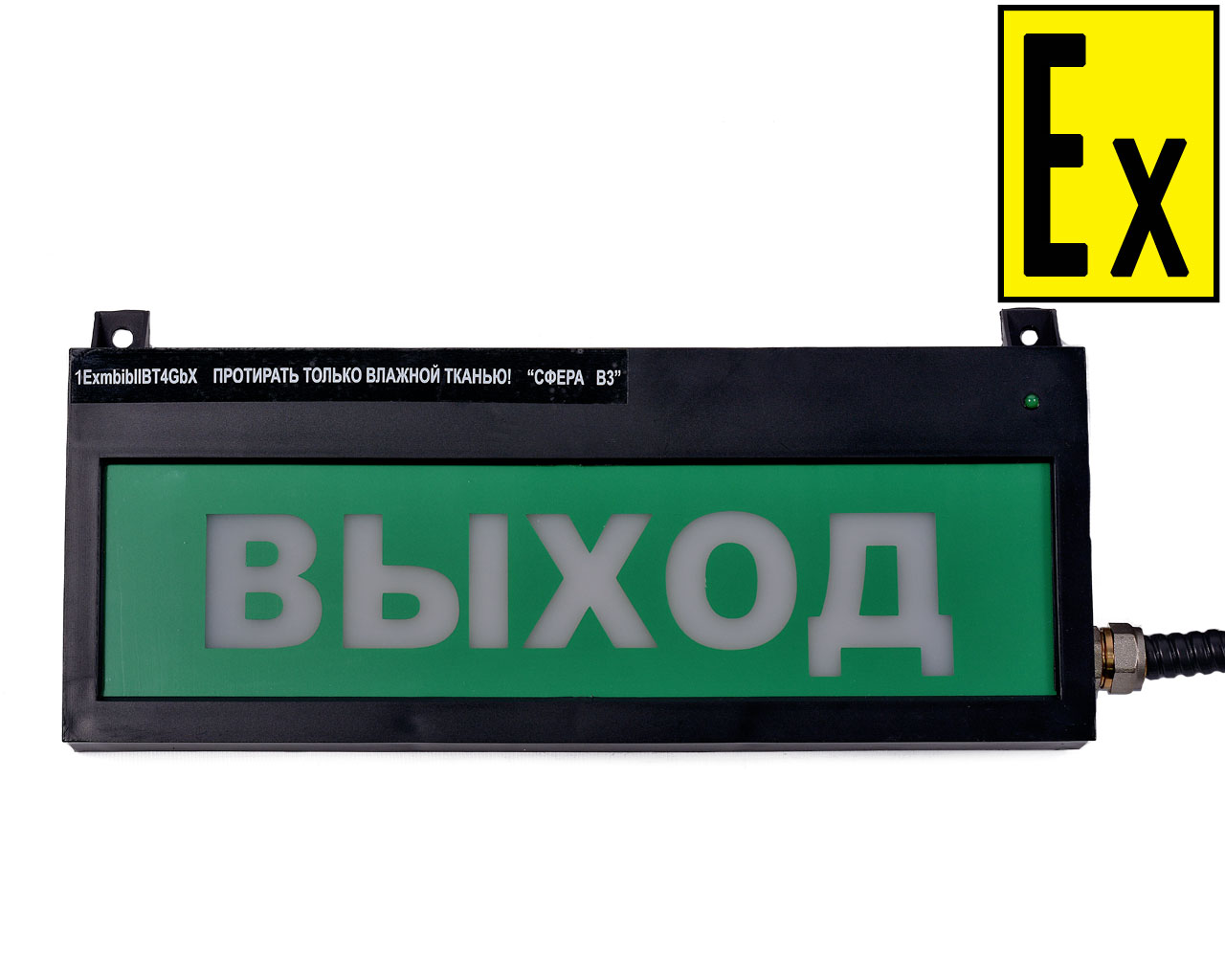

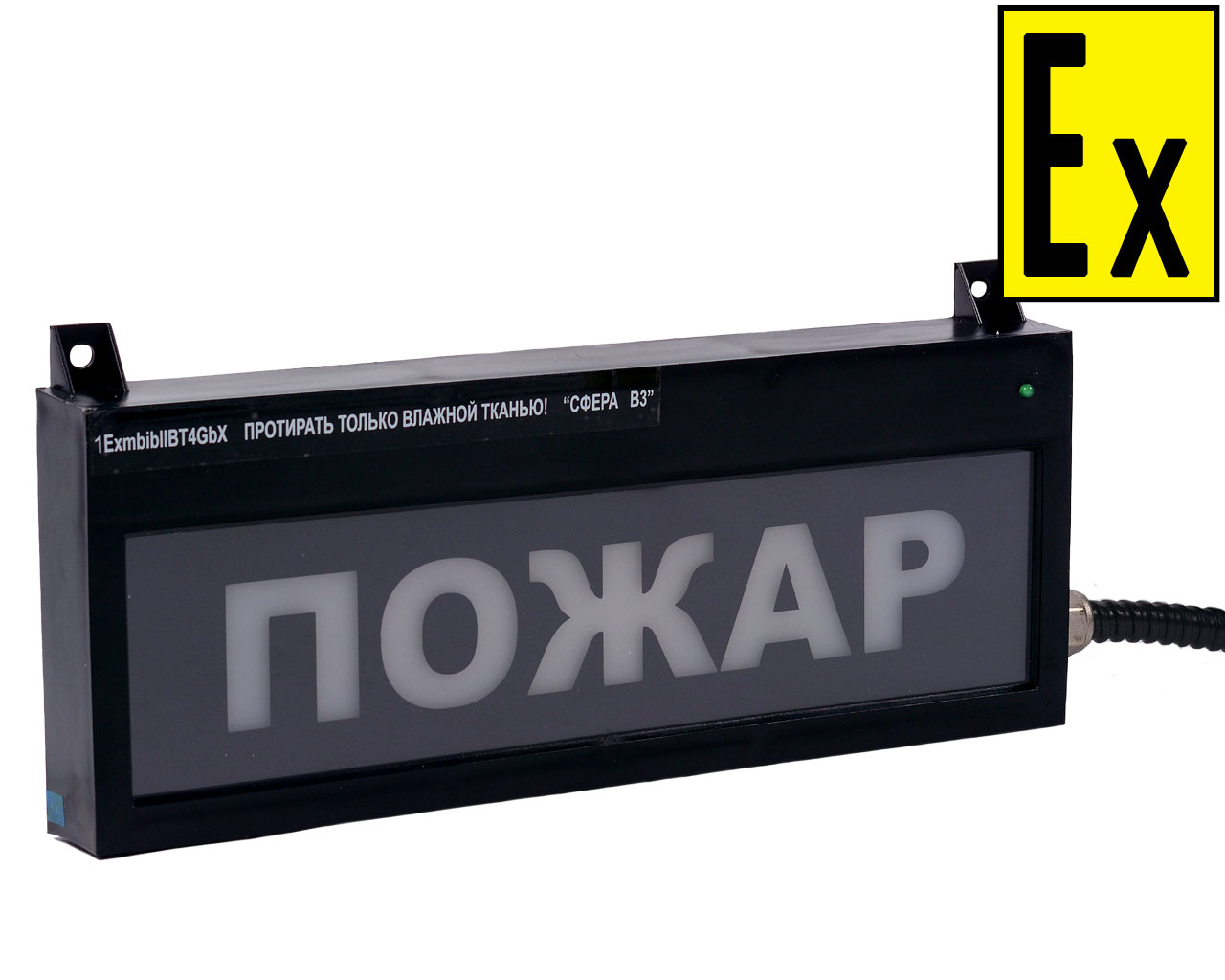

Fire ANNUNCIATOR is designed to provide the light and audible alerts in fire alarm and fire fighting systems when operating in combination with receiving/monitoring devices. Can be connected directly without intrinsic safety barrier. The length of the power cable in metal hose is 1.5 m or as per customer's request. For easier installation, there is a coupling at the end of the power cable of the alarm that is screwed onto the cable gland of the junction box with G 1/2 thread.
  Sfera VZ
(Kit 1)
Sfera VZ
(Kit 2)
Sfera VZ
(Kit 3)
Sfera VZ
(Kit 4)
Operating voltage 12-30 VDC   12-30 VDC 12-30 VDC
Input current, max. 0,15 A   0,25 A 0,18 A
Operating voltage   220 VAC 220 VAC 220 VAC
Input current, max.   0,05 A 0,24 A 0,24 A
Explosion protection type and category 1 Ex mbib IIB T4 Gb X
Ingress protection IP 65
Overall dimensions 385х165х55 mm
Sign size Min. 330x80 mm
Sound pressure at 1 m distance, min.     105 dB
Autonomous operation time, min.       5 hr
External illumination of text sign without loss of contrast discernibility, max. 500 lx
Weight, max. 2,5 kg
Temperature range  -60°С…+85°C
Material  Impact-resistant polyamide

Fire ANNUNCIATOR is supplied with 1.5 m power cable in metal hose; cable length can be specified by the customer. For easier installation, there is a coupling at the end of the power cable of the alarm that is screwed onto the cable gland of the junction box with G 1/2 thread.
