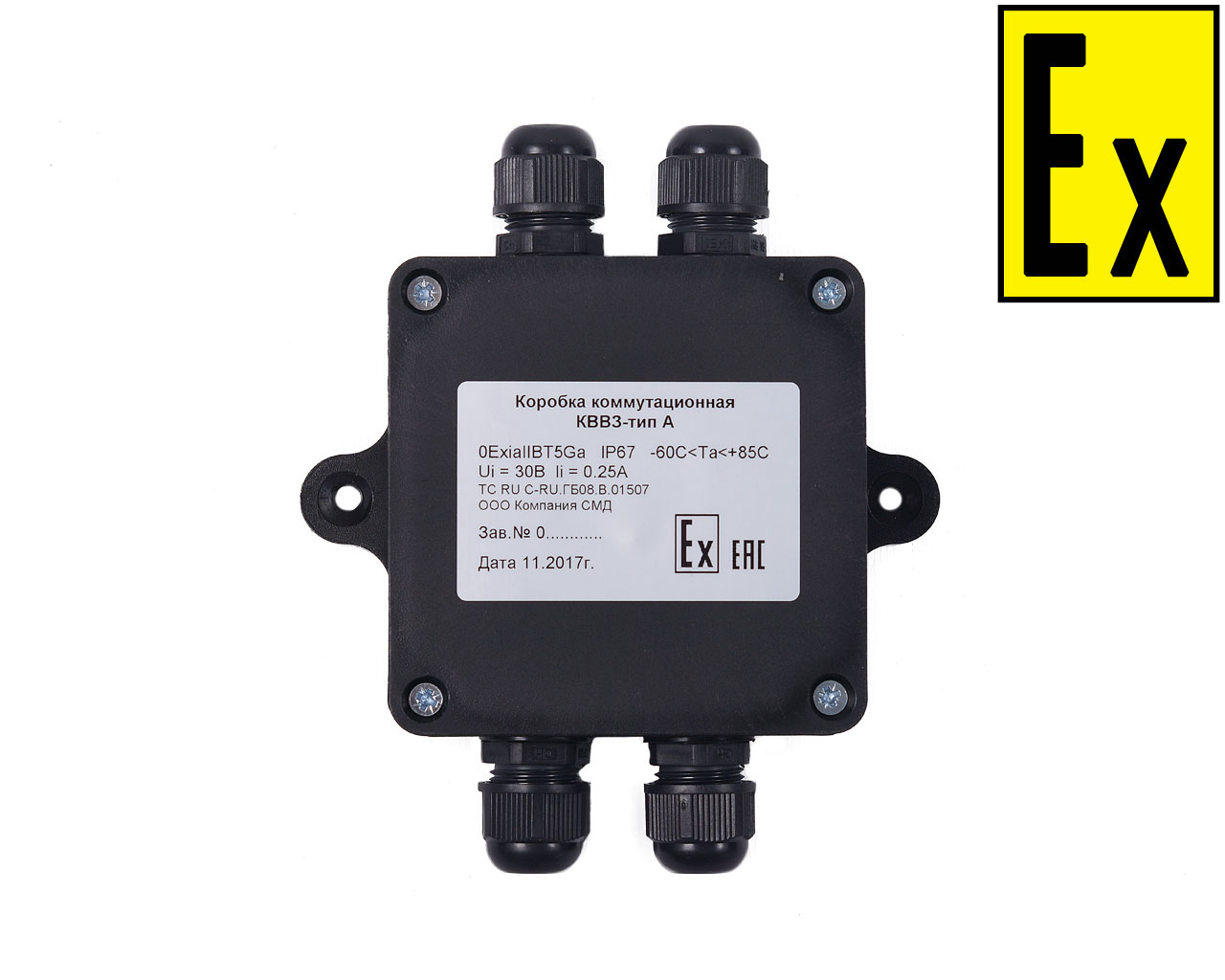

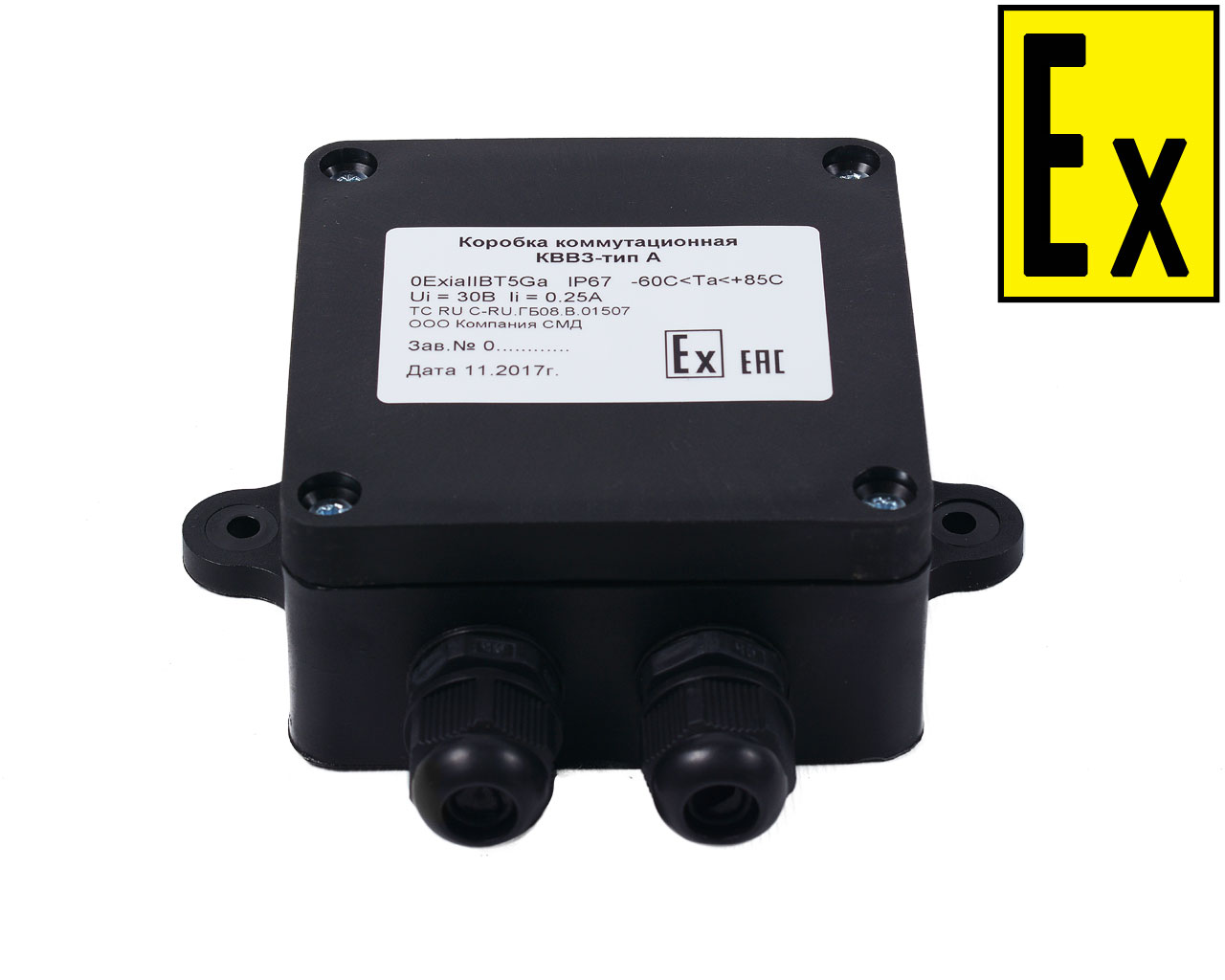

| «KVVZ-type А 0ExiaIIBT5Ga» | «KVVZ-type А 1ExeIIBT5Gb» | |
| Explosion protection marking | «0Ex ia IIB T5 Ga» Ui=30V; Ii=0.25A | «1Ex e IIB T5 Gb» |
| Ingress protection | IP67 | |
| Operating temperature range | -60 .. +85°С | |
| Number of cable glands | 1 - 4 | |
| Number of terminal connectors | 6 | 9 |
| Cross-section of the connected wires | 0,08 – 2mm2 | 0,08 – 2,5mm2 |
| Max. Voltage | 30V | 400V |
| Maximum contact current | 0.25A | 24А |
| Internal space | 90х90х30mm | |
| Overall dimensions without cable glands | 100х100х43mm | |
| Enclosure material | polyamid | |
| Weight, max. | 0,25 kg | |
Junction boxes are supplied with cable glands of various versions:
Example of order information:
| «KVVZ-type А Eх – | n1 K – [n2 B] – [n3 Т1/2] – [n4 КМ15]» |
| 1 | 2 |
1 – box type and explosion protection marking:
«KVVZ-type А 0ExiaIIBT5Ga»;
«KVVZ-type А 1ExeIIBT5Gb».
2 – number of cable glands (n1…n4) and type of cable glands:
no designation - MG16 plastic cable gland for surface routing of 6-10 mm cable;
G1/2B – for armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter;
G1/2T1/2 – for routing 6-12 mm cable in pipe with G 1/2 connection thread;
G1/2КМ15 – for routing the cable in metal hose RZTsH-15.
Example of order information:
«KVVZ-type А 0ExiaIIBT5Ga – 3»,
junction box with explosion protection marking 0Ex ia IIB T5 G three MG16 plastic cable gland for surface routing of 6-10 mm cable, screw terminal block for six contacts;
