DRAINAGE DEVICES KV D
DRAINAGE DEVICES KV D DRAINAGE DEVICES KV D

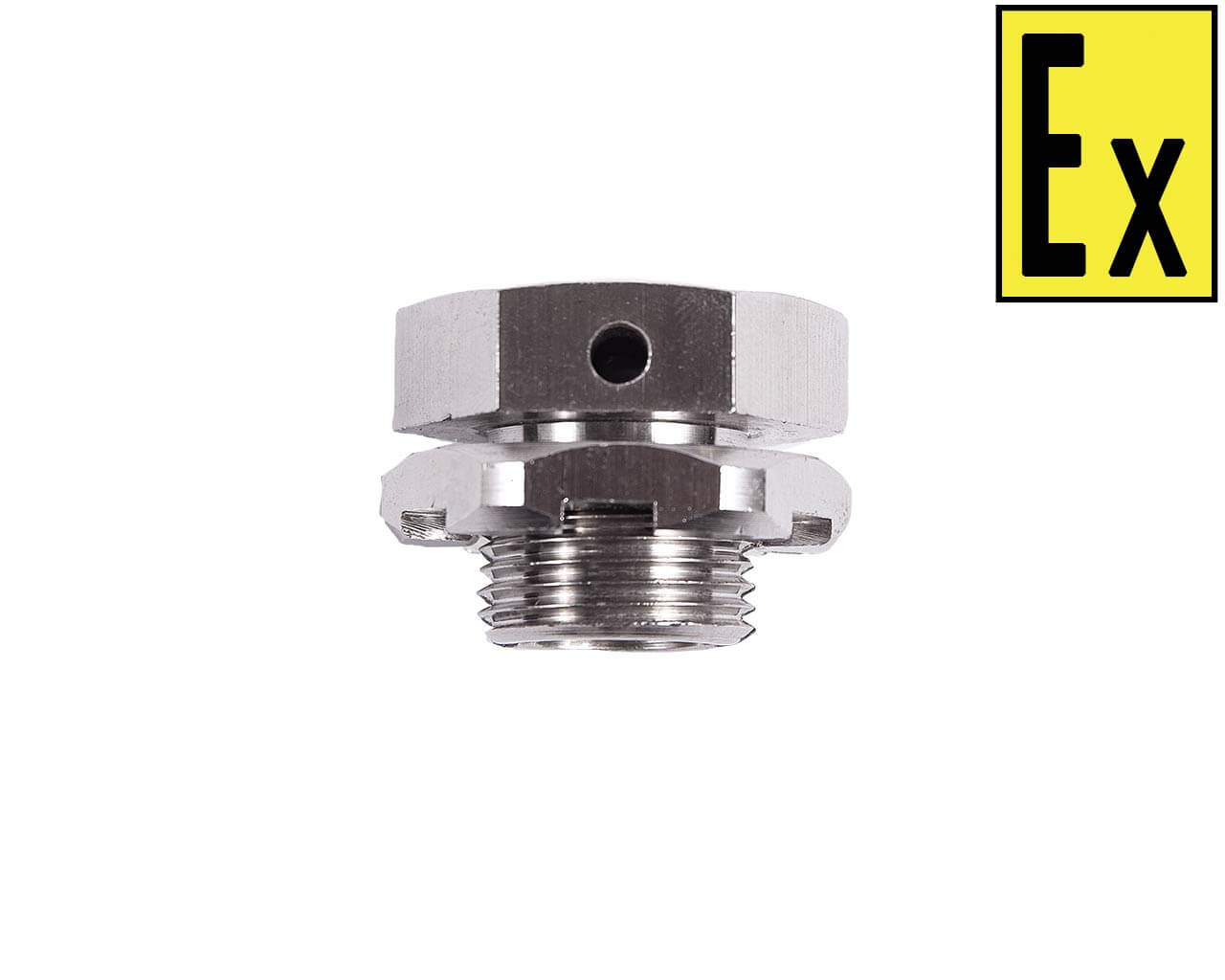

KV D drain fittings for draining of the condensate are designed to collect and remove the moisture from the equipment, while maintaining the exchange of air with the external environment and preventing penetration of dust and moisture into the equipment.

KV D drain fitting has explosion protection type ""explosion-proof enclosure 'd'"" with ingress protection rating IP66.
Installation place Zone 1 or 2 as per GOST IEC 60079-10-1-2011
Operating temperature range -60С<Та<+60С
Climatic rating (depending on the package) UHL2, UHL1
Ingress protection at least Iр65
Operating voltage 12...30 VDC;
 220 VAC, 50 Hz
Frame material Galvanized steel, powdered coating
Protection class I
Service life 5 лет

Combined stations are developed as per customer's request. Design is assigned an identification number, which must be specified in subsequent orders and used for references in specifications.

Example of order information: Combined station - SMD346400165000-001
