COMBINED STATIONS
COMBINED STATIONS COMBINED STATIONS COMBINED STATIONS COMBINED STATIONS COMBINED STATIONS
Combined stations are intended to notify the electrical and technological personnel of the enterprise (plant, installation) of changes in work conditions, equipment failure, accident, and other emergencies. Alarm signal is sent to the station from the emergency notification system.

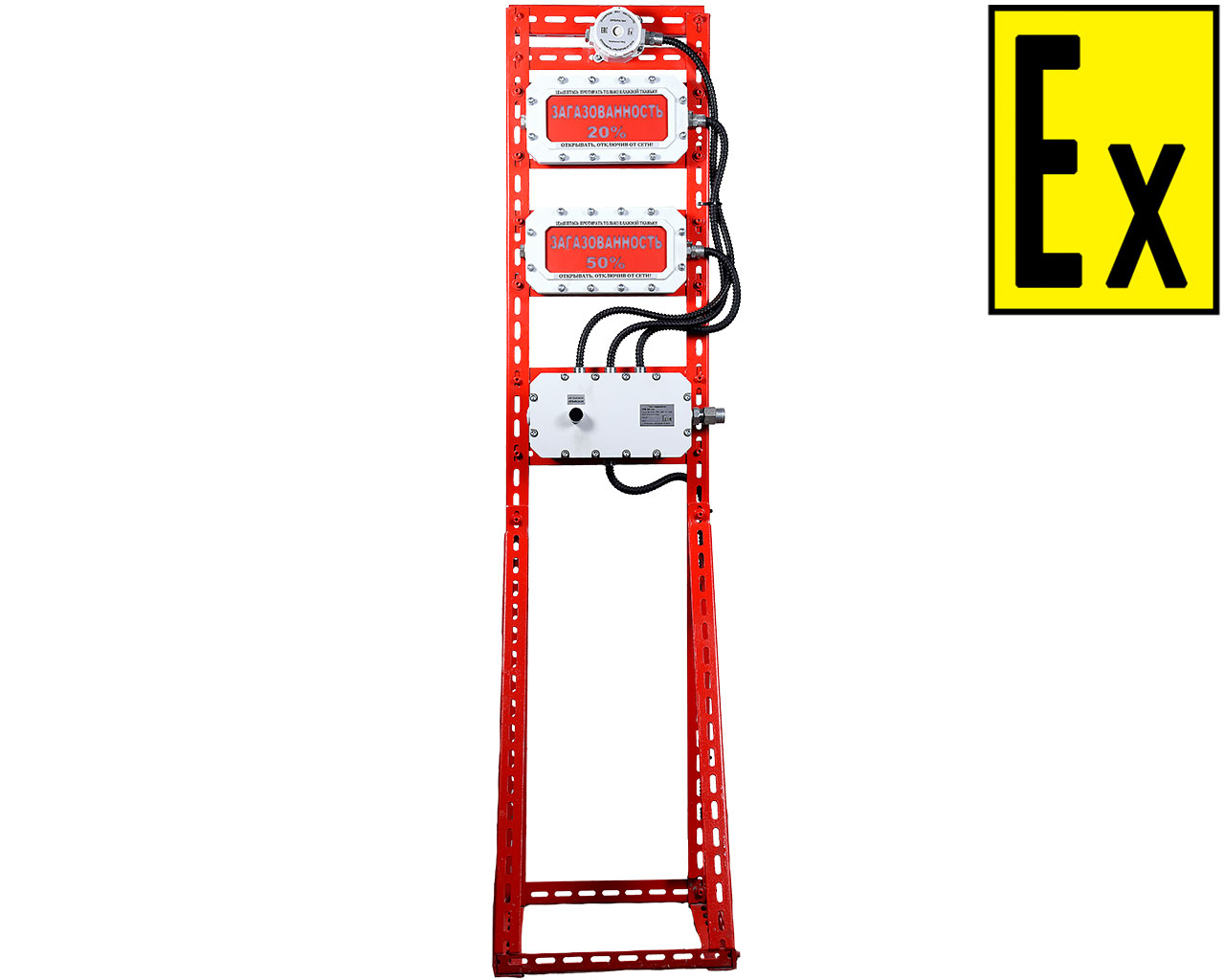

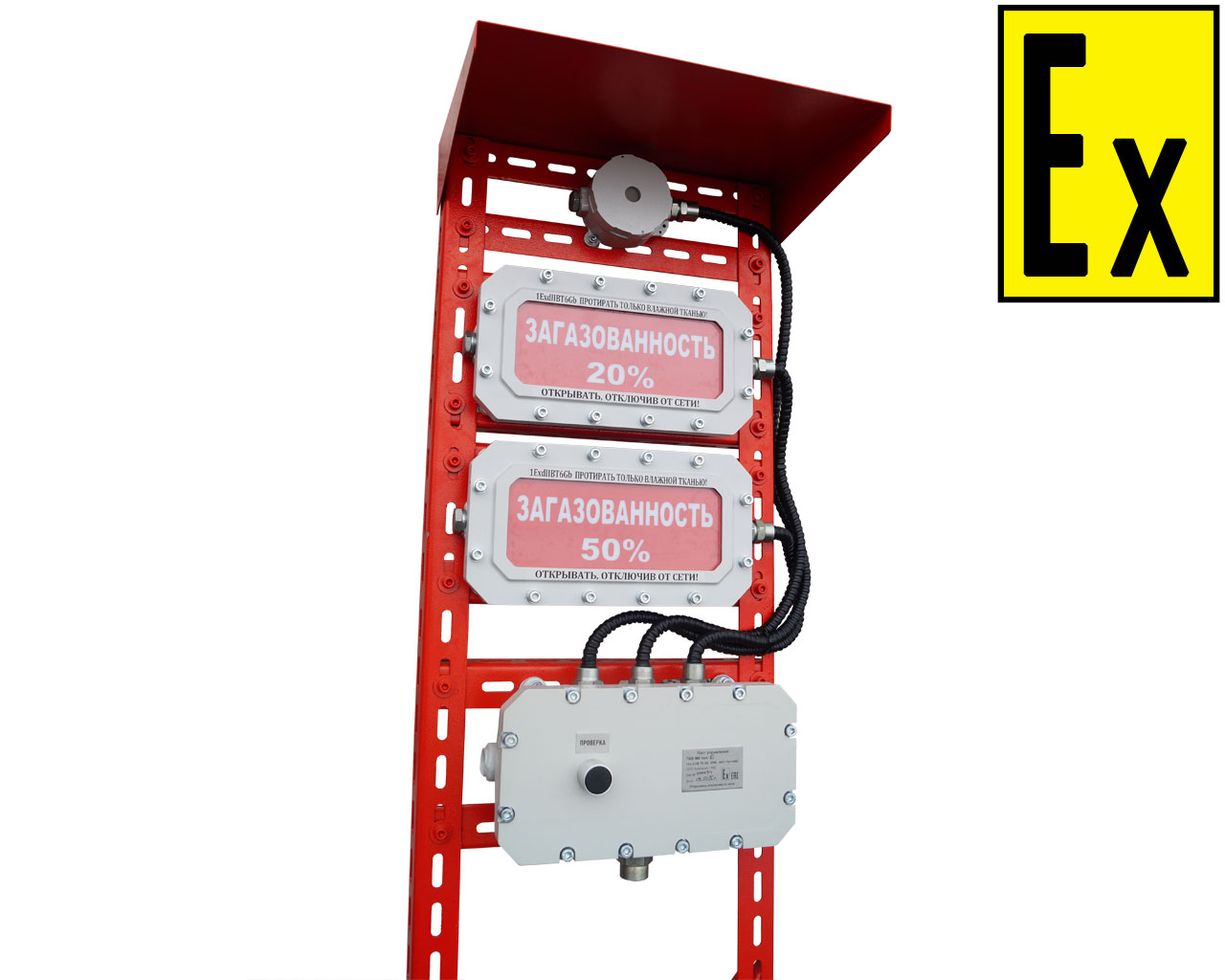

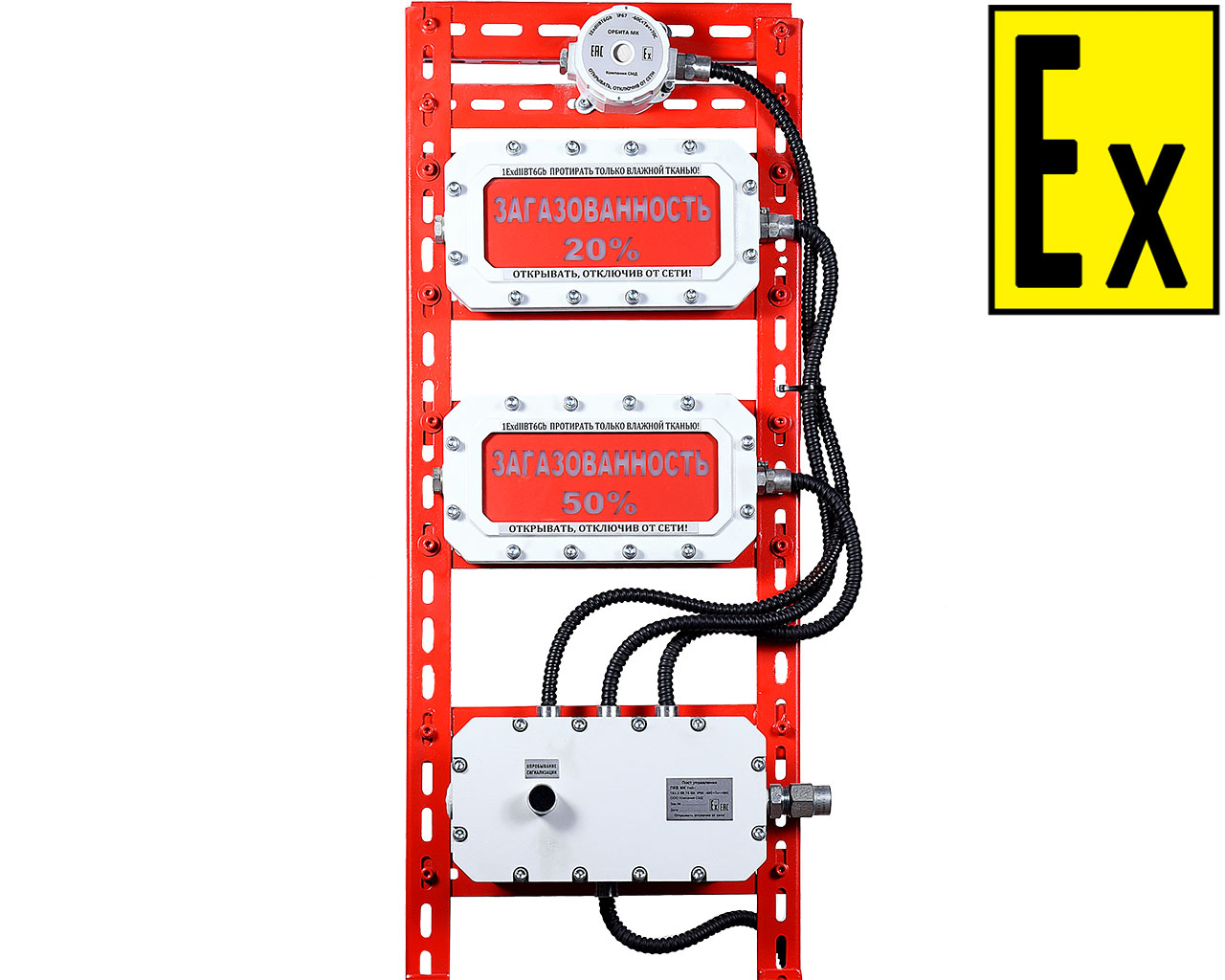

Combined stations are sound or light/sound alarm systems, which combine the functionality of light and sound alarm and alarm control module. All components are rigidly fixed to the metal frame. Connecting cables are routed in flexible metal hose.

Combined stations contain the explosion-proof equipment made by « Kompaniya SMD» LLC.

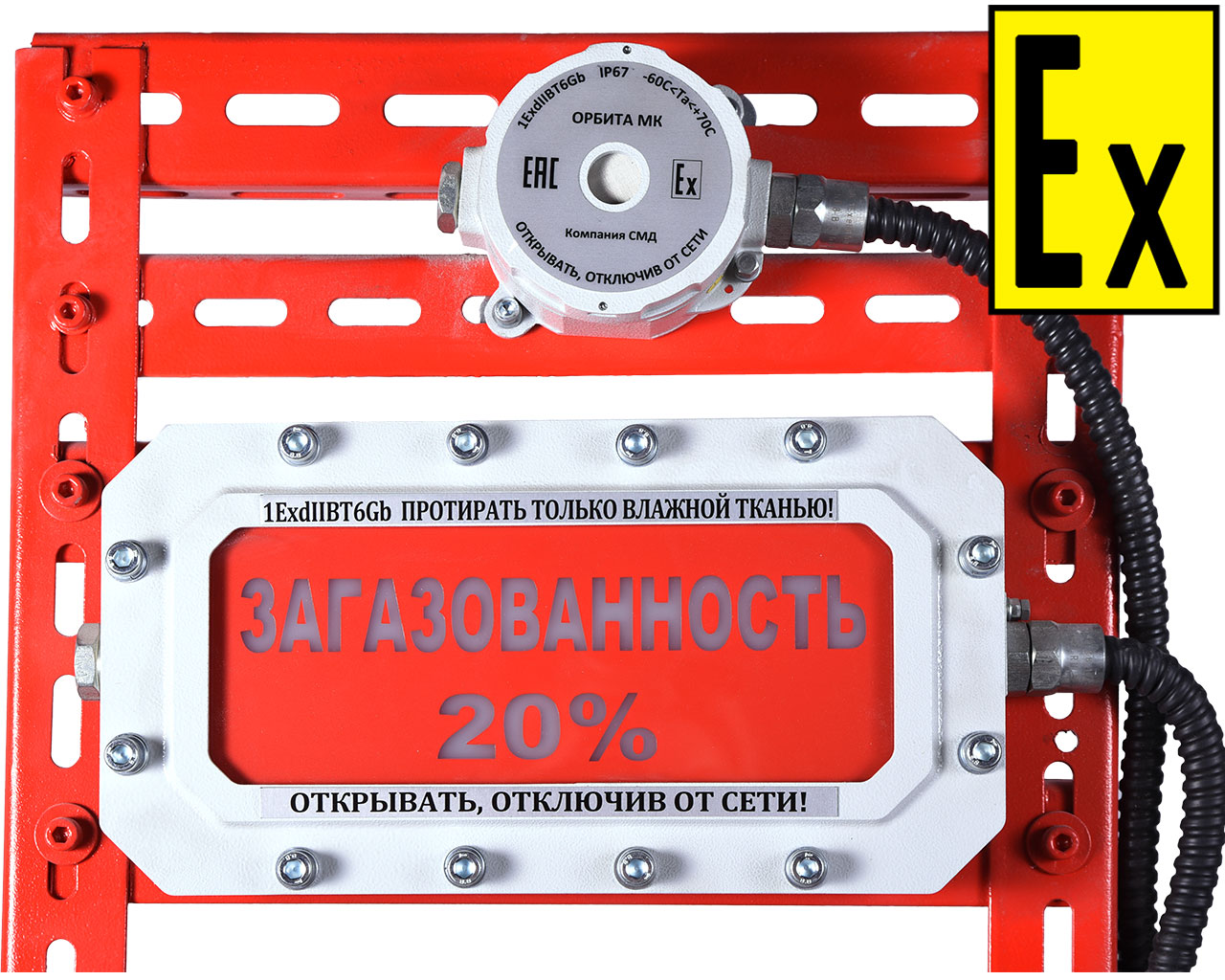

  • Sfera MK light/sound illuminated signs (1ExdllBT6Gb);
  • Orbita MK (1ExdllBT6Gb) and Orbita VZ (1ExmbibllBT6Gb) series light/sound notification units;

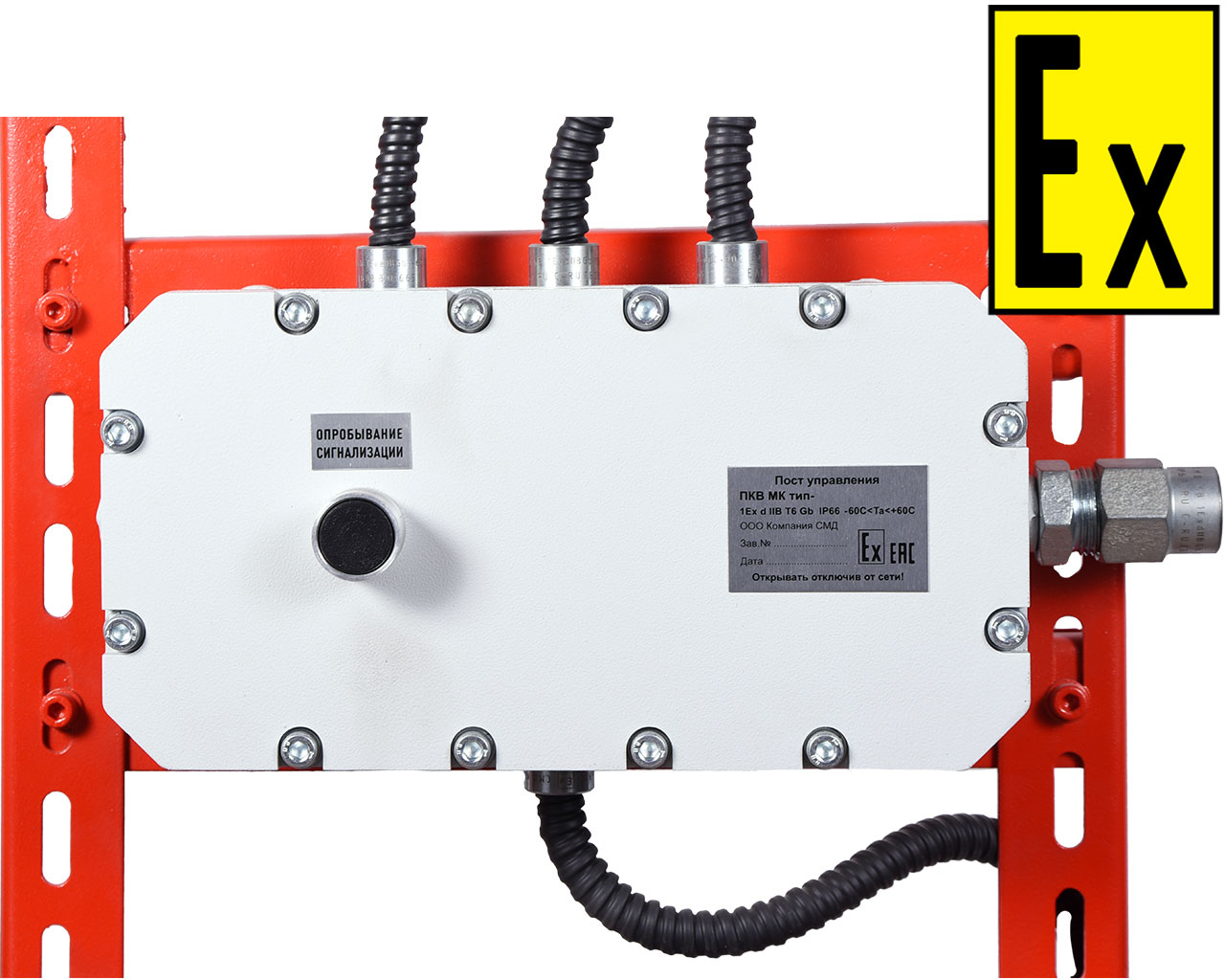

  • PKV MK (1 ExdllBT6Gb) and PKV VZ (1 ExellBT6Gb) series control stations;
  • KVMK (1 ExdllBT5Gb) and KVVZ (1ExellBT5Gb) series junction boxes.
Combined stations are developed as per customer's request. Design is assigned an identification number, which must be specified in subsequent orders and used for references in specifications.
Installation place Zone 1 or 2 as per GOST IEC 60079-10-1-2011
Operating temperature range -60°С<Ta<+60°C
Climatic rating  (depending on the package) UHL2, UHL1
Ingress protection at least Iр65
Operating voltage 12…30VDC
 220VAC, 50 Hz
Frame material Galvanized steel, powdered coating
Protection class I
Service life 5 years

Посты комбинированные разрабатываются на заказ. Конструкции присваивается идентификационный номер, который указывается при последующих заказах, а так же для ссылок в спецификациях.

Пример обозначения: «Пост комбинированный - СМД346400165000-001».
