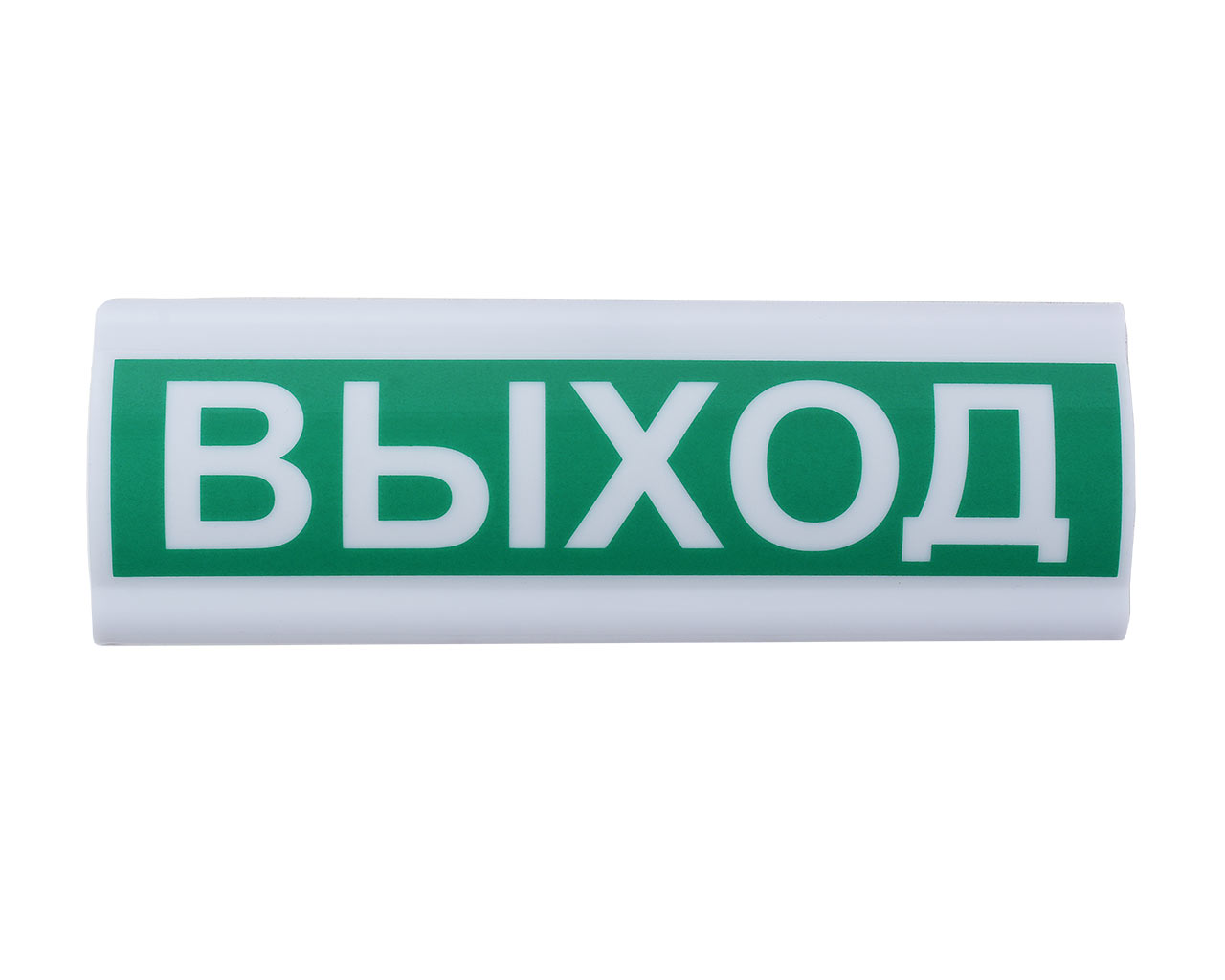

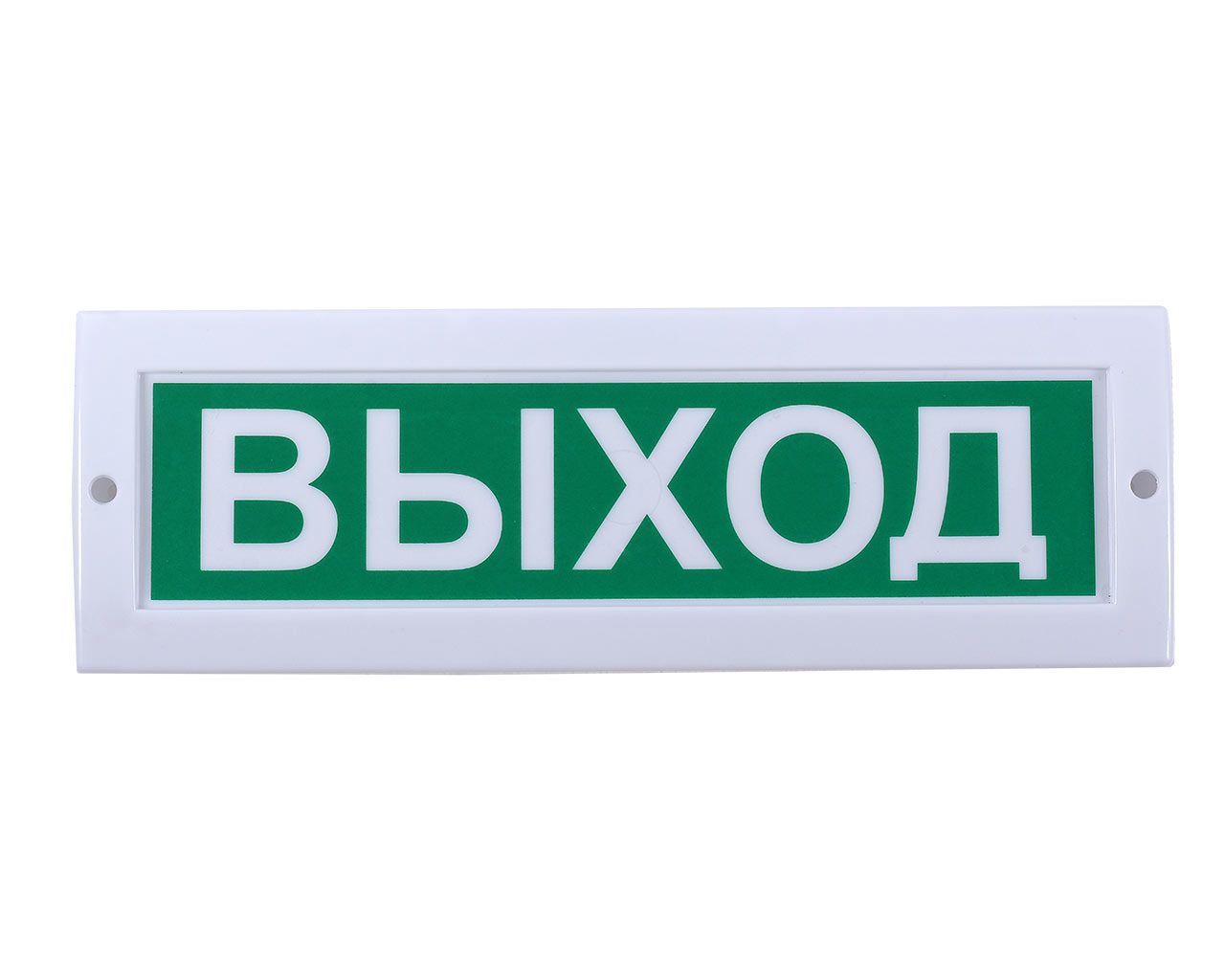

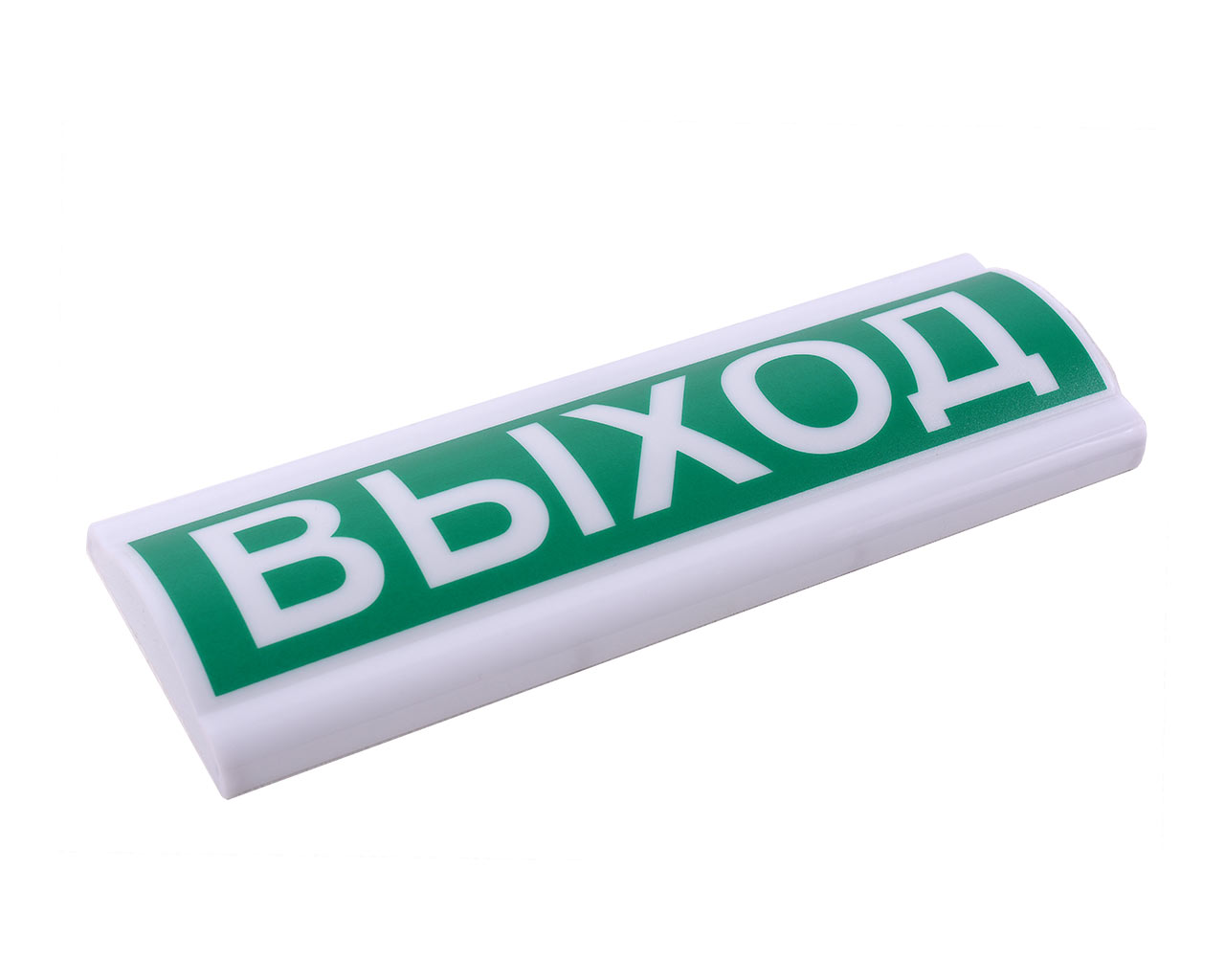

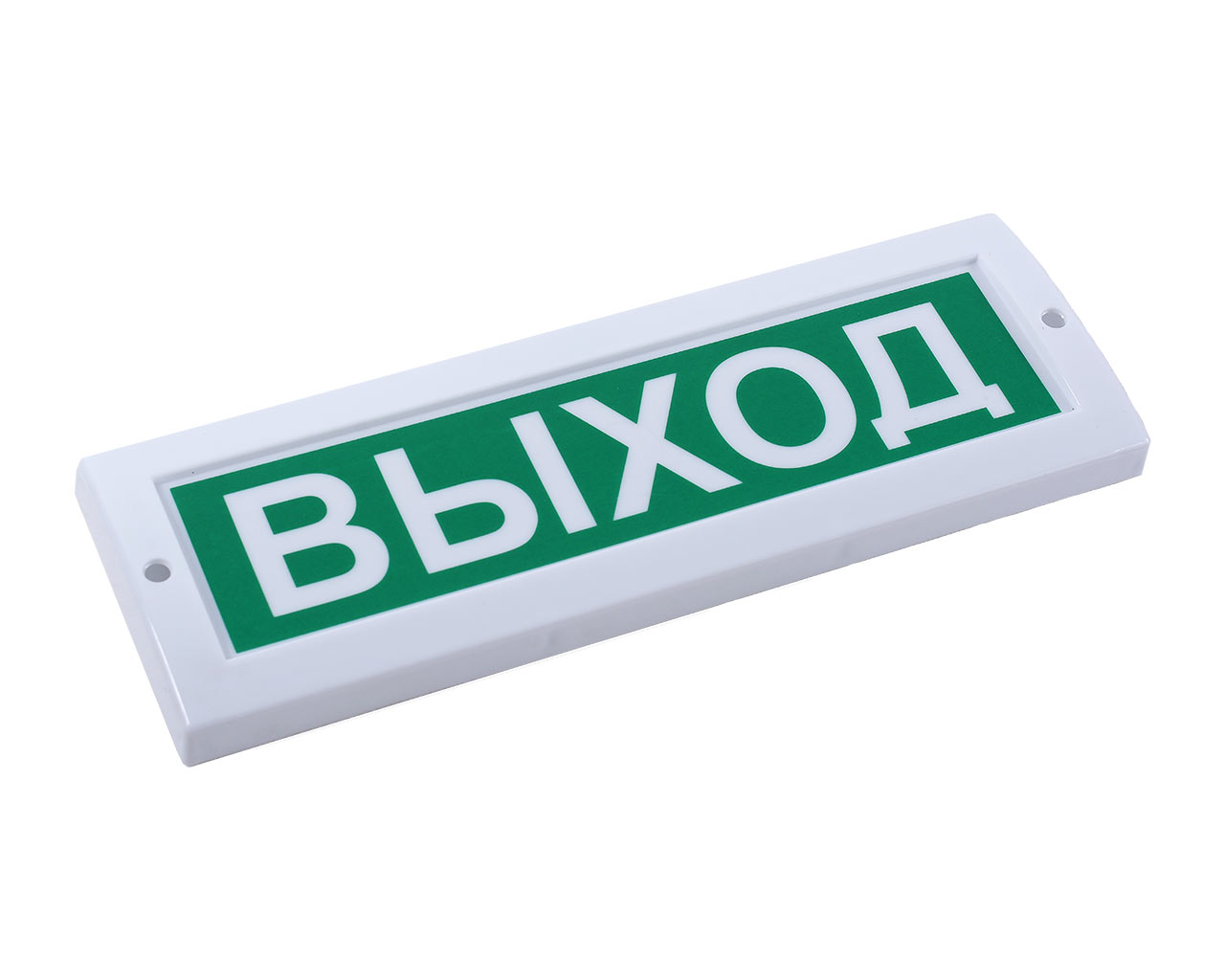

Illuminated ANNUNCIATOR is designed to provide light (text or symbol) alerts in fire alarm and fire fighting systems when operating in combination with receiving/monitoring devices.

	Operating voltage, V	Input current, mА	Built-in siren, dB
Sfera 12 V/Sfera PREMIUM 12 V	12 VDC	20
Sfera 24 V/Sfera PREMIUM 24 V	24 VDC	20
Sfera 12-24 V/Sfera PREMIUM 12-24 V	12-24 VDC	20
Sfera 220 V/Sfera PREMIUM 220 V	220 VAC	25
Sfera ZU,12V, built-in siren	12 VDC	40	105
Sfera PREMIUM ZU, 12 V, built-in siren	12 VDC	40	105
Sfera ZU, 12-24 V, built-in siren	12-24 VDC	40	105
Sfera PREMIUM ZU, 12-24 V, built-in siren	12-24 VDC	40	105
Sfera PREMIUM BATTARY backup power supply	220 VAC	40

Ingress protection IP 52.
Overall dimensions:

Sfera: 300х100х20 mm,
Sfera PREMIUM: 300х100х25 mm. Weight 0,18 kg.

Operating temperature range: -30°С…+55°С.

Type of performance for any modification:

Information inscription or pictogram on order.;
Without inscription;
Bilateral (Overall dimensions: Sphere 300x100x40mm., Sphere PREMIUM 300x100x50mm.);
Hidden inscription.
