Combination fire ANNUNCIATOR, self-contained emergency lights Sirius series
Sirius series fire ANNUNCIATORs are designed to notify public of the fire using illuminated information sign and audible signal. Sirius self-contained emergency lights are designed to provide lighting in corridors and escape routes.
ANNUNCIATORs and emergency lights are manufactured in versions that differ by: enclosure material; notification type (light, sound); operating voltage; availability of standby power supply (Table 1).
Illuminated signs and emergency lights in general purpose version are rated to high ingress protection class (IP67) and can be used outdoors in severe climatic conditions

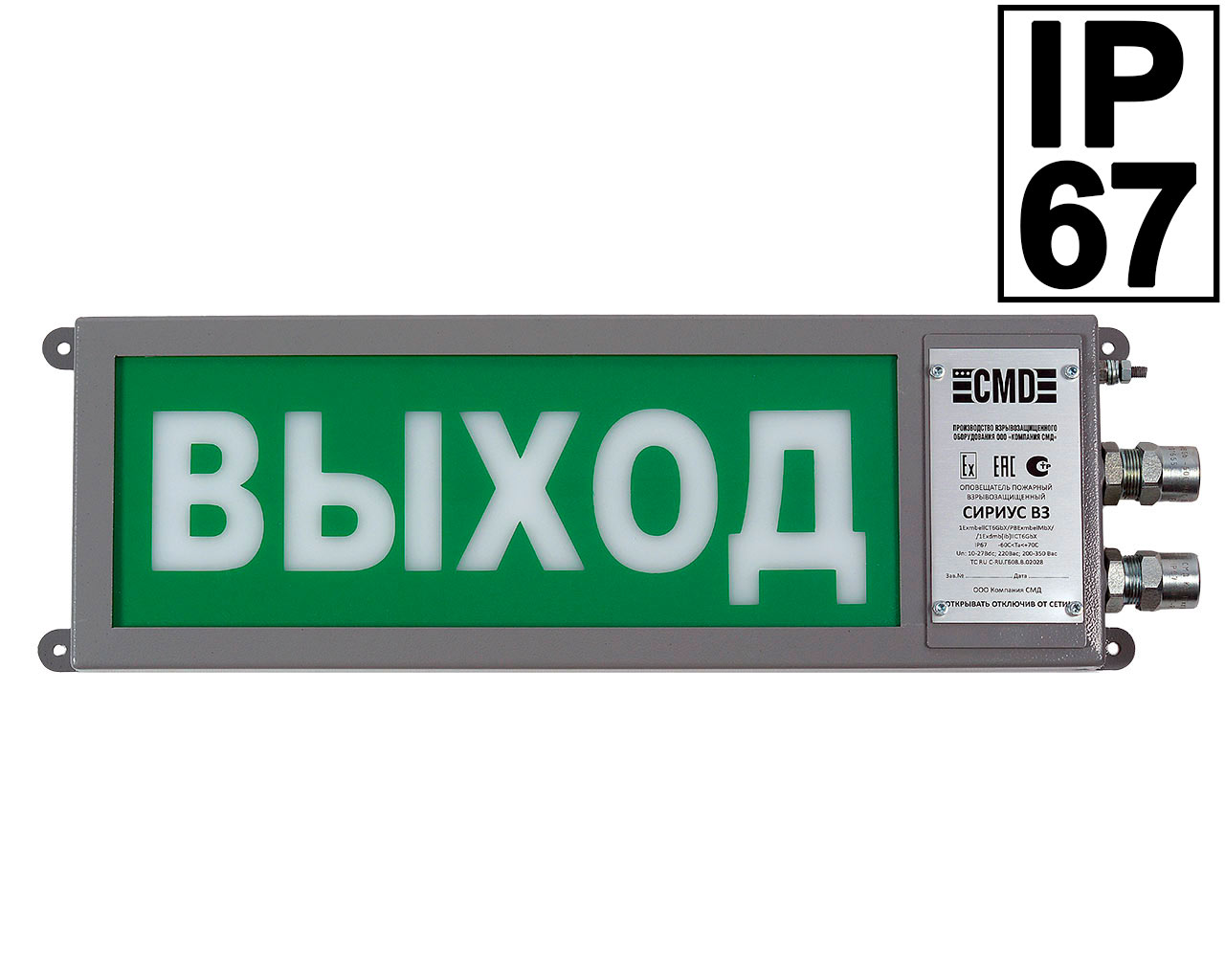

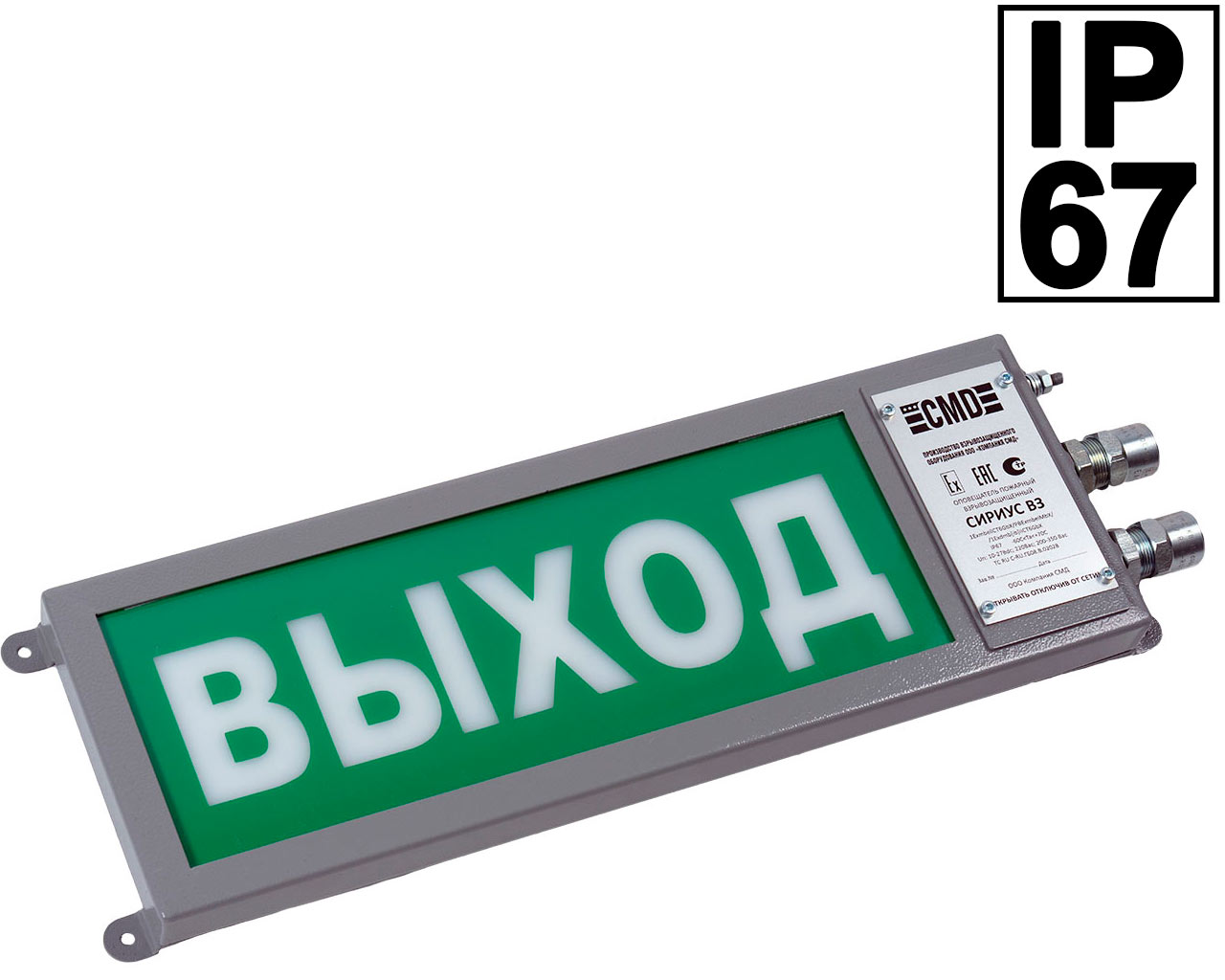

Sirius series illuminated ANNUNCIATORs
Table 1
|
Description |
Designation |
Operating voltage |
|
General industrial (street) light board |
Sirius – X – S |
=10-27BDC; ~176-250VAC; =200-350DC; |
|
General industrial (street) light-sound display |
Sirius – Х – SZ12-24 |
=10-27ВDC; |
|
Sirius – Х – SZ220 |
~176-250VAC; =200-350DC; |
|
|
General industrial (street) light-panel with a backup power source |
Sirius – Х – Р |
=10-27ВDC; ~176-250VAC; =200-350DC; |
Х – designation of case material ('P', 'M', 'N').
Enclosure material:
Illuminated signs are manufactured with different texts and symbols, with any background color - all at customer's request. Colors: red; green; blue; yellow; black; white. In case of non-standard text or pictogram the customer must provide a text or figure.
The alarms come with two KV TU 3449-138-81888935-2016 series explosion-proof cable glands made by "Kompaniya CMD" LLC. Cable glands have G1/2 connection thread. Cable glands allow to route in/out round cables with diameter 6-12 mm.
Illuminated signs are supplied with cable glands of various versions:
| Specification | Version, mode | Value |
| Operating temperature | - | -60C<Та<+70C |
| Ingress protection | - | IP67 |
| Operating voltage | -S, -SZ12-24 | 10-27 VDC |
| -S, -SZ220 | 165-250VAC or 200-350VDC | |
| Light channel input current, max. | 10-27 VDC | 500 мА |
| 220 VAC or 200-350 VDC | 50 мА | |
| Audio channel input current, max. | 10-27 VDC | 250 мА |
| 220 VAC or 200-350 VDC | 30 мА | |
| Operation modes | - | Separate power for light and audible alarms; |
| Light alarm modes | - | Continuous; Intermittent, 1Hz. or 2 Hz |
| Audible notification modes | - | 1 - Horn, single-tone; 2 - Siren 1, frequency modulation 1 Hz; 3 – Chime, frequency modulation 7 Hz; 4 – Intermittent 2 Hz |
| External illumination of text sign without loss of discernibility, max. | - | 1500 lx |
| Sound pressure at 1 m distance, min. | - | 105 Db |
| Sound signal frequency range | - | 1,5-3 kHz |
| Backup power supply type | -Р, | Battery |
| Autonomous operation time, min. | -Р, | 1 hr |
| Light source type | - | High output LEDs |
| Sign dimensions, min. | -S, -SZ12-24, -SZ220 | 350х120 mm |
| Enclosure material | - | Polyamide and polycarbonate Steel 08, steel st.З; Stainless steel 12Х18Н10Т |
| Overall dimensions, max | Plastic case | 466х160х50 mm |
| Steel, Stainless steel | 466х160х41 mm | |
| Weight, max. | -P (Plastic case) | 3 kg |
| -M (Steel) | 3,5 kg | |
| -N (Stainless steel) | 3,5 kg |
Illuminated signs are manufactured with different texts and pictograms, with any background color - all at customer's request. Colors: red; green; blue; yellow; black; white. In case of non-standard text or pictogram the customer must provide a wording or figure. Designations used when ordering
| Sirius OP | P | – S | К | - l | FIRE text color, background color |
| 1 | 2 | 3 | 4 | 5 | 6 |
1 – Designation for Sirius OP series ANNUNCIATORs (general purpose outdoor version);
2 – Enclosure material:
«P» – plastic (polyamide, polycarbonate);
«M» – steel;
«N» – stainless steel;
3 – notification type:
«S» – illuminated sign;
«SZ» – illuminated sign with sounder;
4 – cable gland type:
«K» – for surface routing of cable;
«T1/2», «T3/4» – for connection to G1/2 or G3/4 pipe thread;
«B» – for armoured cable, outer diameter 18 mm;
«KM10», «KM12», «KM15», «KM20» – for metal hose, 10 mm - 20 mm.
5 – cable gland positions (relative to front view):
r – right (default, not necessary to specify); l – left; 6 – text or pictogram, e.g. 'FIRE', 'GAS, LEAVE NOW' with text color and background color specified.
