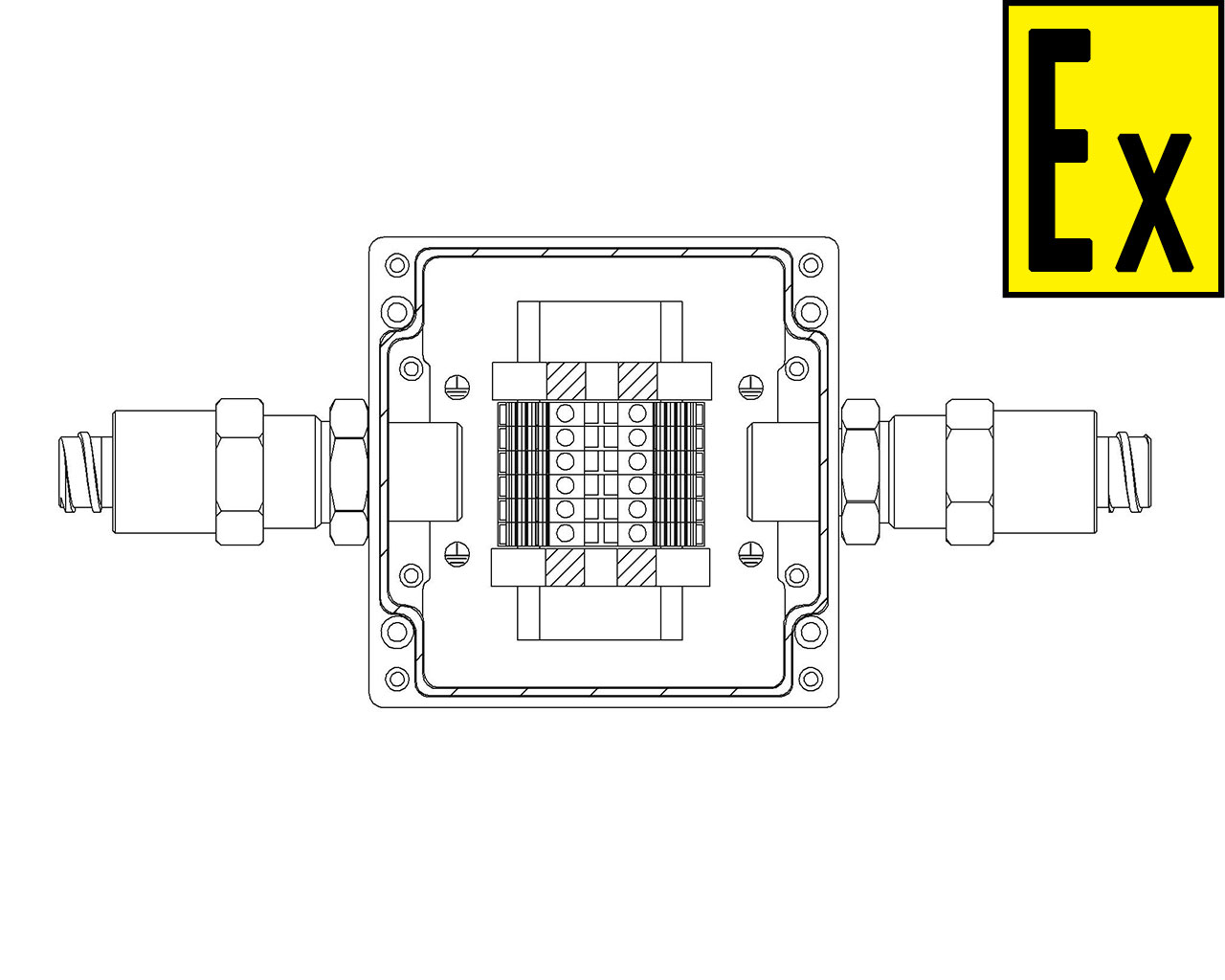

KVMK 601
 |
KVMK 601, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 2 pieces | |
|

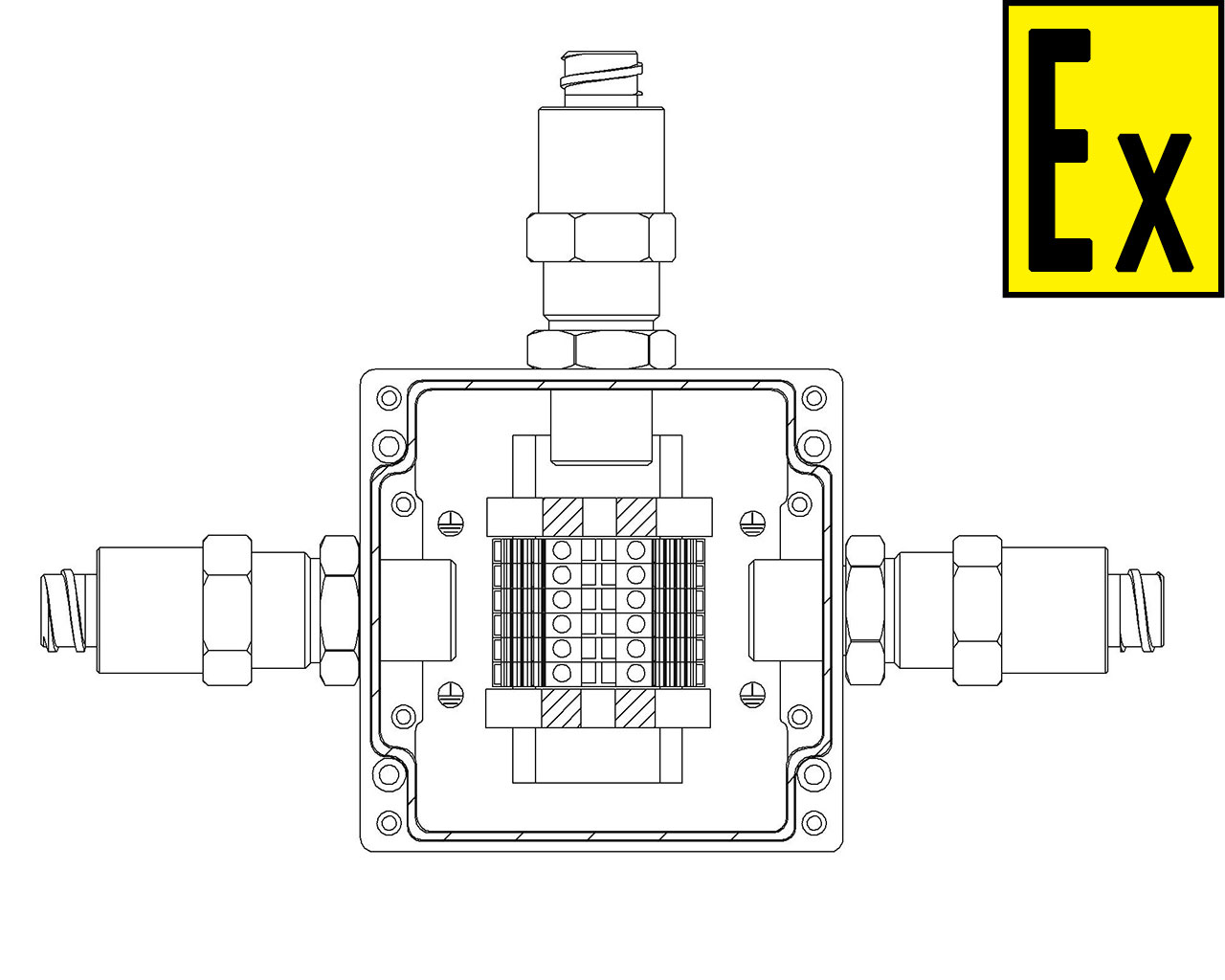

KVMK 602
 |
KVMK 602, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 3 pieces | |
|

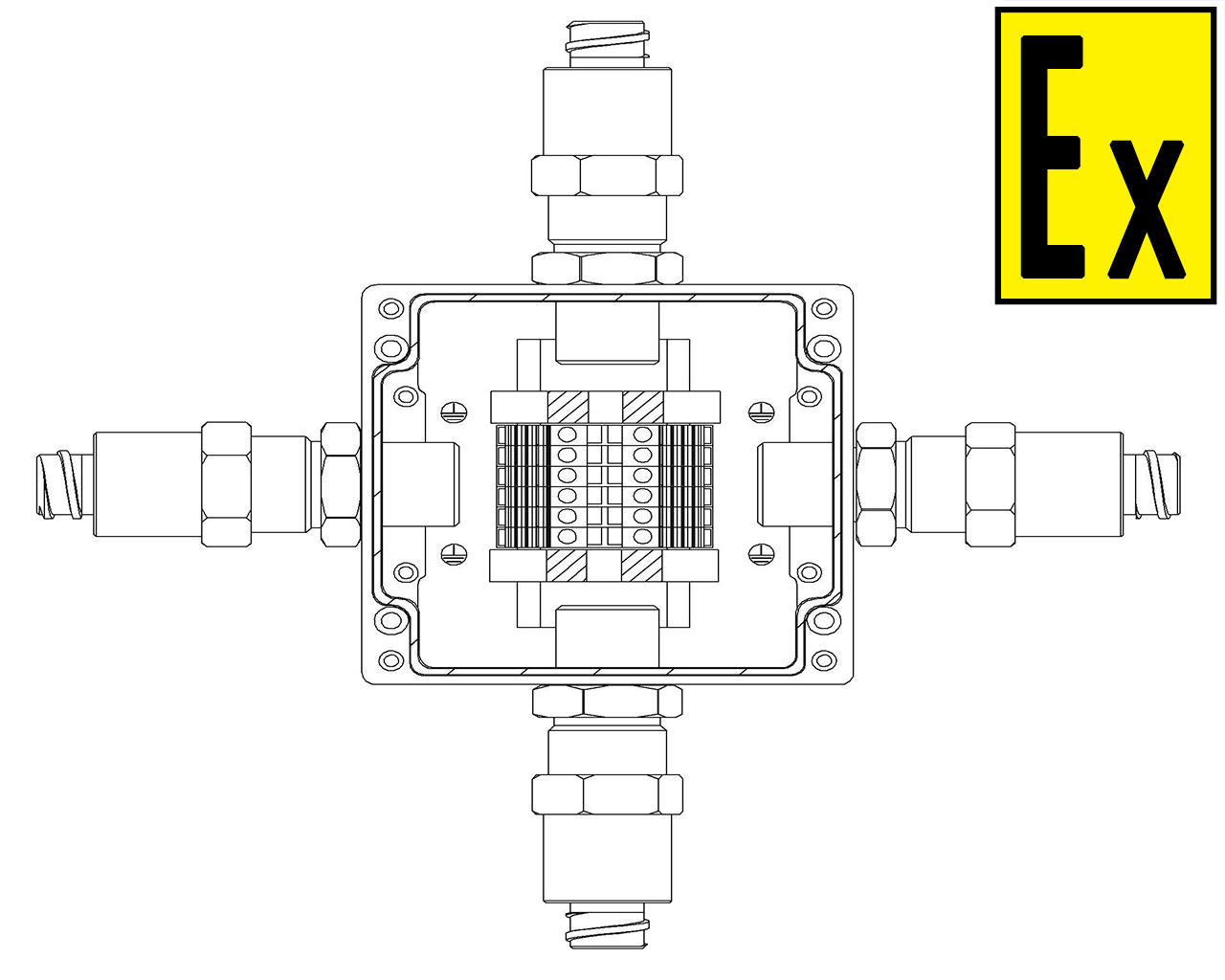

KVMK 603
 |
KVMK 603, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 4 pieces | |
|

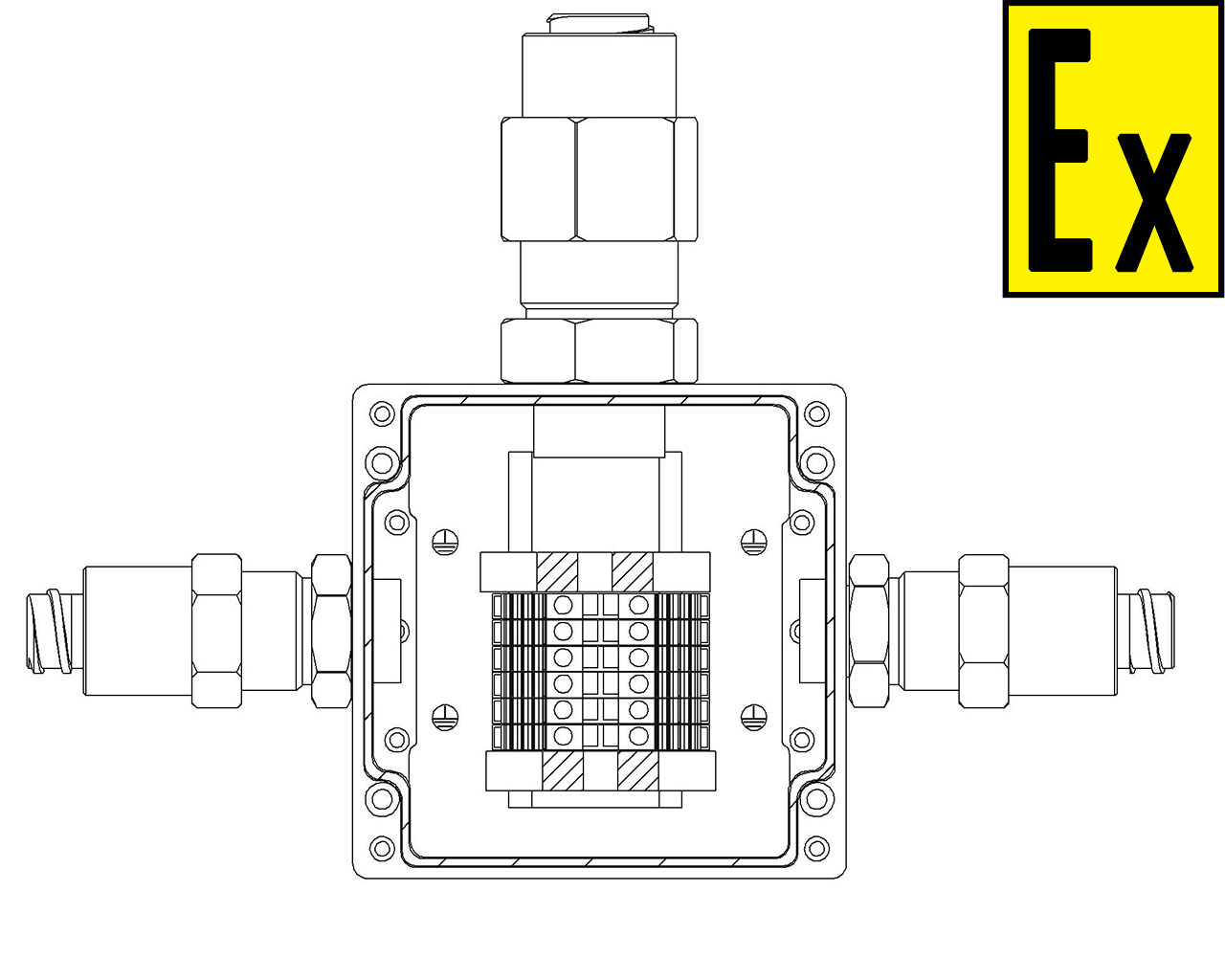

KVMK 604
 |
KVMK 604, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 2 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 1 pieces | |
|
KVMK 605
 |
KVMK 605, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 2 pieces | |
|

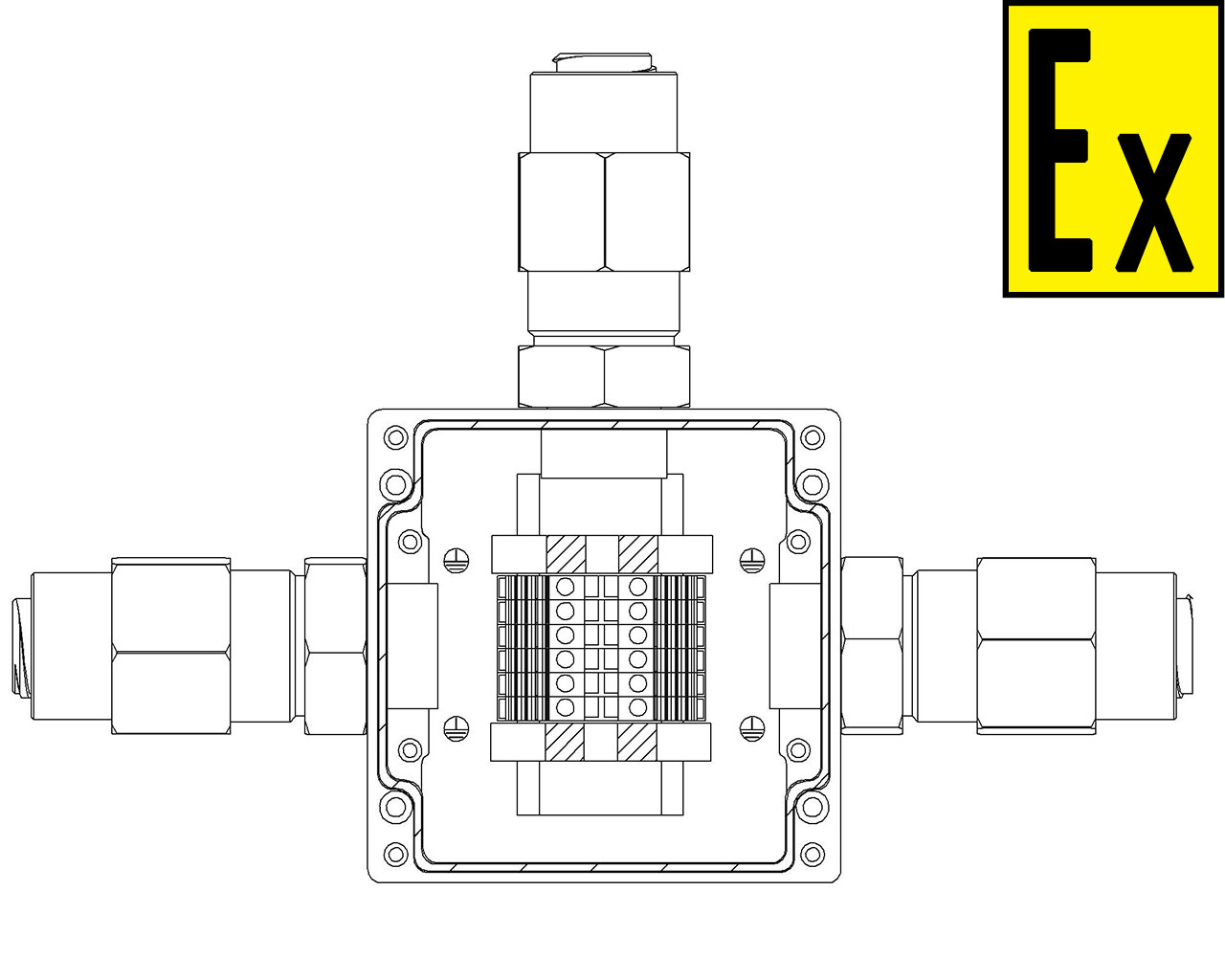

KVMK 606
 |
KVMK 606, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 3 pieces | |
|

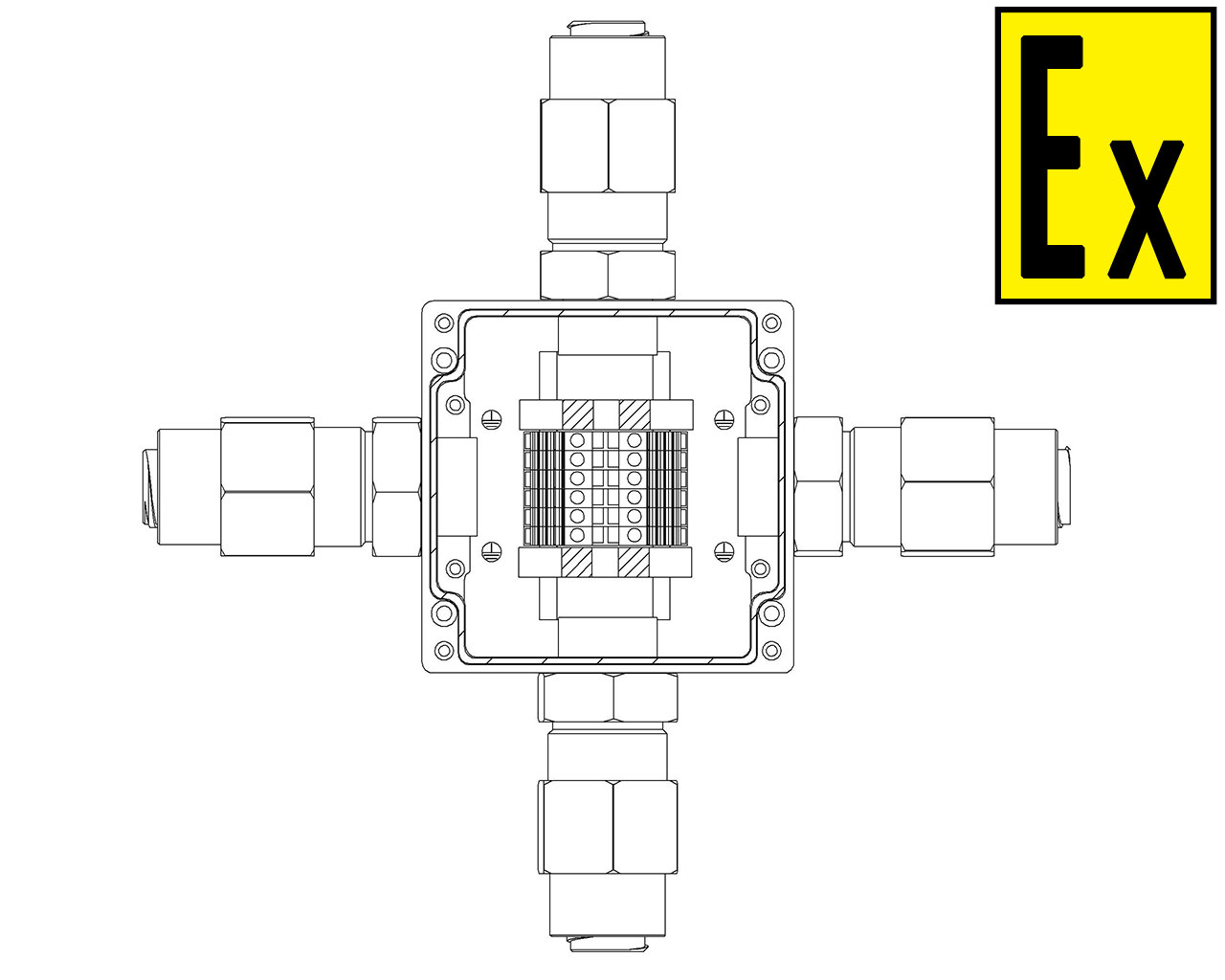

KVMK 607
 |
KVMK 607, 1ExeIIBT5Gb, material - Aluminium alloy 100х100х81 mm, clamp terminals 0,5-4 mm2 I=25А -6 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 4 pieces | |
|

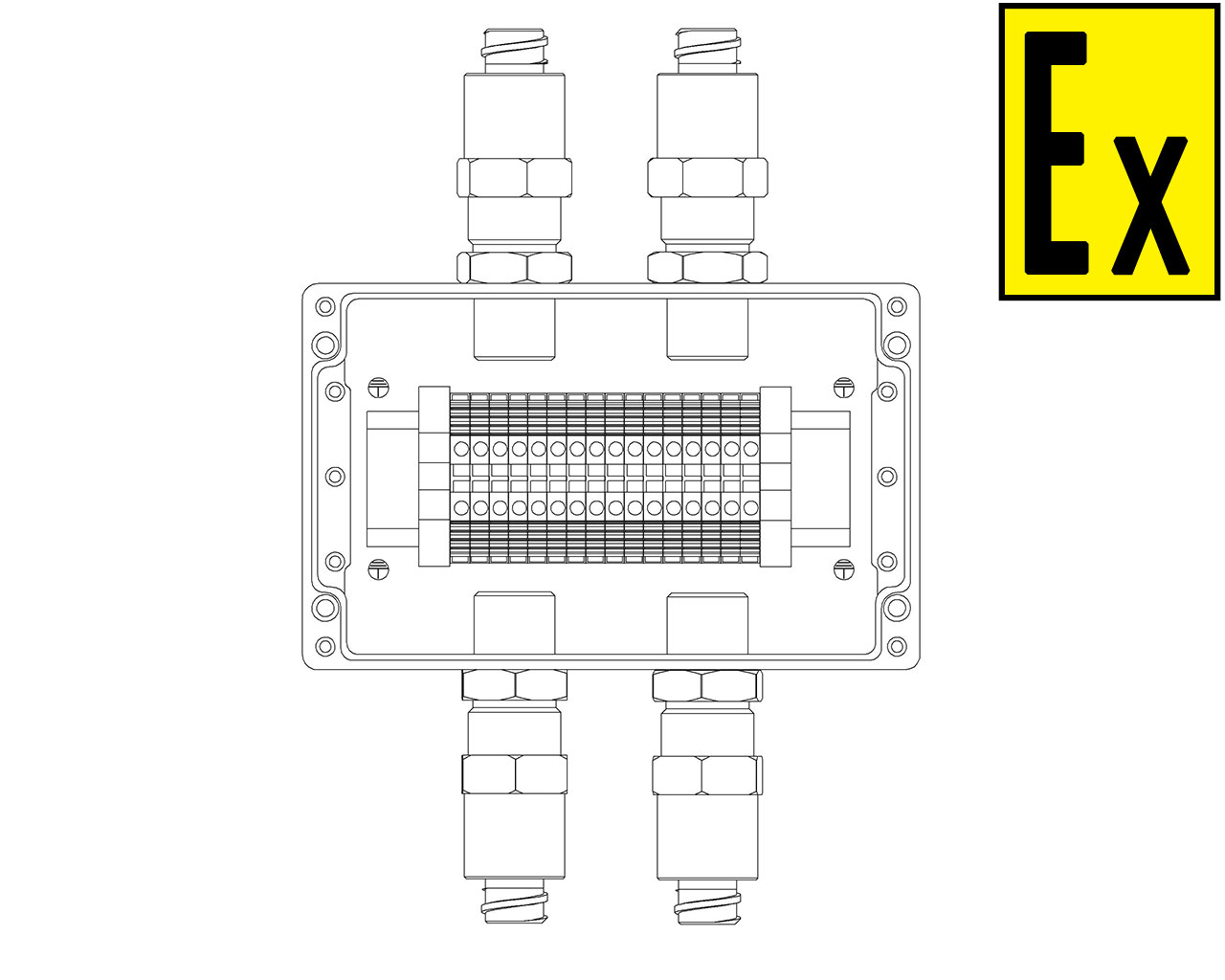

KVMK 1601
 |
KVMK 1601, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 4 pieces | |
|

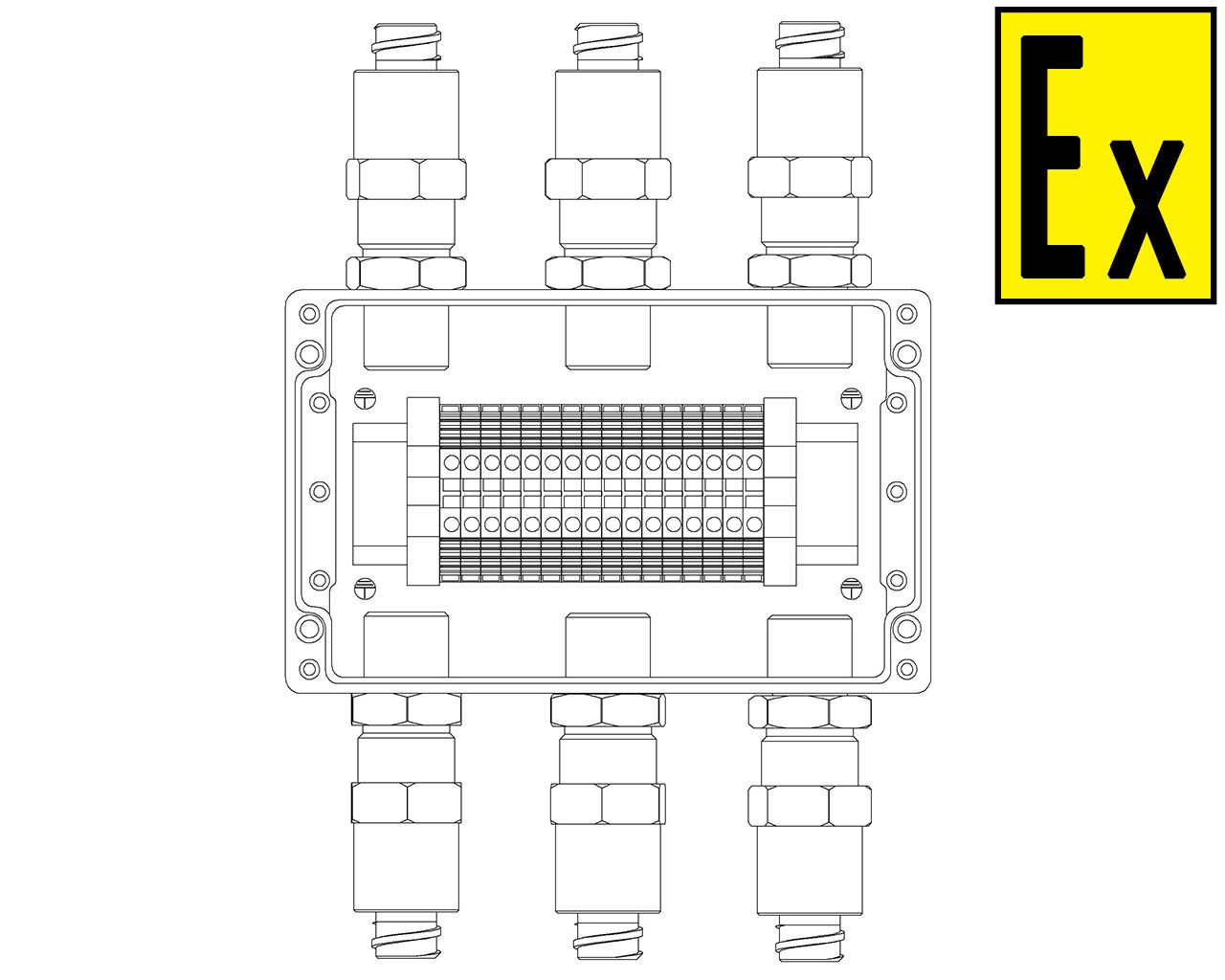

KVMK 1602
 |
KVMK 1602, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 6 pieces | |
|
KVMK 1603
 |
KVMK 1603, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 8 pieces | |
|

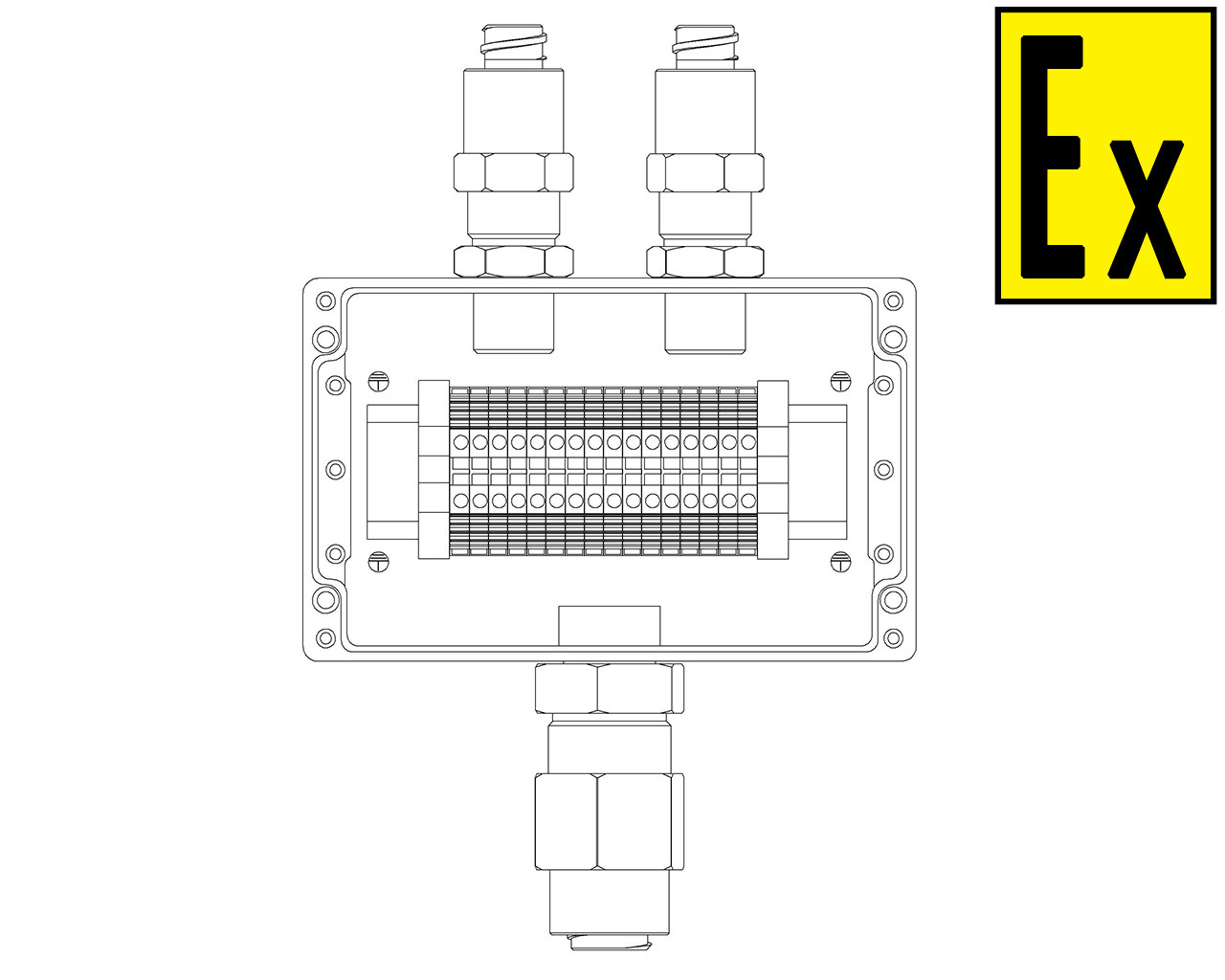

KVMK 1604
 |
KVMK 1604, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 2 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 1 pieces | |
|
KVMK 1605
 |
KVMK 1605, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 3 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 1 pieces | |
|
KVMK 1606
 |
KVMK 1606, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 4 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 1 pieces | |
|
KVMK 1607
 |
KVMK 1607, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 4 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 2 pieces | |
|

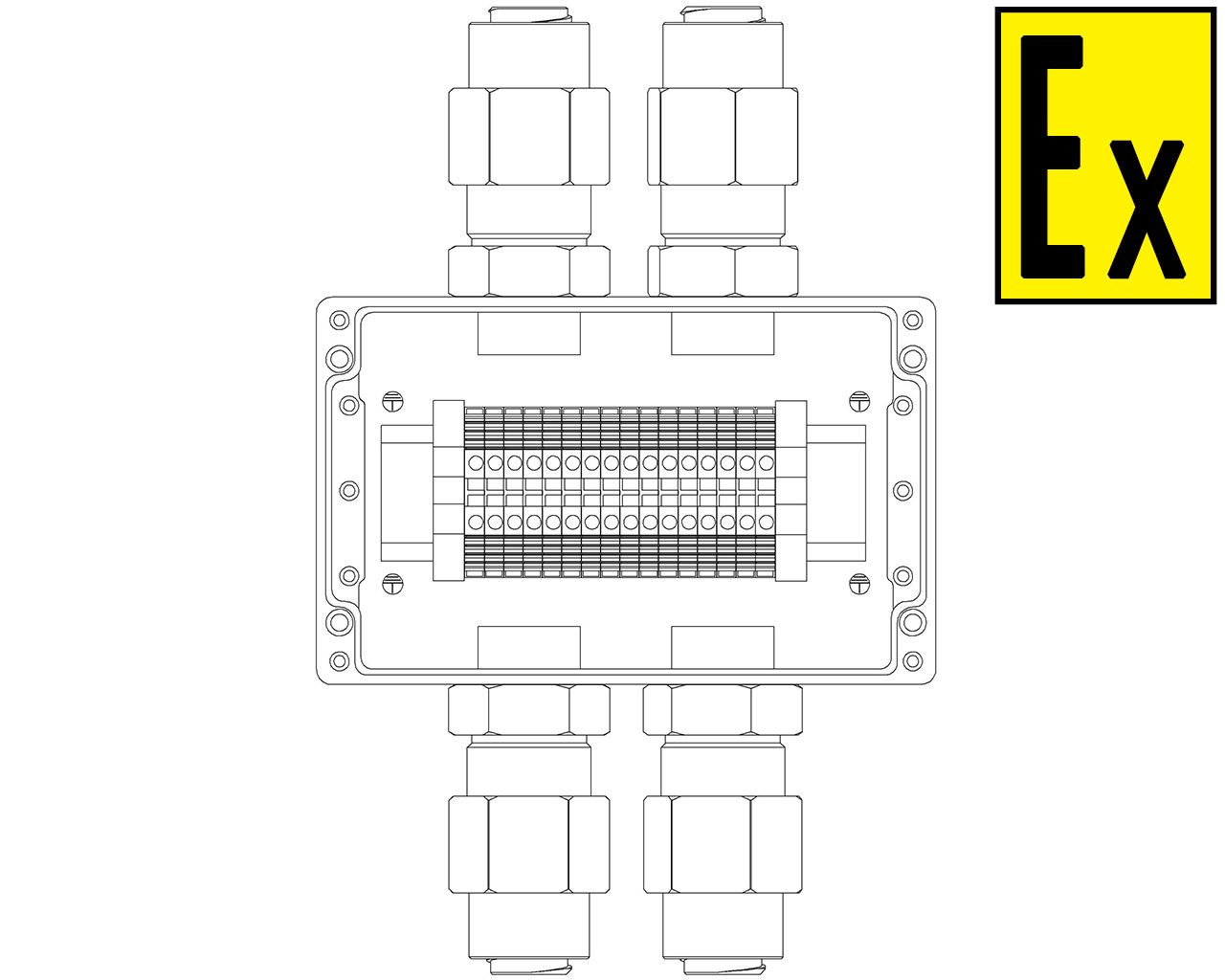

KVMK 1608
 |
KVMK 1608, 1ExeIIBT5Gb, material - Aluminium alloy 100х160х81 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 4 pieces | |
|
KVMK 1609
 |
KVMK 1609, 1ExeIIBT5Gb, material - Aluminium alloy 160х160х91 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 10 pieces | |
|
KVMK 1610
 |
KVMK 1610, 1ExeIIBT5Gb, material - Aluminium alloy 160х160х91 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 5 pieces universal cable gland: kable ⌀16-22 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀25 mm - 1 pieces | |
|

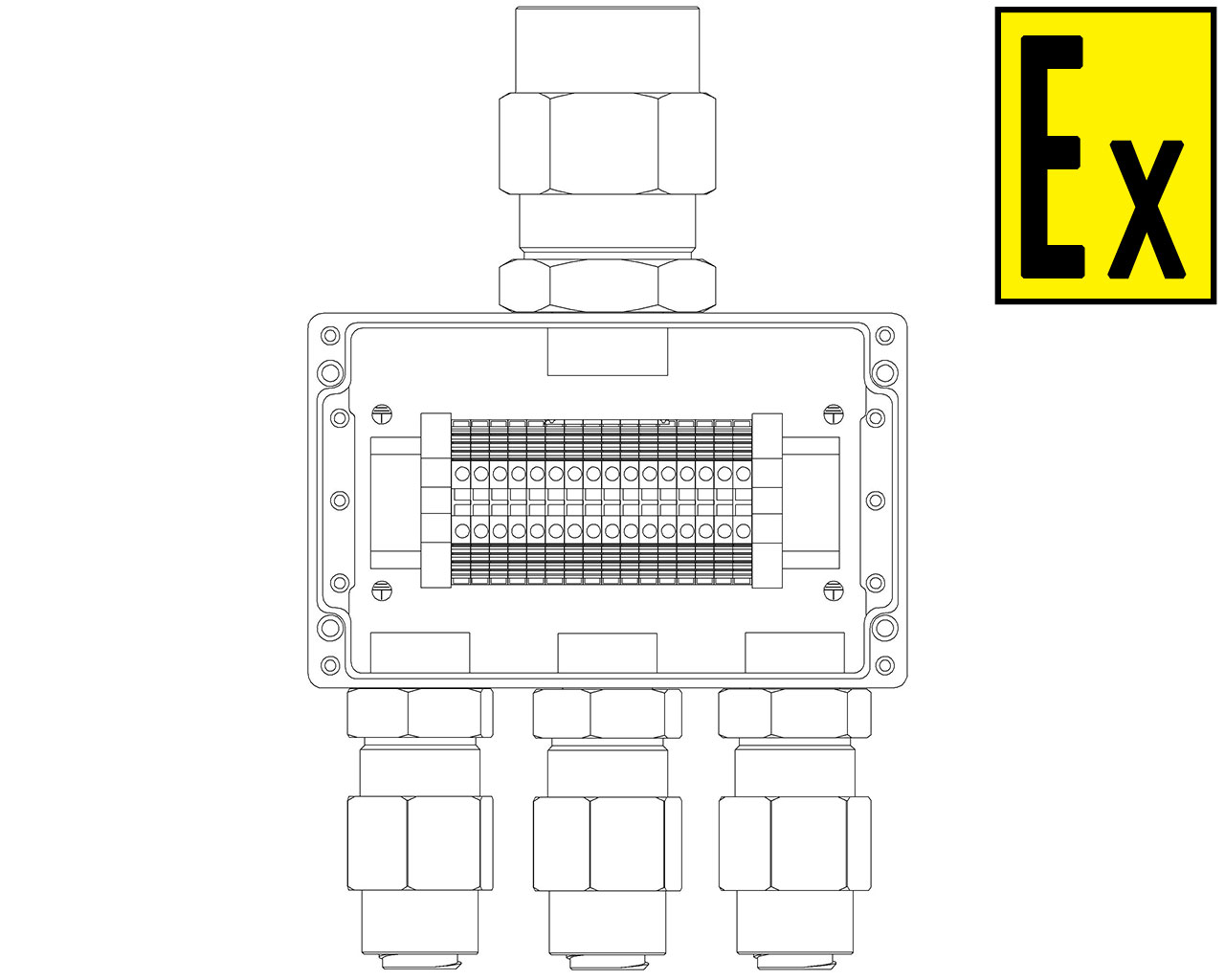

KVMK 1611
 |
KVMK 1611, 1ExeIIBT5Gb, material - Aluminium alloy 160х160х91 mm, clamp terminals 0,5-4 mm2 I=25А -16 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 3 pieces universal cable gland: kable ⌀16-22 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀25 mm - 1 pieces | |
|

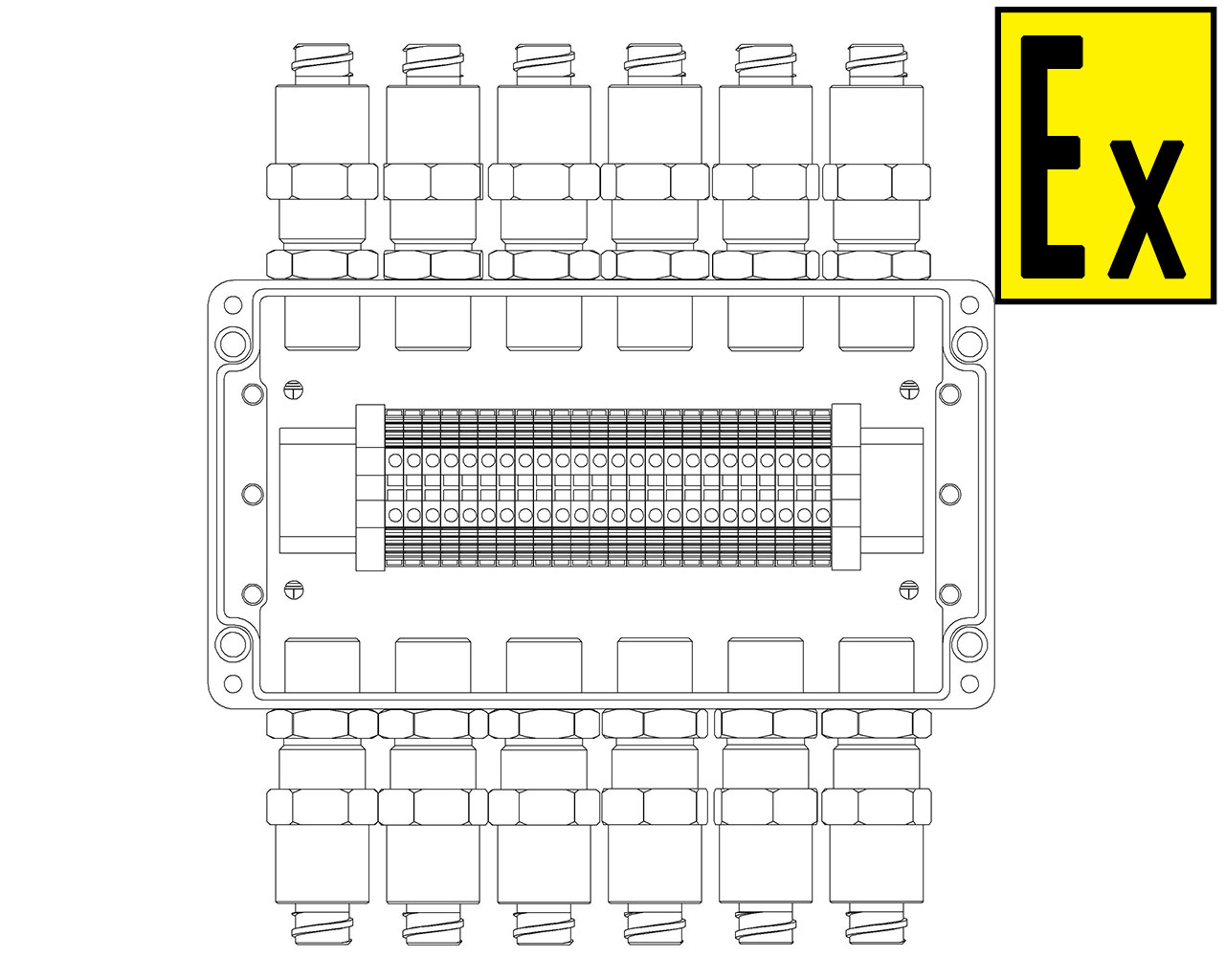

KVMK 2401
 |
KVMK 2401, 1ExeIIBT5Gb, material - Aluminium alloy 120х220х91 mm, clamp terminals 0,5-4 mm2 I=25А -24 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 12 pieces | |
|

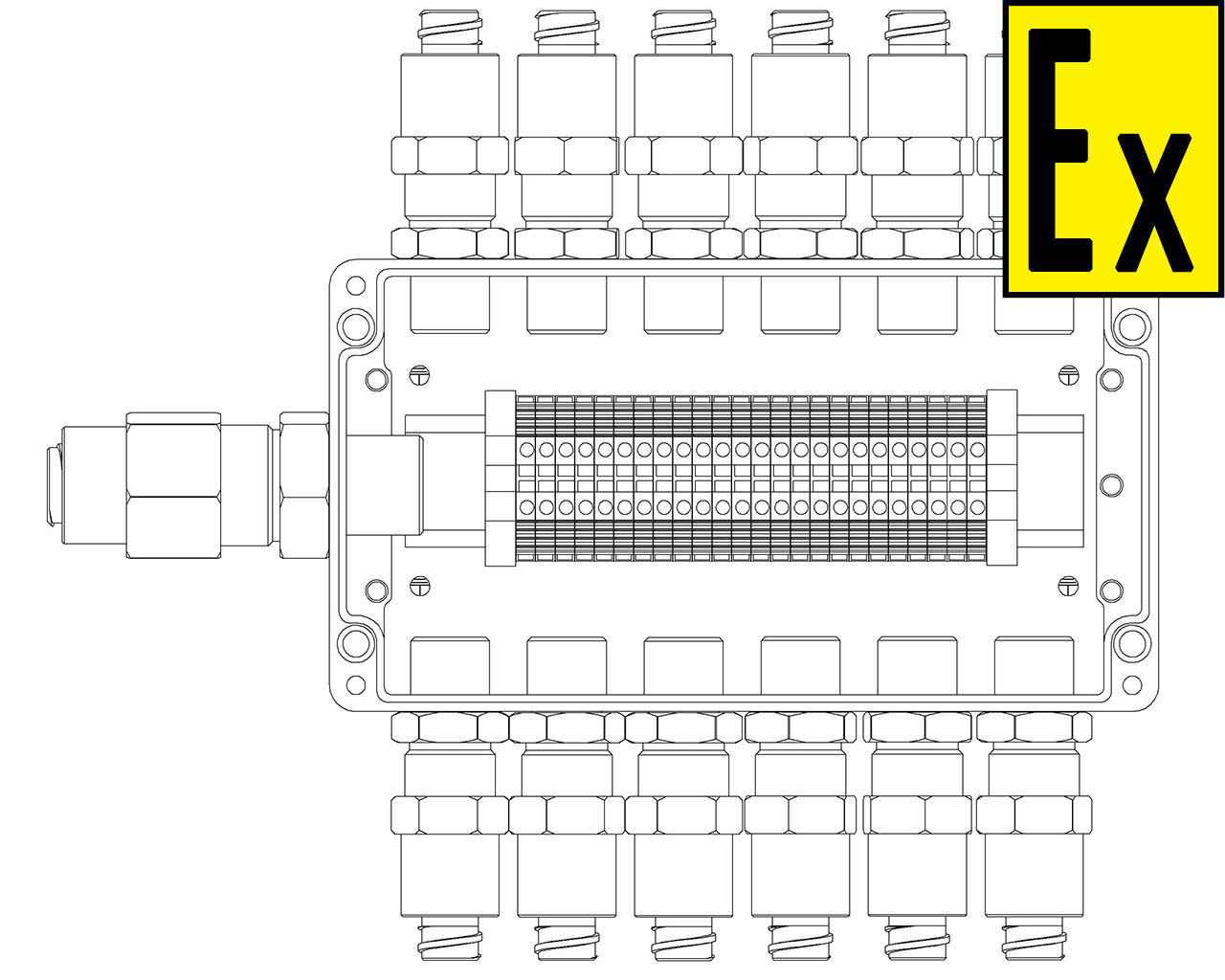

KVMK 2402
 |
KVMK 2402, 1ExeIIBT5Gb, material - Aluminium alloy 120х220х91 mm, clamp terminals 0,5-4 mm2 I=25А -24 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 12 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 1 pieces | |
|

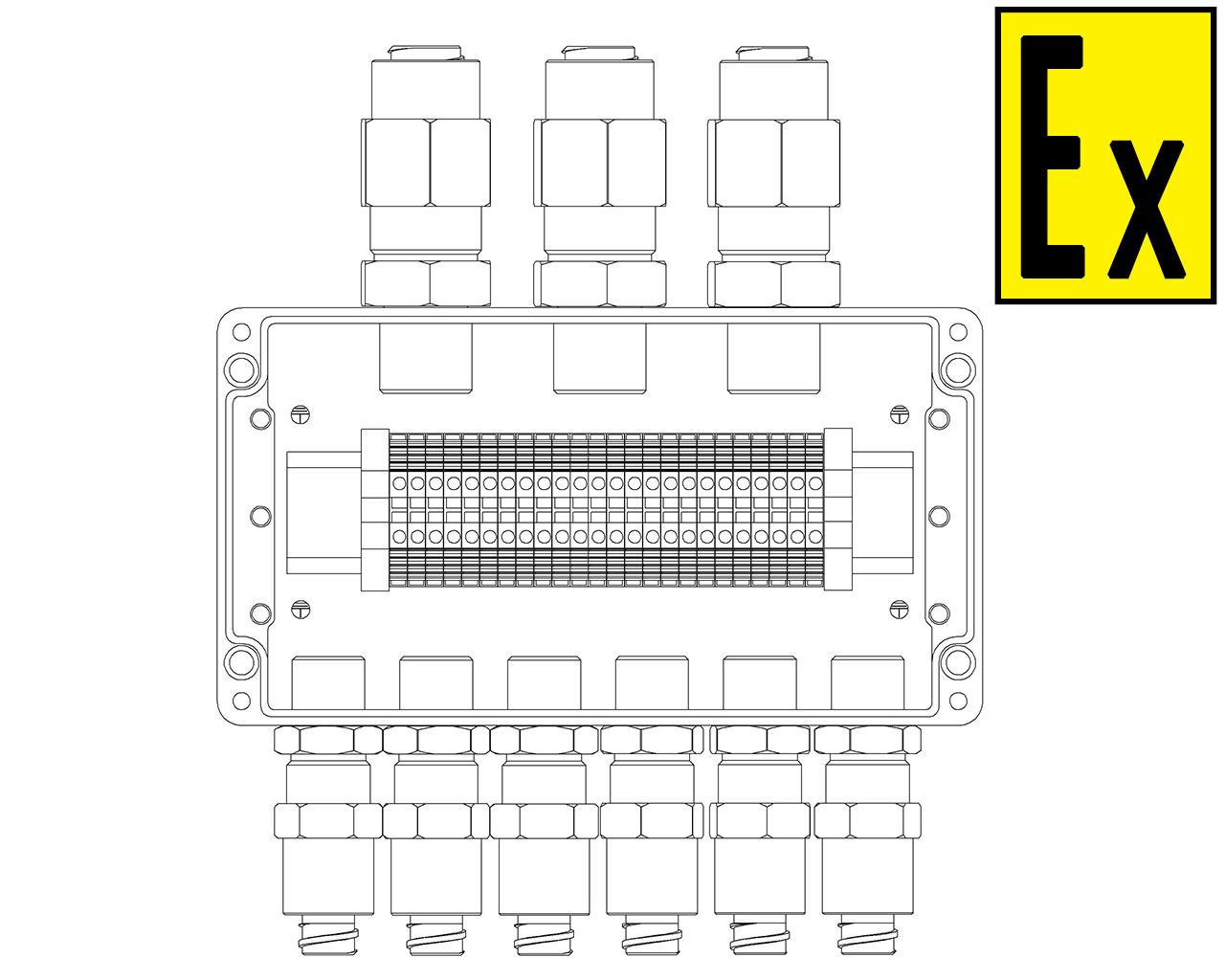

KVMK 2403
 |
KVMK 2403, 1ExeIIBT5Gb, material - Aluminium alloy 120х220х91 mm, clamp terminals 0,5-4 mm2 I=25А -24 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 6 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 3 pieces | |
|

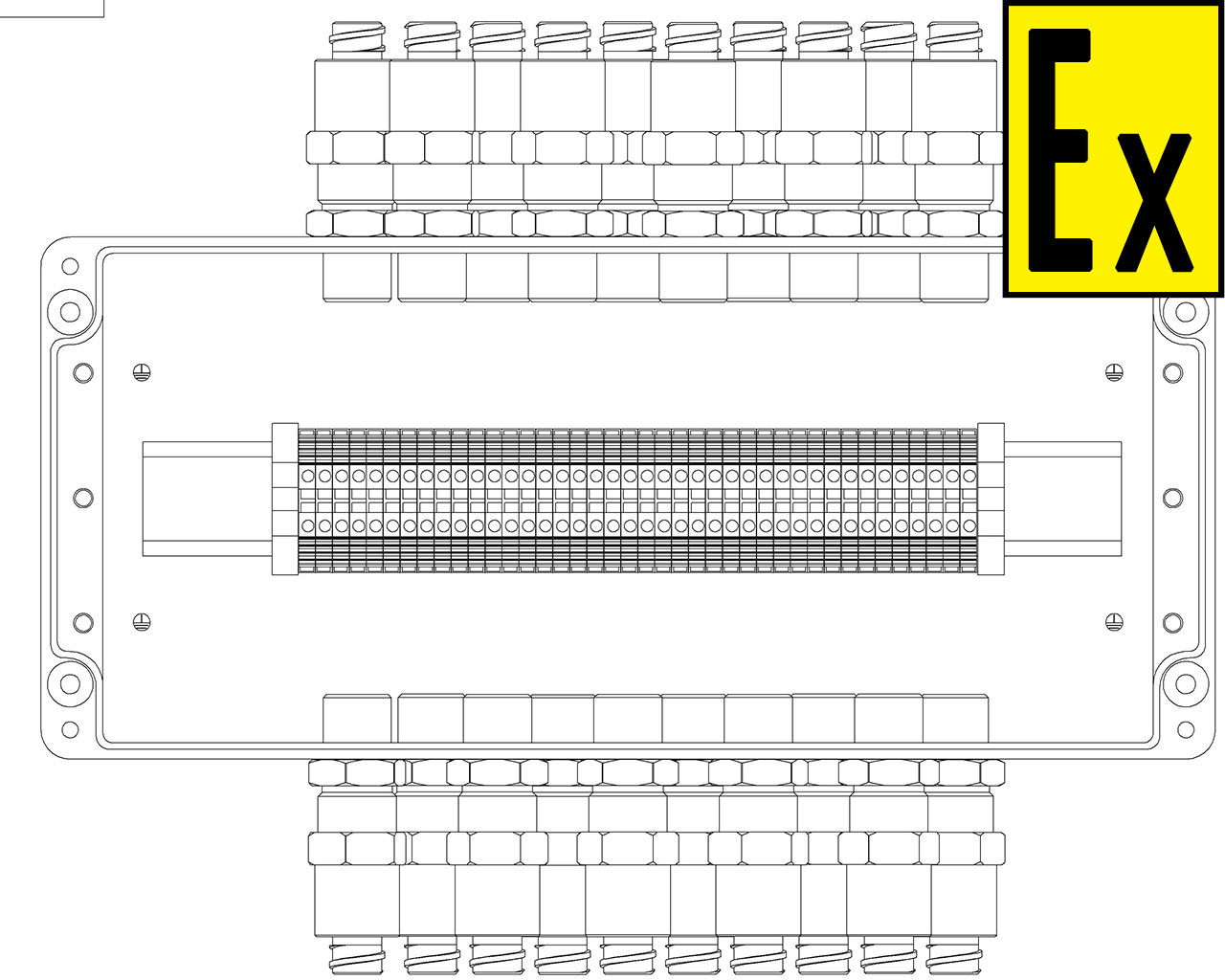

KVMK 4001
 |
KVMK 4001, 1ExeIIBT5Gb, material - Aluminium alloy 160х360х91 mm, clamp terminals 0,5-4 mm2 I=25А -40 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 20 pieces | |
|

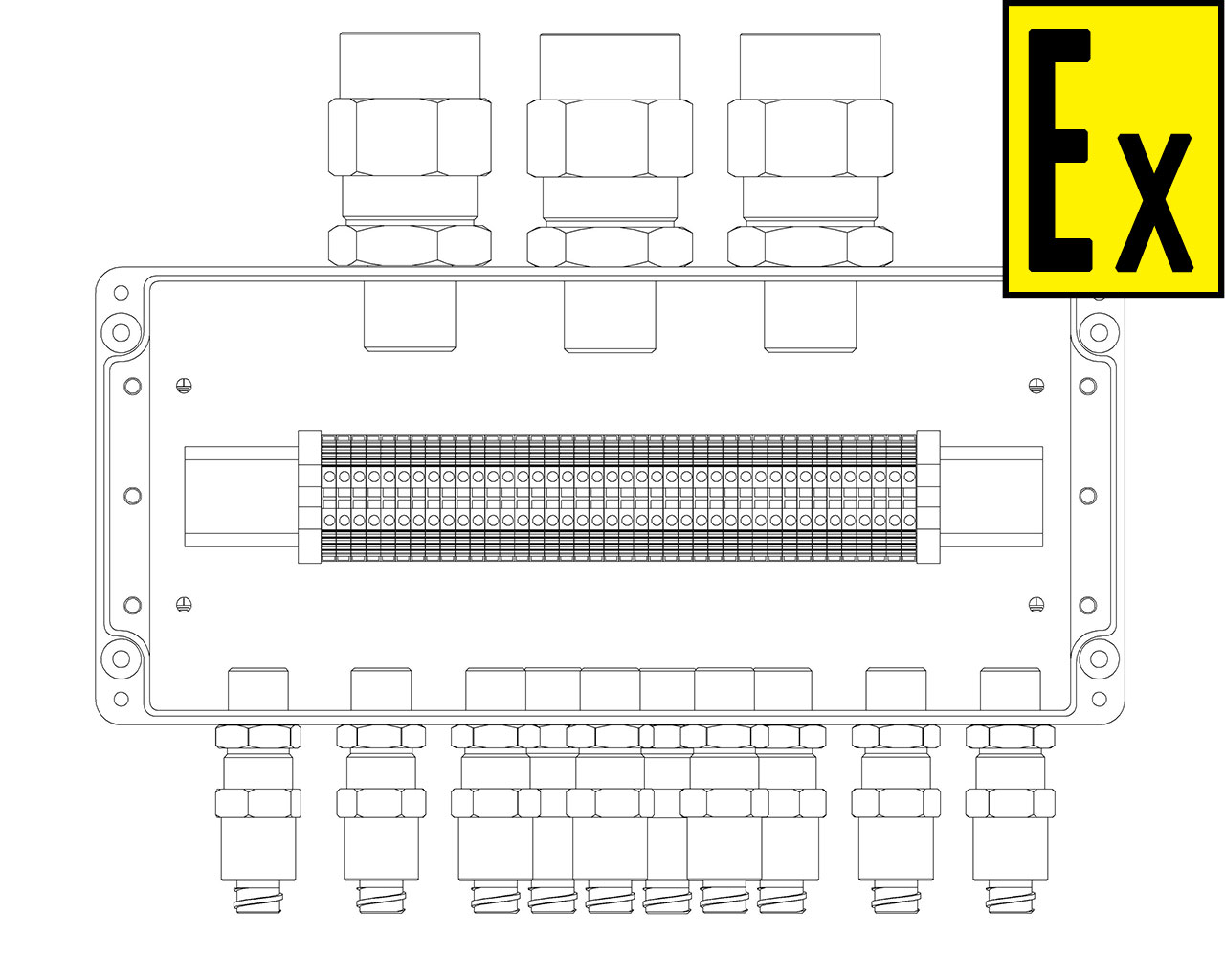

KVMK 4003
 |
KVMK 4003, 1ExeIIBT5Gb, material - Aluminium alloy 160х360х91 mm, clamp terminals 0,5-4 mm2 I=25А -40 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀6-12 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀15 mm - 10 pieces universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 5 pieces | |
|

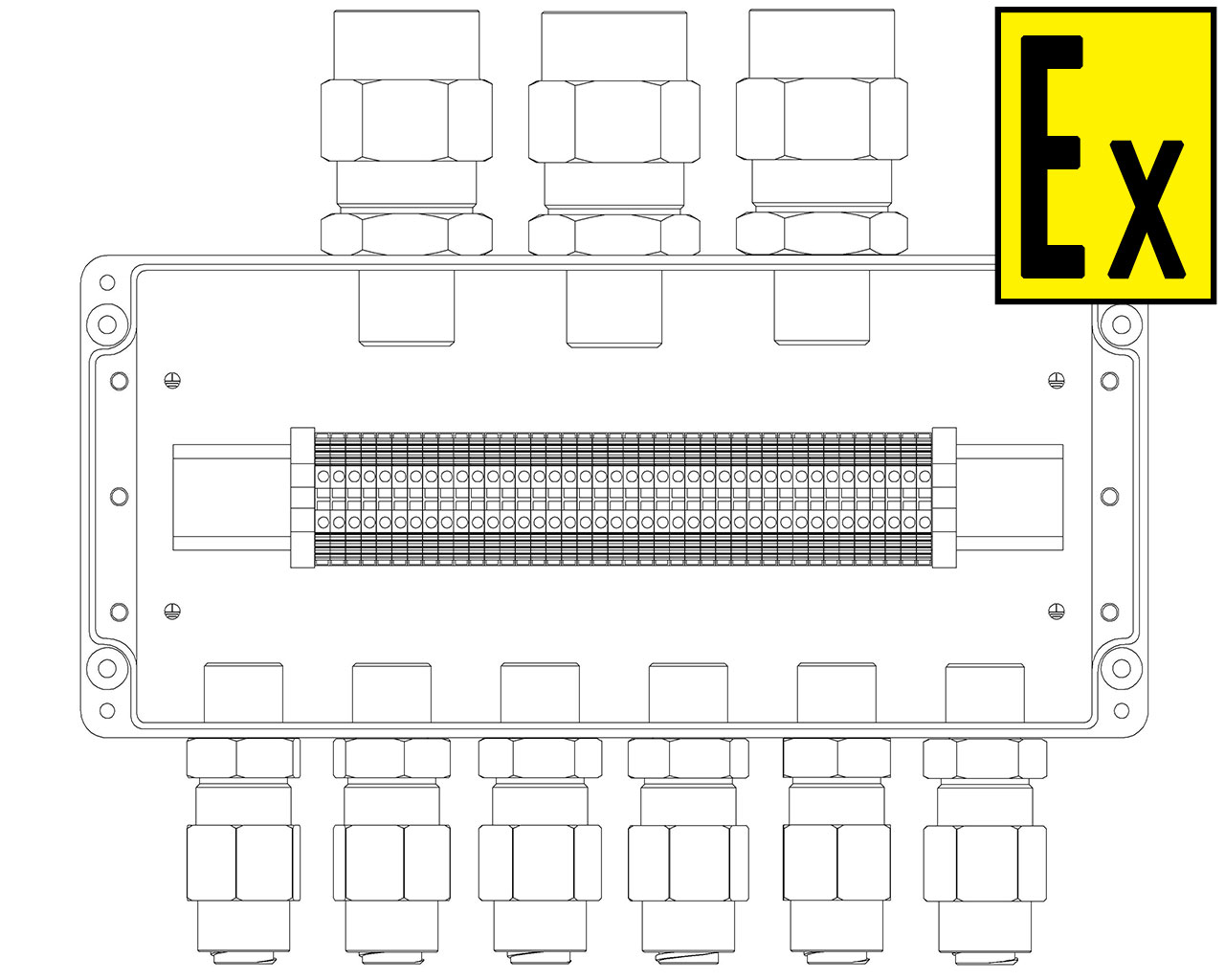

KVMK 4005
 |
KVMK 4005, 1ExeIIBT5Gb, material - Aluminium alloy 160х360х91 mm, clamp terminals 0,5-4 mm2 I=25А -40 pieces, IP67, -60 ... +85°С, universal cable gland: kable ⌀10-16 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀20 mm - 6 pieces universal cable gland: kable ⌀16-22 mm/ Armoured cable. Crimp of wire armour/ for cable in metal hose ⌀25 mm - 3 pieces |
