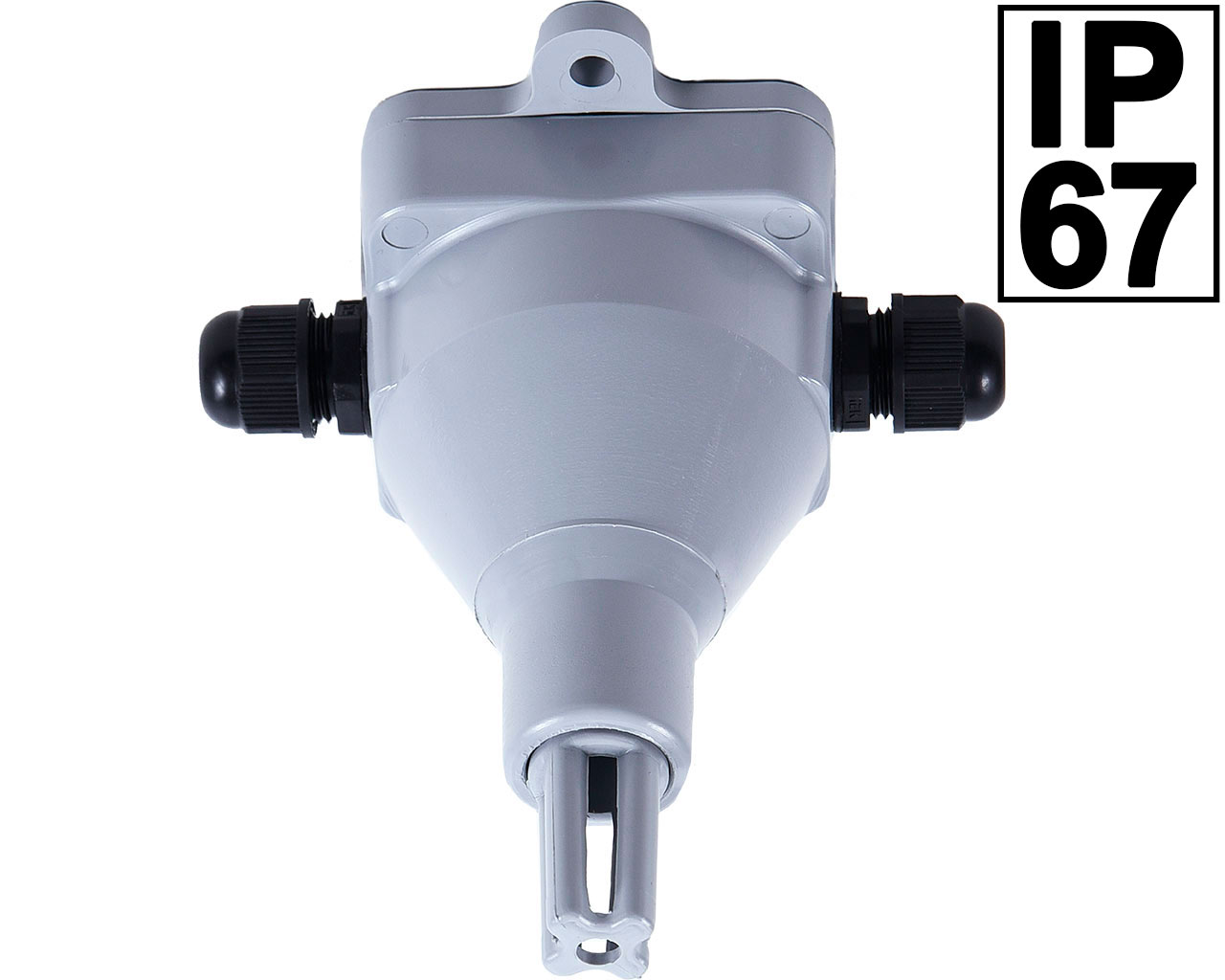

Detector IP101 Azimut OP is used to detect the ignition source and transmit a signal to the receiving/monitoring device and is intended for work in automatic fire extinguishing and fire alarm systems at special-purpose facilities. The detector is available with conventional (for tanks) or shortened (for premises) heat sensitive part of the body.
| Ingress protection, IP | 67 |
| Operating temperature range, °С | -60...+85 |
| Operating voltage range, V | 6...27 |
| Input current at operating voltage 24 V: | - standby mode — (0,2-0,25) mA |
| - 'fire' mode — (10,7+/-0,5) mA. | |
| Warm-up time after powering up, max | |
| Overall dimensions, mm | - conventional - 200х80х175 |
| - extended – 200х80х262 |
Threshold temperature set by the manufacturer can be changed by the user by installing appropriate resistor in the detector's terminals. The detector kit includes the resistors for setting threshold temperature: 70 С; 90 С; 110 С. Relationship between the threshold temperature and the resistor value for IP Azimut.
| T, °C | 51 | 60 | 70 | 81 | 90 | 100 | 110 |
| Rt, кОм | 30 | 20 | 13 | 8,2 | 5,6 | 3,6 | 2,4 |
Detector IP Azimut comes with two cable glands that allow to install the detector in the alarm loop with round cable of diameter 6-10 mm.
