IO102 "Aton"
IO102 "Aton" IO102 "Aton" IO102 "Aton" IO102 "Aton" IO102 "Aton" IO102 "Aton" IO102 "Aton" IO102 "Aton"
IO102 "Aton"
The range of actuation
You choosed:
  • The range of actuation

  • Housing material

  • Execution

  • Cable length

Sensors are designed to monitor the position of moving parts of structures and mechanisms, to block gates, railway containers, hangars and other structural elements of the buildings and structures with regard to opening or motion, followed by transmitting alert to the receiving/monitoring device. Sensors can be installed on structures made of magnetically conductive (steel) or magnetically non-conductive (aluminum, wood, plastic) materials.

Aton series explosion-proof sensors. Available versions

Name Description Enclosure material

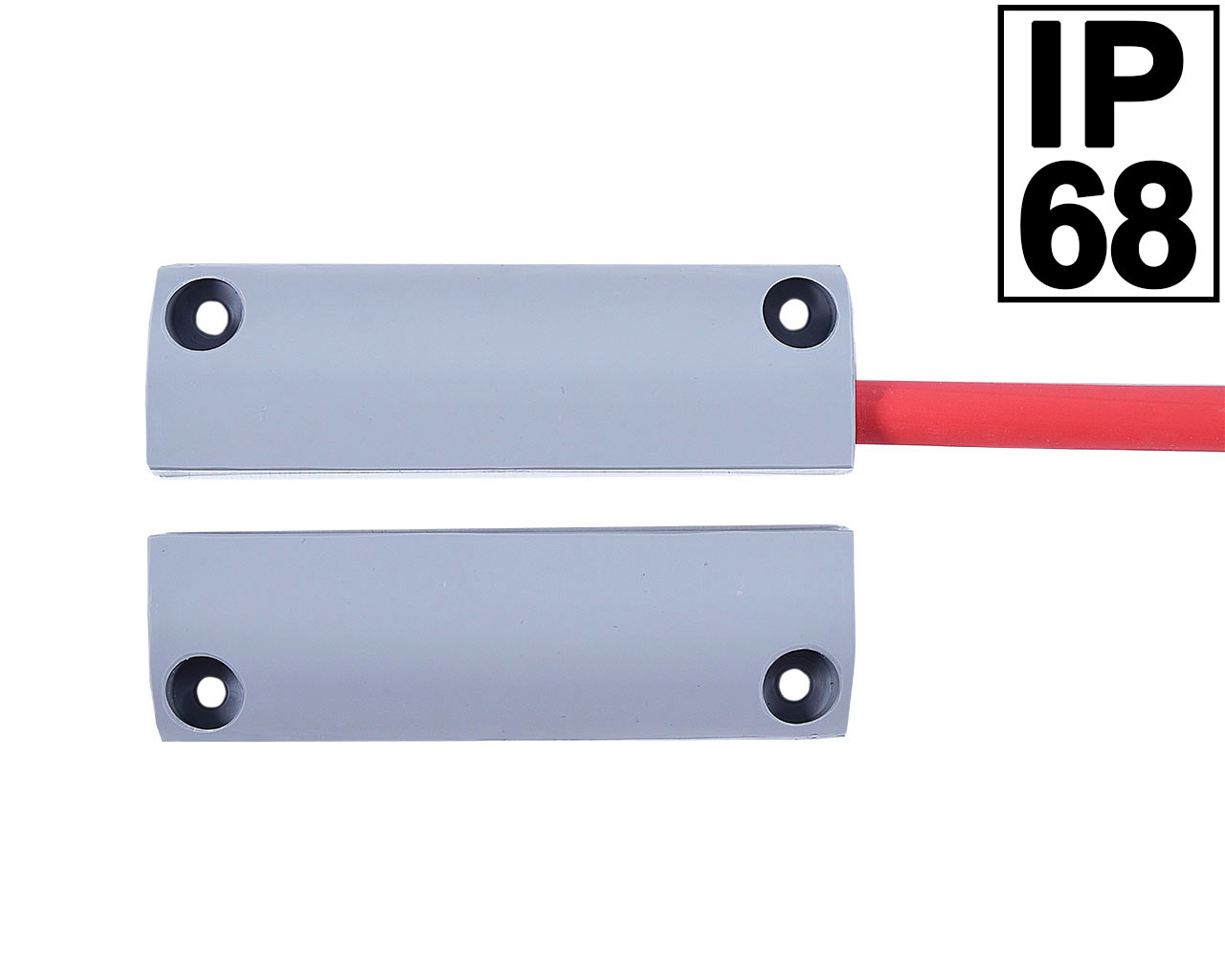

IO102 Aton ver.11 cable in metal hose 1m; N/O contact Antistatic polyamid
IO102 Aton ver. 21 cable in metal hose 1m; switching contact

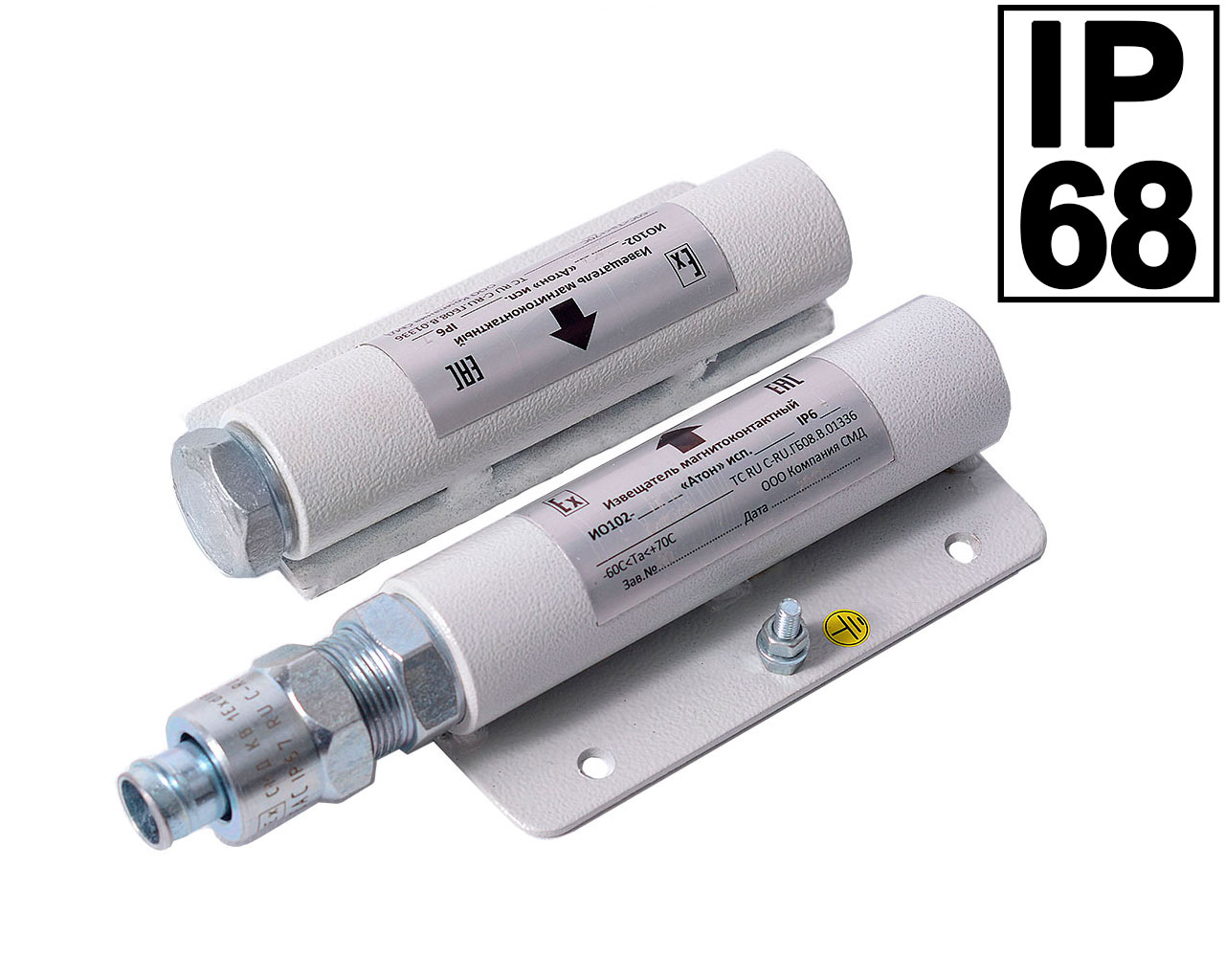

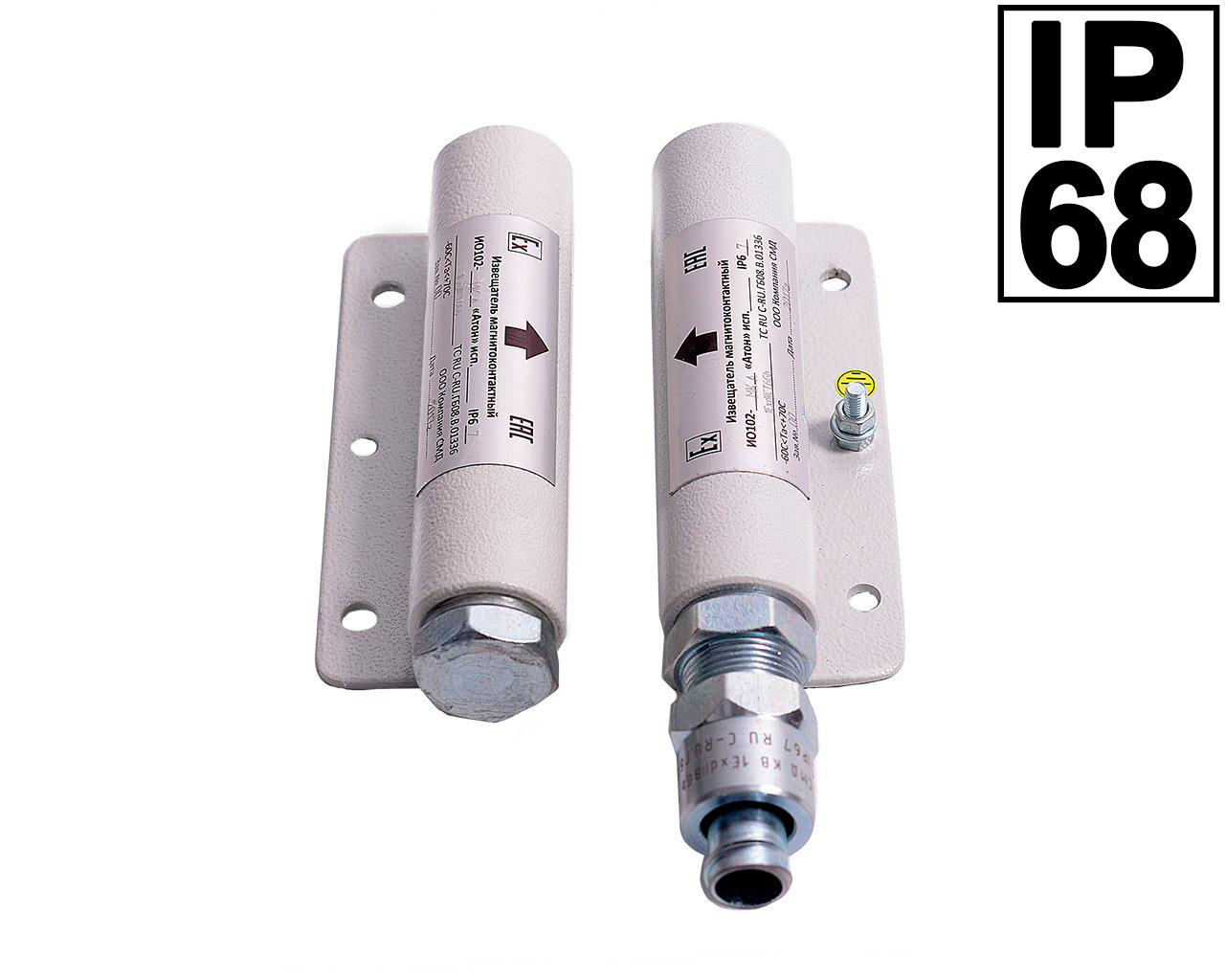

IO102-А Aton ver.11 Cable KPKVng-FRLS-2x2x1.0 in metal hose RZ-TsH-12, 1 m; N/O contact Aluminum-silicon alloy
IO102-А Aton ver.21 Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; switching contact

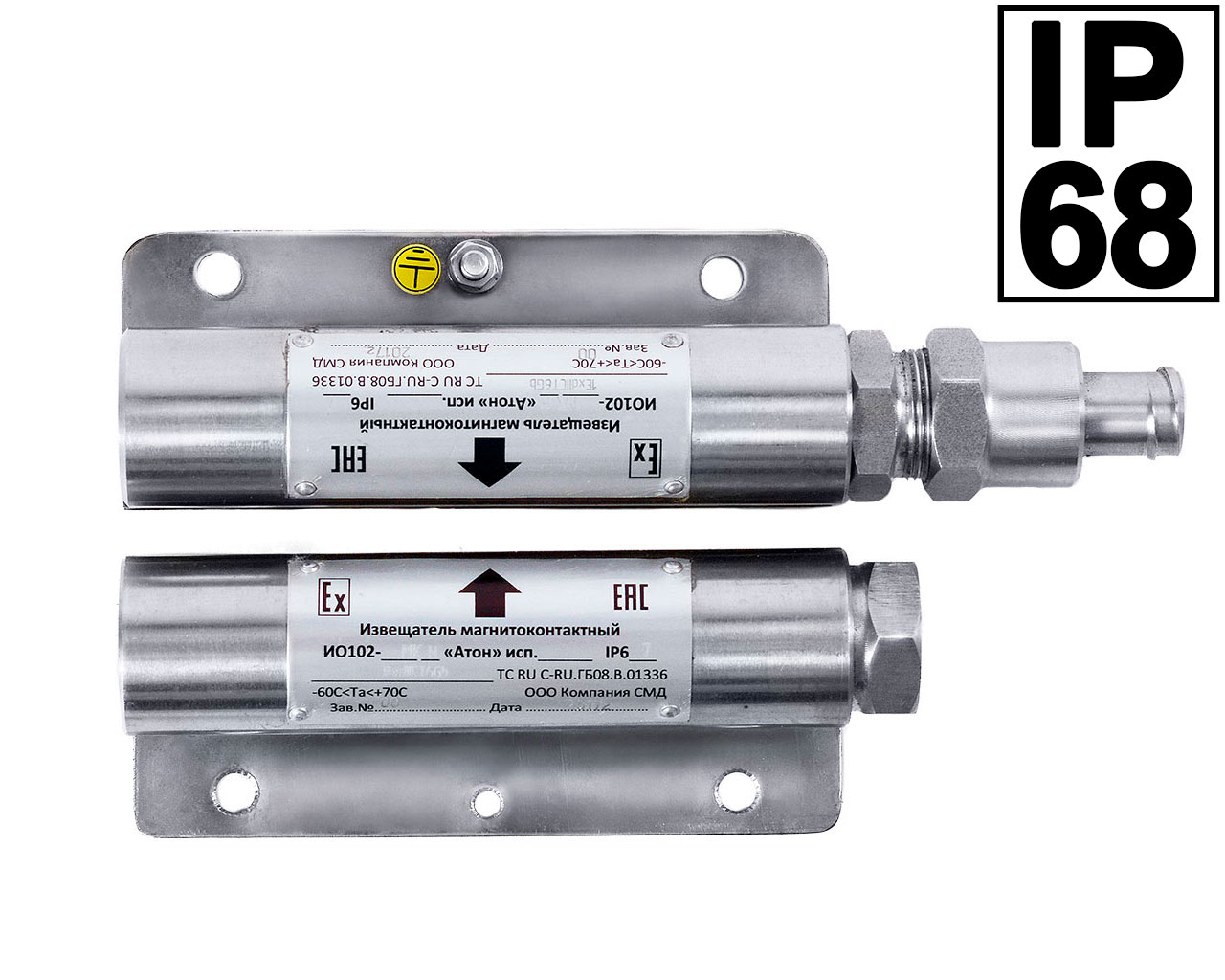

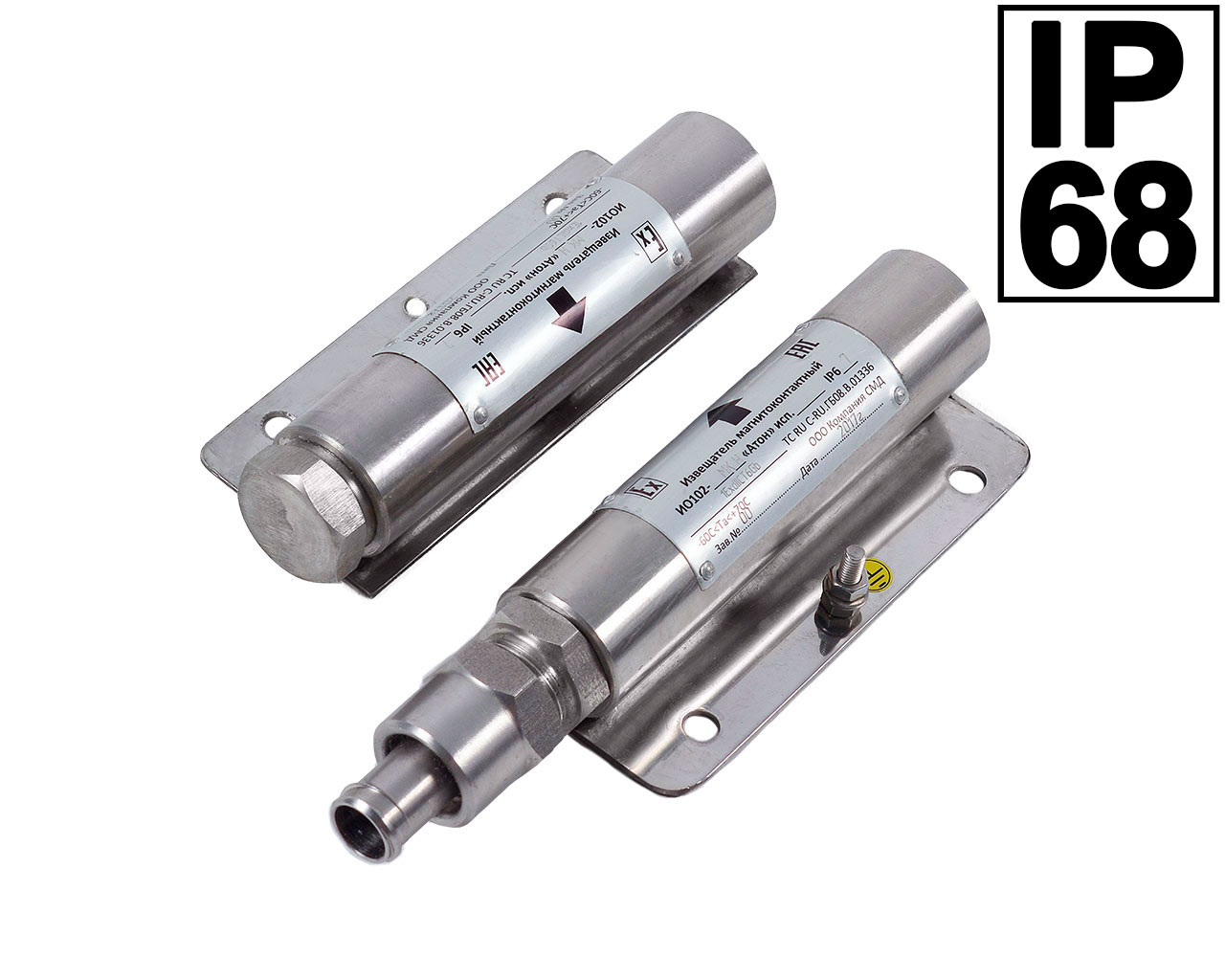

IO102-Н Aton ver.11 Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; N/o contact Stainless steel 12Х18Н10Т
IO102-Н Aton ver.21 Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; switching contact
Parameter Value
Switching voltage, max:
non-mining version 60 V
mining version 27 V
Switching current, max 0,25 A
Current, max 0,5 A
Ingress protection:
IO102 Aton, IP68
Operating temperature -60°...+70°С
Overall dimensions:
plastic enclosure 100х30х20 mm
metal enclosure 135х50х40 mm



Modification Magnetically non-conductive base Magnetically conductive base
Tripping gap, mm, Release gap, mm, Tripping gap, mm, Release gap, mm,
Aton 40 50 25 35
Aton M 100 115 40 45
