KVOP-type A and KVOP-type B junction boxes are designed for connecting (branching) general and special purpose electric circuits.
| «KVOP-type А» | «KVVZ-type B» | |
| Ingress protection | IP67 | |
| Operating temperature range | -60 .. +85°С | |
| Number of cable glands | 1 - 4 | 4 - 12 |
| Number of terminal connectors | 6 | 24 |
| Cross-section of the connected wires | 0,08 – 2mm2 | 0,08 – 2,5mm2 |
| Max. Voltage | 30V | 400V |
| Maximum contact current | 0.25A | 24А |
| Internal space | 90х90х30mm | 200х105х75mm |
| Overall dimensions without cable glands | 100х100х43mm | 220х120х90mm |
| Enclosure material | polyamid | |
| Weight, max. | 0,25 kg | 2 kg |

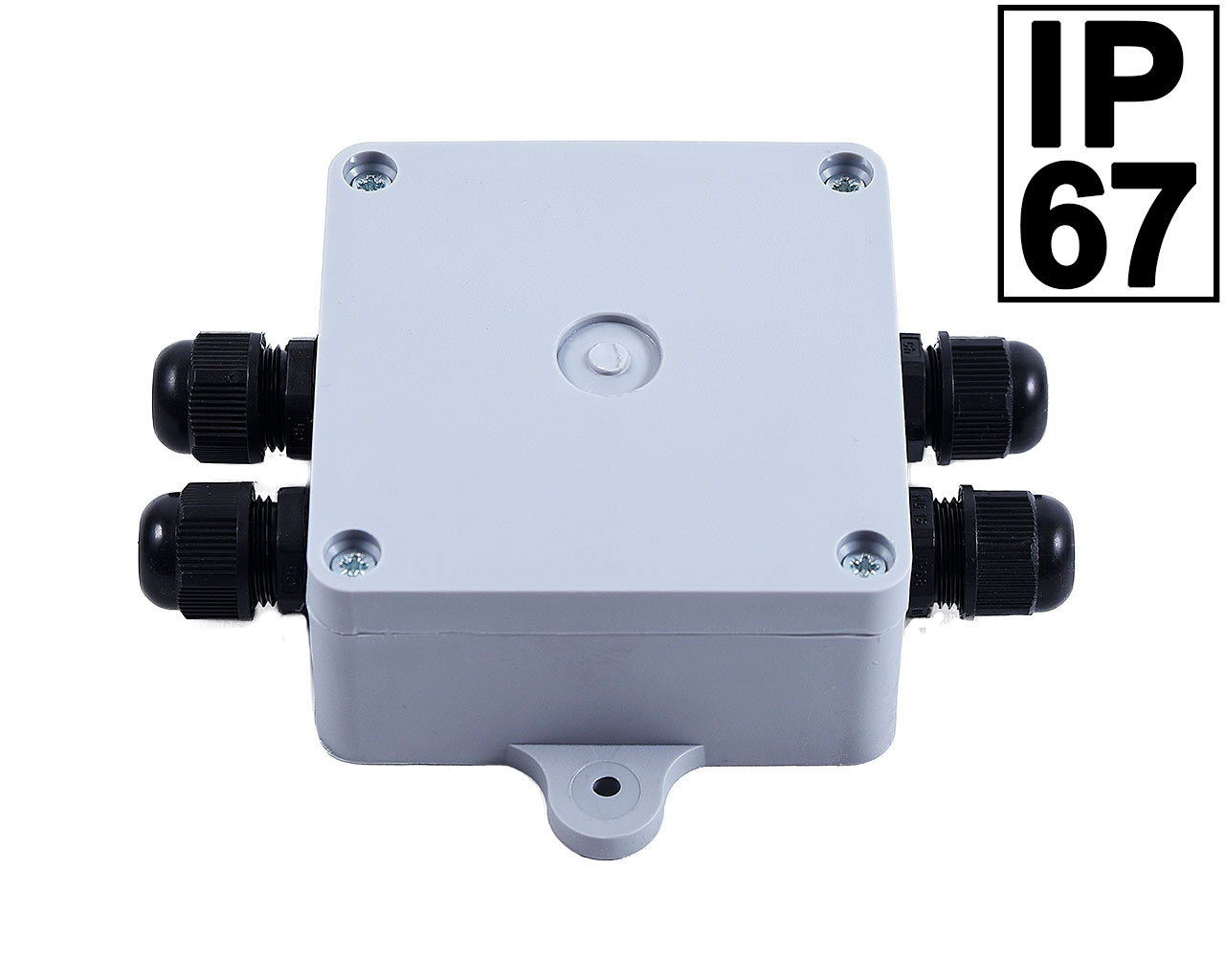

Junction boxes KVOP-type A are supplied with cable glands of various versions:

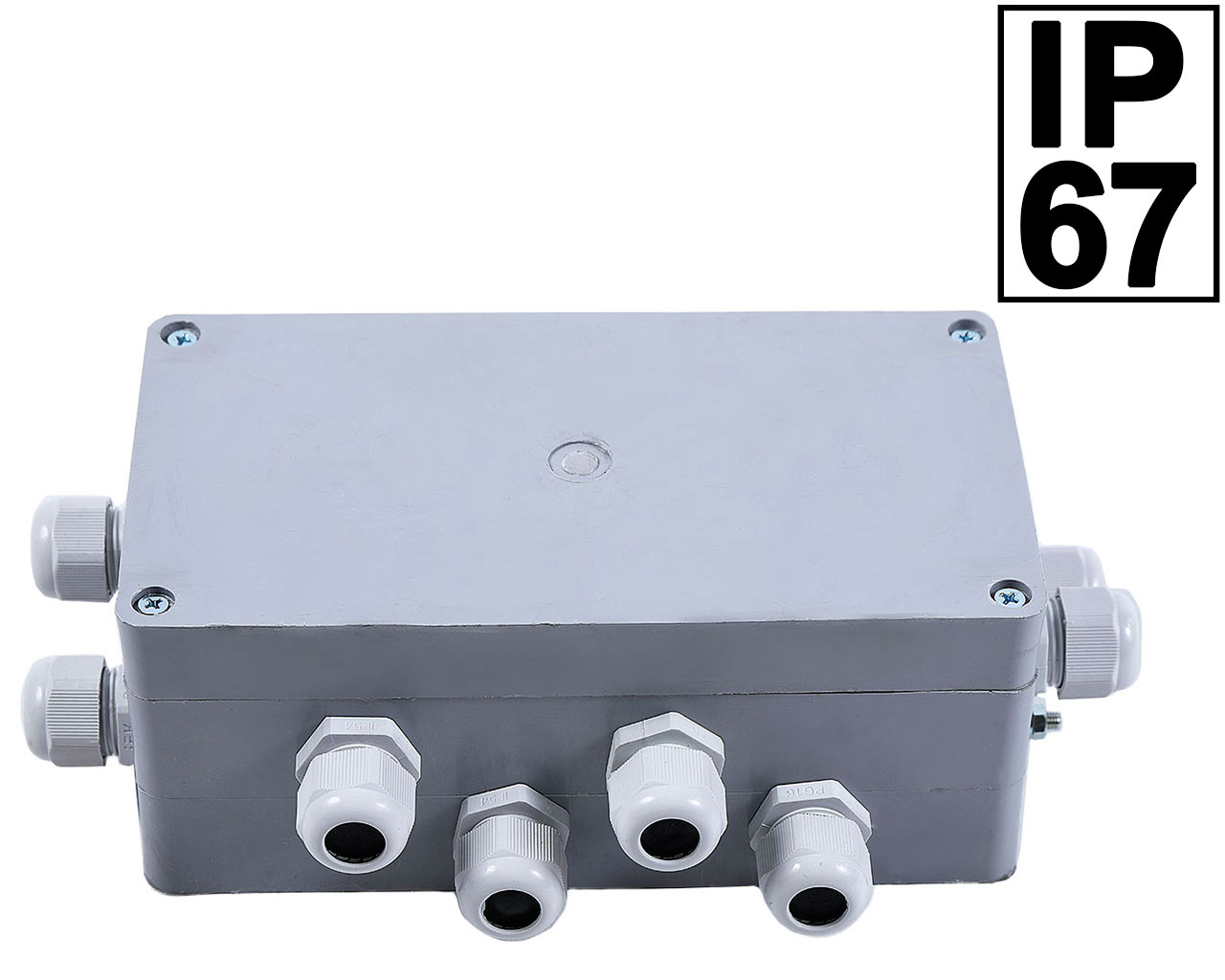

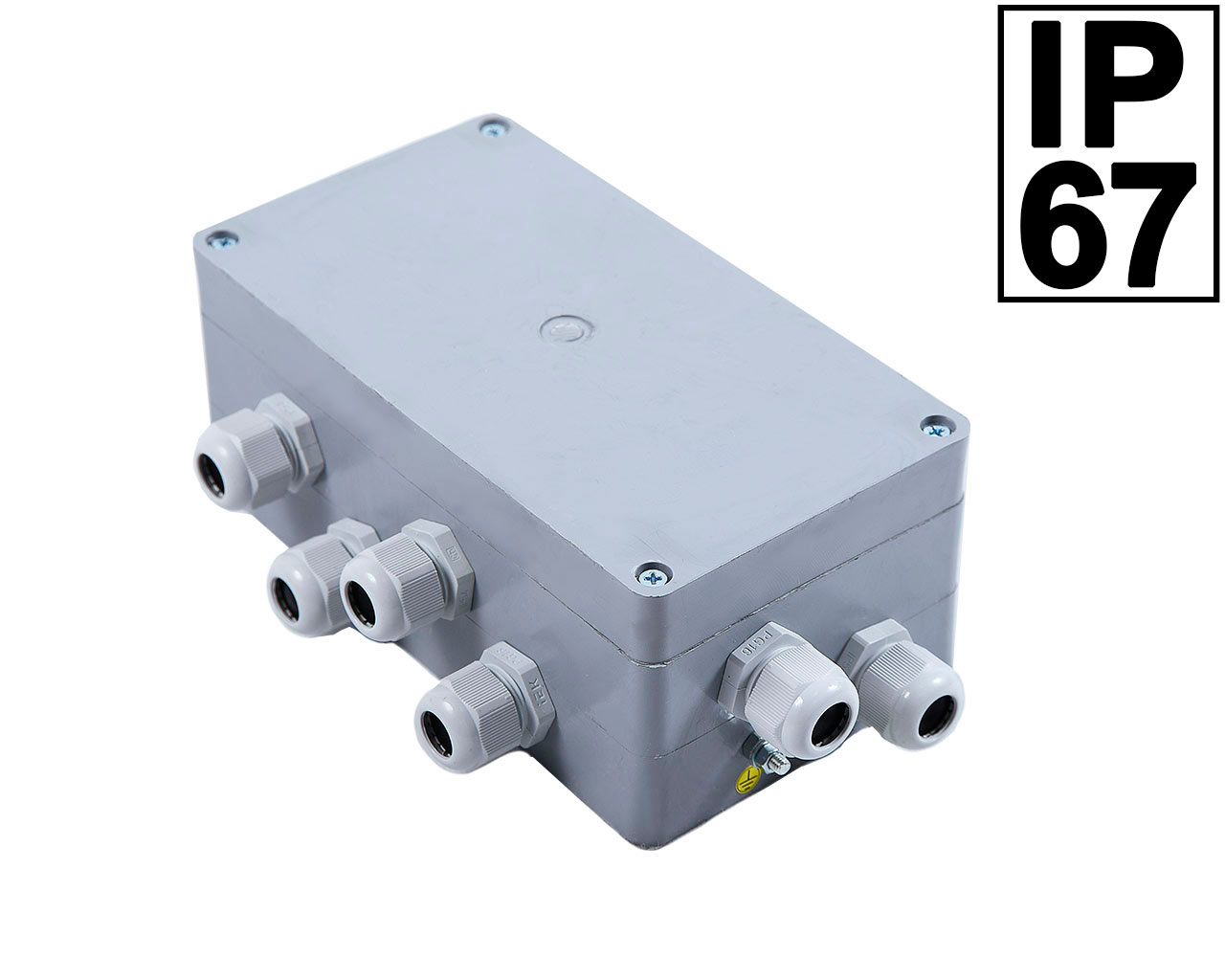

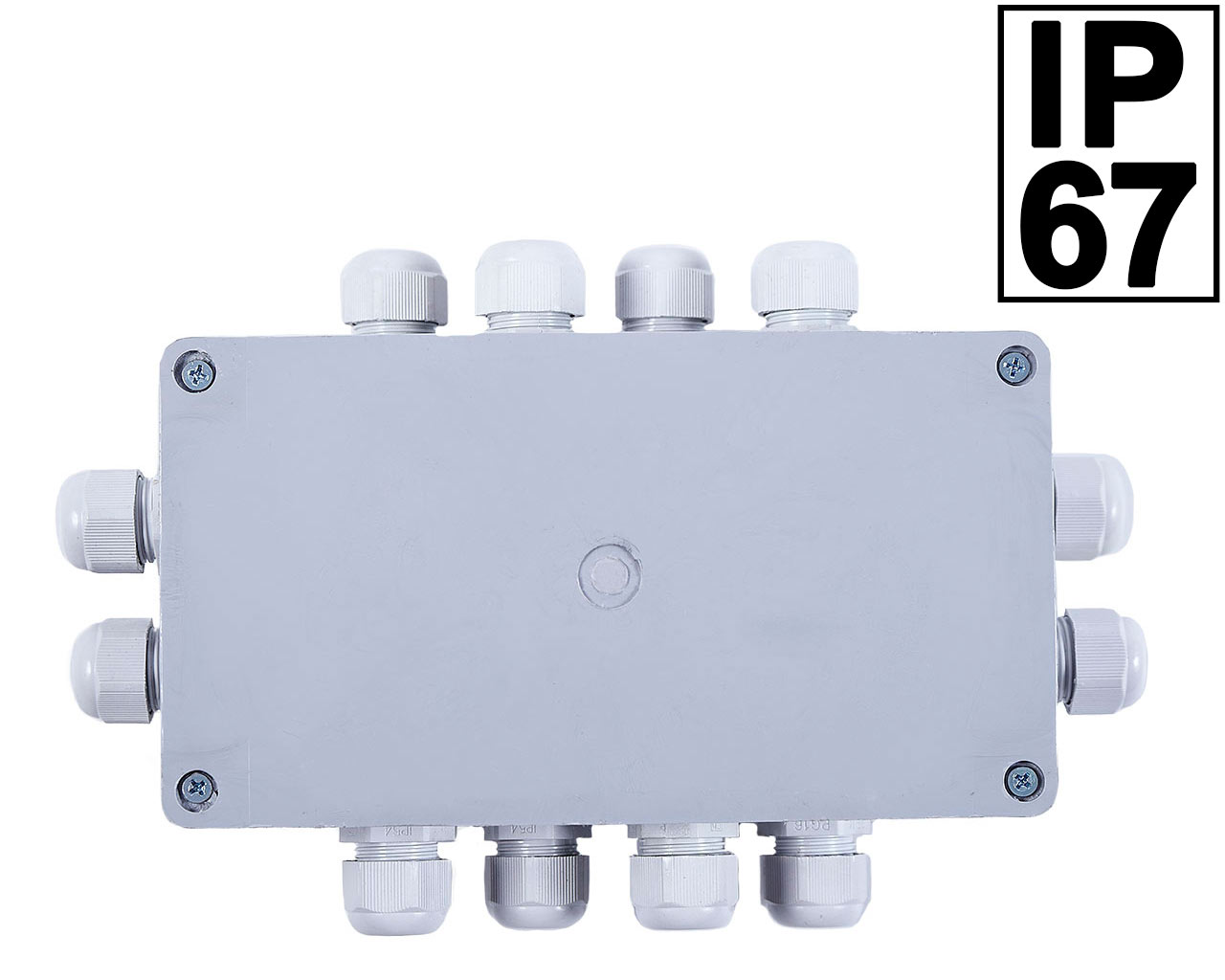

Junction boxes KVOP-type B are supplied with cable glands of various versions:
