Protected video camera - Orion OP VK

Video cameras Orion OP VK are designed to convert an optical image into an electrical signal with subsequent transmission via cable networks or via the Internet to the operator's post in difficult climatic conditions, as well as the possible presence of corrosive media. The video camera allows video recording both in the daytime and in conditions of insufficient visibility (twilight, night).

Scope of application in providing security, safety and control over technological processes in difficult-technological production.

The Orion OP VK protected video camera is designed to operate at an ambient temperature of minus 60 ° C to plus 50 ° C, the type of climatic modification is UHL1 according to GOST 15150-69. Atmospheric pressure from 84 to 106.7 kPa. The degree of protection of the shell - IP67 according to GOST 14254.

Protection against electric shock according to GOST 12.2.07.0-75: class III / class I. The metal case has a protective earth and working insulation from current-carrying parts. At a supply voltage of 220V AC, protection class I, at a supply voltage up to 24V DC or AC, protection class III.

Video cameras are available in versions differing in case material, overall dimensions, supply voltage, presence of infrared (IR) illumination.

Video cameras are supplied with two cable entries for cable laying with a diameter of 6-10mm.

Design

Video cameras Orion OP VK are used in conditions of possible impact of aggressive media of both natural and artificial nature.

Depending on the configuration Orion OP VK is installed at a remote distance from the object of observation, since high-definition cameras with built-in infrared illumination are used, which allows to obtain a high-quality picture in night-time surveillance conditions. Lenses mounted on the diodes, improve the viewing angle and the illumination range. The internal space of the video camera is equipped with heating in cases of low temperatures, the optimum mode of operation is set. The built-in cleaner provides high-quality cleaning of the viewing window from various kinds of pollution. It is recommended to turn on the cleaner in low temperature conditions after the image appears on the monitor, as it prevents the cleaner from freezing to the body.

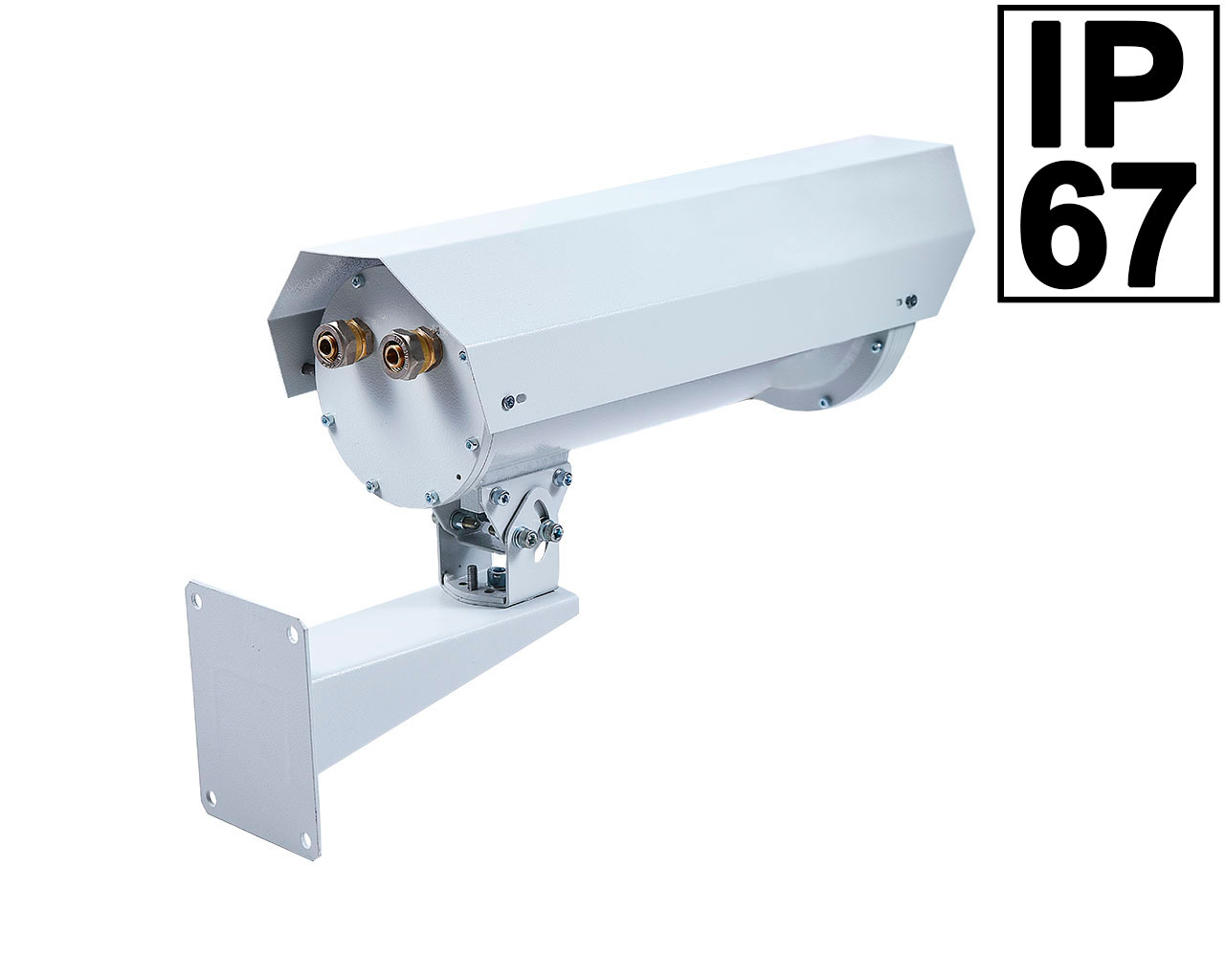

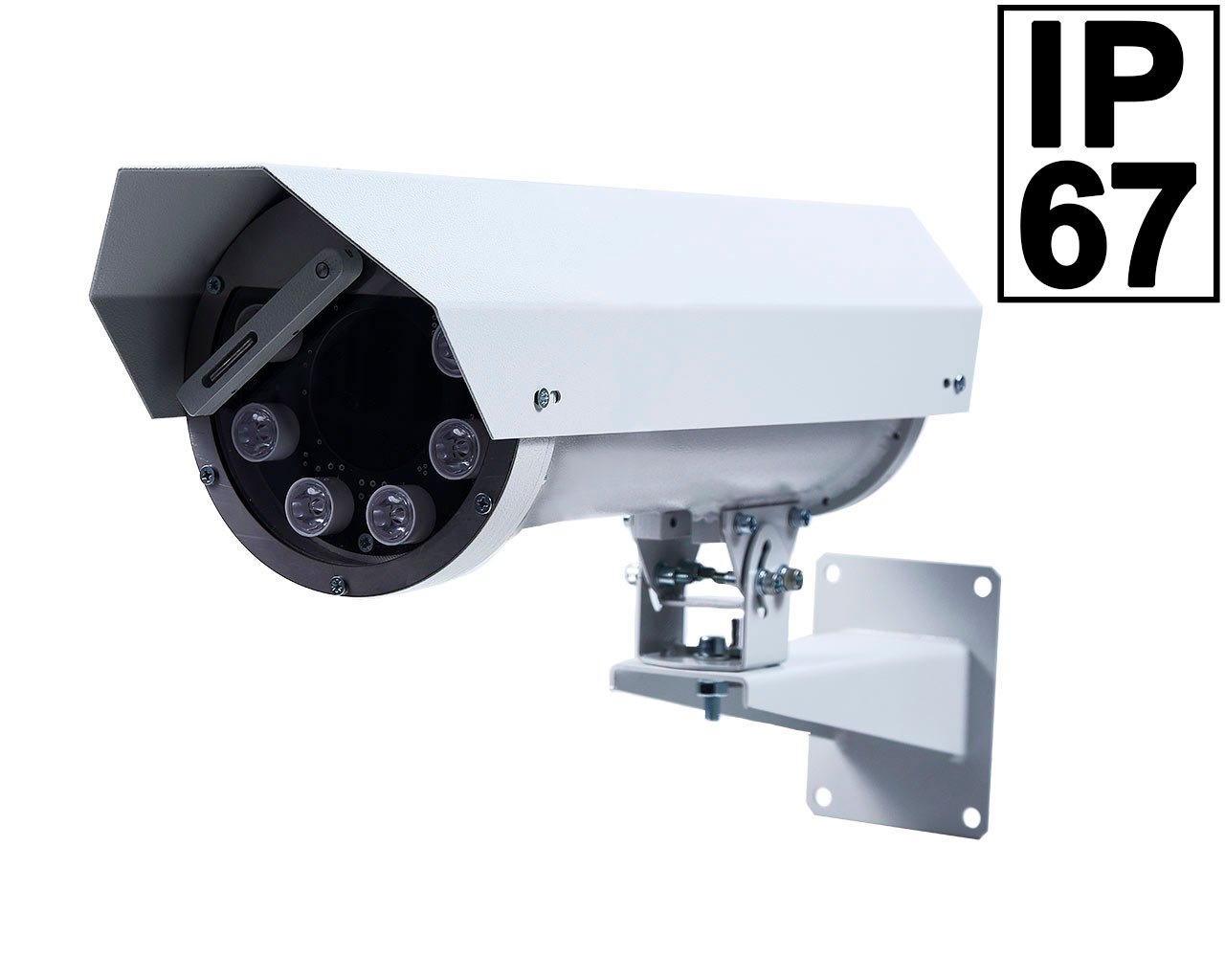

Orion OP VC video camera is a protected case with IP67 casing protection class with a camera installed inside. The security camera is made of low carbon steel; corrosion resistant steel; aluminum alloy. The body is a hollow cylinder with welded flanges for fastening the covers. The back cover of the shell is attached to the case with six screws and has on the outer side two fittings with an internal thread for installing cable glands, and on the opposite side, which is installed inside the case, a power board with thermostats is mounted. With the help of thermostats provided, warming up the internal space of the camcorder. With a “cold start”, power is supplied to the video camera after the internal space of the video camera is warming up. When the temperature reaches above 55 ° C, an emergency power-down of the video equipment occurs. The emitter board has eight light-emitting diodes of the infrared glow spectrum, optical lenses are installed on top of them, which positively affect the characteristics of the searchlight depending on the conditions of video surveillance. A wide choice of optical lenses of the spotlight allows you to change the parameters of video surveillance, increasing the range or expanding the viewing angle. The design of the camera has a photo relay (dark sensor) that allows you to respond to the light, giving a signal to turn on or off the light. The built-in emitter is installed in the front flange of the case and fixed with a lid with a light-transmitting window, made of impact-resistant glass. To exclude the ingress of moisture and dust, rubber seals are used at the attachment points for removable body parts. A visor mounted on top of the case is also an element limiting adverse environmental conditions.

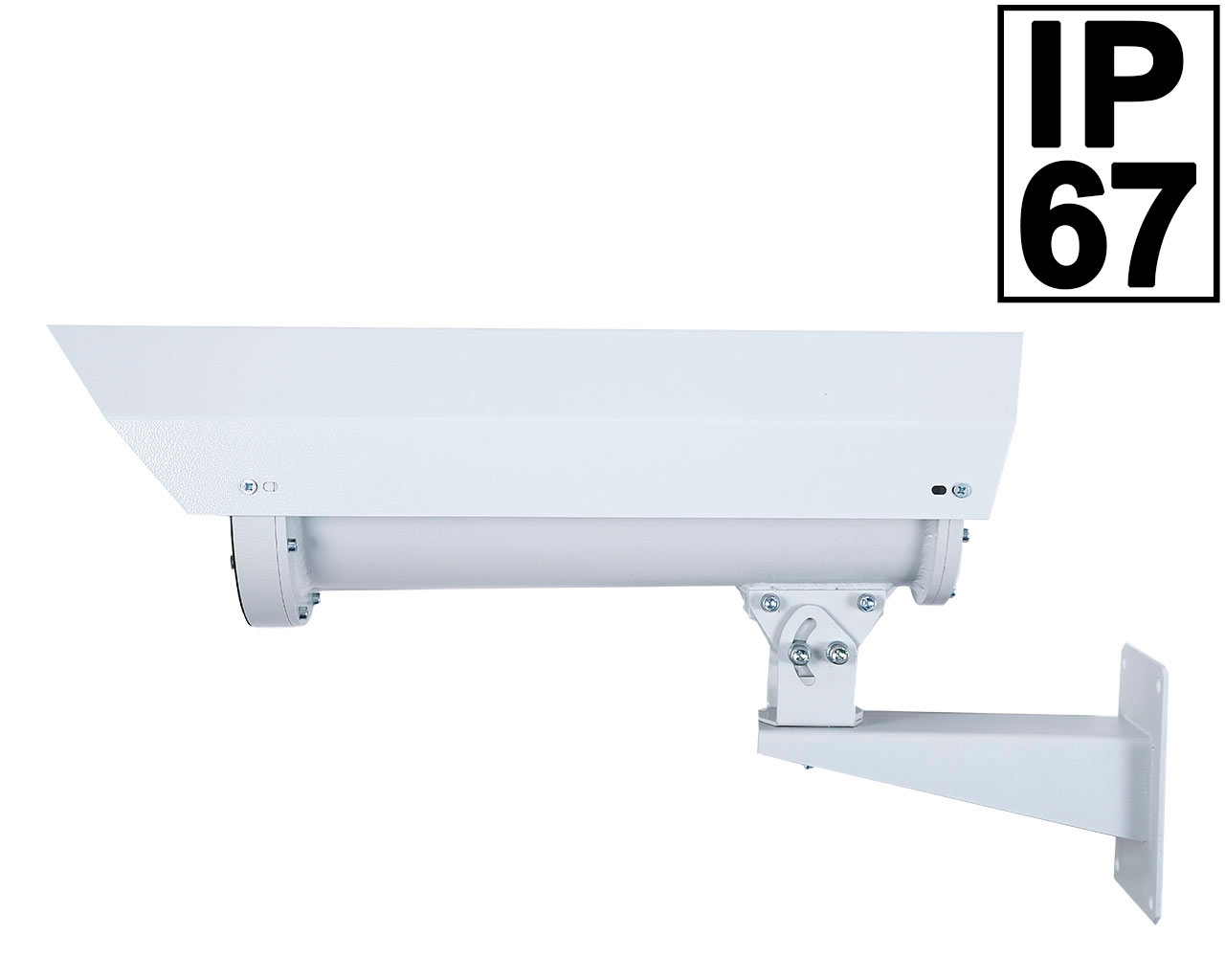

Orion OP VK is equipped with a bracket for mounting on a horizontal or vertical plane, as well as a console bracket for mounting on a pipe.
