Orion OP TVR
Orion OP TVR Orion OP TVR Orion OP TVR Orion OP TVR

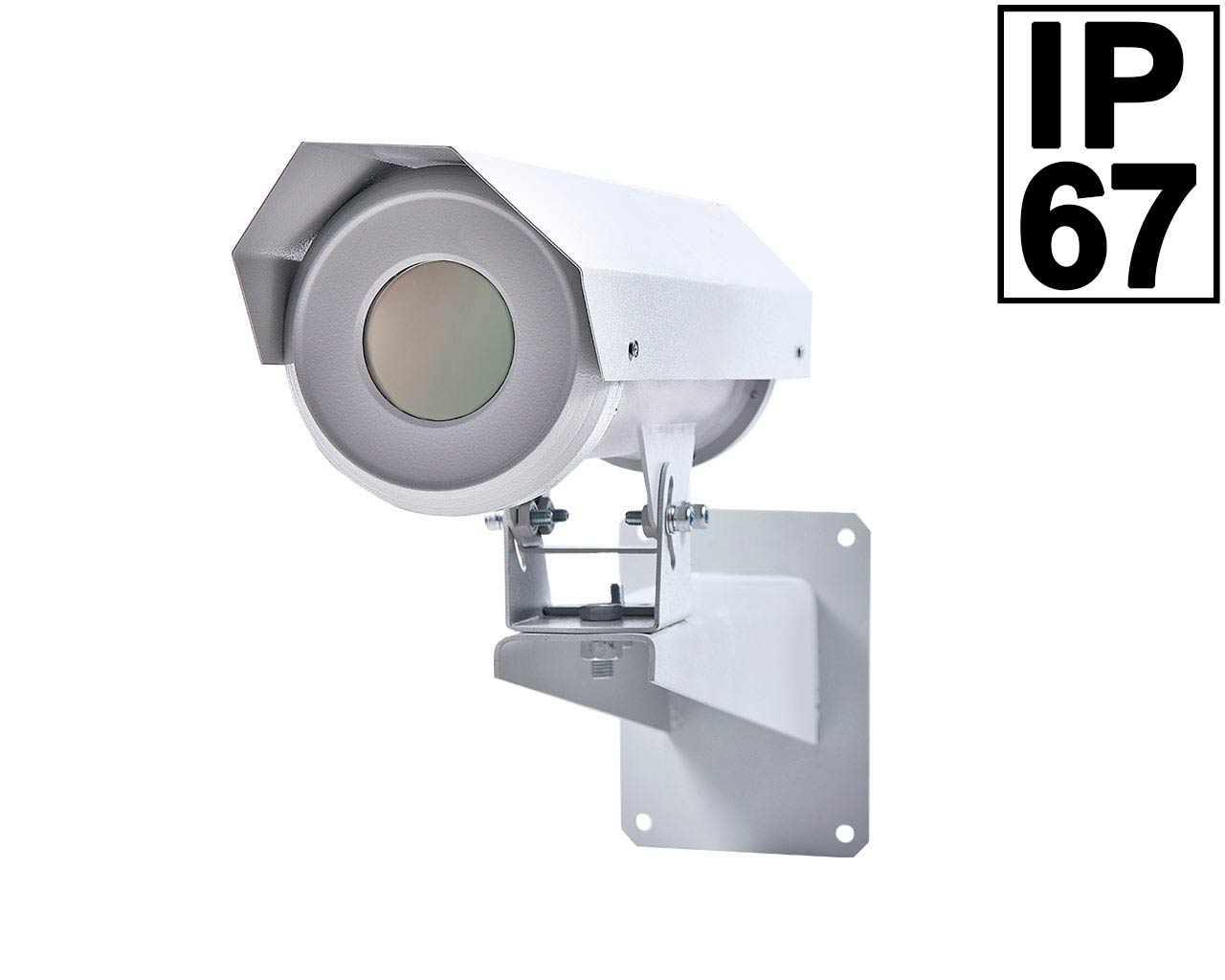

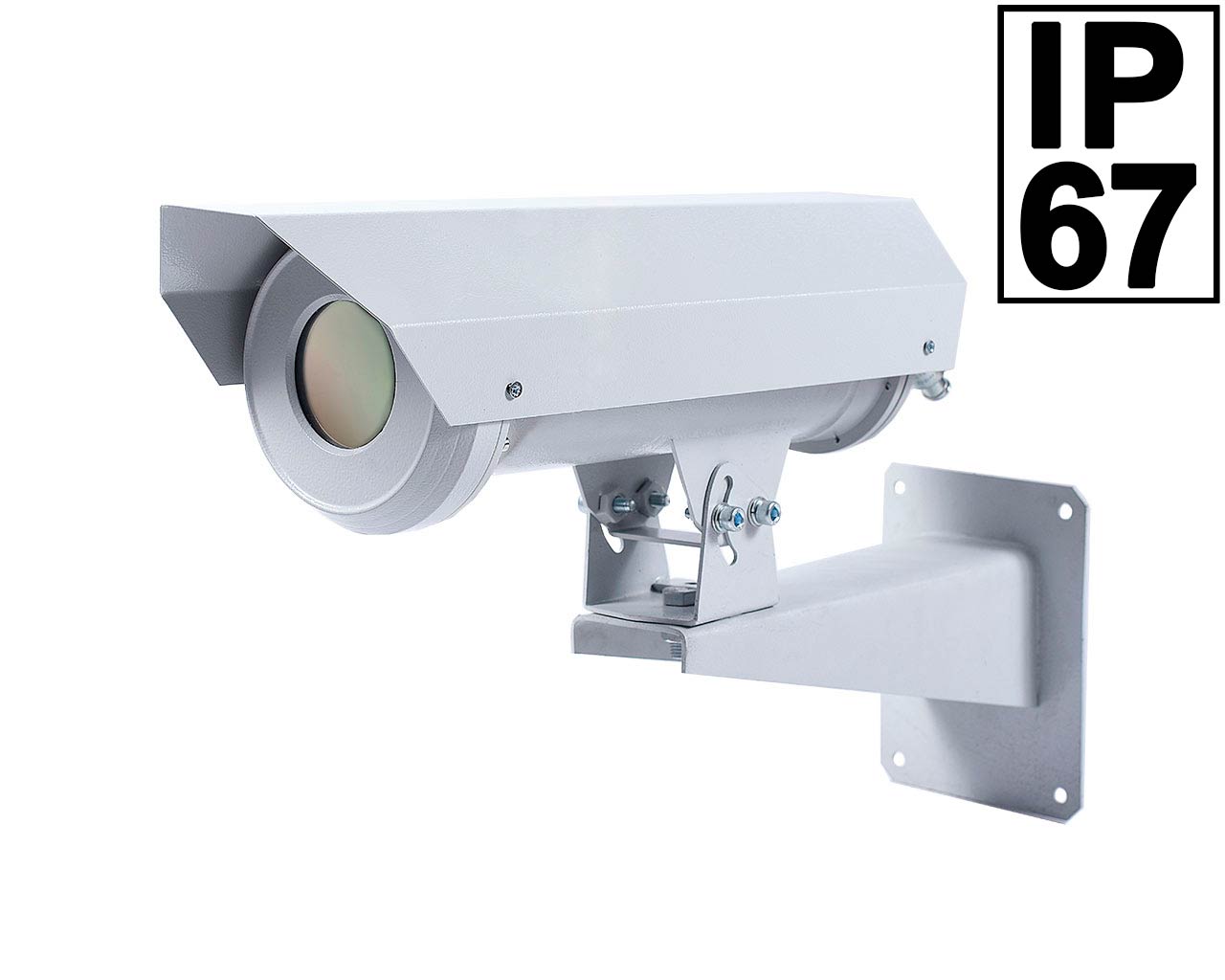

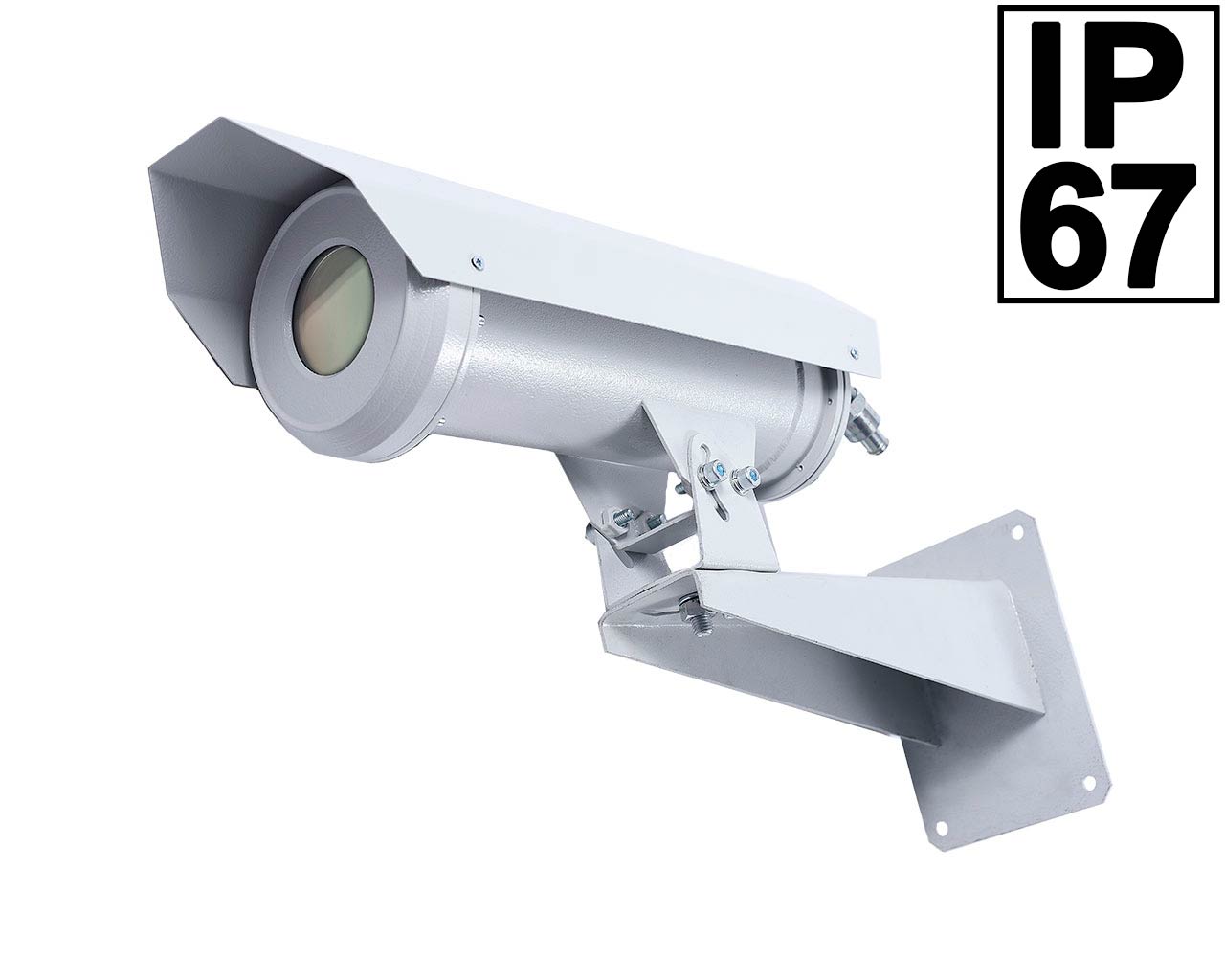

Heat-insulated enclosures protected for the installation of thermal imaging devices Orion OP TVR

Orion OP TVR is a heat-insulated enclosures for installation into the inner space of the thermal imager and is designed for contactless measurement of temperature distribution on the surface of the object being measured and transferring the image over cable networks, the Internet to the operator's post in difficult climatic conditions, as well as the possible presence of corrosive media. Orion OP TVR allows you to shoot in all weather conditions including at night.

Scope of application in providing security, safety and control over technological processes in difficult-technological production.

Heat-insulated enclosures protected Orion OP TVR are designed for operation at ambient temperatures from minus 60 ° С to plus 50 ° С, type of climatic modification is UHL1 according to GOST 15150-69. Atmospheric pressure from 84 to 106.7 kPa. The degree of protection of the shell is IP67 according to GOST 14254.

Protection against electric shock according to GOST 12.2.007.0-75: class III / class I. The metal case has a protective earth and working insulation from current-carrying parts. At a supply voltage of 220V AC, protection class I, at a supply voltage up to 24V DC or AC, protection class III.

Heat-insulated enclosures Orion OP TVR are produced in versions differing in the case material, overall dimensions, supply voltage.

Orion MK TVR come with two cable entries for connecting cables with a diameter of 6-10mm.

Design

Orion OP TVR is used in conditions of possible exposure to aggressive media of both natural and artificial nature. This equipment is protected allows you to completely eliminate the ingress of liquids in the production cycle, as well as to use in the security system, early detection of fire, failure in technological processes (release of critical thermal energy from the specified values), overheating of equipment and heat transfer media.

Orion OP TVR is a heat-insulated enclosures in which a thermal imaging camera (thermal imager) is placed, given that ordinary borosilicate glass does not transmit thermal radiation, germanium glass is used. This glass provides infrared transmission and a high refractive index. The degree of protection of the shell allows you to operate a thermocouple at high humidity, low temperatures, as well as with increased mechanical loads. The internal space of the video camera is equipped with heating in cases of low temperatures, the optimum operation mode is set.

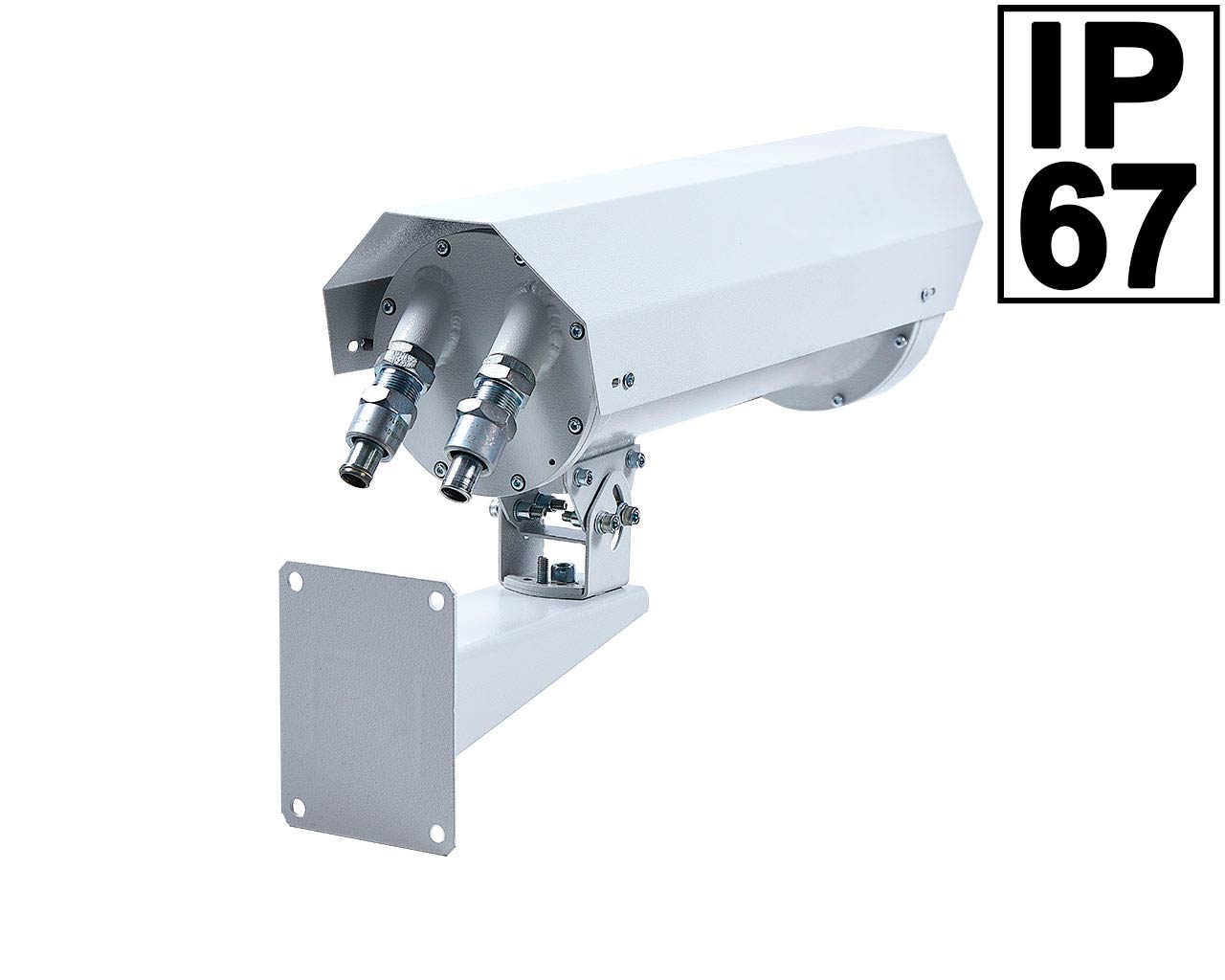

Heat-insulated enclosures Orion OP TVR is a protected enclosure with IP67 sheath protection. Protected heat-insulated enclosures is made of low carbon steel; corrosion resistant steel; aluminum alloy. The body is a hollow cylinder with welded flanges for fastening the covers. The back cover of the shell is attached to the case with six screws and has on the outer side two fittings with an internal thread for installing cable glands, and on the opposite side, which is installed inside the case, a power board with thermostats is mounted. With the help of thermostats provided, heating the internal space of the imager. During the “cold start” power is supplied to the thermal imager after warming up the internal space of the video camera. When the temperature reaches above + 55 ° C, an emergency shutdown of the power of the thermal imager occurs. To exclude the ingress of moisture and dust, rubber seals are used at the attachment points for removable body parts. Visor mounted on top of the case is also an element limiting adverse environmental conditions. Orion OP TVR is equipped with a bracket for mounting on a horizontal or vertical plane, as well as a cantilever bracket for mounting on a pipe.

Ingress protection IP67
Operating voltage 12V±10% DC
24-36V±10% DC-AC
220V +10%-20%  AC
Input current (RMS value), max with heating without heating
Type-1 12VDC
24-36VDC
24-36VAC
220VAC



0.3А

0.5А
0.8А
0.1А
Type-3 12VDC
24-36VDC
24-36VAC
220VAC

1.5А
2.3А
0.25А

0.5А
0.8А
0.1А
Power supply for installed equipment Voltage 12V
Input current, max. 0.75А
Maximum power of installed equipment at temperatures up to +25°С 9W
at temperatures up to +45°С 5W
'Cold start' temperature +0°С (±3°С)
Heating temperature (on/off) +5°С  / +12°С
Emergency power-off temperature 55°С (±3°С)
Enclosure material low-carbon steel 10 or 20
stainless steel 12Х18Н10Т
Aluminium alloy
Overall dimensions mm, max
Type-1
Type-3

585х372х158
424х264х115
Weight, max
Type-1
Type-3

15
13

Body material contains not more than 7.5% of magnesium, titanium, zirconium; Example of order information

Example of order information

Orion OP TVR Type 1 А 220 КМ15 КТ
1 2 3 4 5 6

1 – Designation for Explosion-proof heat-insulated enclosures «ORION OP TVR»

2 – Size designation
Type 1 – 585х372х158мм;
Type 3 – 424х264х115мм.

3 – Enclosure material
A – aluminium alloy;
S – low-carbon steel;
N – stainless steel.

4 – operating voltage
12VDC
24-36VDC;
24-36VAC;
220VAC.

5 – cable gland type:
К – for surface routing of cable;
Т1/2, Т3/4 – for connection to G1/2 or G3/4 pipe thread;
B – for armoured cable, outer diameter 18 mm.
КМ10, КМ12, КМ15, КМ20 – for metal hose 10 mm - 20 mm.

6 – Bracket mounting pipe – (КТ).
