IPR535 Gorizont OP call point is intended for manual activation of fire alarm.
Call point can be used as a stand-alone device, as well as in the alarm loops for short-circuit (parallel connection) or opening (connection in series) effect. Two-color status indicator: standby mode indication - green flashing once in 5-7 seconds; "alarm" mode indication - red flicking with frequency above 5Hz. Class rated as per GOST R 53325-2012: manual call point - Class А (single-action).

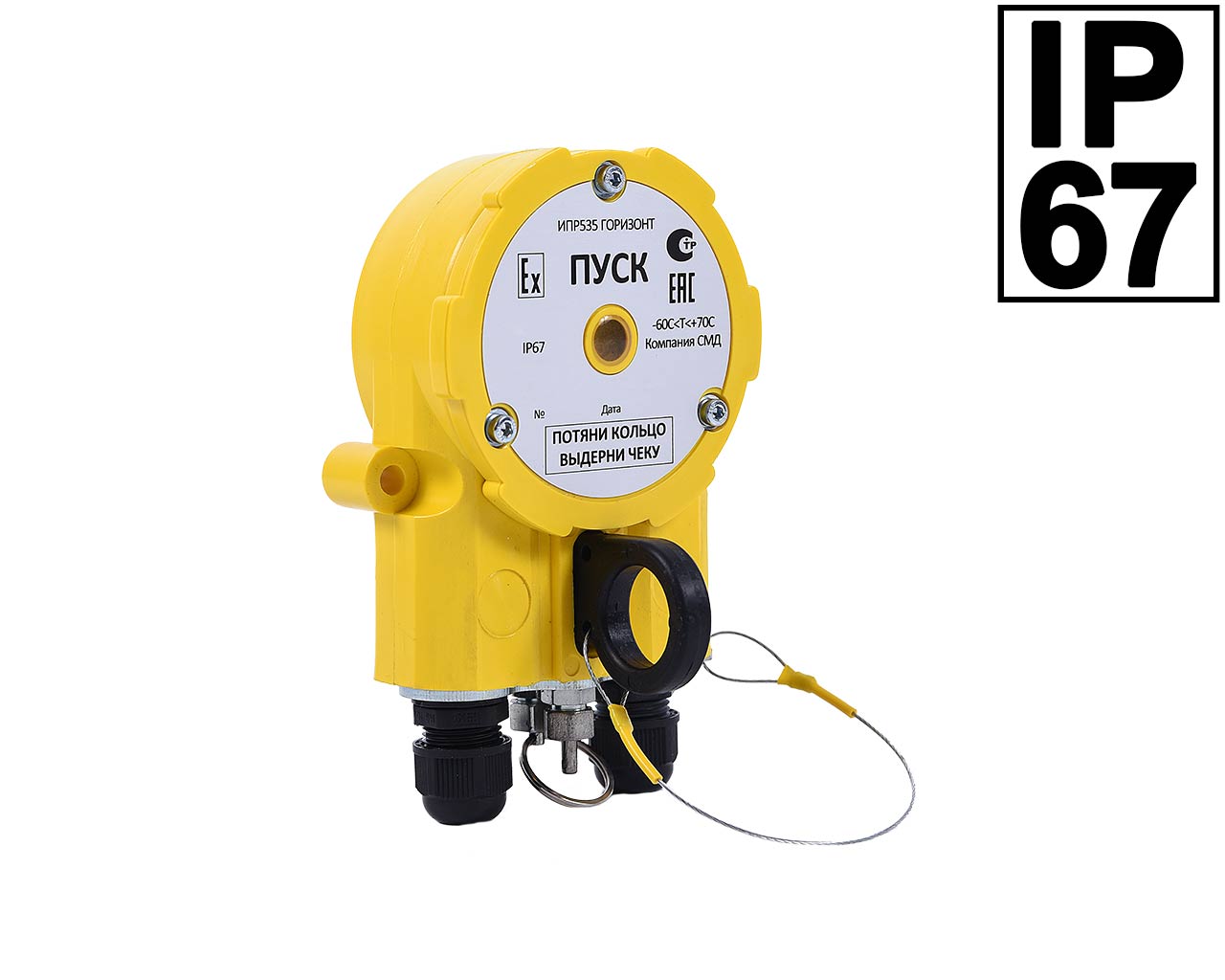

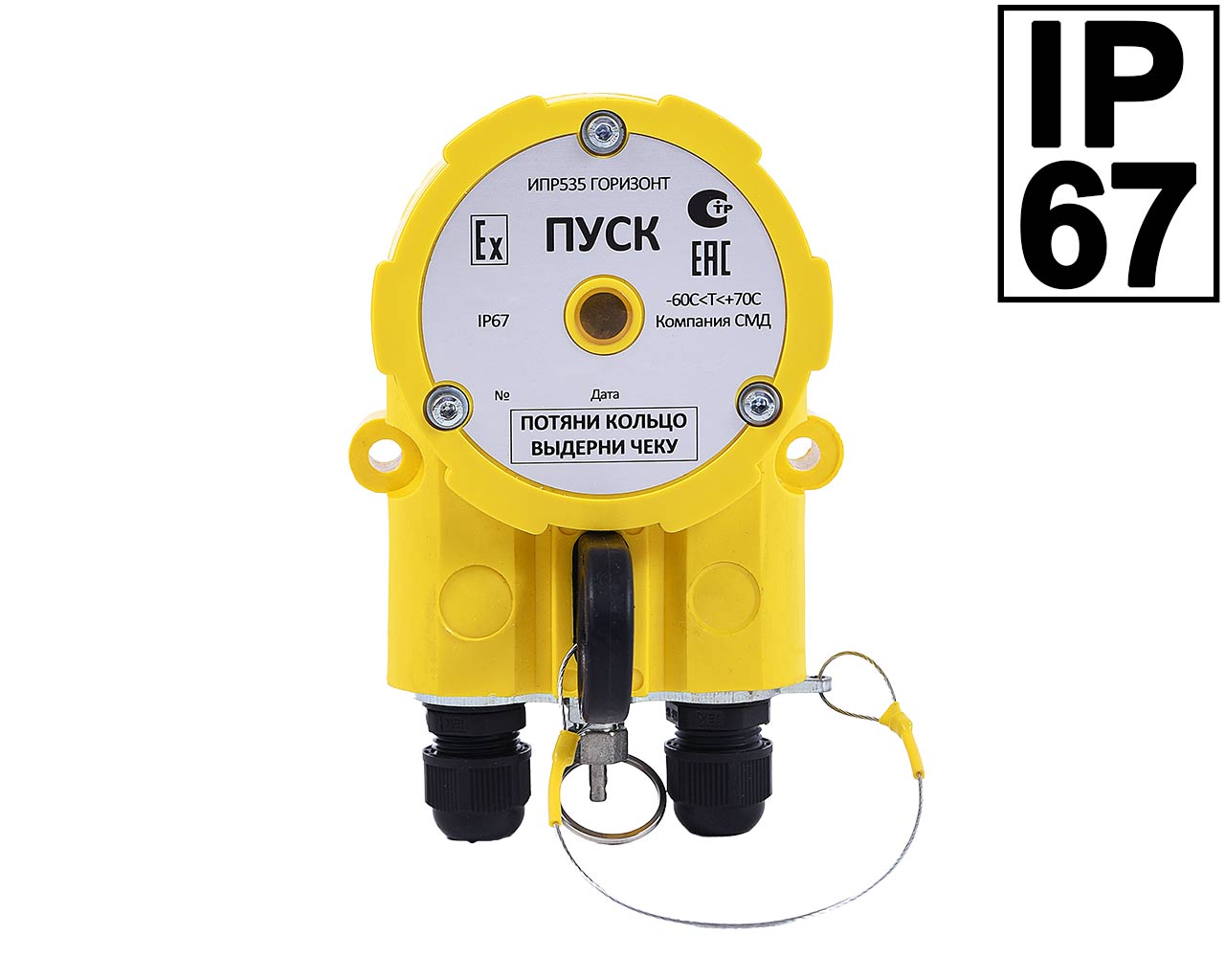

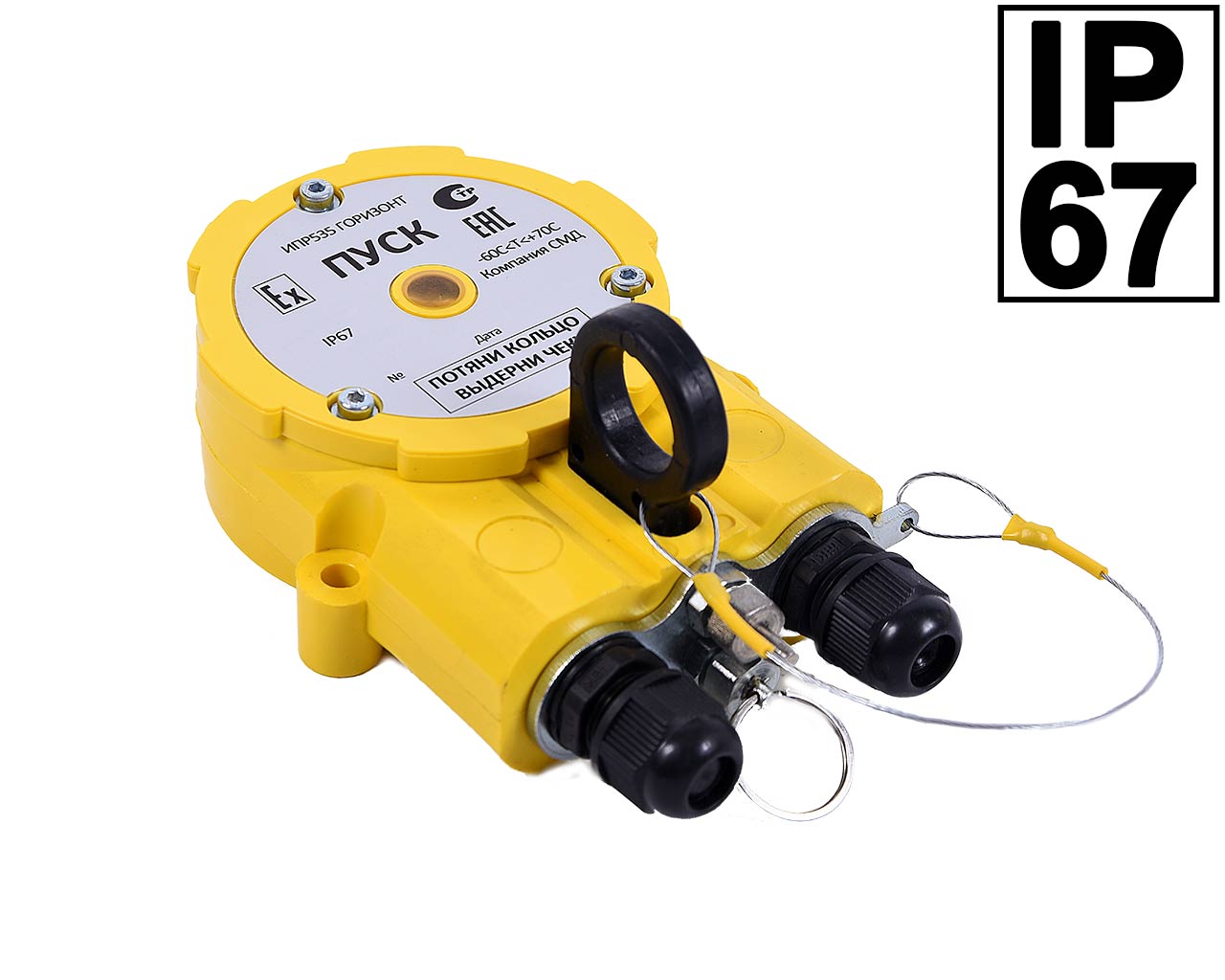

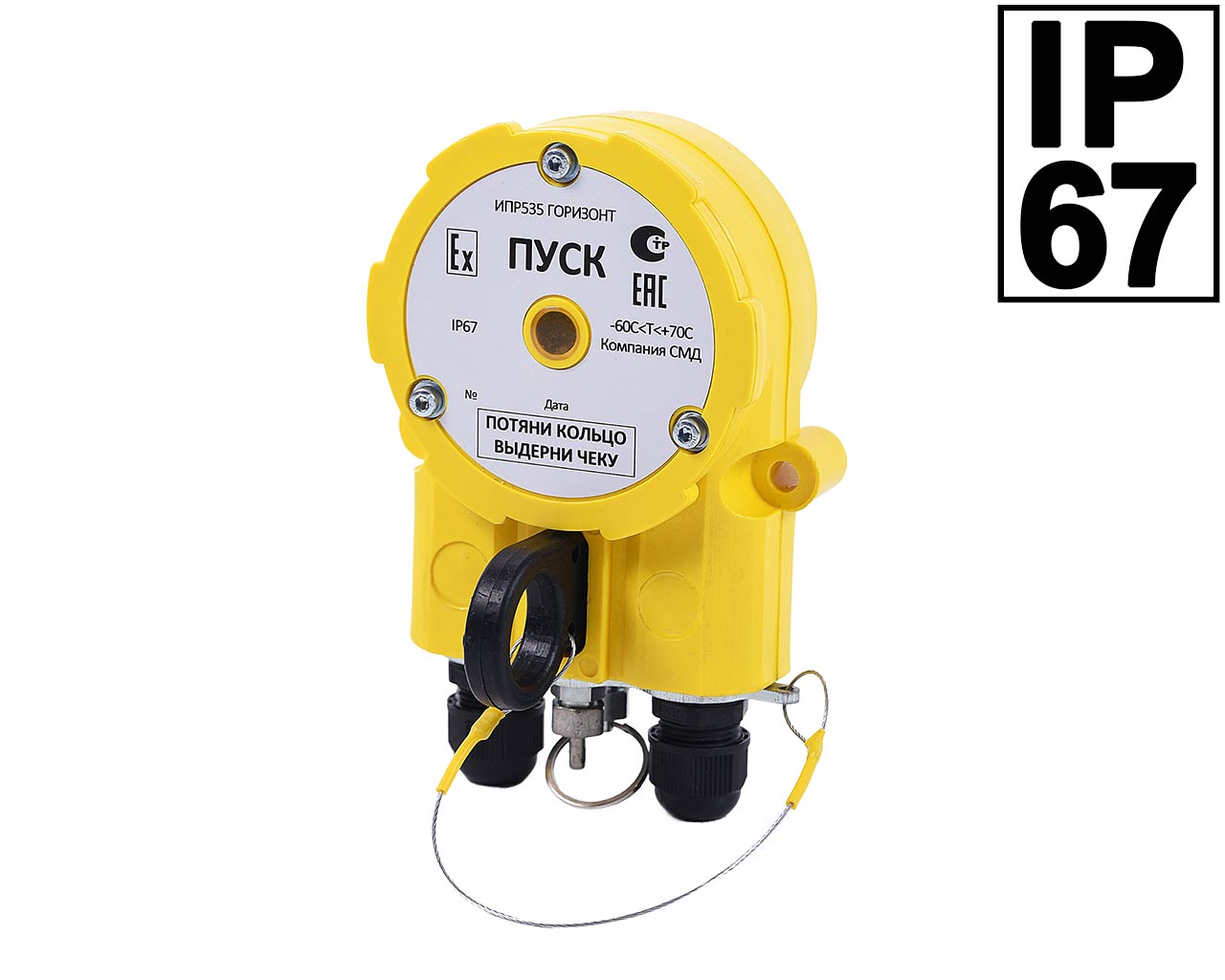

Manual start devices IPR 535 Gorizont "Pusk" OP are designed for starting the actuators of fire extinguishing systems, smoke removal systems.
Start device can be used as a stand-alone device, as well as in the alarm loops for short-circuit (parallel connection) or opening (connection in series) effect. Two-color status indicator: standby mode indication - green flashing once in 5-7 seconds; "alarm" mode indication - red flicking with frequency above 5Hz. Class rated as per GOST R 53325-2012: manual call point - Class А (single-action); manual start devices - Class В (double-action).

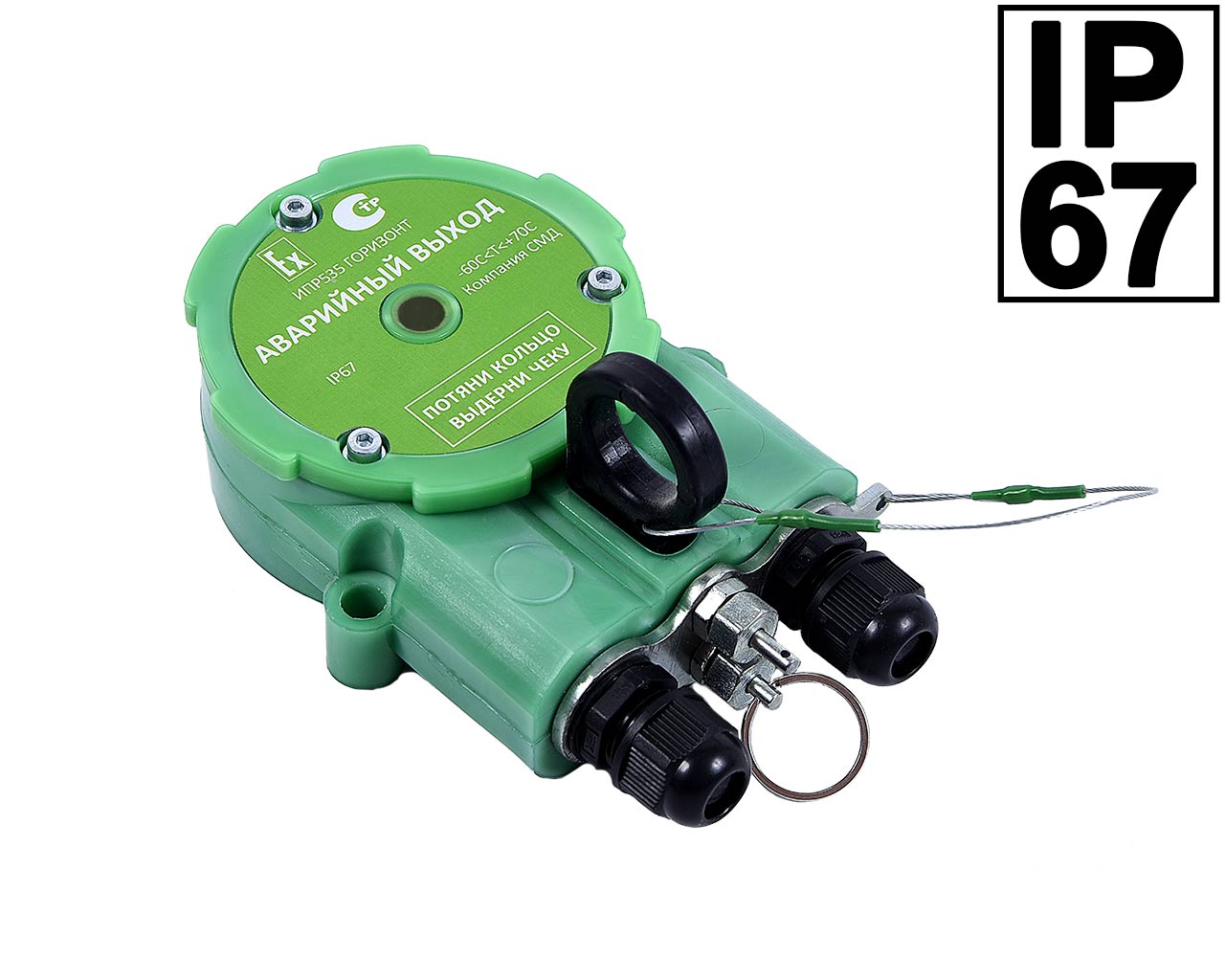

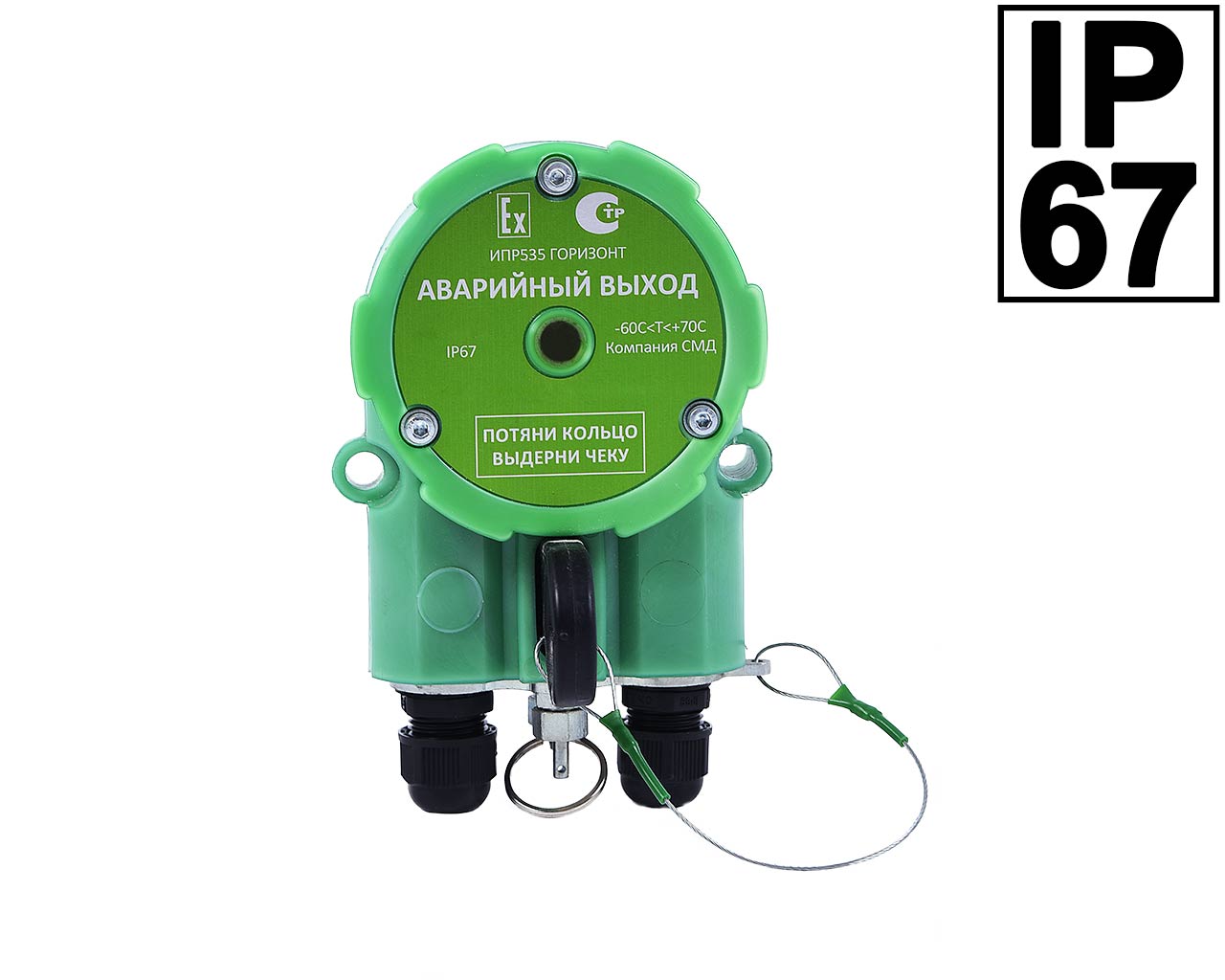

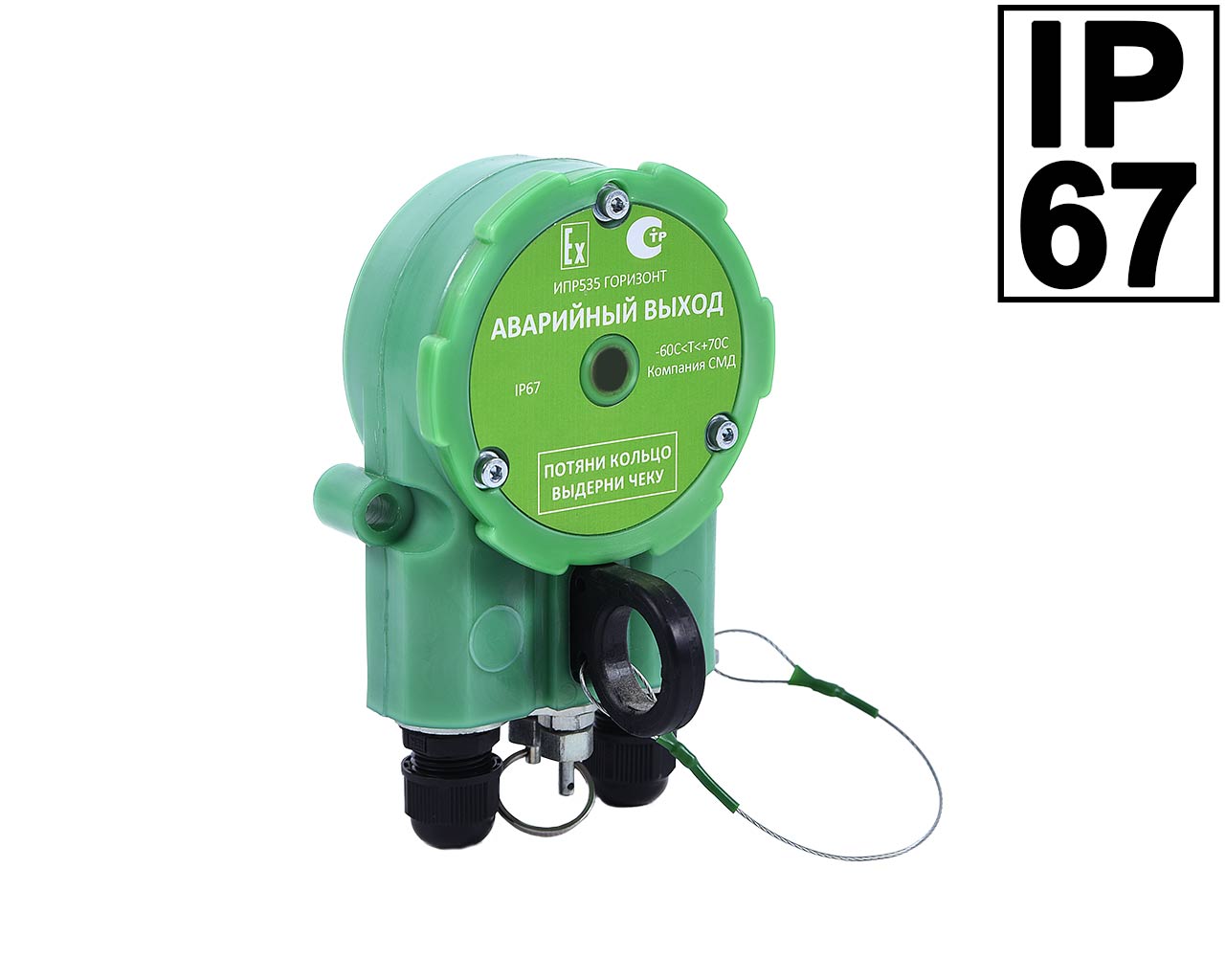

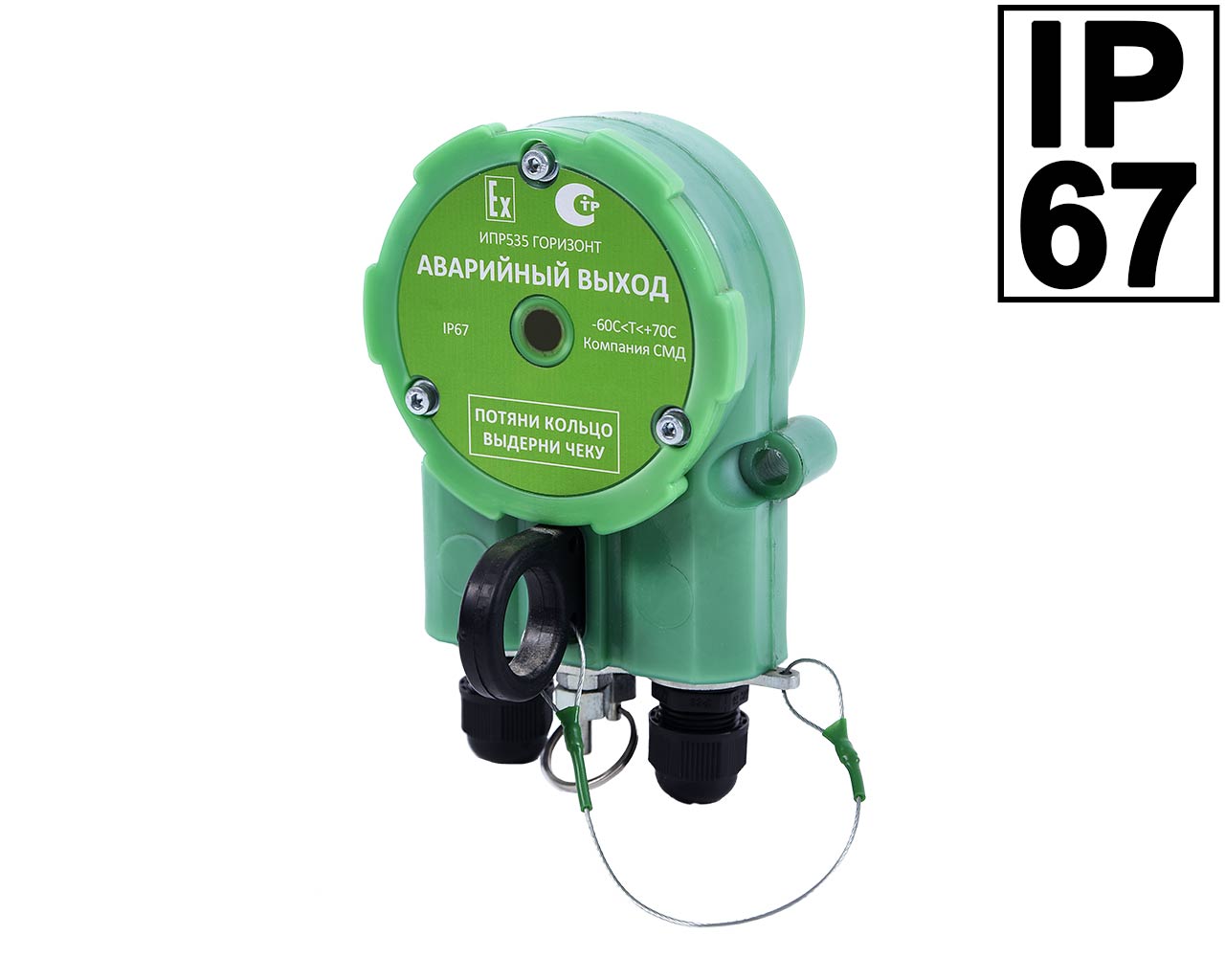

IPR 535 Gorizont 'EMERGENCY EXIT' OP is designed to unlock the doors of escape exits.
Emergency door release unit can be used as a stand-alone device, as well as in the alarm loops for short-circuit (parallel connection) or opening (connection in series) effect. Two-color status indicator: standby mode indication - green flashing once in 5¬7 seconds; ""alarm"" mode indication - red flicking with frequency above 5Hz.
Class rated as per GOST R 53325-2012: manual start devices - Class В (double-action).
| IPR 535 Gorizont OP | IPR 535 Gorizont "Pusk" OP |
IPR 535 Gorizont "EMERGENCY EXIT" OP |
|
| Ingress protection | IP67 | ||
| Operating temperature range | -60°С<Ta<75°С | ||
| Climatic rating | UHL1 | ||
| Operating voltage | 8-28V | ||
| Input current in standby mode, max.: | 80 uA | ||
| Intrinsic input current in 'Alarm' mode, max.: | 0,7 mA | ||
| Current in circuit of external additional resistor, max.: | 100 mA | ||
| Enclosure color: | red | yellow | green |
| Enclosure material | Impact-resistant polyamide | ||
| Overall dimensions without cable glands | 130х120х50mm | ||
Call point IPR535 Gorizont MK comes with two cable glands that allow to install it in the alarm loop with round cable of diameter 6-10 mm.
