KVVZ GK 101
 |
Explosion-proof switching box for heating cable with the input under the insulation KVVZ GK 101, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х240х90mm, terminal strip 5х10mm, 2х10РЕ, power cable gland MG25, high impact polyamide housing | |
|

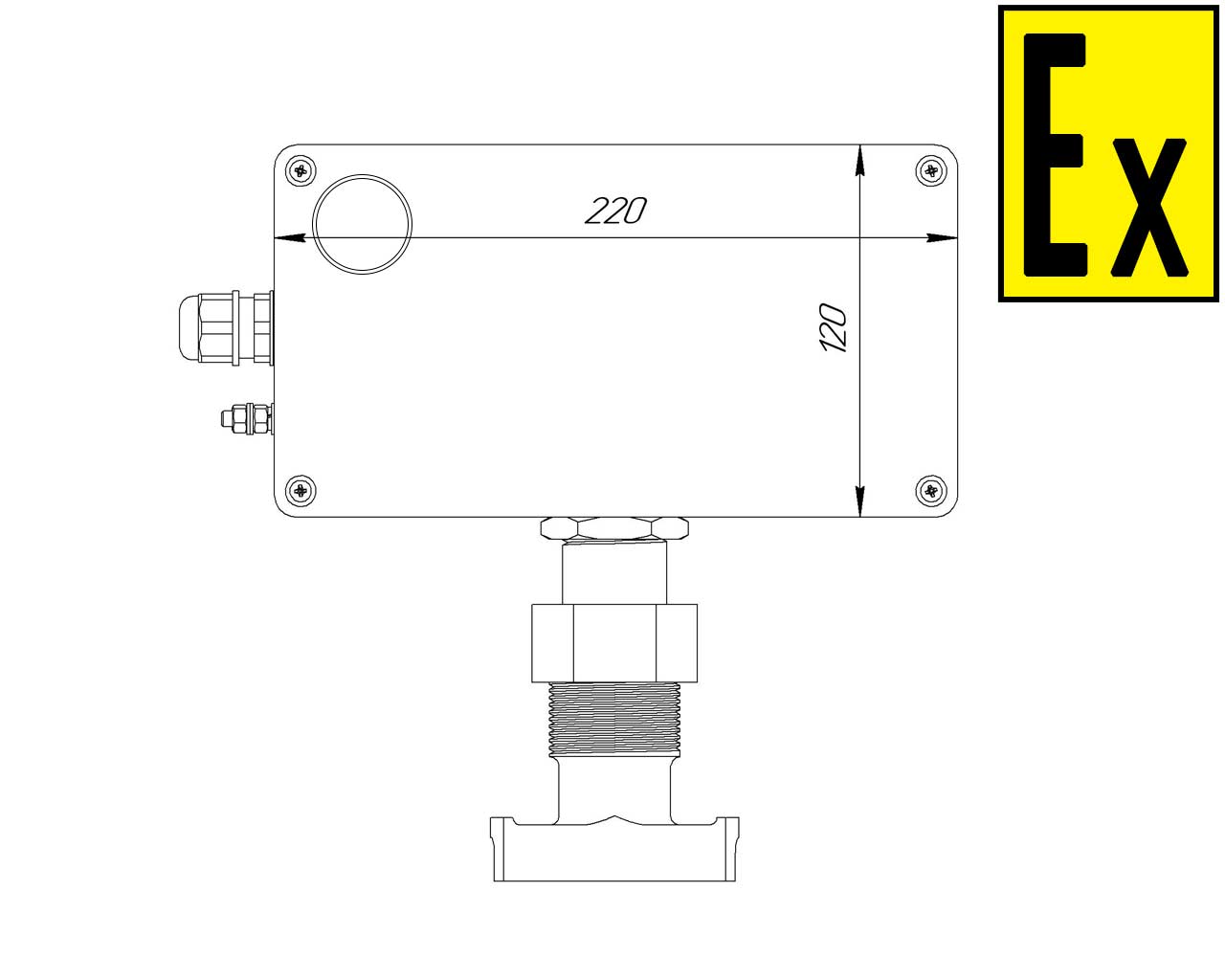

KVVZ GK 102
 |
Explosion-proof switching box for heating cable with the input under the insulation and indication KVVZ GK 102, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х240х90mm, terminal strip 5х10mm, 2х10РЕ, power cable gland MG25, high impact polyamide housing | |
|
KVVZ GK 103
 |
Explosion-proof switching box for heating cable KVVZ GK 103, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х120х90mm, terminal strip 5х10mm, 2х10РЕ, power cable gland MG25, high impact polyamide housing | |
|
KVVZ GK 104
 |
Explosion-proof switching box for heating cable with indication KVVZ GK 104, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 100х100х90mm, power cable gland MG25, high impact polyamide housing | |
|

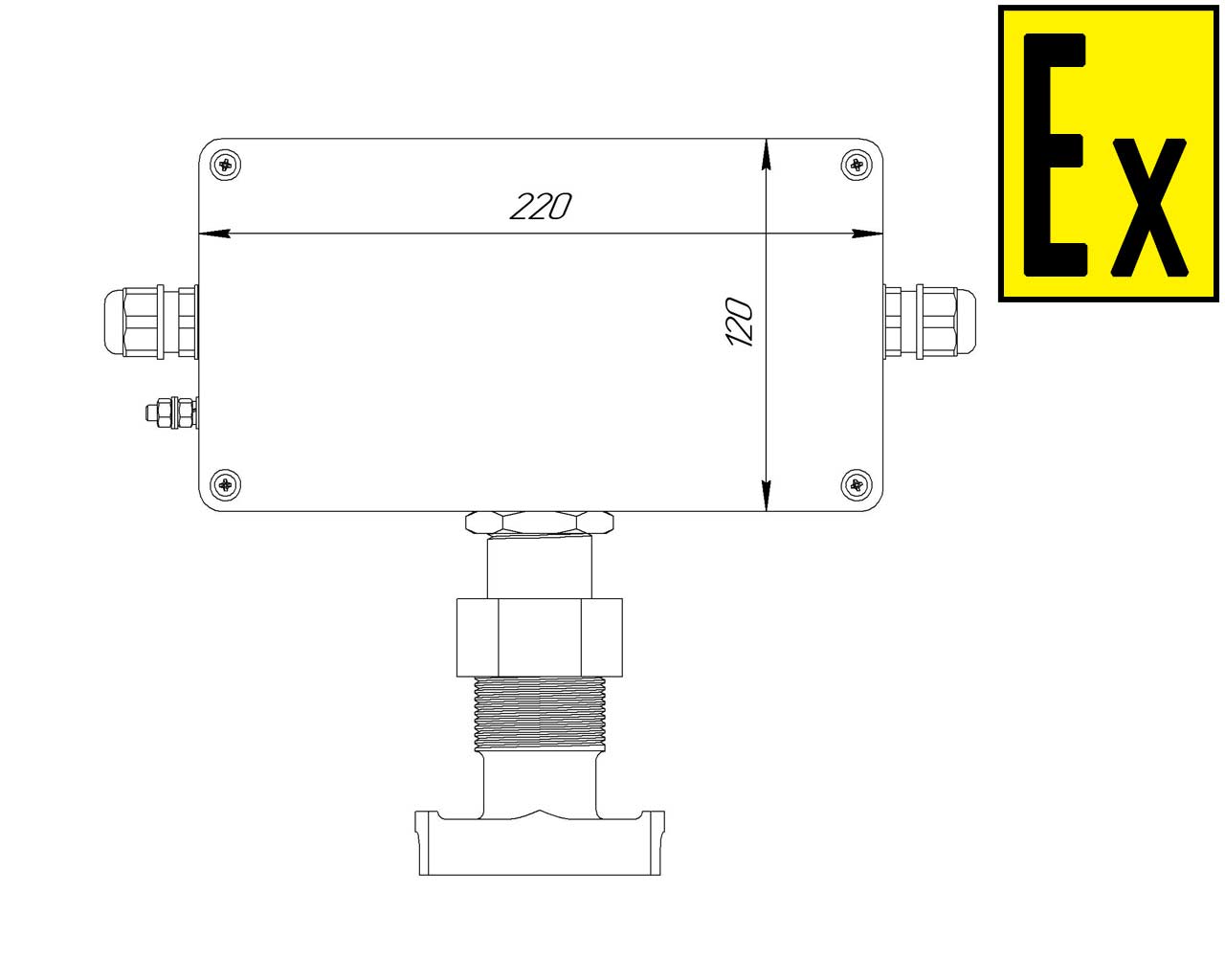

KVVZ GK 105
 |
Terminal box, explosion-proof for temperature sensors with the input under the insulation KVVZ GK 105, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х240х90mm, terminal strip 9х2,5mm, 2 power cable glands MG25, high impact polyamide housing | |
|

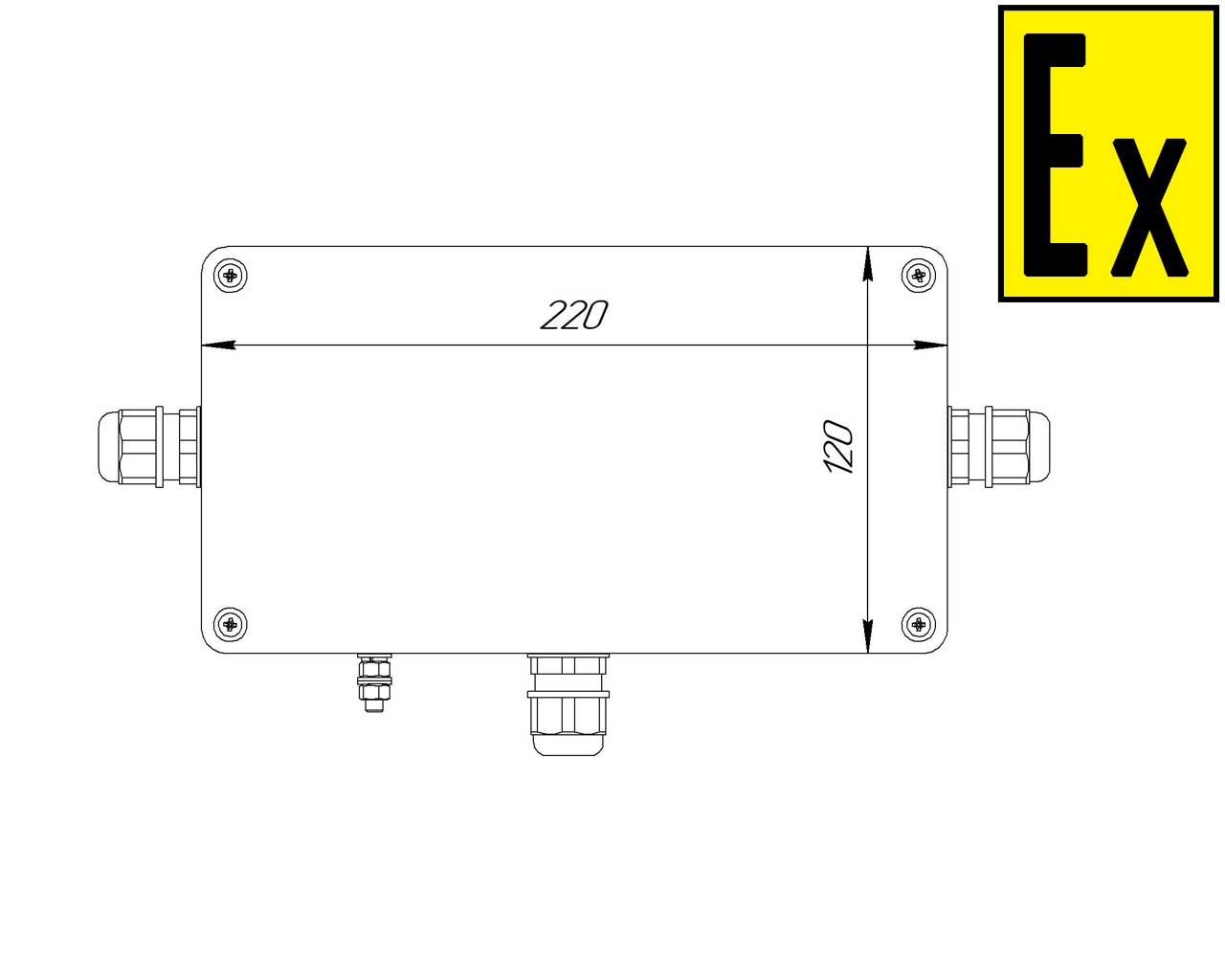

KVVZ GK 106
 |
Terminal box, explosion-proof for temperature sensors KVVZ GK 106, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х120х90mm, terminal strip 9х2,5mm, 3 glands for power cable and temperature sensors MG25, high impact polyamide housing | |
|

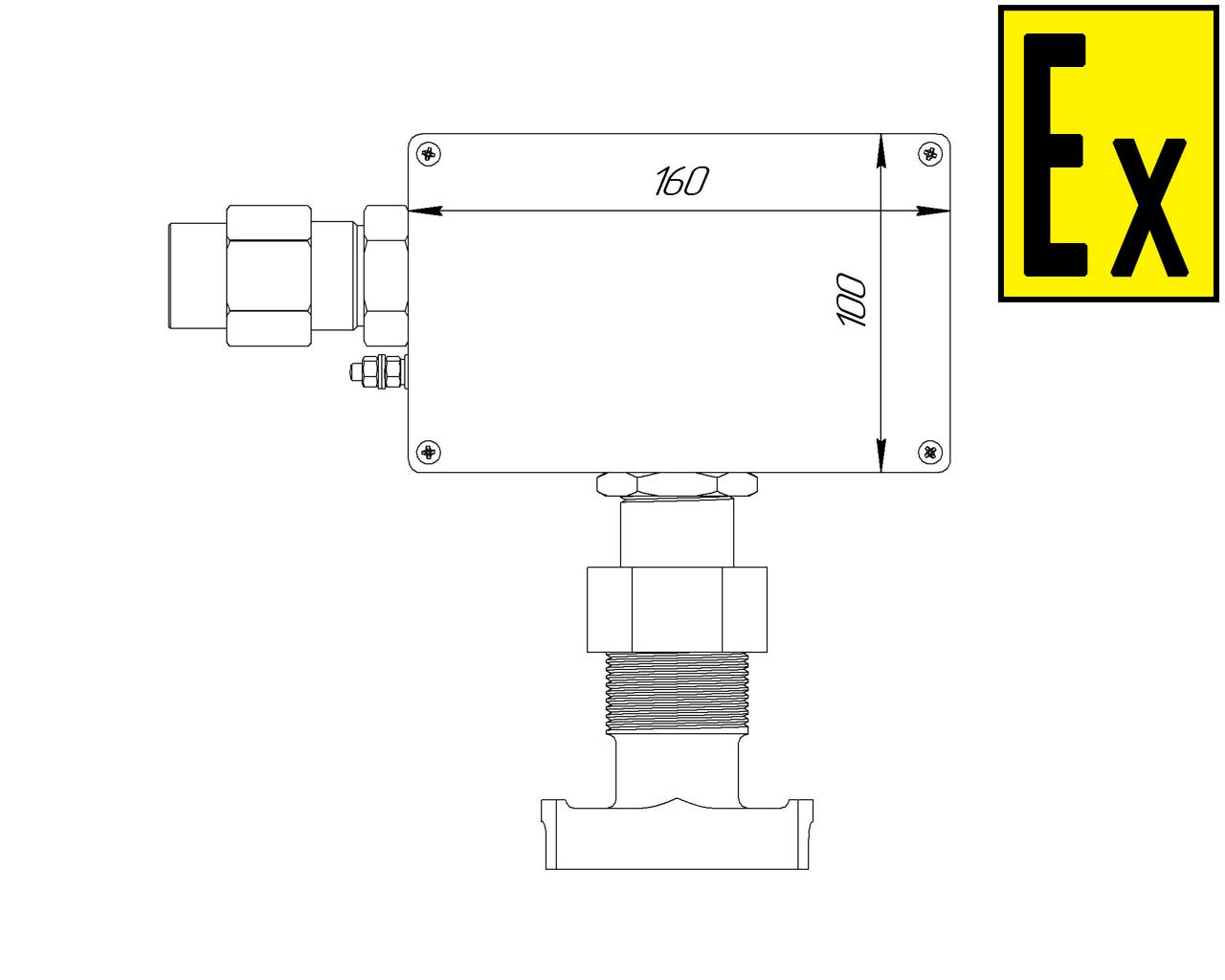

KVMK GK 101
 |
Explosion-proof switching box for heating cable with the input under the insulation KVMK GK 101, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х220х80mm, terminal strip 5х10mm, 2х10РЕ, cable gland KV M25, case material aluminum alloy | |
|
KVMK GK 102
 |
Explosion-proof switching box for heating cable with the input under the insulation and indication KVMK GK 102, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х220х80mm, terminal strip 5х10mm, 2х10РЕ, cable gland KV M25, case material aluminum alloy | |
|

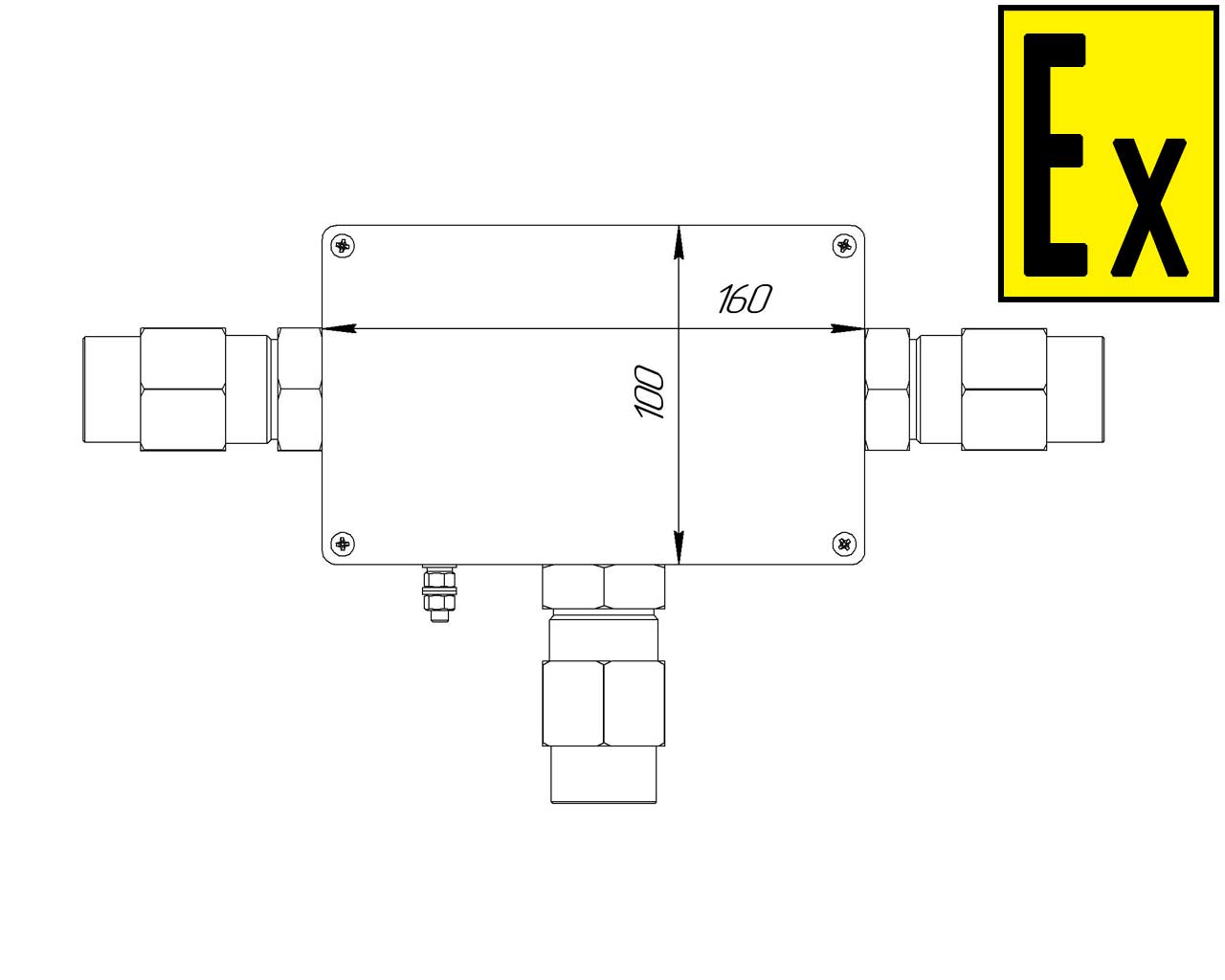

KVMK GK 103
 |
Explosion-proof switching box for heating cable KVMK GK 103, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х100х80mm, terminal strip 5х10mm, 2х10РЕ, cable gland KV M25, case material aluminum alloy | |
|

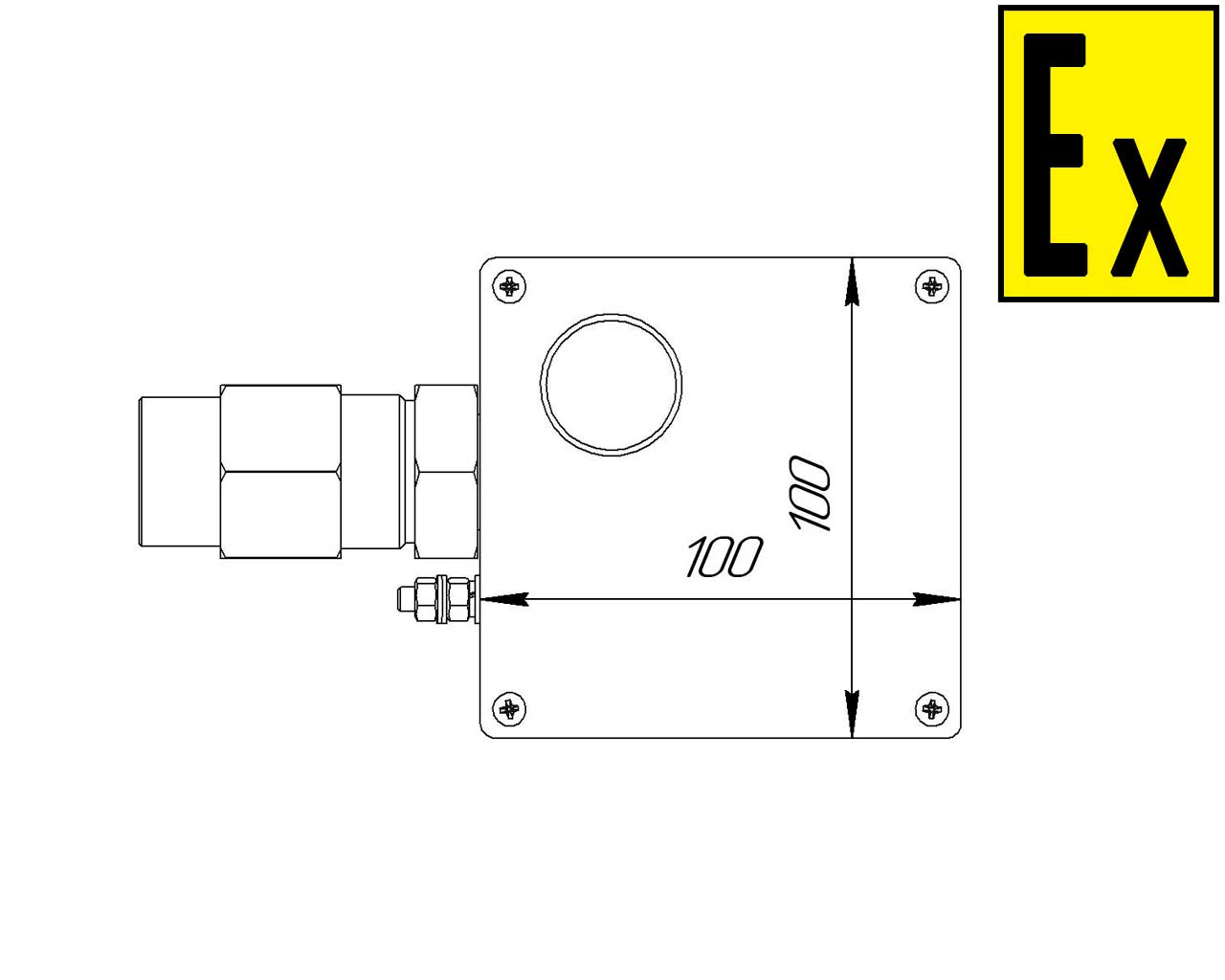

KVMK GK 104
 |
Explosion-proof switching box for heating cable with indication KVMK GK 104, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 100х100х80mm, case material aluminum alloy | |
|

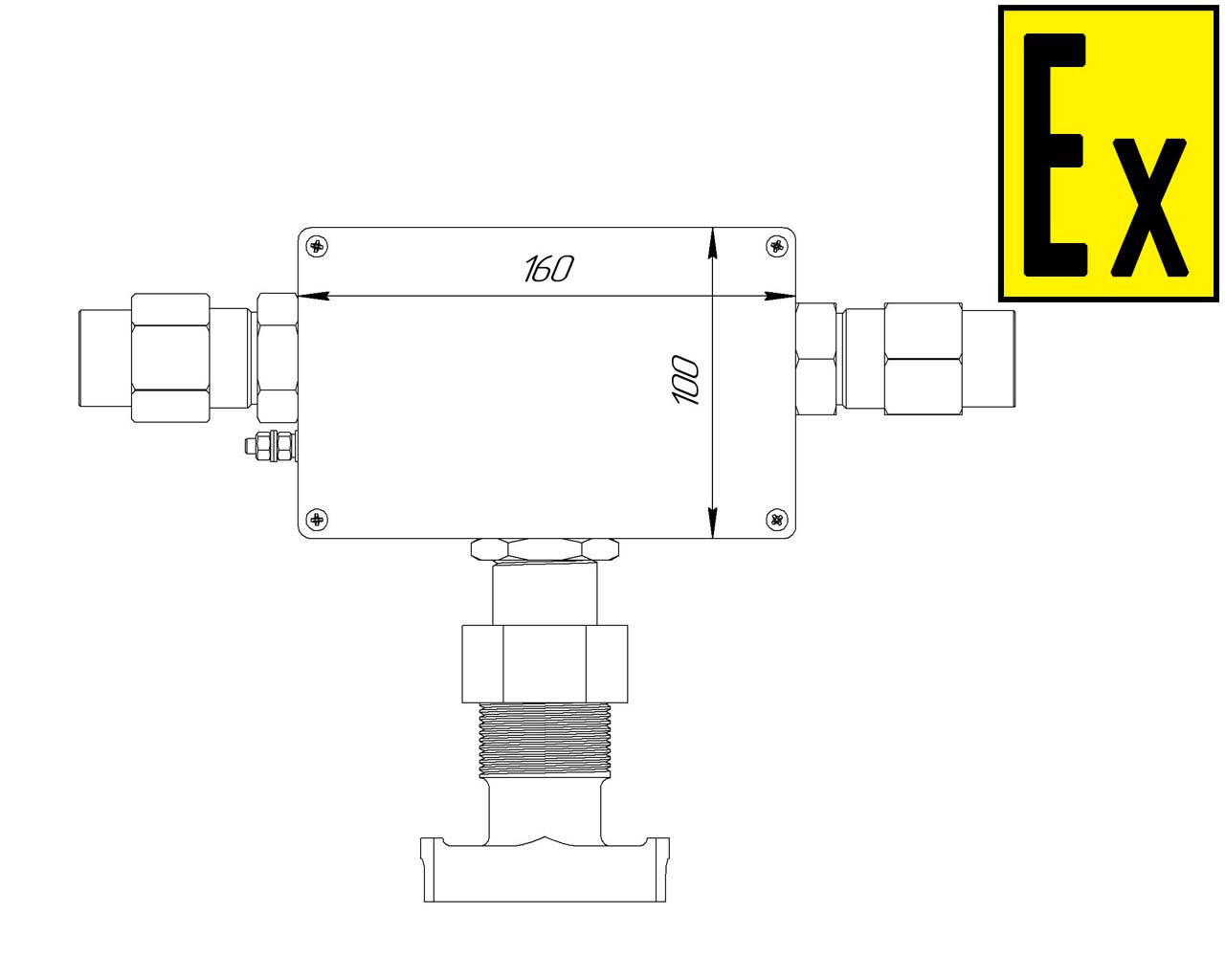

KVMK GK 105
 |
Terminal box, explosion-proof for temperature sensors with the input under the insulation KVMK GK 105, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х220х80mm, terminal strip 9х2,5mm, 2 cable glands KV M25, case material aluminum alloy | |
|

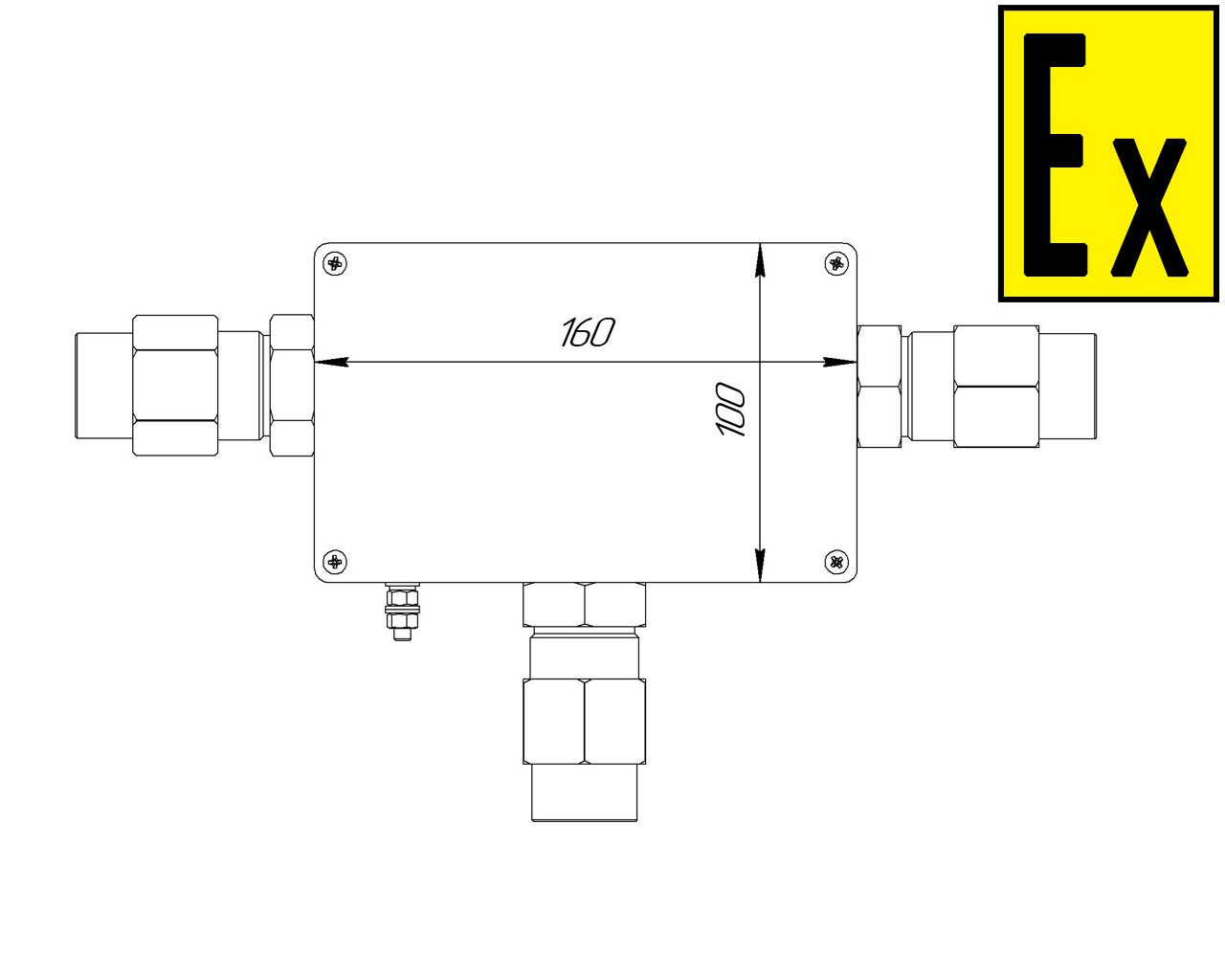

KVMK GK 106
 |
Terminal box, explosion-proof for temperature sensors KVMK GK 106, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х100х80mm, terminal strip 9х2,5mm, 3 cable glands and temperature sensors KV M25, case material aluminum alloy | |
|
KVMK GK 201
 |
Explosion-proof switching box for heating cable with the input under the insulation KVMK GK 201, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х280х80mm, terminal strip 5х10mm, 2х10РЕ, 4 cable glands with a plug KV M25, case material aluminum alloy | |
|
KVMK GK 202
 |
Explosion-proof switching box for heating cable with the input under the insulation and indication KVMK GK 202, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х280х80mm, terminal strip 5х10mm, 2х10РЕ, 4 cable glands with a plug KV M25, case material aluminum alloy | |
|

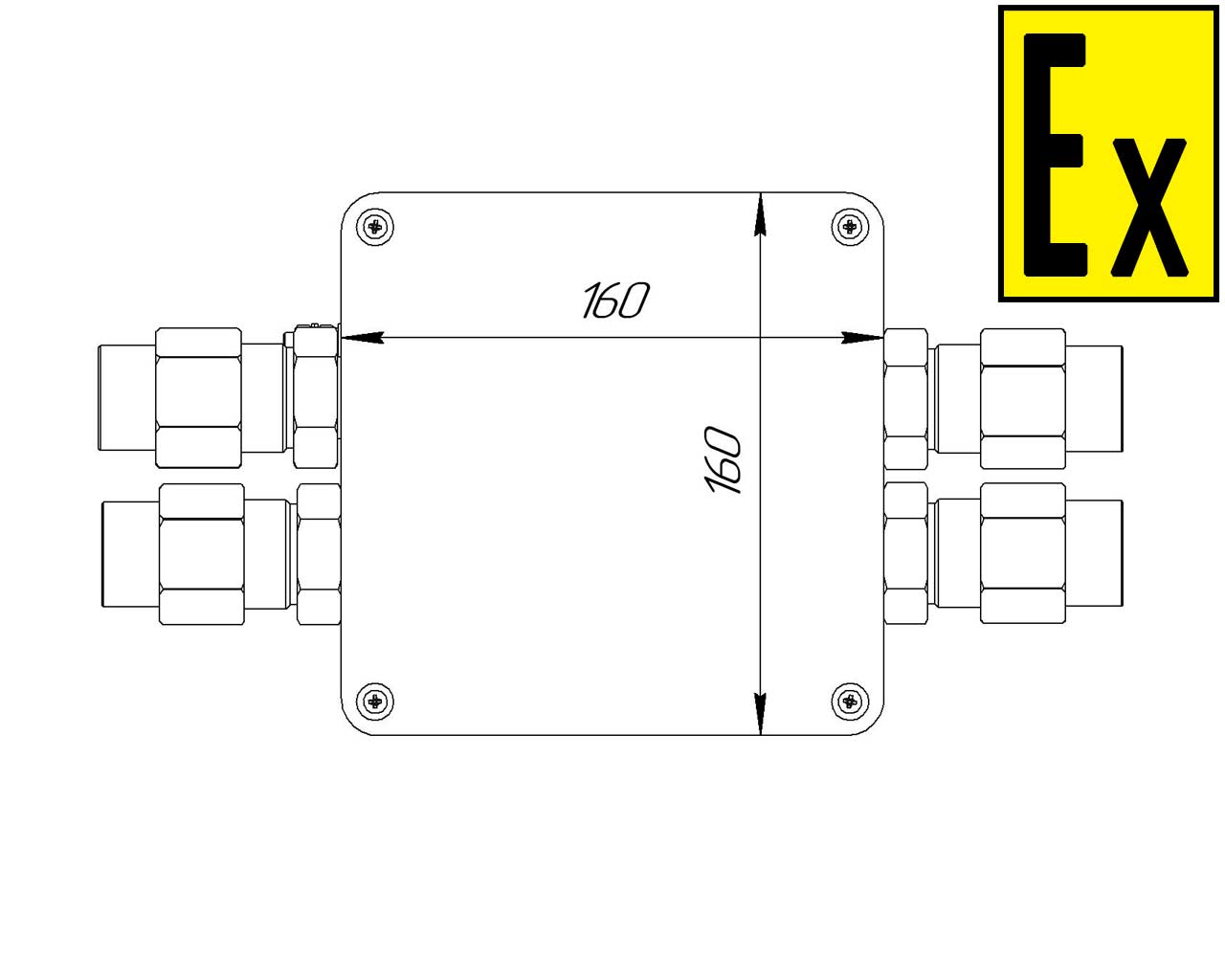

KVMK GK 203
 |
Explosion-proof switching box for heating cable KVMK GK 203, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х280х80mm, terminal strip 5х10mm, 2х10РЕ, 4 cable glands with a plug KV M25 for power and heating cables, case material aluminum alloy | |
|
KVMK GK 204
 |
Explosion-proof switching box for heating cable with indication KVMK GK 204, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 160х280х80mm, terminal strip 5х10mm, 2х10РЕ, 4 cable glands with a plug KV M25 for power and heating cables, case material aluminum alloy | |
|
KVMK GK 301
 |
Explosion-proof switching box for heating cable with the input under the insulation KVMK GK 301, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х330х110mm, terminal strip 8х35mm, 4х35РЕ, 2 cable glands entries for power cable with a KV M32 plug, 2 cable glands outputs with the ability to connect up to 6 heating tapes, case material aluminum alloy | |
|

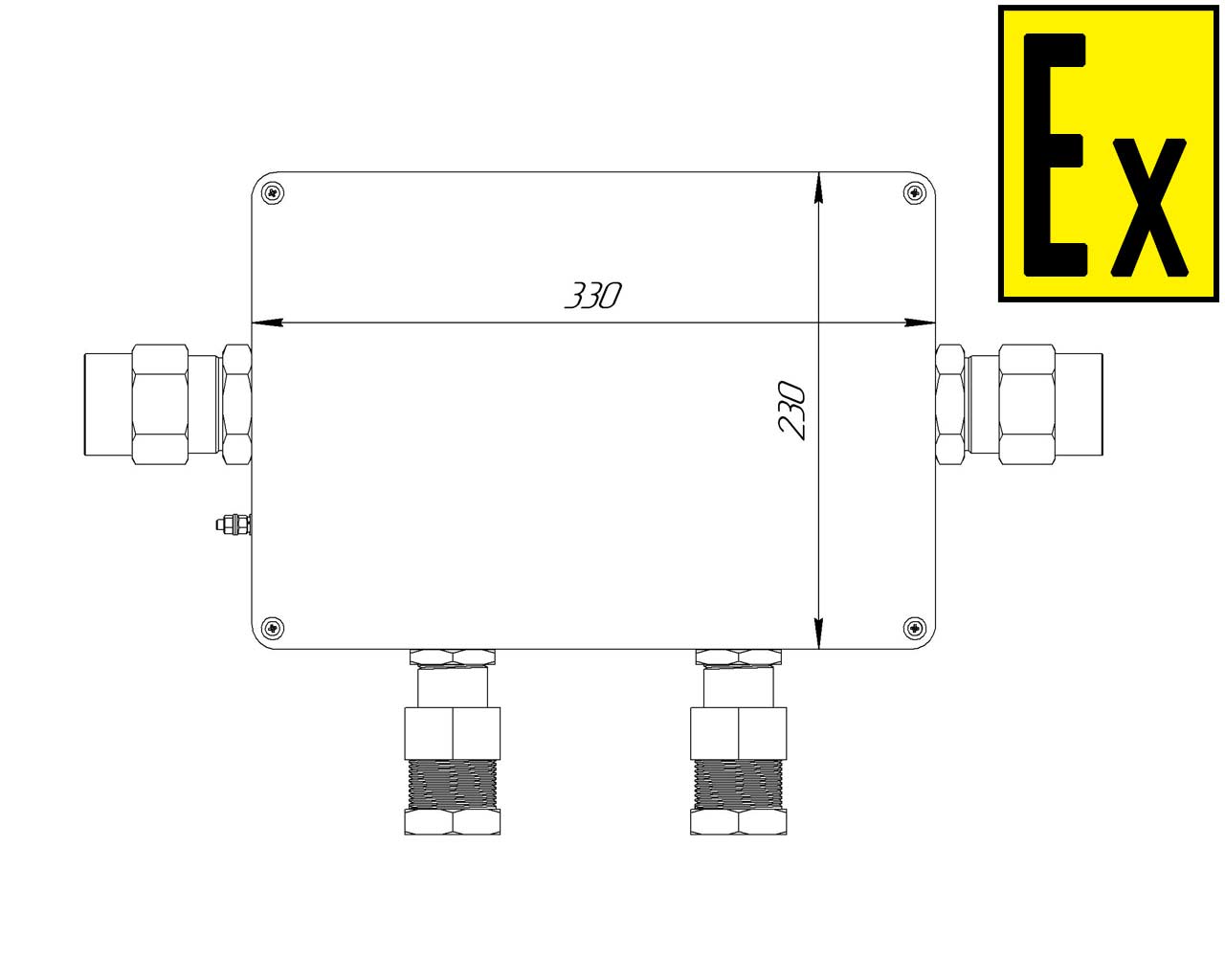

KVMK GK 302
 |
Explosion-proof switching box for heating cable with the input under the insulation KVMK GK 301, 1Ex e IIB T5 Gb, UHL1, -60°С‹Ta‹+85°С, IP66, 220х330х110mm, terminal strip 6х35mm, 6х35РЕ, 2 cable glands entries for power cable with a KV M32 plug, 2 cable glands outputs with the ability to connect up to 6 heating tapes, case material aluminum alloy |
