Explosion-proof, programmable, addressable, heat-sensitive fire detectors
These detectors are designed to detect fires accompanied by a temperature increase in the monitored area and transmit a digital signal to the control panel via a standard RS485 communication interface with the Modbus RTU protocol. They are maximum- or maximum-differential-action detectors with a variable response temperature – class "P" according to GOST 34698-2020. The detector measures the temperature of the monitored area in the range from -60°C to +150°C. Temperature response classes according to GOST 34698-2020:
| A1 | A2 | A3 | B | C | D |
| A1R | A2R | A3R | BR | CR | DR |
Applications: Indoor and outdoor hazardous areas in accordance with GOST IEC 60079-14-2013 and other regulatory documents governing the use of electrical equipment in hazardous areas. It can be used in automatic fire extinguishing and fire alarm systems at special-purpose facilities, such as oil and petroleum product storage tanks and main pipeline pumping stations. The version with an external temperature sensor allows the sensor and processing unit to be placed in different hazardous area classes.
ATTENTION!
The detectors of the Azimut MK (OP) 485 series are not measuring instruments.
Depending on the housing material, explosion protection means and temperature sensor design, the detectors are produced in versions in accordance with Table 1. Table 1
| Model, designation | Body material | Explosion protection | Temperature sensor |
| IP 101-392.1-R Azimut MK 485 | Aluminum alloy | 1Ex db [ia Ga] IIC T6...T4 Gb X / Ex tb [ia Da] IIIС T85°C… T135°C Db X |

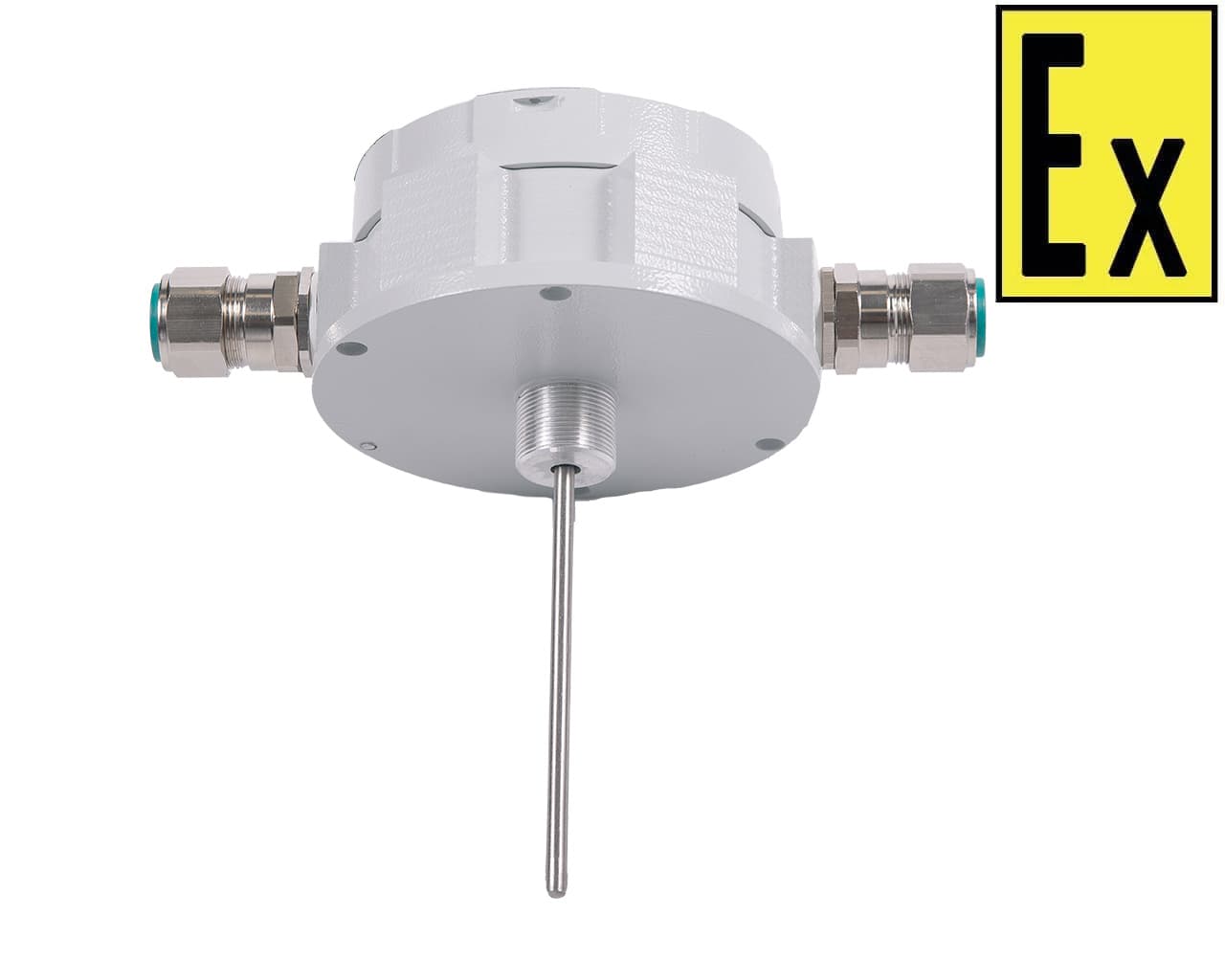

Built-in |

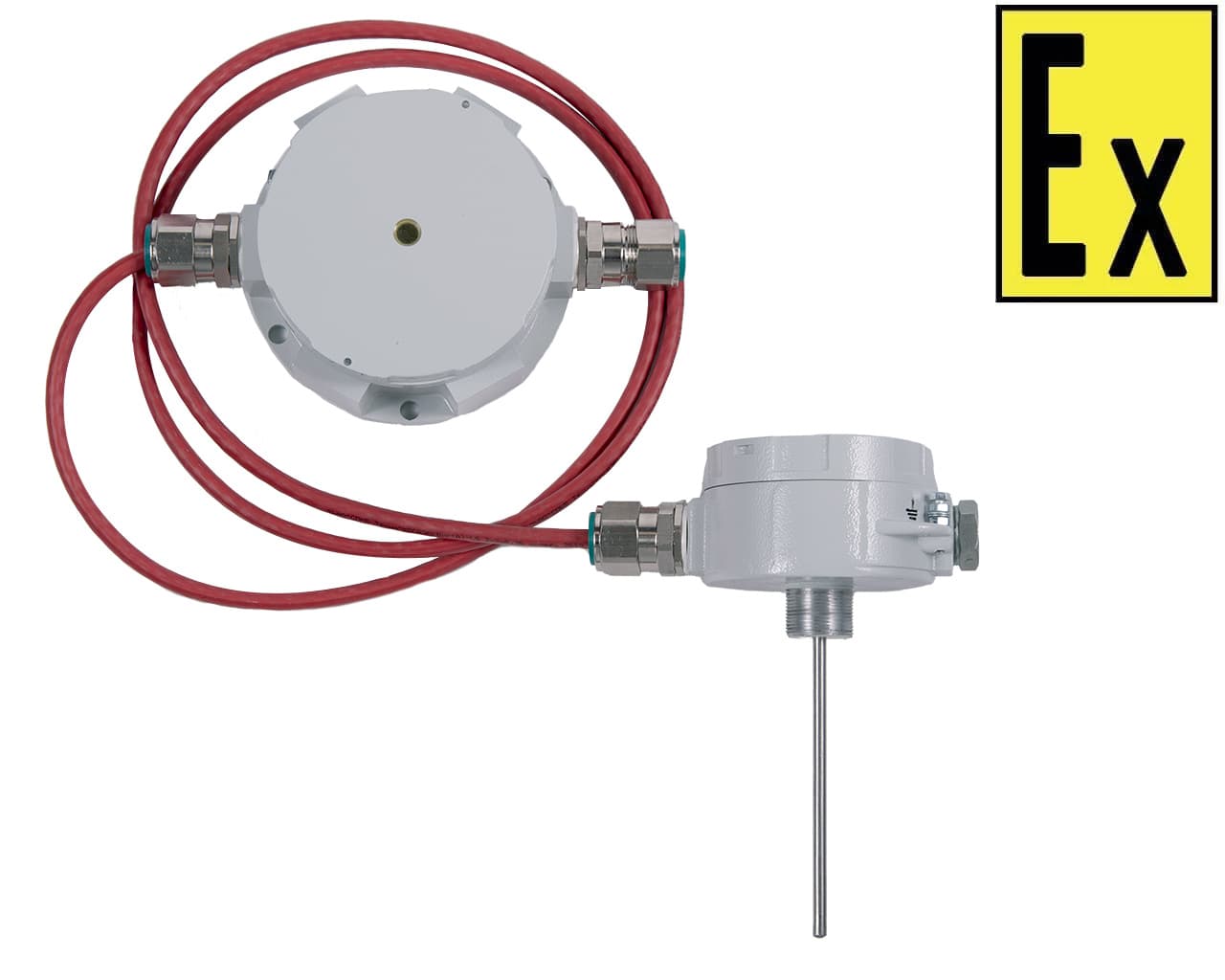

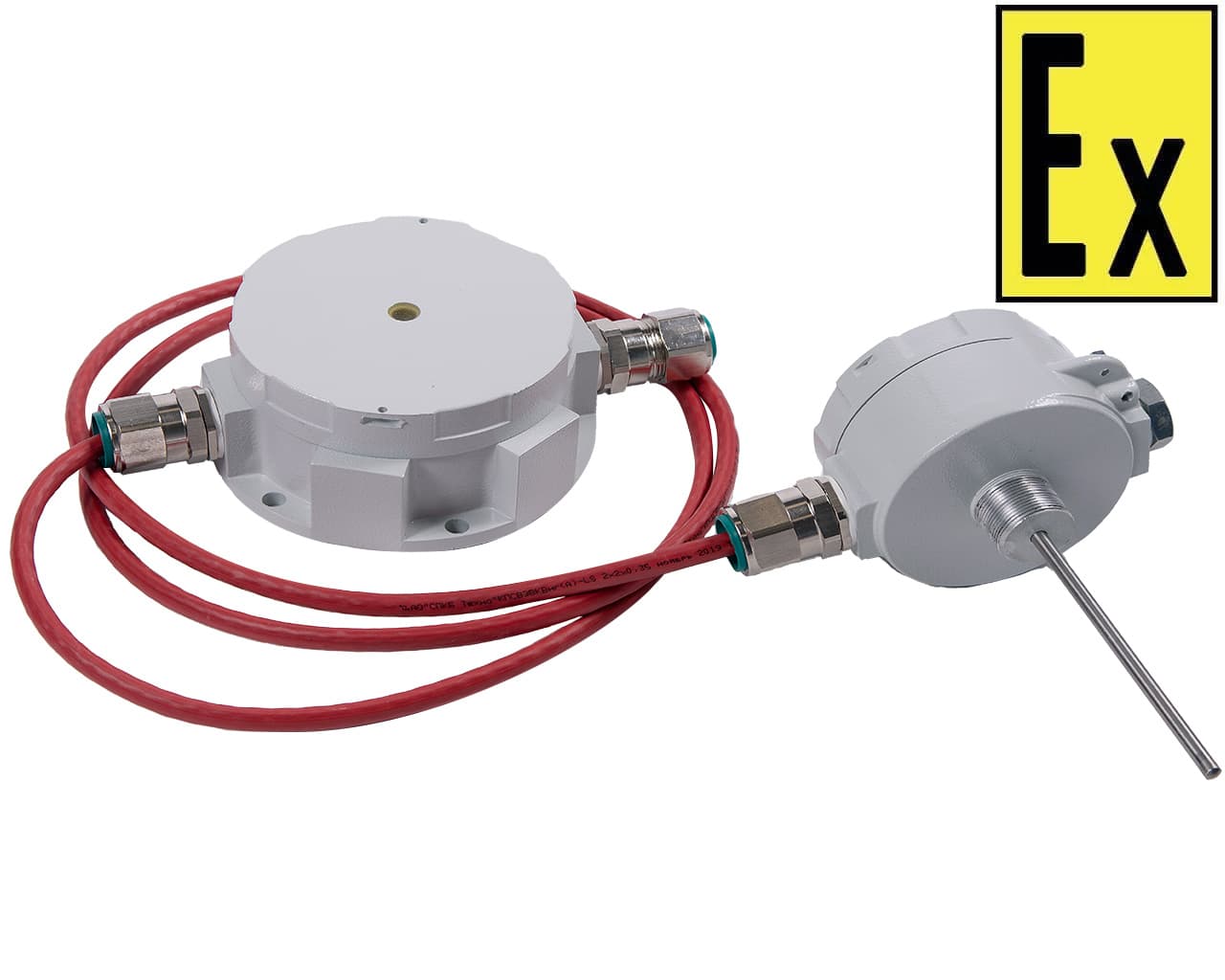

| IP 101-392.2-R Azimut MK 485 | External | ||
| IP 101-393.5-R Azimut MK 485 | Stainless steel | РВ Ex db [ia Ma] I Mb X / 1Ex db [ia Ga] IIC T6...T4 Gb X / Ex tb [ia Da] IIIС Т85°C…Т135°C Db Х |
Built-in |
| IP 101-393.6-R Azimut MK 485 | External |
Climate version OM(MU), UHL (NF) and HL (F) category 1, atmosphere type II-IV according to GOST 15150. Enclosure protection rating – IP66/IP67 according to GOST 14254. The operating temperature of the detectors depends on the version and the assigned temperature class: from -60°С … +80°С to -60°С … +105°С.
| Parameter | Meaning |
| Nominal supply voltage (Uп) | 24V |
| Permissible supply voltage range | 8 – 28V |
| Current consumption (Uп=8-28V), no more than (all relays and indicators are on) | 25 mA |
| Threshold operating temperature | 0 … 150°C |
| Temperature threshold setting discreteness | 1°C |
| Differential response | > 5°C/min |
| Thermal inertia index, no more than | 30 sec |
| Range of measured temperatures | -60°С … +150°С |
| Maximum continuous voltage of the "Fire" and "Fault" signal relays | 300V |
| Maximum current of the "Fire" and "Fault" signal relays (constant or alternating) | 100 mA |
| Address Line Interface | RS485 |
| Address Line Protocol (ALP) | Modbus RTU |
| Maximum length of the LS (* Subject to an agreed communication line and a transmission speed of no more than 9600 bits/sec) |
1200m* |
|
Weight of converter unit, no more than Aluminum alloy |
2 kg |
|
Weight of external sensor unit, no more than Aluminum alloy |
0.8 kg |
| Overall dimensions of the converter unit, no more than (without cable entries) |
D150mm x 93mm |
| Overall dimensions of the external sensor unit, no more than (without cable entries) |
D110mm x 80mm |
| IP 101 | - 392.X 1 - | X 2 | AZIMUTH | X 3 | X 4 |
| 1 | 2 | 3 | 4 | 5 | 6 |
IP 101-392.1-R Azimut MK 485-N
Cable entry type, explosion protection marking, temperature response class, temperature sensor length, and other additional parameters are specified in brackets when ordering.
Climate version OM(MU), UHL (NF) and HL (F) category 1, atmosphere type II-IV according to GOST 15150. Enclosure protection rating – IP66/IP67 according to GOST 14254. The operating temperature of the detectors depends on the version and the assigned temperature class: from -60°С … +80°С to -60°С … +105°С.
