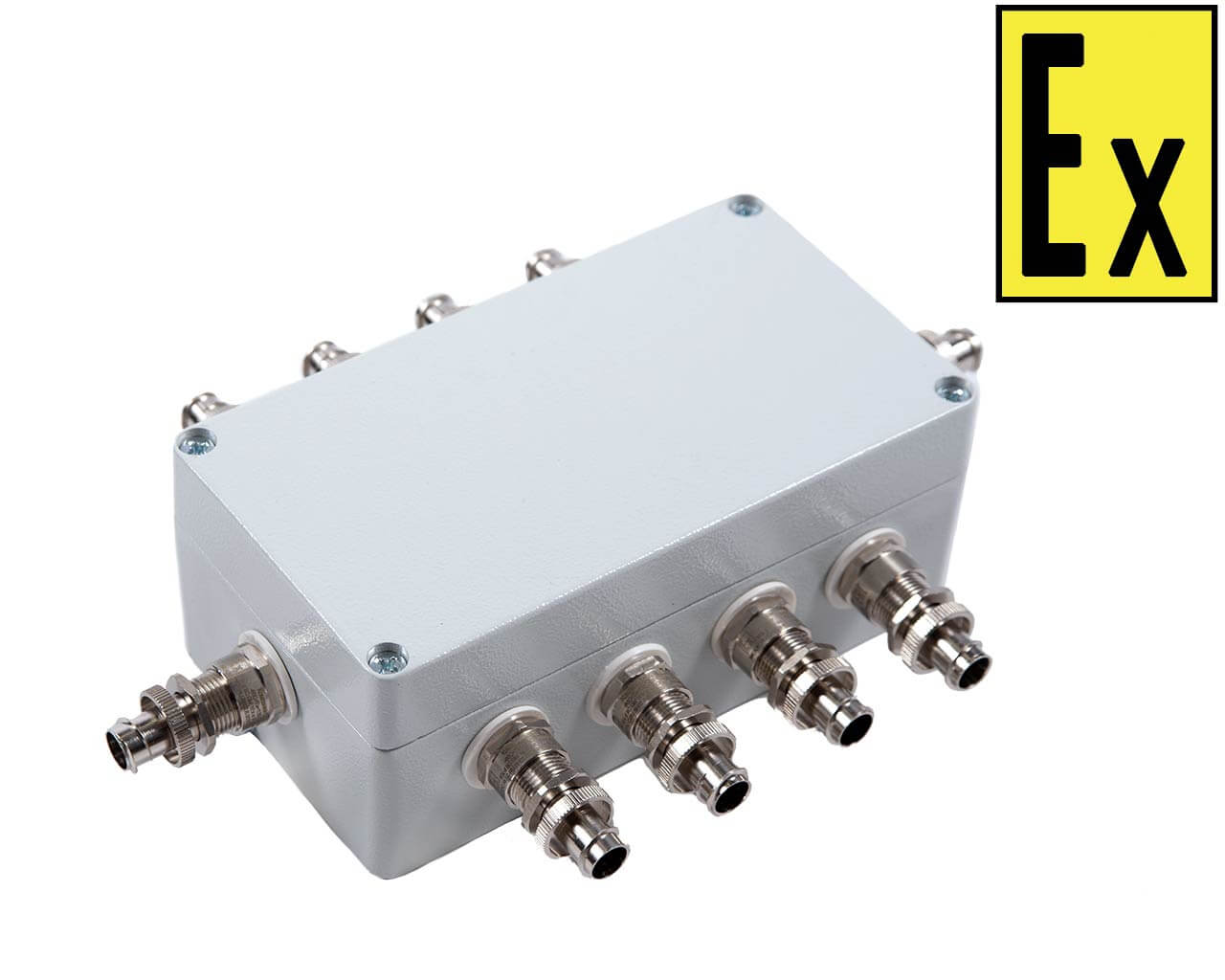

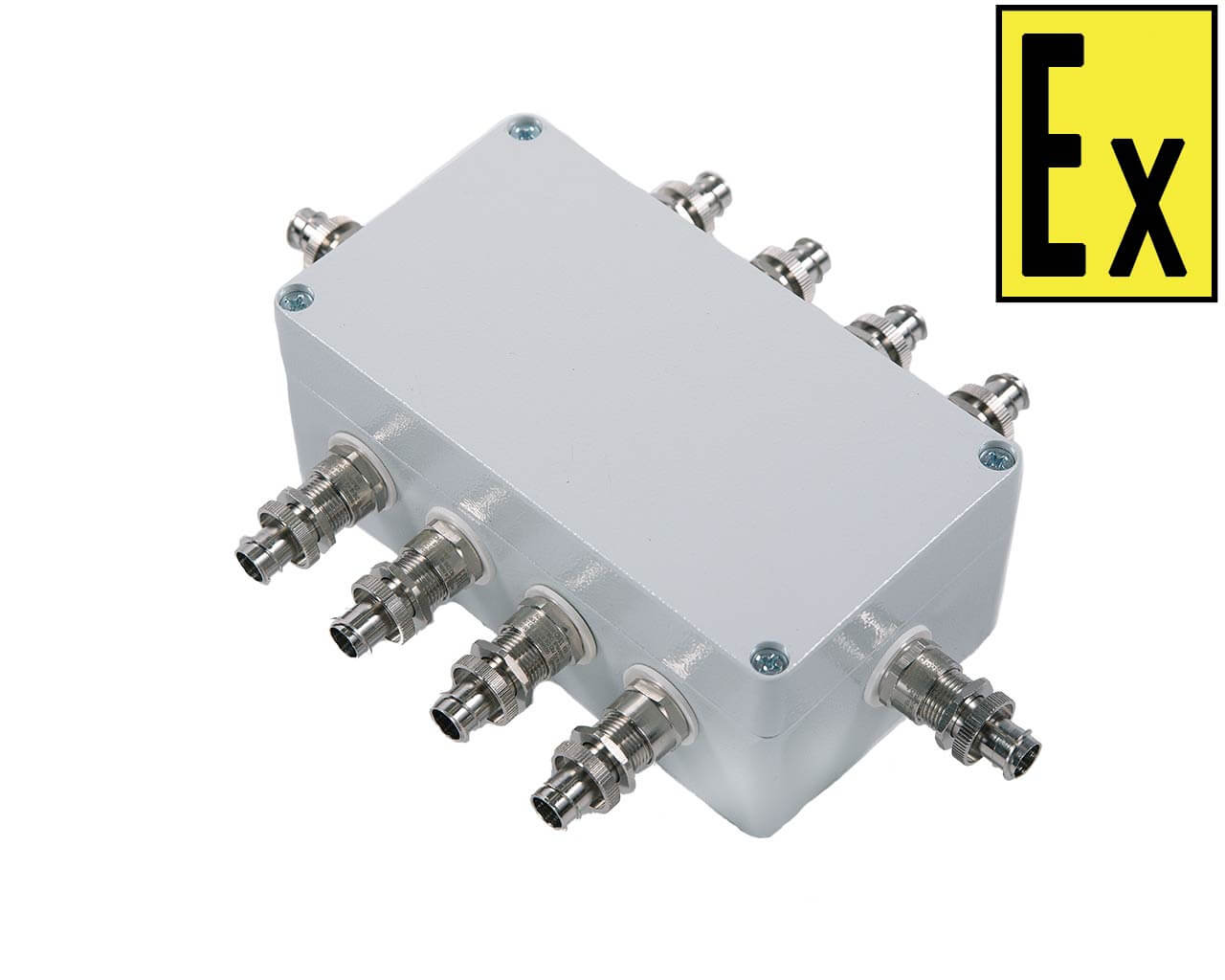

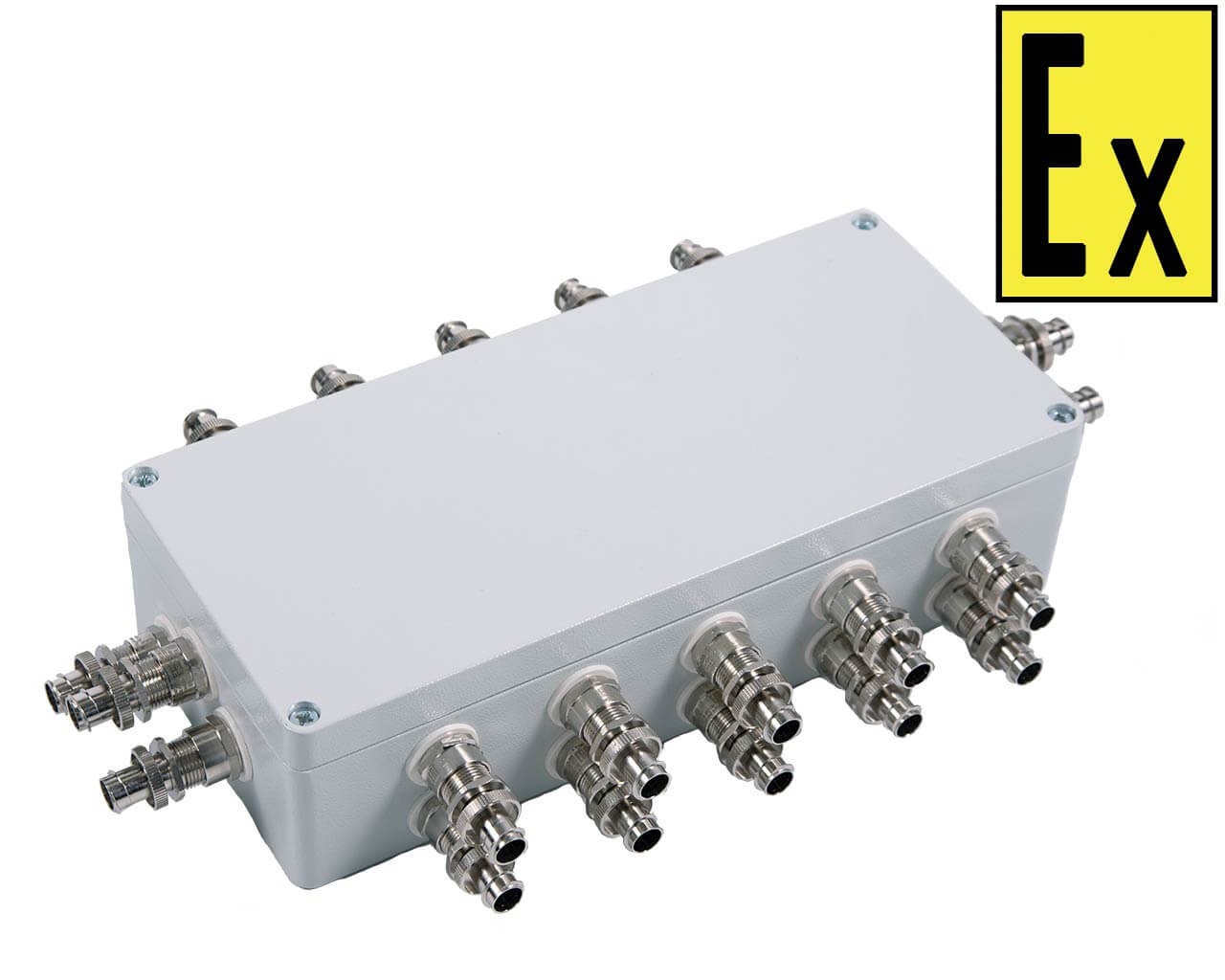

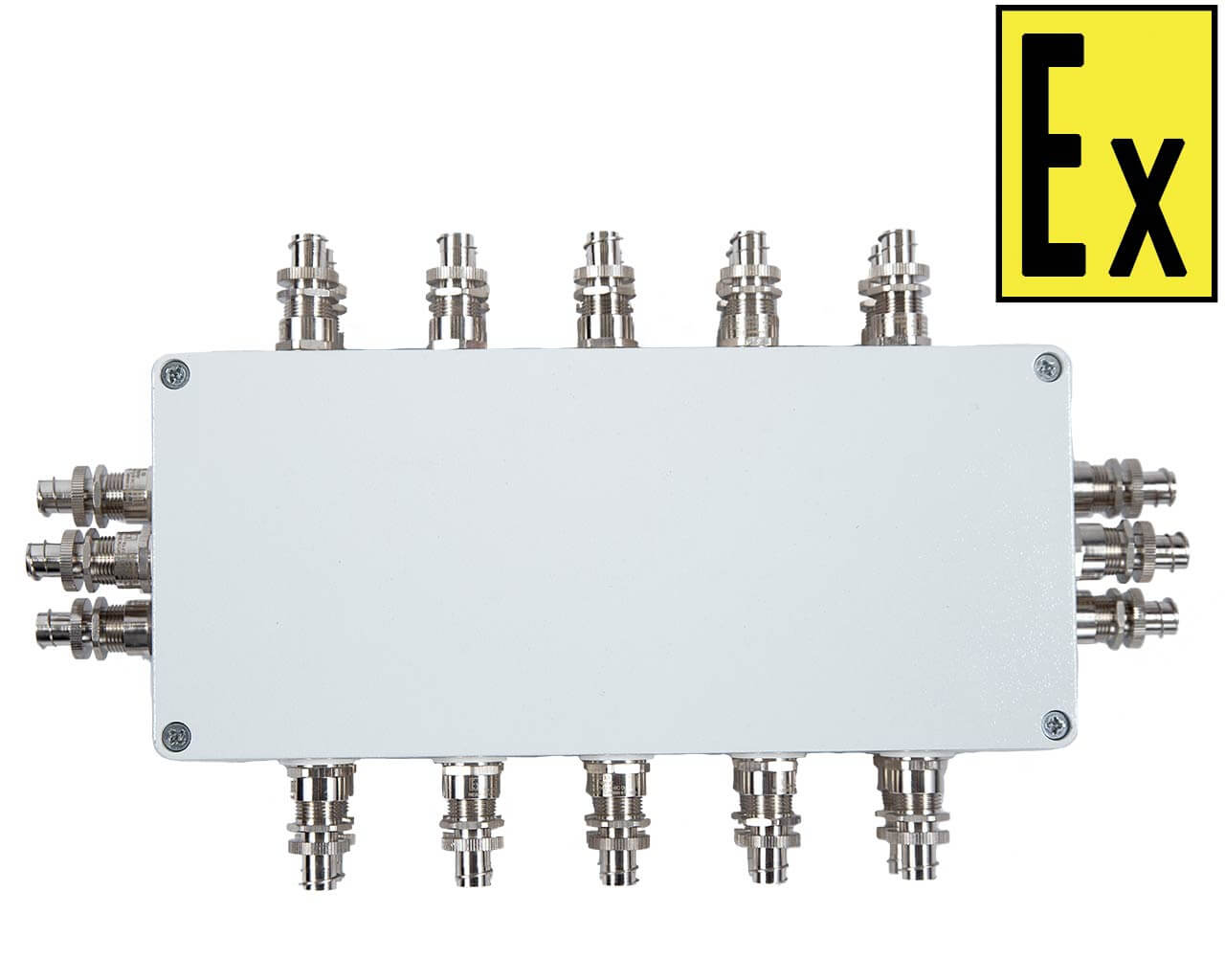

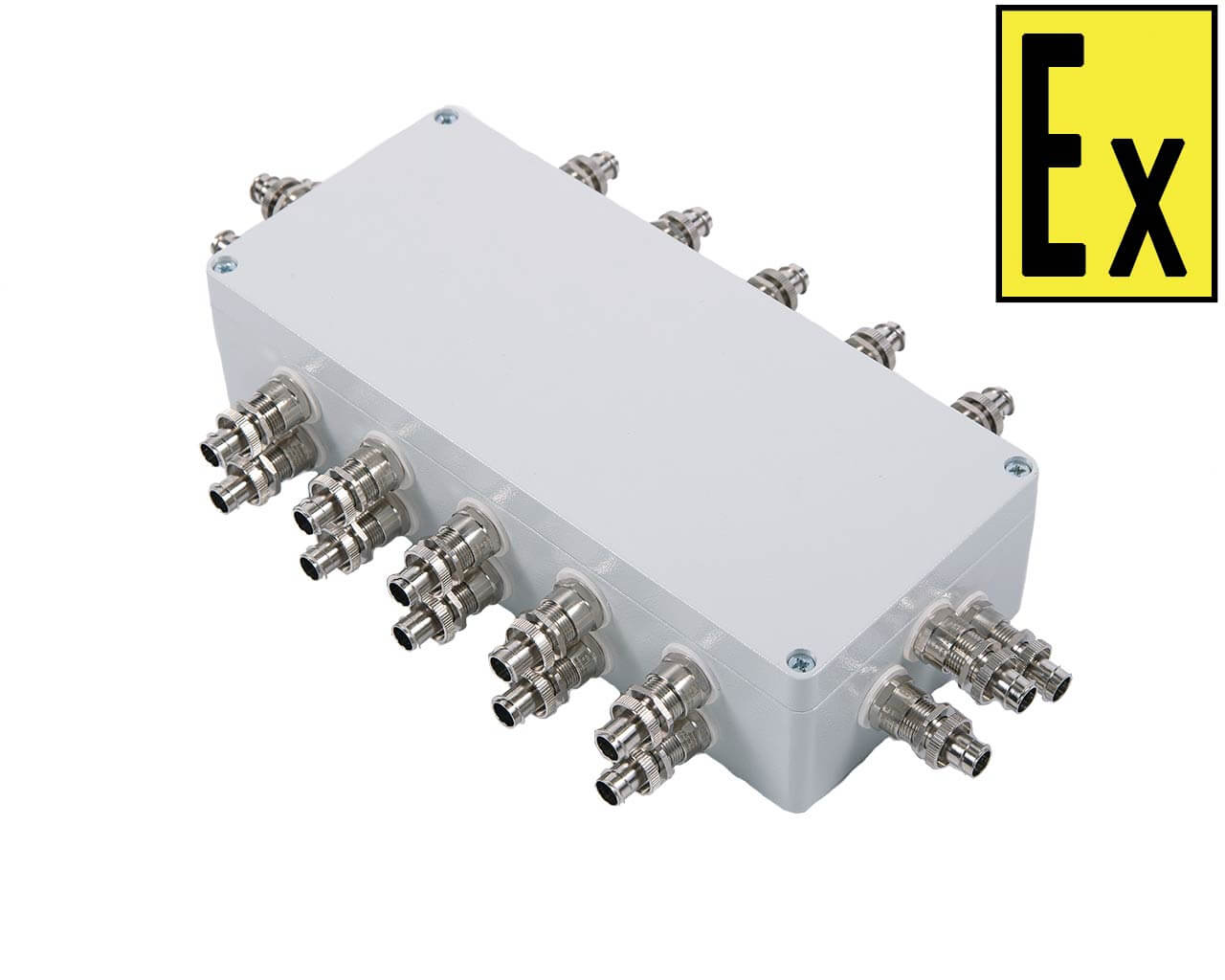

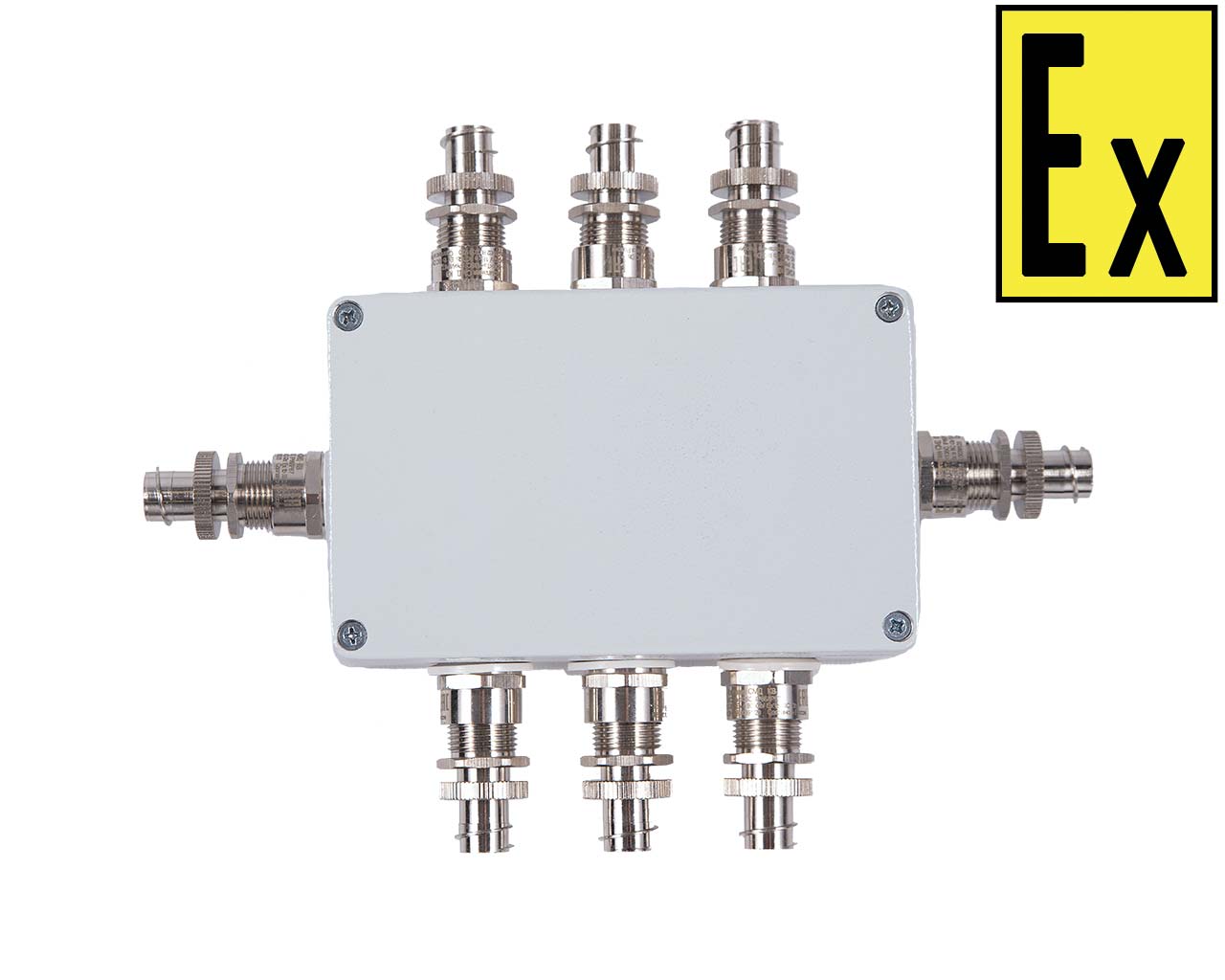

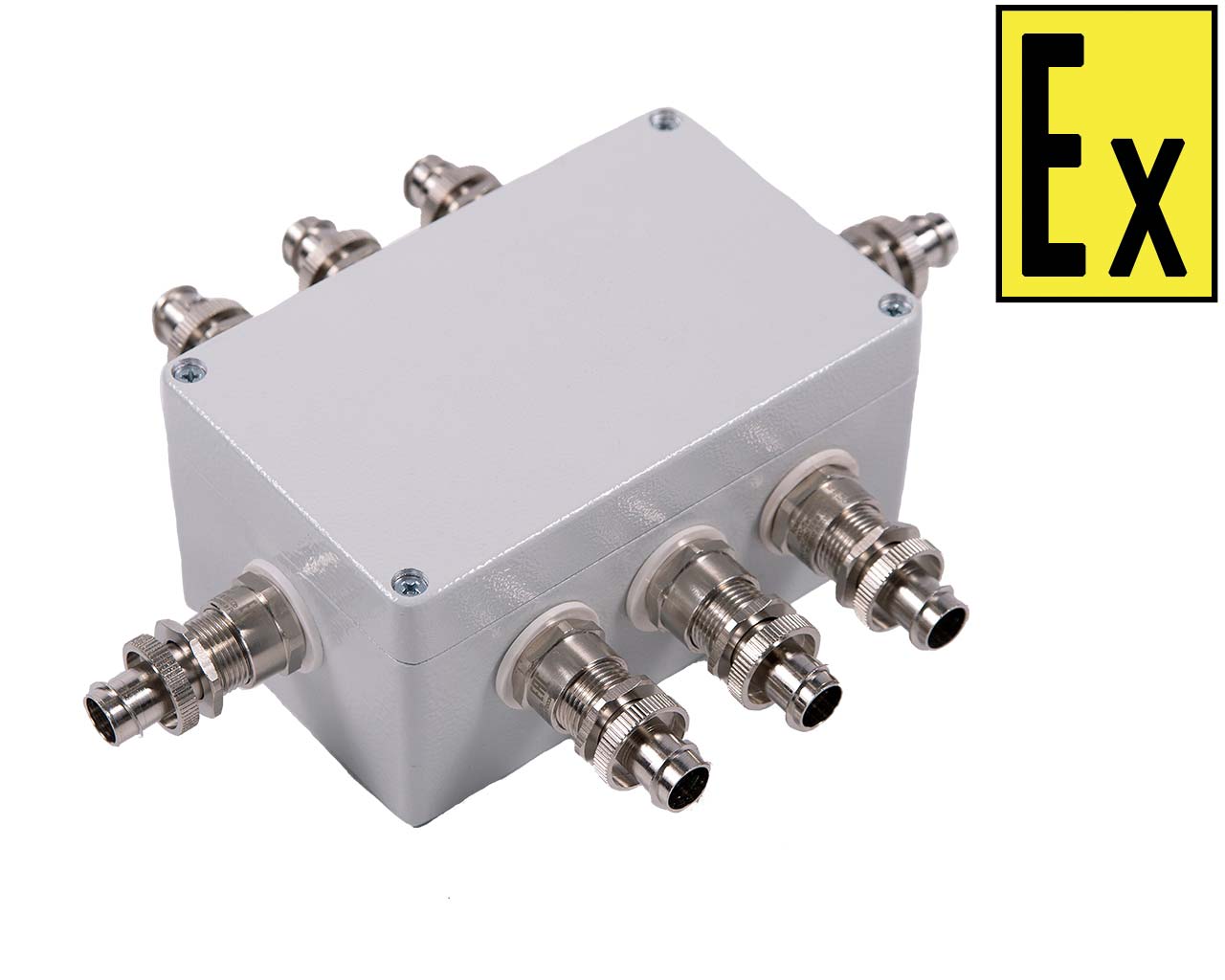

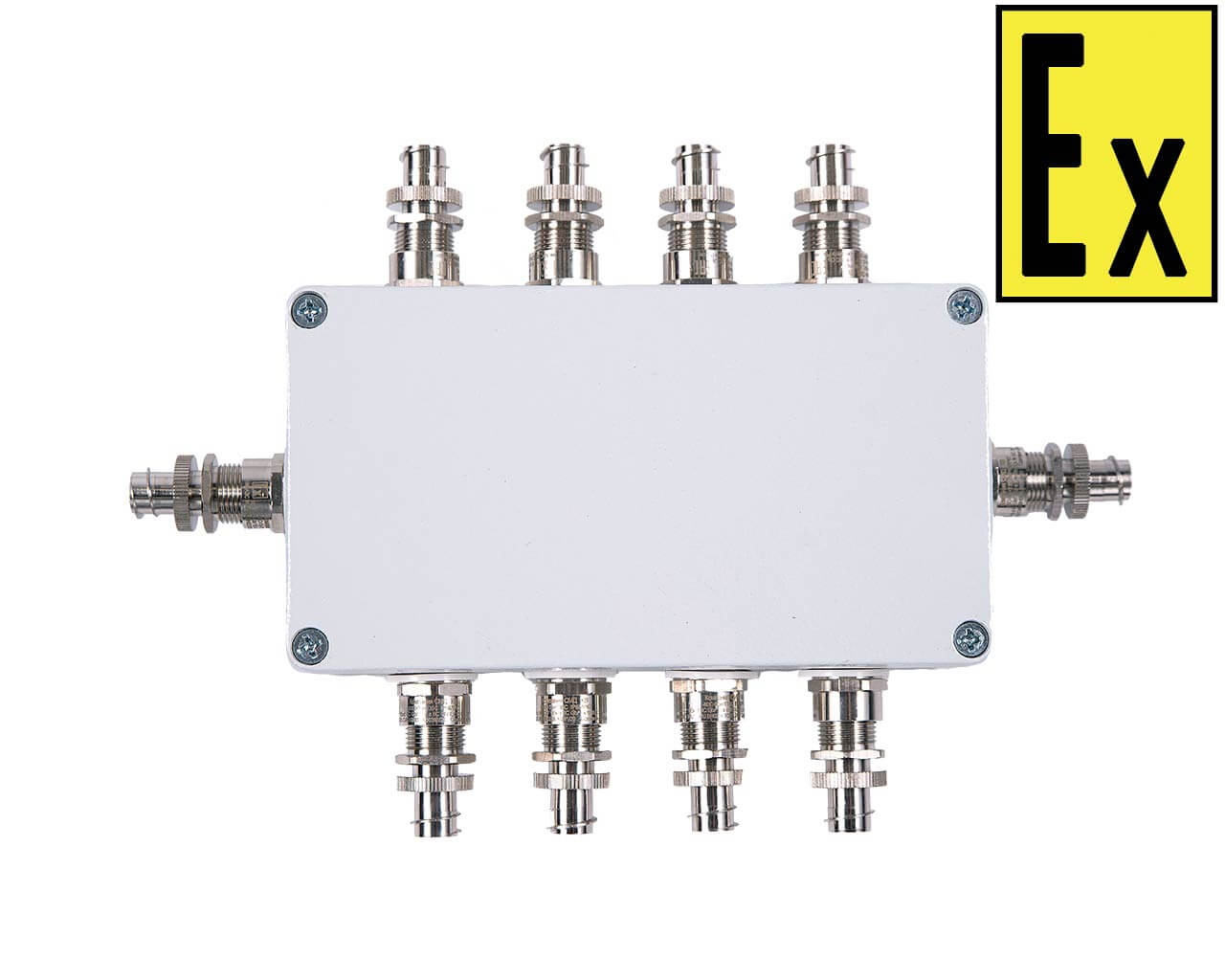

Junction boxes of the KVMK Exe-A series KVMK Exi-A

Explosion-proof boxes of models KVMK Exe-A-101008 / 101608 / 121208 / 123608 / 161609 / 162609 / 122209 / 162110 / 163609 / 181810 / 232011 / 232018 / 232011 / 233311 / 403111, KVMK Exi-A-101008 / 101608 / 121208 / 123608 / 161609 / 162609 / 122209 / 162110 / 163609 / 181810 / 232011 / 232018 / 232011 / 233311 / 403111 are designed to connect (branch) general-purpose and special-purpose electrical circuits (power, control, signaling, etc.) in hazardous areas. These boxes are used to enter armored and unarmored round or flat electrical cables, as well as cables in metal sleeves.

The material used to make the boxes is aluminum alloy.

The boxes are provided with the following types of explosion protection: GOST R IEC 60079-7-2012 Increased protection type "e", GOST 31610.11-2014 (IEC 60079-11:2011) "intrinsically safe electrical circuit "i", GOST IEC 60079-1-2013 "flameproof enclosures "d"" and GOST IEC 60079-31-2013 equipment with dust ignition protection by enclosures "t".

These boxes are classified as electrical equipment of groups I, II, and III according to GOST 31610.0-2014 and are intended for use in hazardous areas of indoor and outdoor installations in accordance with explosion protection markings. The equipment can be used in hazardous areas of classes 0, 1, and 2 according to GOST IEC 60079-10-1-2011, as well as in mines and pits according to GOST 31439-2011 (EN 1710:2005). The environment may contain explosive mixtures of gases and vapors with air of categories IIA, IIB, IIC, and dust IIIC.

Junction box of the KVMK series, model series: KVMK Exe-A-XXX… X, KVMK Exi-A-XXX… X.
Explosion protection marking	0Ex ia IIC T6… T4 Ga X / Ex tb IIIC T80 ⁰ C… T130 ⁰ C Db X 1Ex eb IIC T6… T4 Gb X / Ex tb IIIC T80 ⁰ C… T130 ⁰ C Db X 1Ex eb db IIC T6… T4 Gb X / Ex tb IIIC T80 ⁰ C… T130 ⁰ C Db X
Body material	aluminum alloy
Degree of protection of the shell according to GOST 14254-2015	IP66/IP67
Ambient temperature under operating conditions	T6 - from -60 ⁰ C to +80 ⁰ C T5 - from -60 ⁰ C to +95 ⁰ C T4 – from -60 ⁰ C to +130 ⁰ C
Temperature class according to GOST 31610.0-2014.	T6, T5, T4
Climatic performance	HL (F), UHL (NF), OM (MU)
Switching current, A - alternating current - direct current	no more than 200 no more than 200
Switching voltage, V - alternating current - direct current	no more than 1000 no more than 1000

Model	Overall dimensions without cables inputs and external components	Installation dimensions	Body weight, no more than
KVMK Exe/Exi-A-101008	98x98x80 mm	86x66 mm
KVMK Exe/Exi-A-101608	157x98x80 mm	146x66 mm
KVMK Exe/Exi-A-121208	120x120x80 mm	106x82 mm
KVMK Exe/Exi-A-123608	359x119x90 mm	340x66 mm
KVMK Exe/Exi-A-161609	160x160x91 mm	140x110 mm
KVMK Exe/Exi-A-162609	263x162x91 mm	240x210 mm
KVMK Exe/Exi-A-122209	219x119x90 mm	204x82 mm
KVMK Exe/Exi-A-162110	213x162x101 mm	190x110 mm
KVMK Exe/Exi-A-163609	359x158x90 mm	340x110 mm
KVMK Exe/Exi-A-181810	180x180x101 mm	160x130 mm
KVMK Exe/Exi-A-232011	230x200x111 mm	180x180 mm
KVMK Exe/Exi-A-232018	230x200x181 mm	180x180 mm
KVMK Exe/Exi-A-232011	230x280x111 mm	260x180 mm
KVMK Exe/Exi-A-233311	230x330x111 mm	310x180 mm
KVMK Exe/Exi-A-403111	310x403x111 mm	382x262 mm

Example of an order entry:

KVMK Exe-A-121209	*– B [x1]–* D [x2] –**
1	2

1 – control post type and explosion protection type: KVMK Exe-A-xxxxxx, KVMK Exi-A-xxxxxx ;
2 – type of cable entries:
- A, C – designation of the large sides of the box;
- B, D – designation of small sides of the box;
- n – multiplier of the number of inputs of the corresponding type, if there is one, it is not specified;
- x1, x2, x3, x4 – types of cable entries, for example:
  - KV M20K – for open cable laying with connecting thread M20x1.5;
  - KV M20KM15 – for 15mm metal hose with connecting thread M20x1.5;
