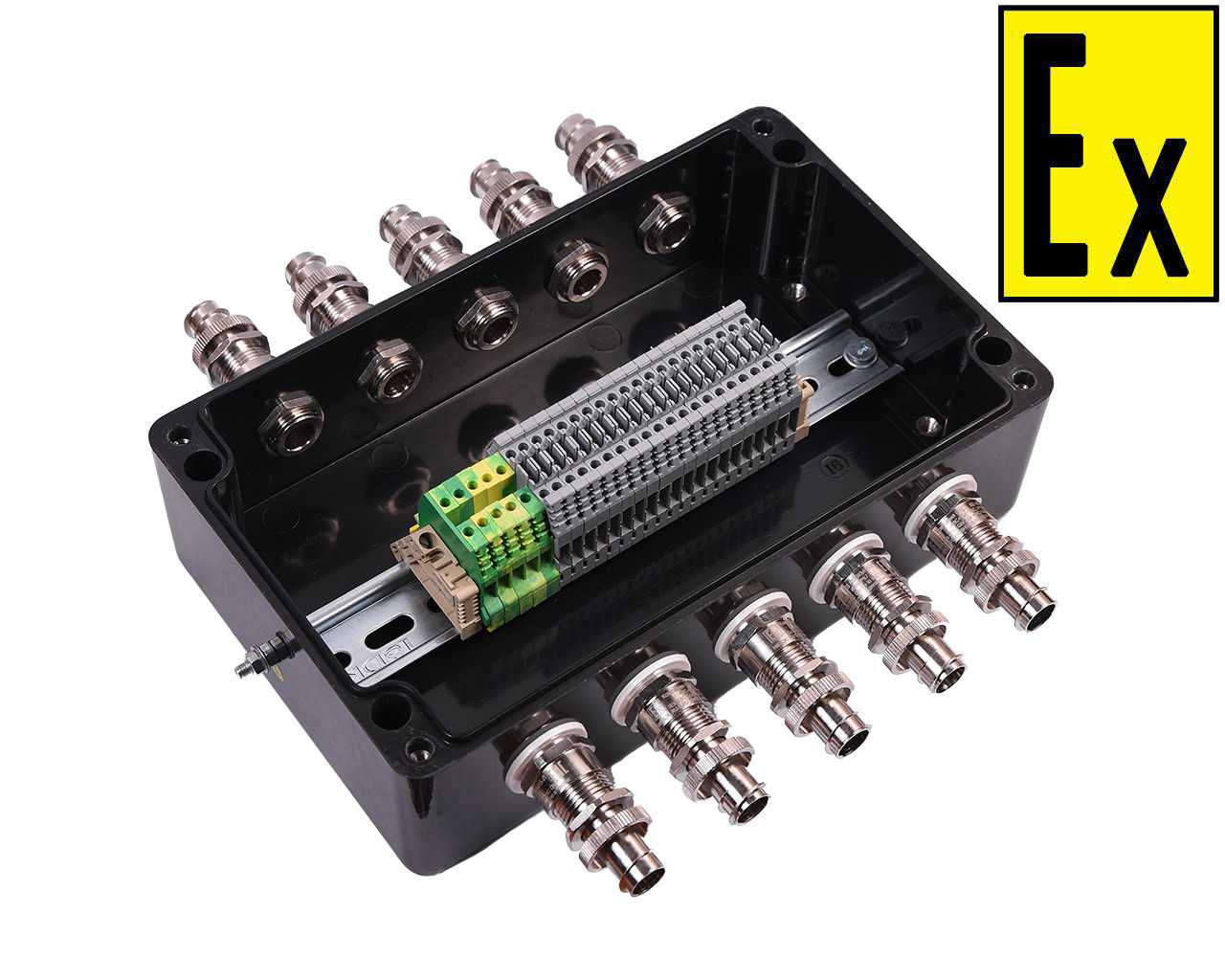

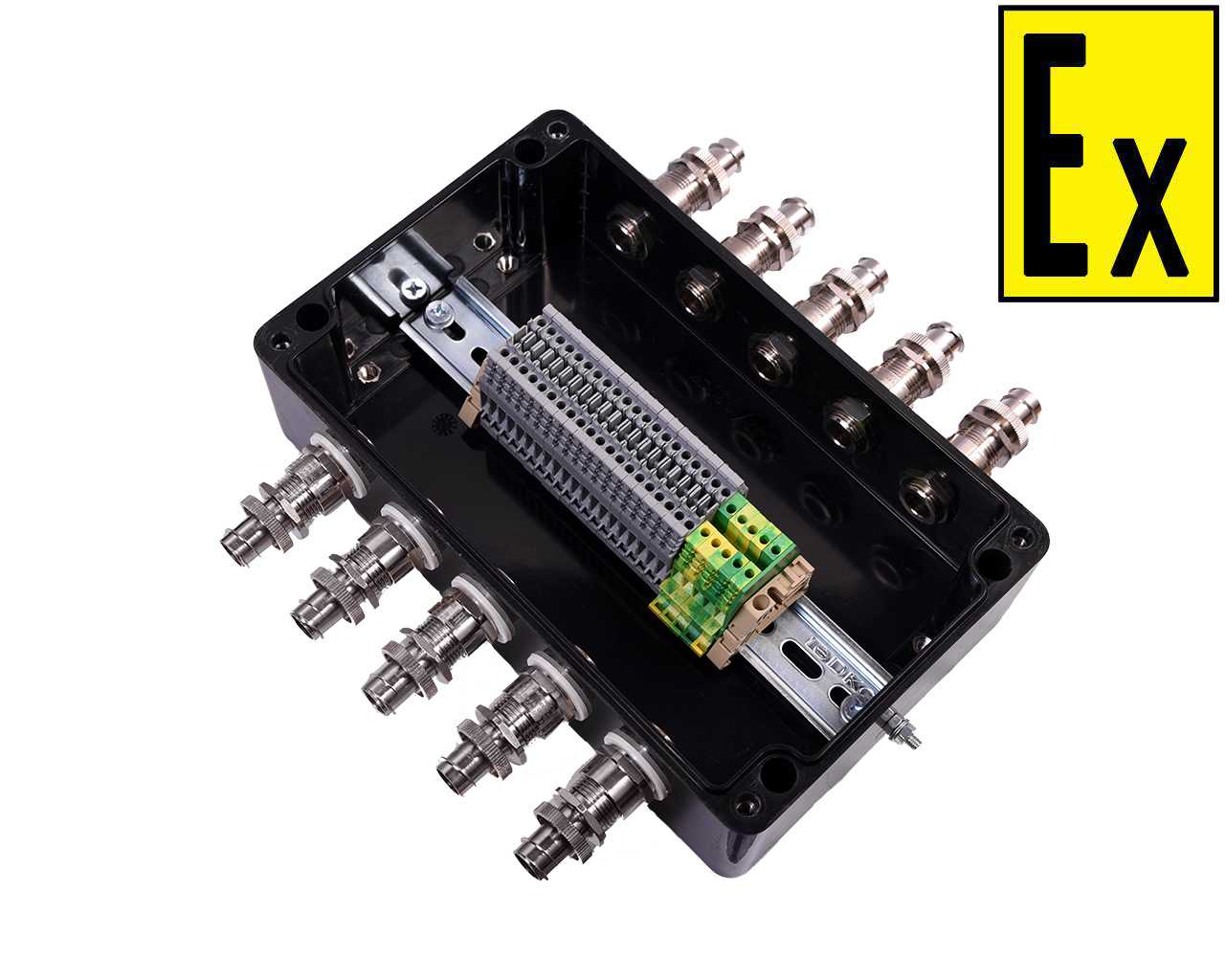

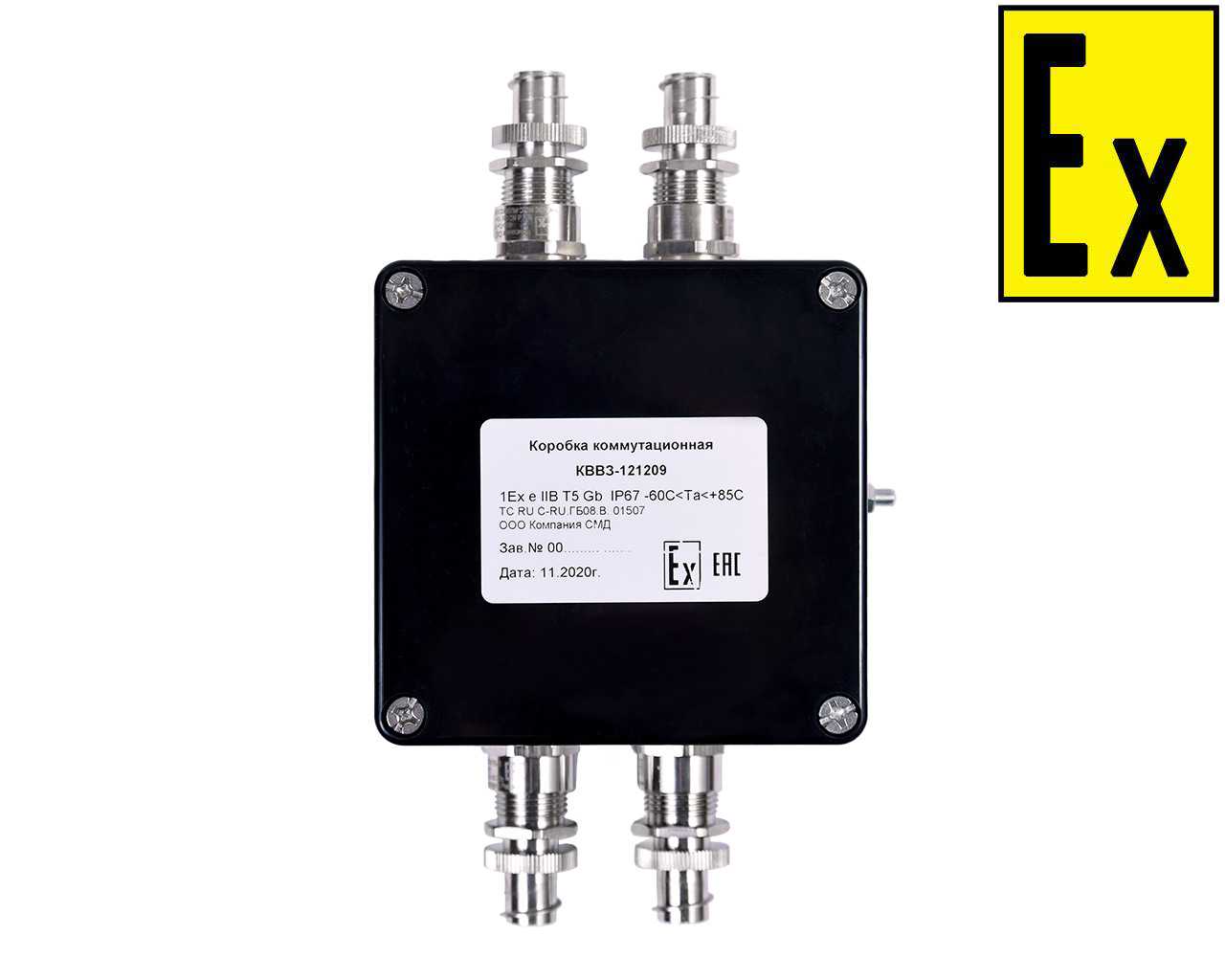

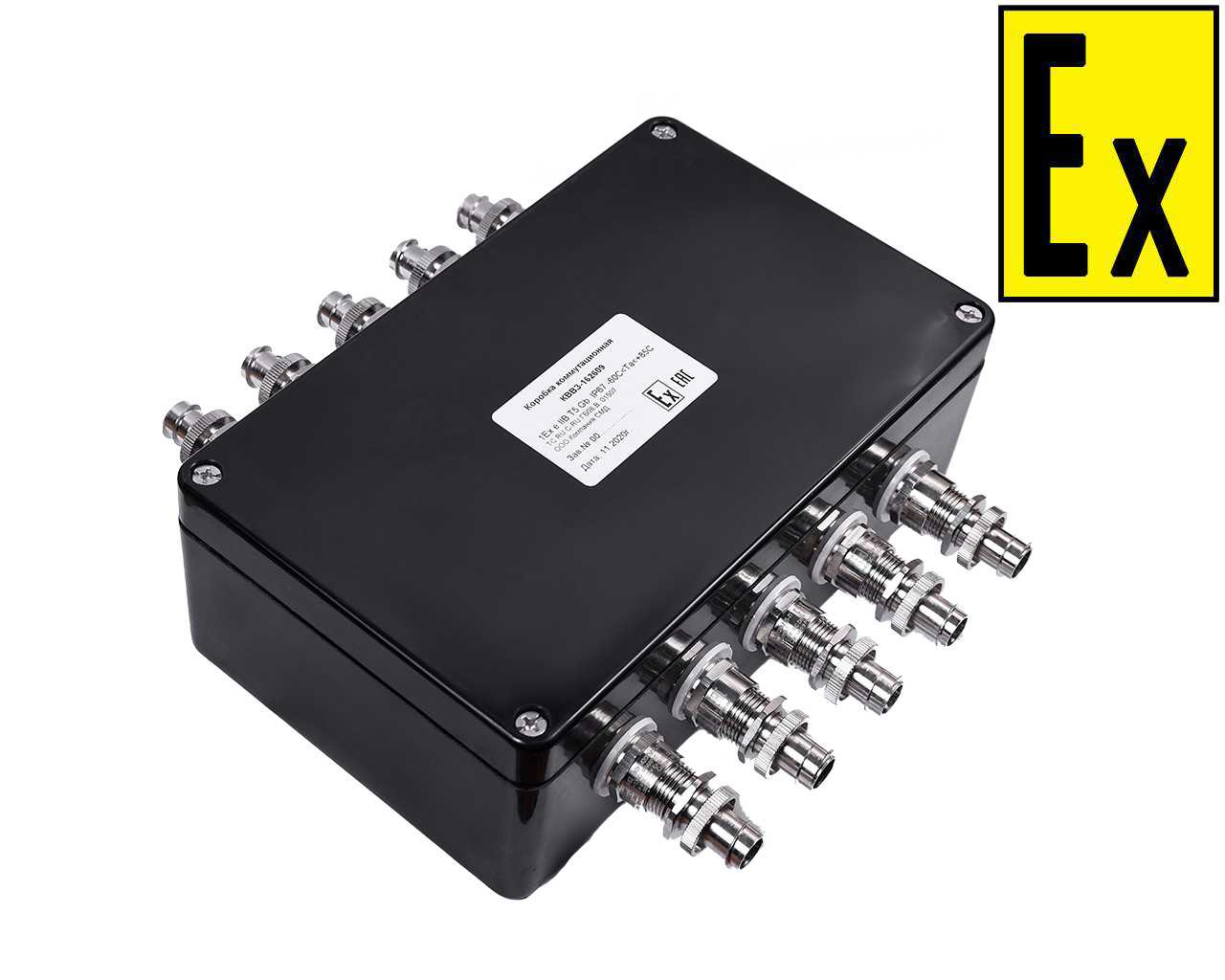

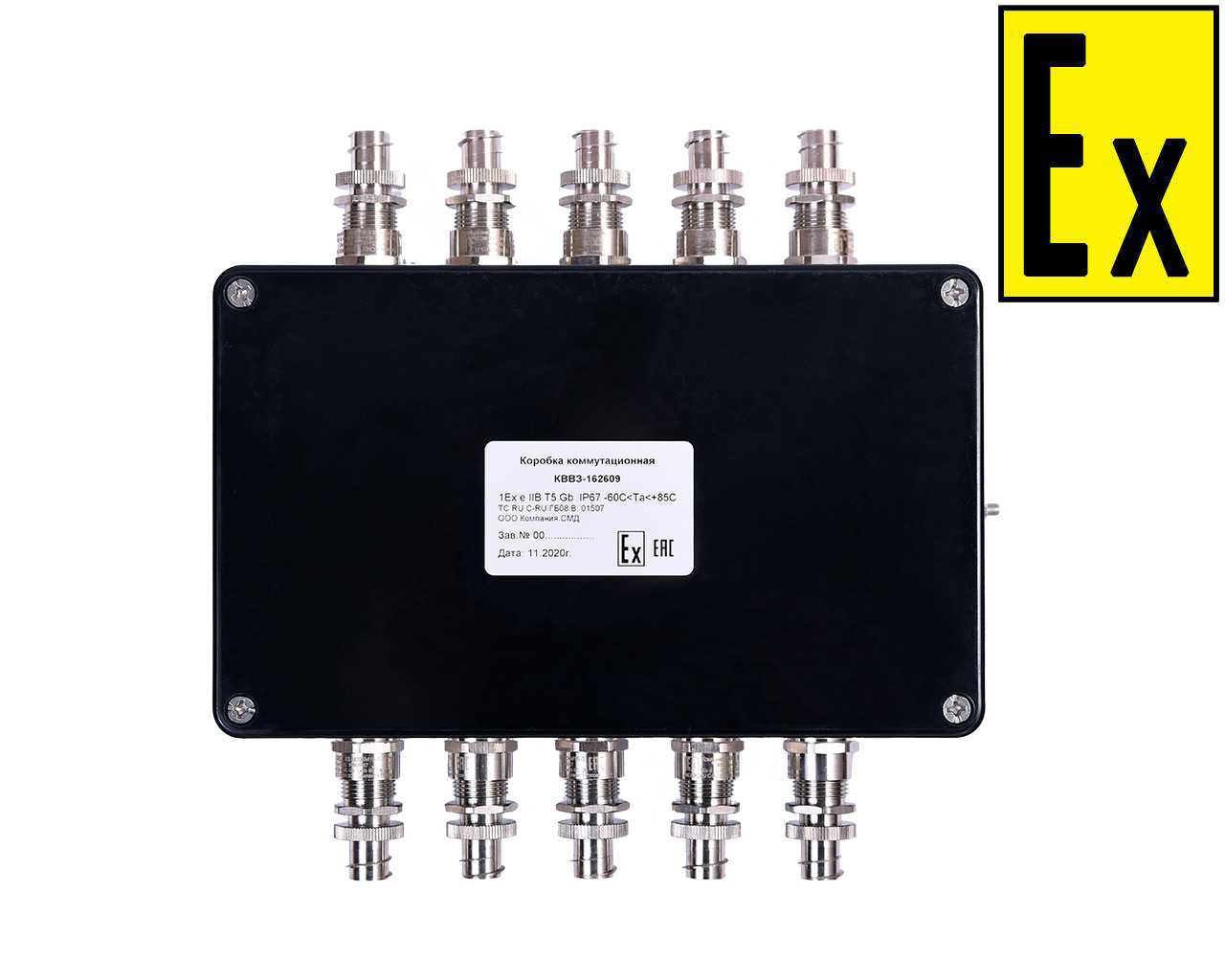

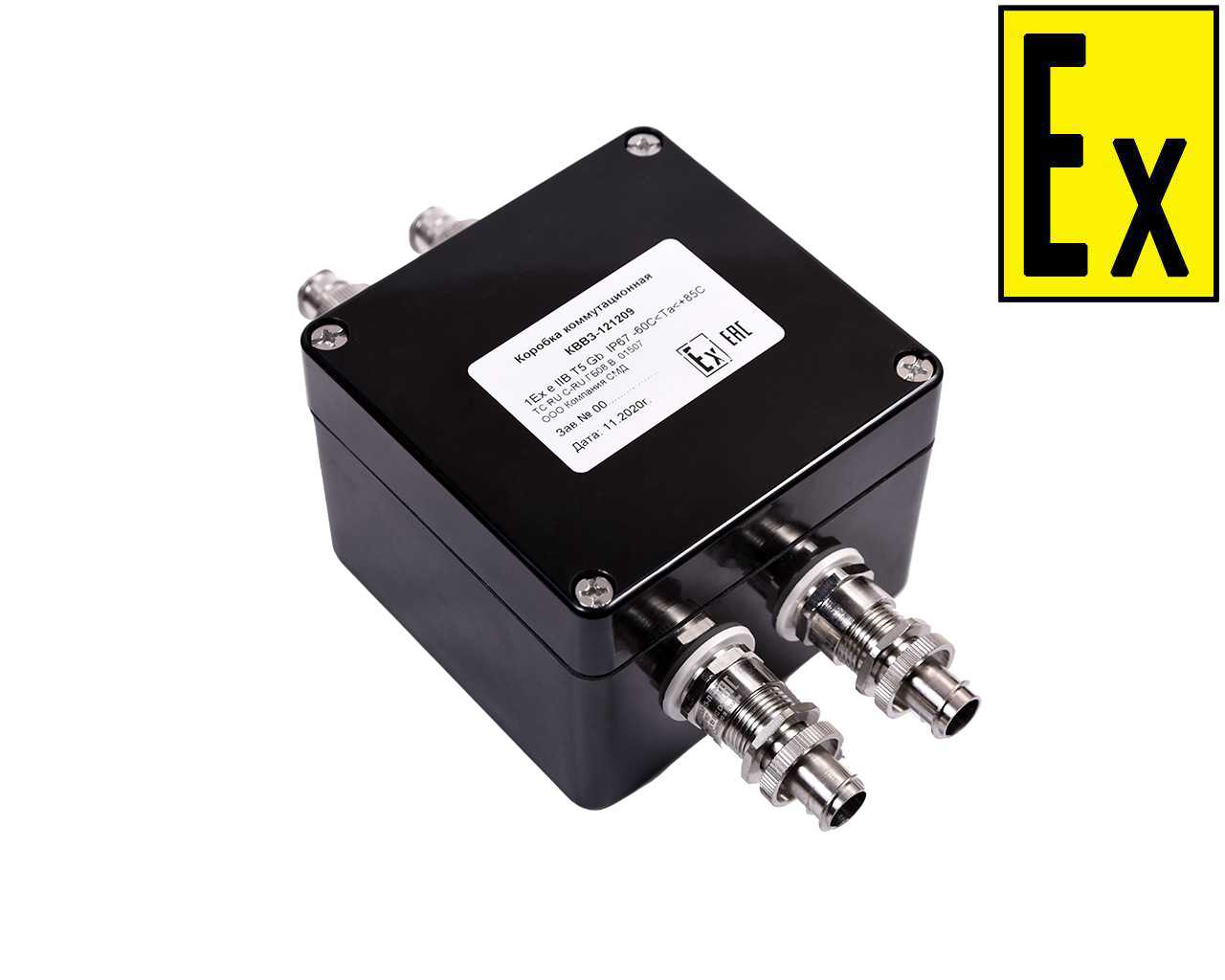

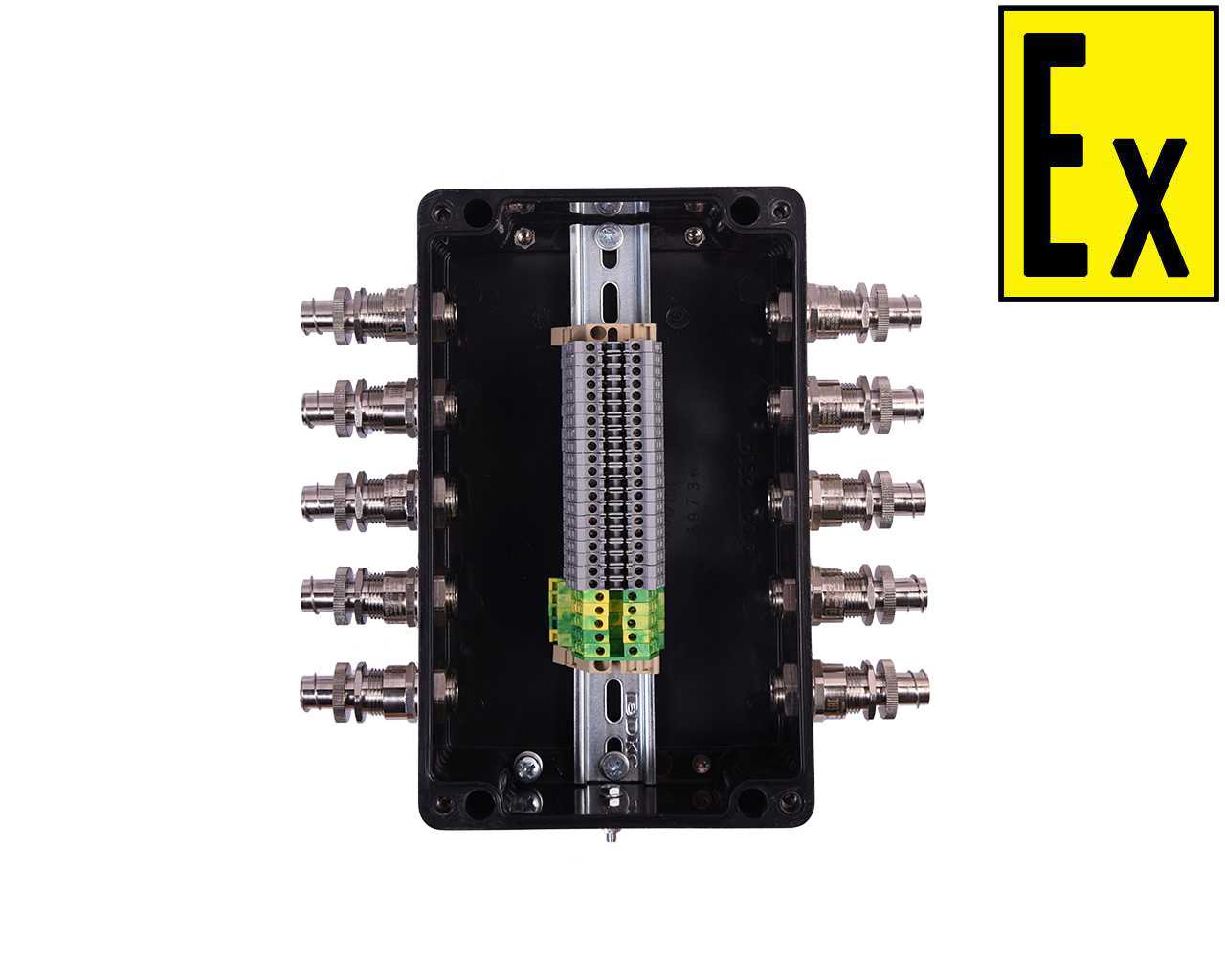

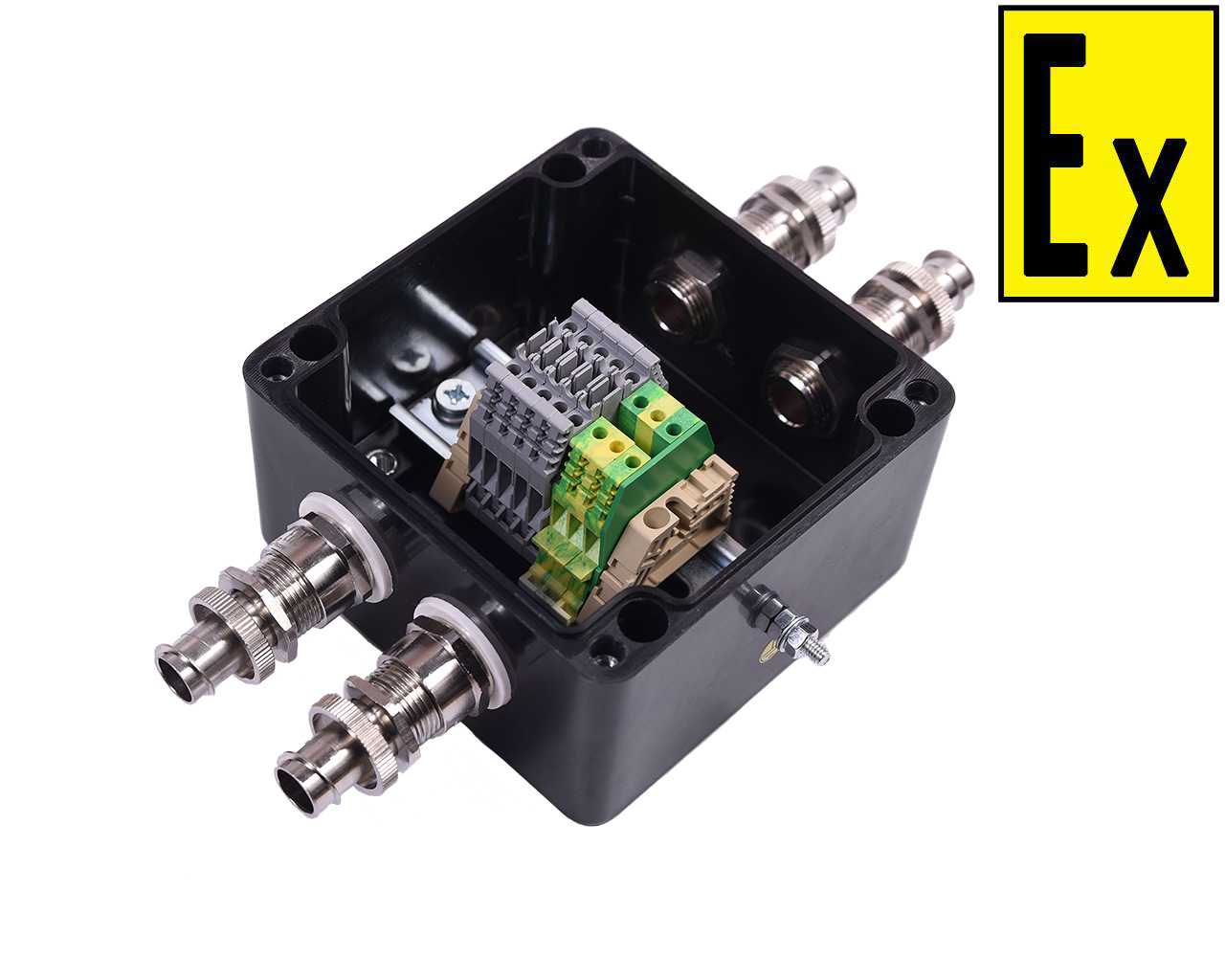

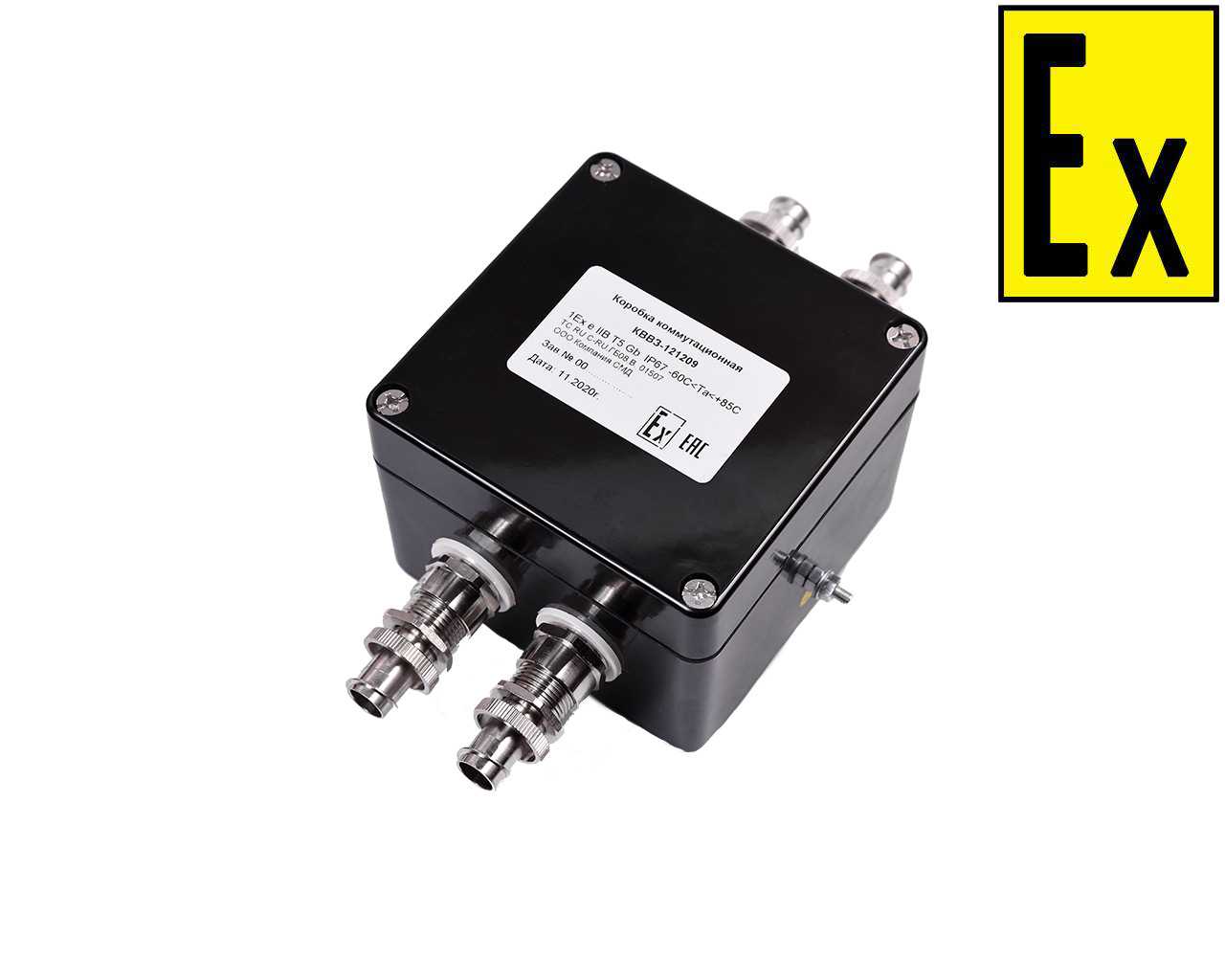

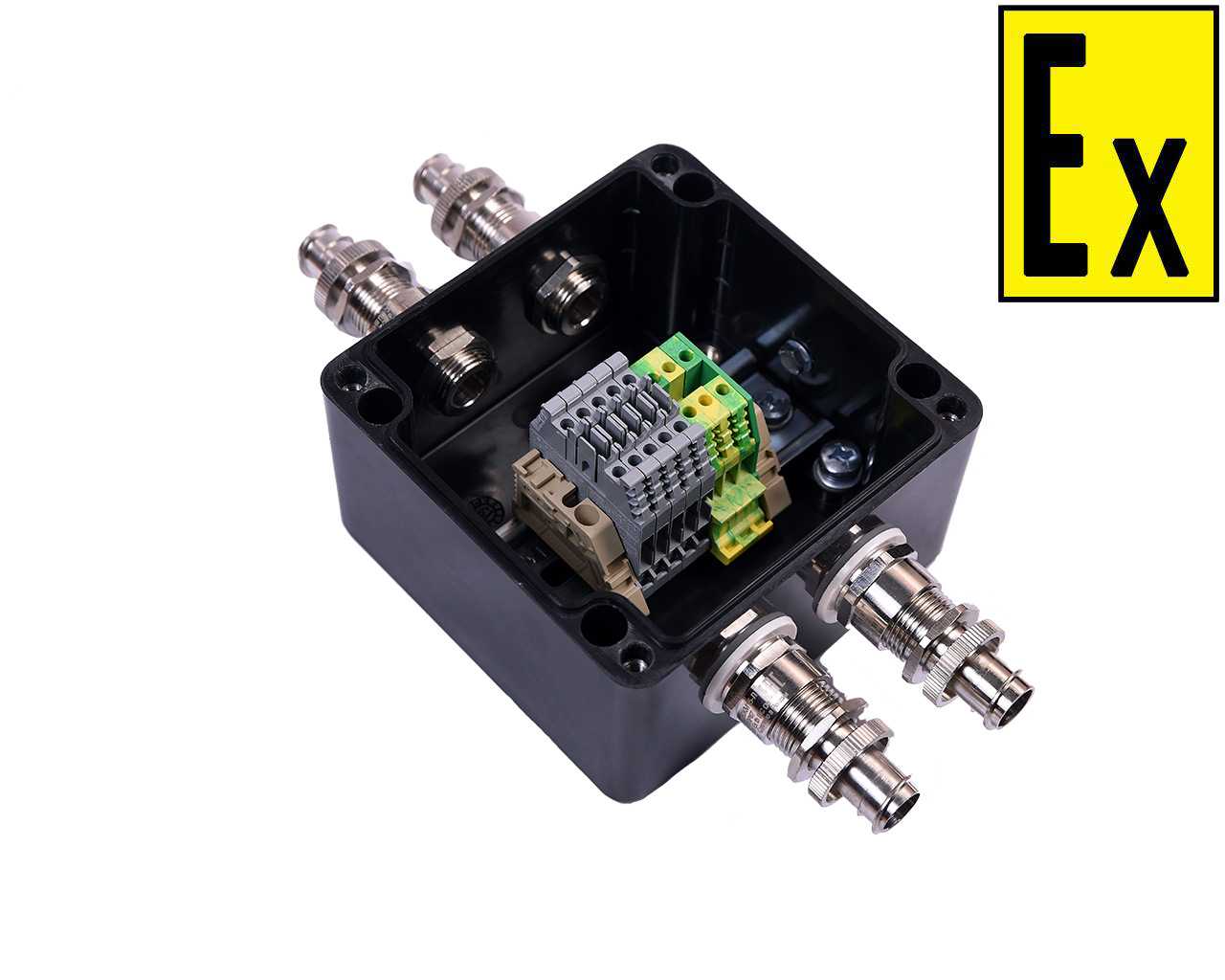

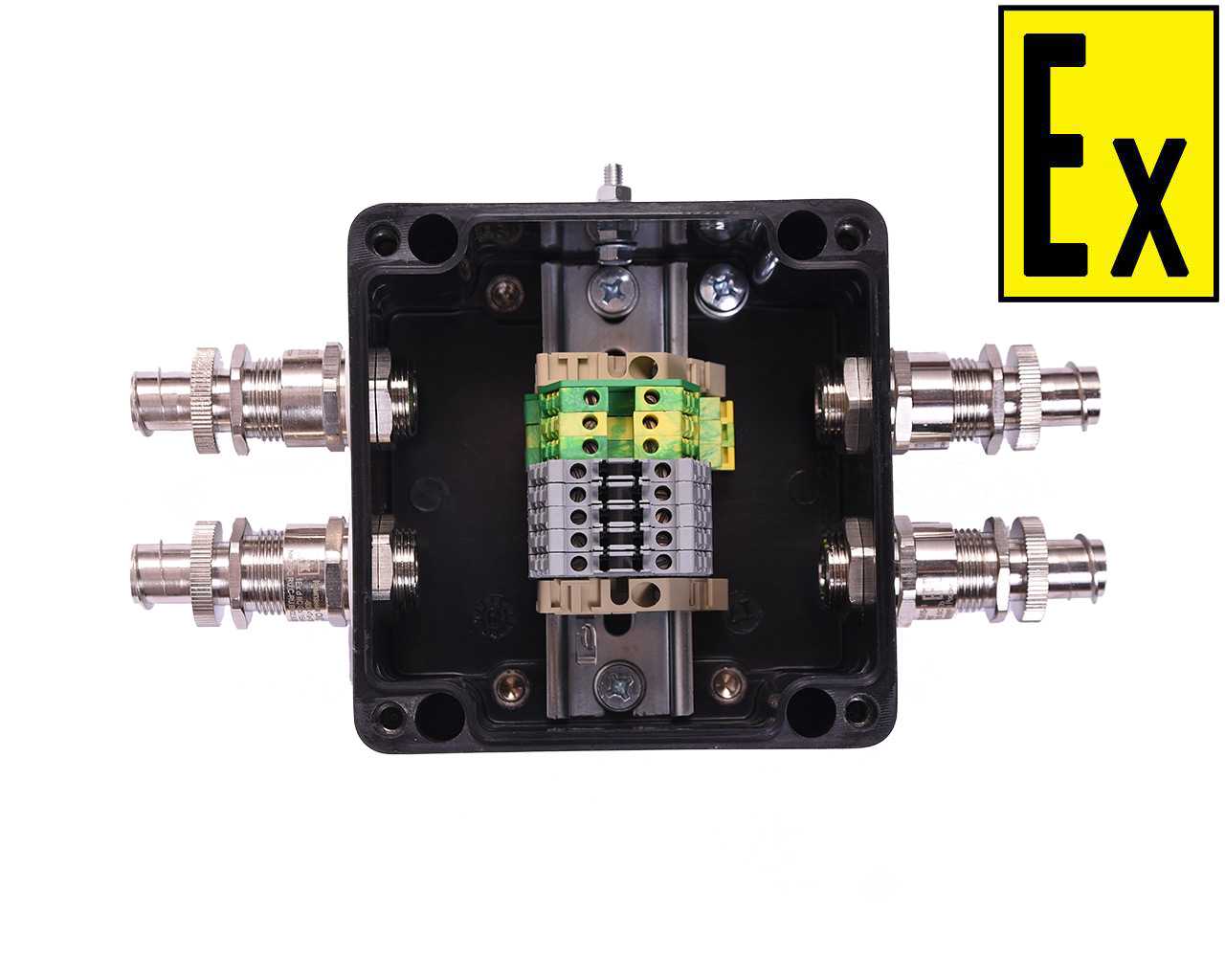

    Explosion-proof boxes of the KVMK Exe-P-101009/121209/122209/161609 models are designed to connect (branch) general-purpose and special-purpose electrical circuits (power, control, signaling, etc.) in hazardous areas. These boxes are used to enter armored and unarmored round or flat electrical cables, as well as cables in metal sleeves or pipes.

    The material used for the production of boxes is polyamide.

    The boxes are provided with the following types of explosion protection: GOST R IEC 60079-7-2012 Increased protection type "e", GOST 31610.11-2014 (IEC 60079-11:2011) "intrinsically safe electrical circuit "i", GOST IEC 60079-1-2013 "flameproof enclosures "d"" and GOST IEC 60079-31-2013 equipment with dust ignition protection by enclosures "t".

    These boxes are classified as electrical equipment of groups I, II, and III according to GOST 31610.0-2014 and are intended for use in hazardous areas of indoor and outdoor installations in accordance with explosion protection markings. The equipment is used in hazardous areas of classes 0, 1, and 2 according to GOST IEC 60079-10-1-2011, as well as in mines and pits according to GOST 31439-2011 (EN 1710:2005). The environment may contain explosive mixtures of gases and vapors with air of categories IIA, IIB, IIC, and dust IIIC.

    Junction box of the KVMK series,
    model range: KVMK Exe-P-XXX… X, KVMK Exi-P-XXX… X.
    Explosion protection marking РО Ex ia I Ma X / 0Ex ia IIC T6… T5 Ga X / Ex tb IIIC Т80°C… Т95°C Db X
    RP Ex eb I Mc X / 1Ex eb IIC T6… T5 Gb X / Ex tb IIIC Т80°C… Т95°C Db X
    RP Ex eb db I Mc X / 1Ex eb db IIC T6… T5 Gb X / Ex tb IIIC Т80°C… Т95°C Db X
    Body material polyamide
    Degree of protection of the shell according to GOST 14254-2015 IP66/IP67
    Ambient temperature under operating conditions T6 - from -60°C to +80°C
    T5 - from -60°C to +95°C
    Temperature class according to GOST 31610.0-2014. T6, T5
    Climatic performance HL (F), UHL (NF), OM (MU)
    Switching current, A
    - alternating current
    - direct current

    no more than 200
    no more than 200
    Switching voltage, V
    - alternating current
    - direct current

    no more than 1000
    no more than 1000
    Model Overall dimensions without cables
    inputs and external components
    Installation dimensions Body weight, no more than
    KVMK Exe/Exi-P-101009 100x100x91 mm -
    KVMK Exe/Exi-P-121209 120x120x91 mm 82x106 mm
    KVMK Exe/Exi-P-122209 120x220x91 mm 82x204 mm
    KVMK Exe/Exi-P-161609 160x160x91 mm 110x140 mm

      Example of an order entry:

    KVMK Exe-P-121209 – B [x1]– D [x2] –
    1 2
    • 1 – control post type and explosion protection type: KVMK Exe-P-xxxxxx, KVMK Exi-P-xxxxxx ;
    • 2 – type of cable entries:
      A, C – designation of the large sides of the box;
      B, D – designation of small sides of the box;
      n – multiplier of the number of inputs of the corresponding type, if there is one, it is not specified;
      x1, x2, x3, x4 – types of cable entries, for example:
      KV M20K – for open cable laying with connecting thread M20x1.5;
      KV M20KM15 – for 15mm metal hose with connecting thread M20x1.5.
