| Explosion protection marking | PO Ex ia I Ma / 0Ex ia IIC T6 Ga X / Ex ia IIIC 850C Da X |
| Marking of microprotection parameters | LI: 1 µH, CI: 30 pF, UI: 27 V, II: 25 mA, PI: 0.8 W |
| Degree of protection of the shell | IP67 |
| Operating temperature | -60C<Ta<70C |
| Supply voltage | 8-28V |
| Current consumption in standby mode, no more | 80uA |
| Own current consumption in the "Fire" mode, no more | 0.7mA |
| Maximum current of the external additional resistor circuit, not more than | 100mA |
| Case color: | green |
| Housing material | High impact polyamide |
| Dimensions without cable entries | 134x108x46mm |
| FACP type | Connection options | |
| Parallel connection (make) | Sequential connection (on opening) | |
| LB-07 | Rd must ensure current consumption> 15 mA, | Rd \u003d 11 kOhm, Rok \u003d 2 kOhm, VDok \u003d KD522. |
| Rok \u003d 2 kOhm, VDok \u003d KD522. | ||
| Ray | Rd = 2.4 kOhm, Rok = 2.4 kOhm, VDok = KD521A. | Rd = 2.2 kOhm, Rok = 2.4 kOhm, VDok = KD521A. |
| PPK-2 | Rd = 1.2 kOhm, Rok = 3.6 kOhm, VDok = KD521A. | Rd = 10.0 kOhm, Rok = 3.6 kOhm, VDok = KD521A. |
| Bolide | Rd \u003d 1.5 kOhm (3.0 kOhm - to determine double drawdown), | Rd \u003d 8.2 kOhm (4.7 kOhm - to determine double drawdown), |
| Rok \u003d 4.7 kOhm, do not install VDok | Rok \u003d 4.7 kOhm, do not install VDok | |
| Yakhont-16i | Rd \u003d 1.8 kOhm (4.0 kOhm - to determine double drawdown), | Not applicable |
| Rok = 8.2 kOhm, do not set VDok | ||
| WERS | Rd \u003d 820 Ohm (1.8 kOhm - to determine double drawdown), | Rd \u003d 10 kOhm (4.7 kOhm - to determine double drawdown), |
| Rok = 7.5 kOhm, do not set VDok | Rok = 7.5 kOhm. Do not install VDoc | |
AM - indicates the presence of a product modification with an address label.

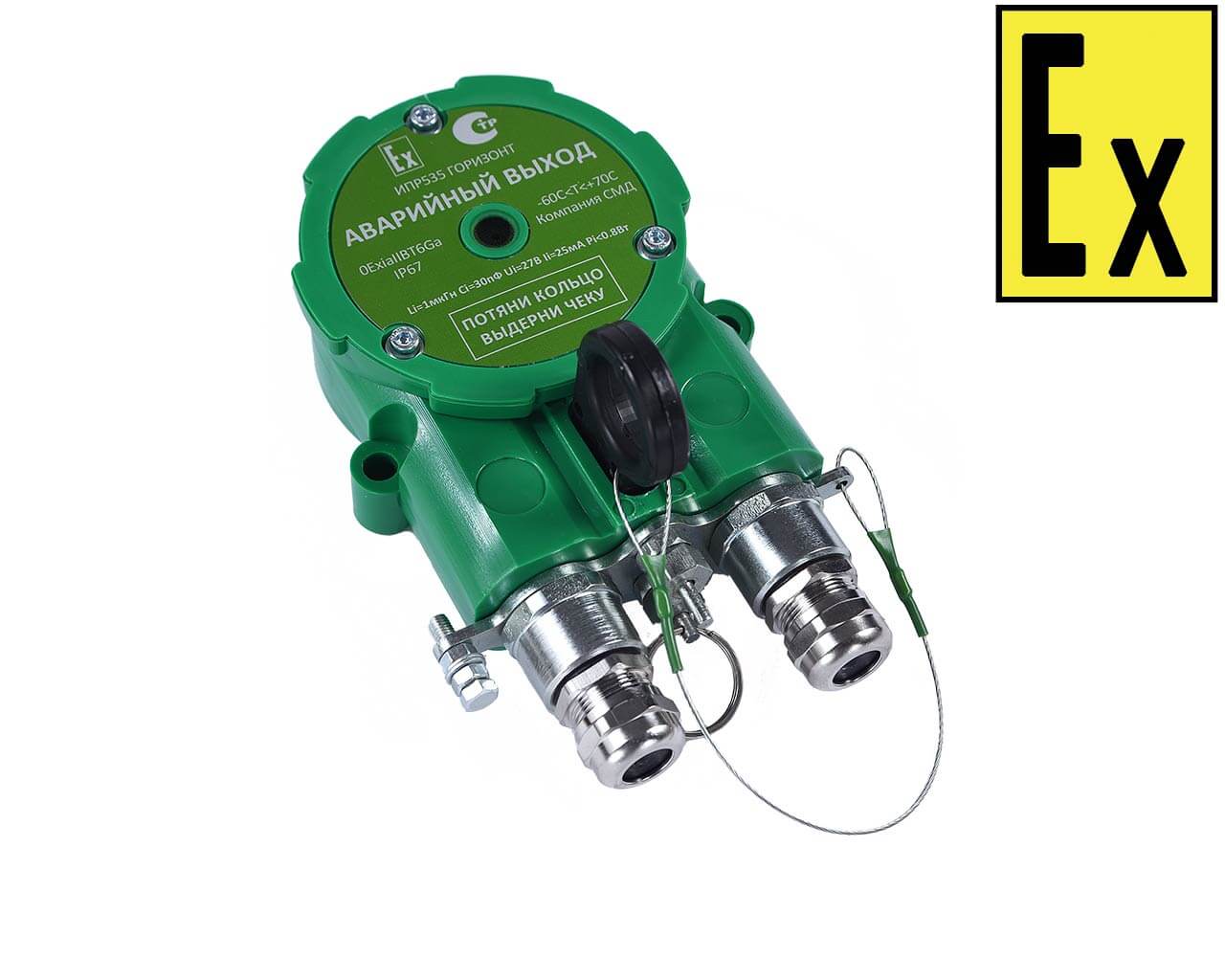

The detector IPR535 Horizon Emergency exit VZ is supplied with cable glands of various designs:

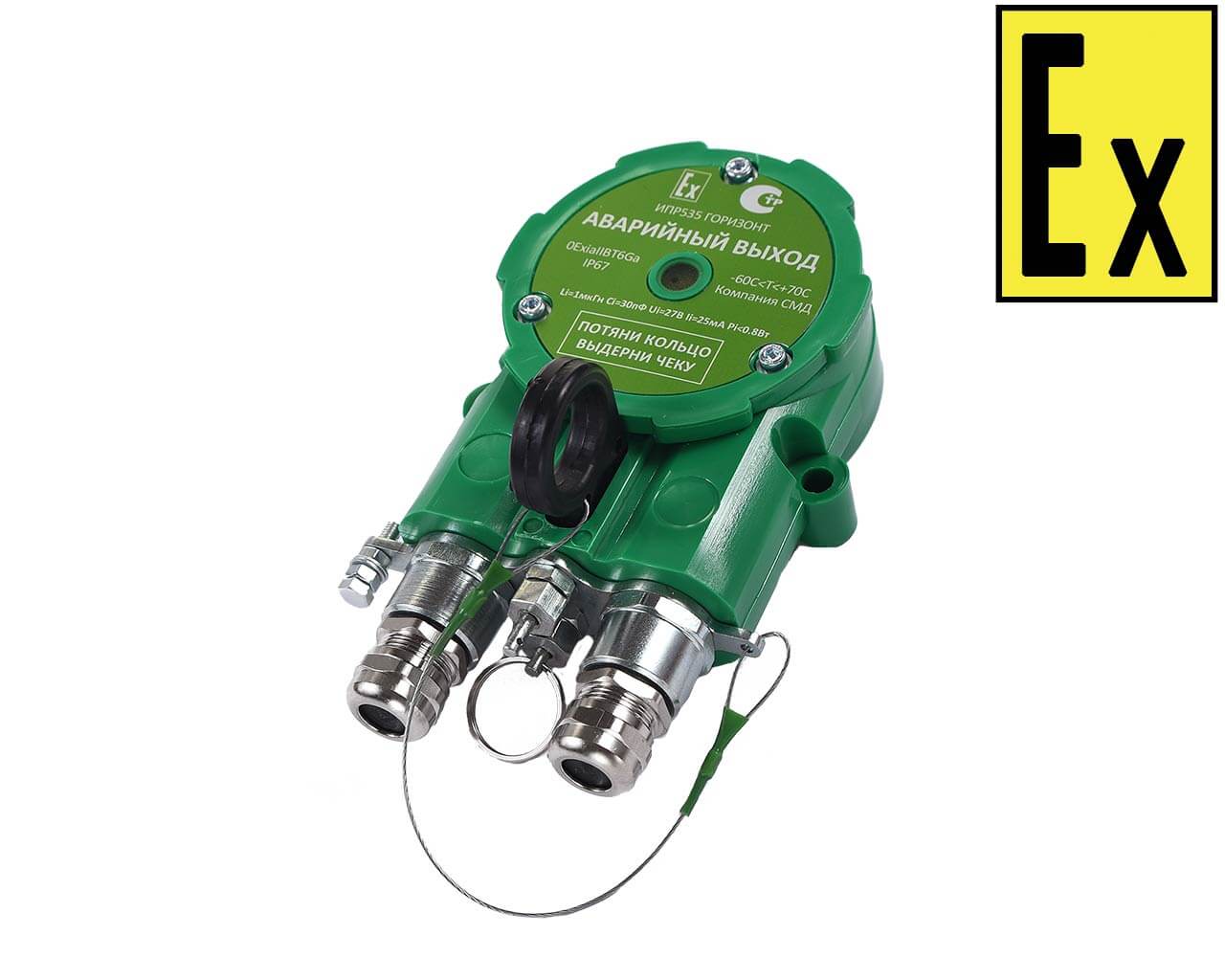

The detector IPR535 Horizontal Emergency exit VZ is supplied with two cable glands, which allow the detector to be installed in an alarm loop with a round cable with a diameter of 6-10 mm.
EAEU No. RU D-RU.PA03.B.11986/21. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" Series 001 No. 1072. Certificate of Conformity for Seismic Resistance to GOST 30546 EAEU RU C-RU.AB03.B.00025/21. Certificate of Conformity with EAEU TR 043/2017 "On Requirements for Fire Safety and Fire Extinguishing Equipment" EAEU RU C-RU.BH02.B.00745/21. Certificate of Conformity to EAEU TR 012/2011 "On the Safety of Equipment for Operation in Explosive Environments" Refusal decision No. 21/11/0389 in the certification of TR CU 004/2011 "On the safety of low-voltage equipment" Refusal decision No. 21/11/0389 in certification of TR CU 010/2011 "On the safety of machinery and equipment" Refusal decision No. 21/11/0392 in the certification of EAEU TR 037/2016 "On the restriction of the use of hazardous substances in electrical and electronic products" Operation manual. Explosion-proof manual fire alarms, general-purpose addressable and non-addressable IPR 535-216 HORIZONTAL. Explosion-proof remote start devices, general-purpose addressable and non-addressable UDP 535-216 HORIZONTAL "PUSK"
