HEAT DETECTORS
IP 101 AZIMUT IP 101 AZIMUT IP 101 AZIMUT IP 101 AZIMUT IP 101 AZIMUT IP 101 AZIMUT IP 101 AZIMUT
IP 101 AZIMUT
Type of protection
  • (0ExiaIIBT6Ga)
  • MK (1ExdIIBT4Gb)
You choosed:
  • Type of protection

  • Execution option

  • Cable gland

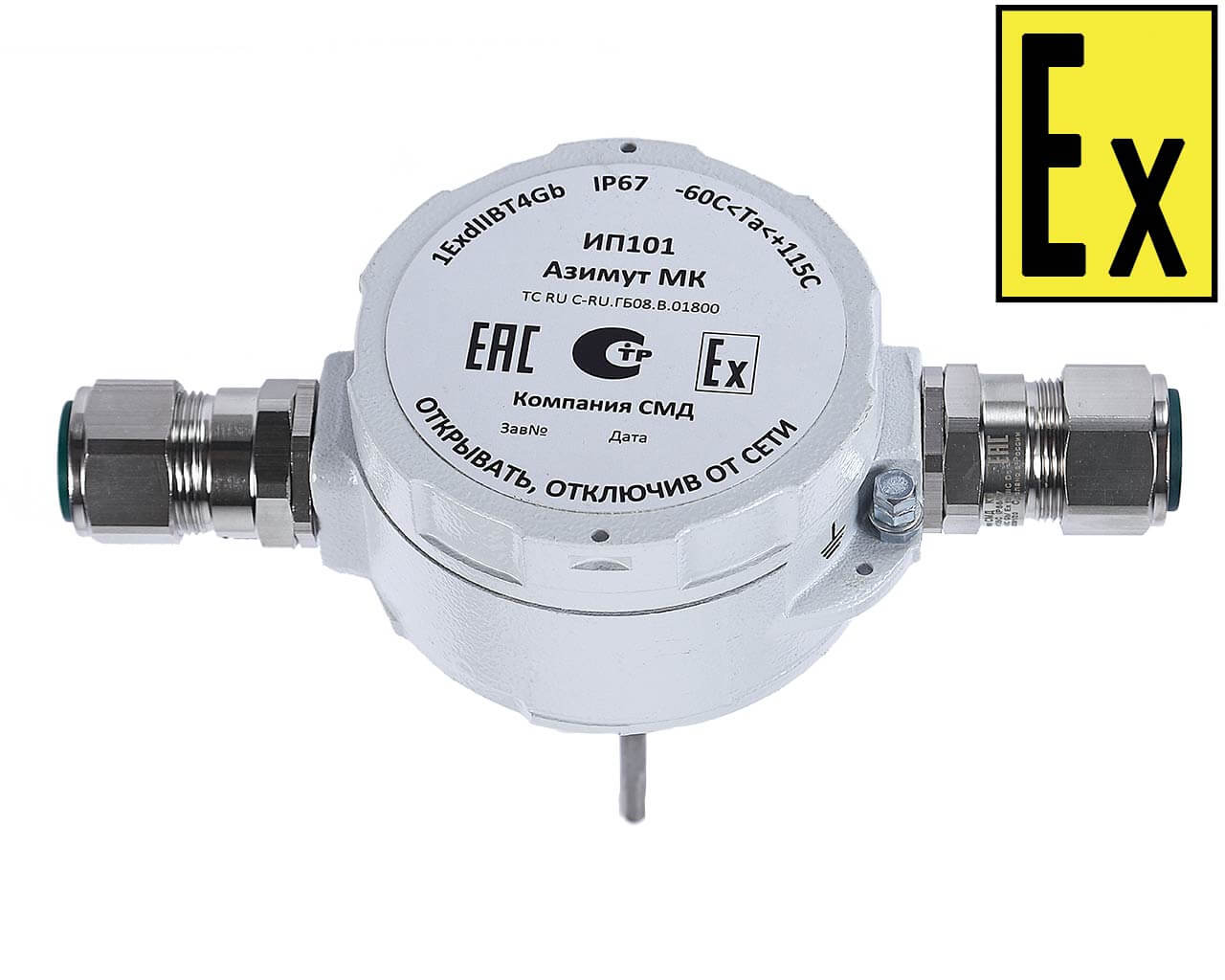

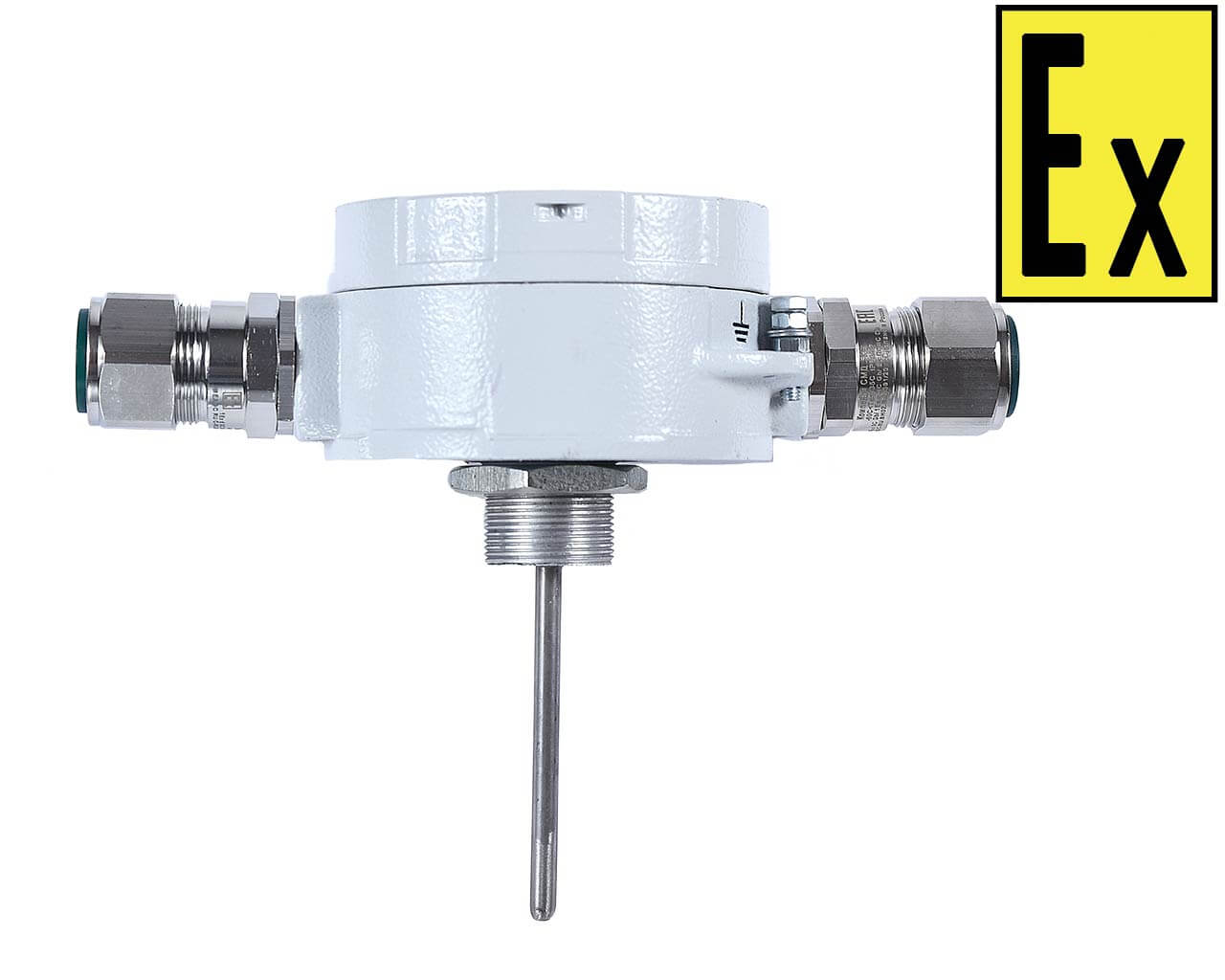

Detector IP101 Azimut MK is connected to the alarm loop without additional current-limiting components (there is built-in 2 kΩ resistor) and with any polarity. Alarm is tripped due to rising current via detector and by activating the indicator.
There are three rated threshold temperatures: 70 С; 90 С; 110 С. Threshold temperature of the detector corresponds to the classes A3 (64...76°С), С (84...100°С), D (99...115°С).

Detector IP101 Azimut is used to detect the ignition source and transmit a signal to the receiving/monitoring device and is intended for work in automatic fire extinguishing and fire alarm systems at special-purpose facilities. For use in explosion-hazard zones rated to Class 0 and lower. The detector is available with conventional (for tanks) or shortened (for premises) heat sensitive part of the body.
Name IP101 Azimut МК IP101 Azimut
Explosion protection marking 1 Ex d IIB T4 Gb 0Ex ia IIB T6 Ga
Marking of explosion protection parameters   Li:1 uH, С1:1000 pF, Ui: 27 V, Ii: 13 mA, Pi: 0.4 W
Ingress protection, IP 67 67
Operating temperature range, °С  -60...+115 -60...+85
Operating voltage range, V 6...27 6...27
Input current at operating voltage 24 V: - standby mode — 0,35 mA; - standby mode — (0,2-0,25) mA
 - 'fire' mode — 24±0,1V – (10,7±1) mA. - 'fire' mode — (10,7+/-0,5) mA.
Warm-up time after powering up, max 0,5 s
Overall dimensions, mm - without cable glands — 140x80x265; - conventional - 200х80х175
 - with cable glands — 230х80х265. - extended – 200х80х262


Threshold temperature set by the manufacturer can be changed by the user by installing appropriate resistor in the detector's terminals. The detector kit includes the resistors for setting threshold temperature: 70 С; 90 С; 110 С. Relationship between the threshold temperature and the resistor value for IP Azimut MK.

T, °C 51 60 70 81 90 100 110 135 150
Rt, kOhm 30 20 13 8,2 5,6 3,6 2,4 0,560 0


IP101 Azimut MK is supplied with cable glands of various versions:

  • For surface routing of the 6-12 mm connecting cable (designation index - К);
  • For routing the connection cable in pipe G1/2;
  • For routing the connection cable in pipe G3/4;
  • For connection of 6-12 mm armoured cable;
T, °C 51 60 70 81 90 100 110
Rt, кОм 30 20 13 8,2 5,6 3,6 2,4

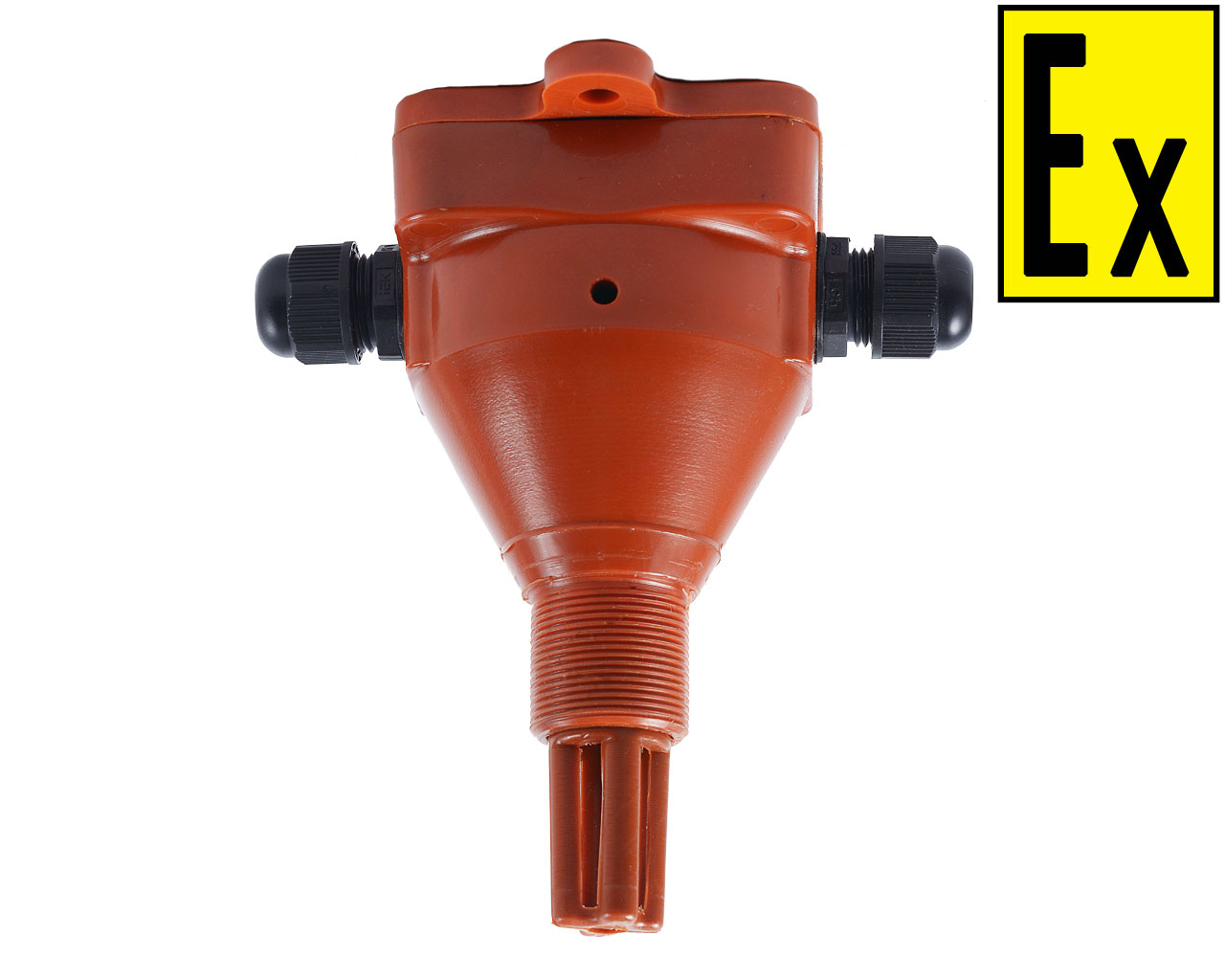

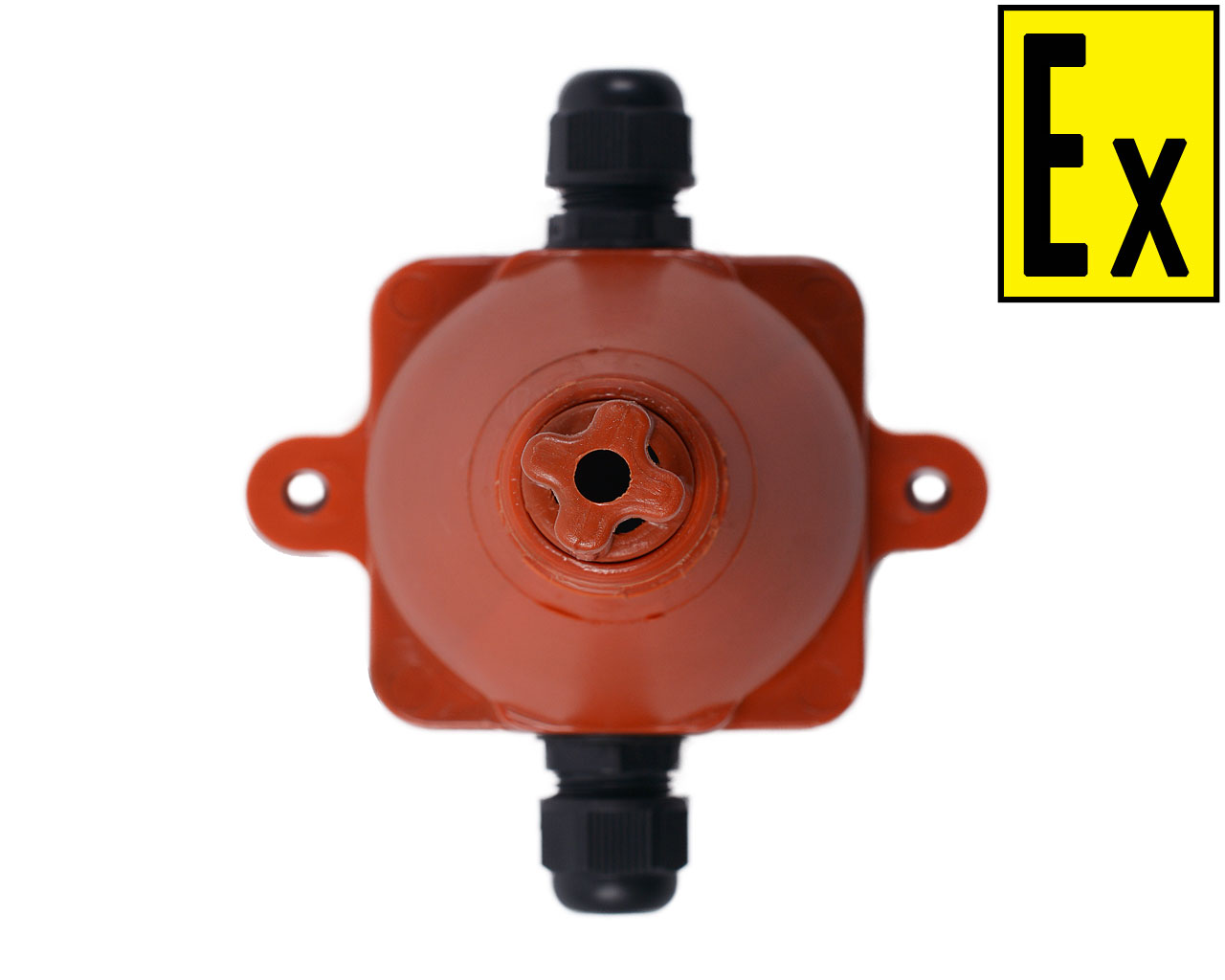

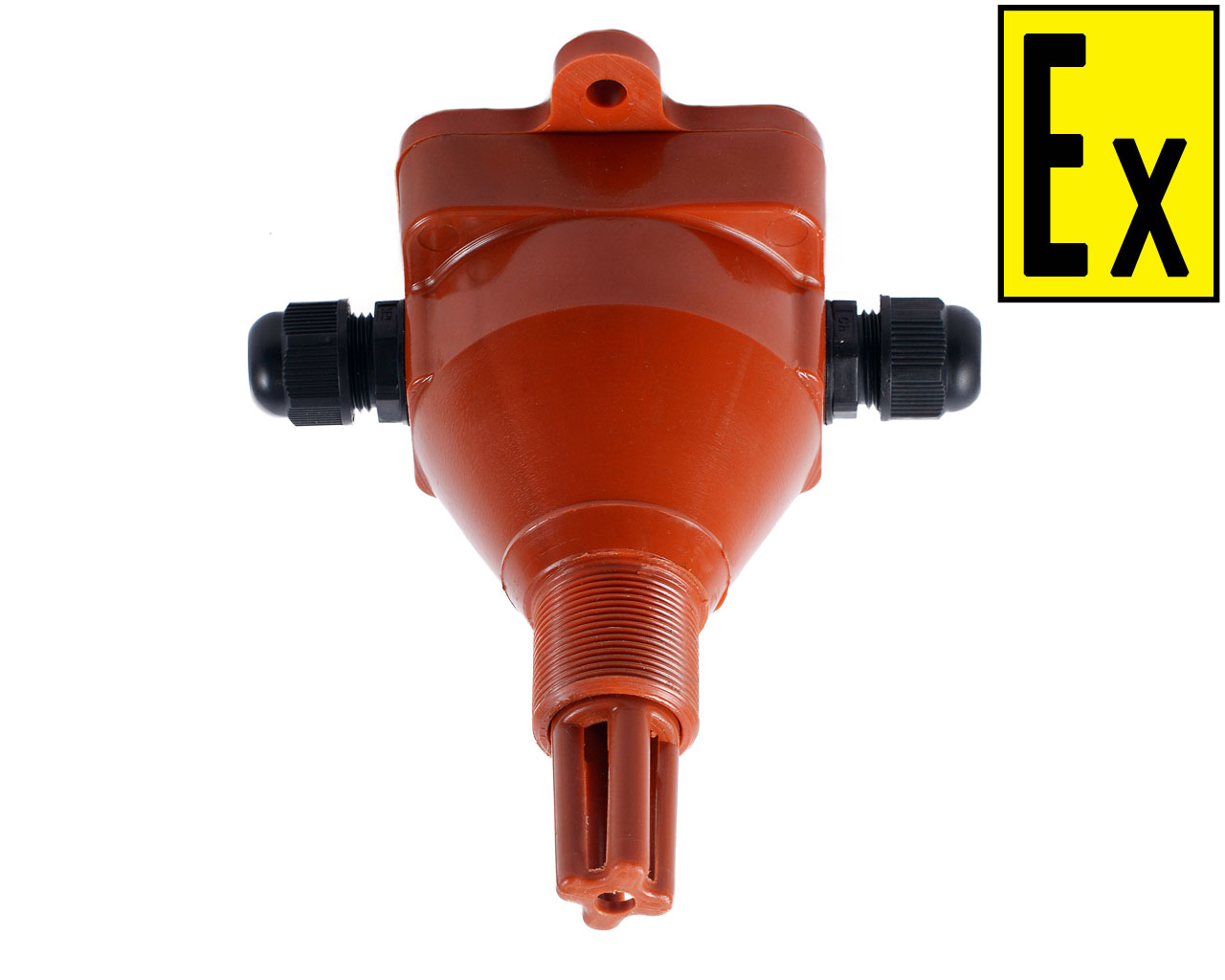

Detector IP Azimut comes with two cable glands that allow to install the detector in the alarm loop with round cable of diameter 6-10 mm.
