PKV MK TYPE-A <br> 1ExdIIBT5Gb
PKV MK TYPE-A <br> 1ExdIIBT5Gb PKV MK TYPE-A <br> 1ExdIIBT5Gb PKV MK TYPE-A <br> 1ExdIIBT5Gb PKV MK TYPE-A <br> 1ExdIIBT5Gb PKV MK TYPE-A <br> 1ExdIIBT5Gb PKV MK TYPE-A <br> 1ExdIIBT5Gb
PKV MK TYPE-A
1ExdIIBT5Gb
Cable gland
  • G1 / 2К - for surface routing of cable
  • G1 / 2T1 / 2 - for laying the connecting cable in the pipe G1 / 2
  • G1 / 2T3 / 4 - for laying the connecting cable in the pipe G3 / 4
  • G1 / 2B - for attaching armored cable
  • G1 / 2KM10 - for connecting the cable in metal hose RZTSH-10
  • G1 / 2KM12 - for connecting the cable in metal hose RZTSH-12
  • G1 / 2KM15 - for connecting the cable in metal hose RZTSH-15
  • G1 / 2KM20 - for connecting the cable in metal hose RZTSH-20
You choosed:
  • Cable gland

  • Control element

  • Button Color

  • Text

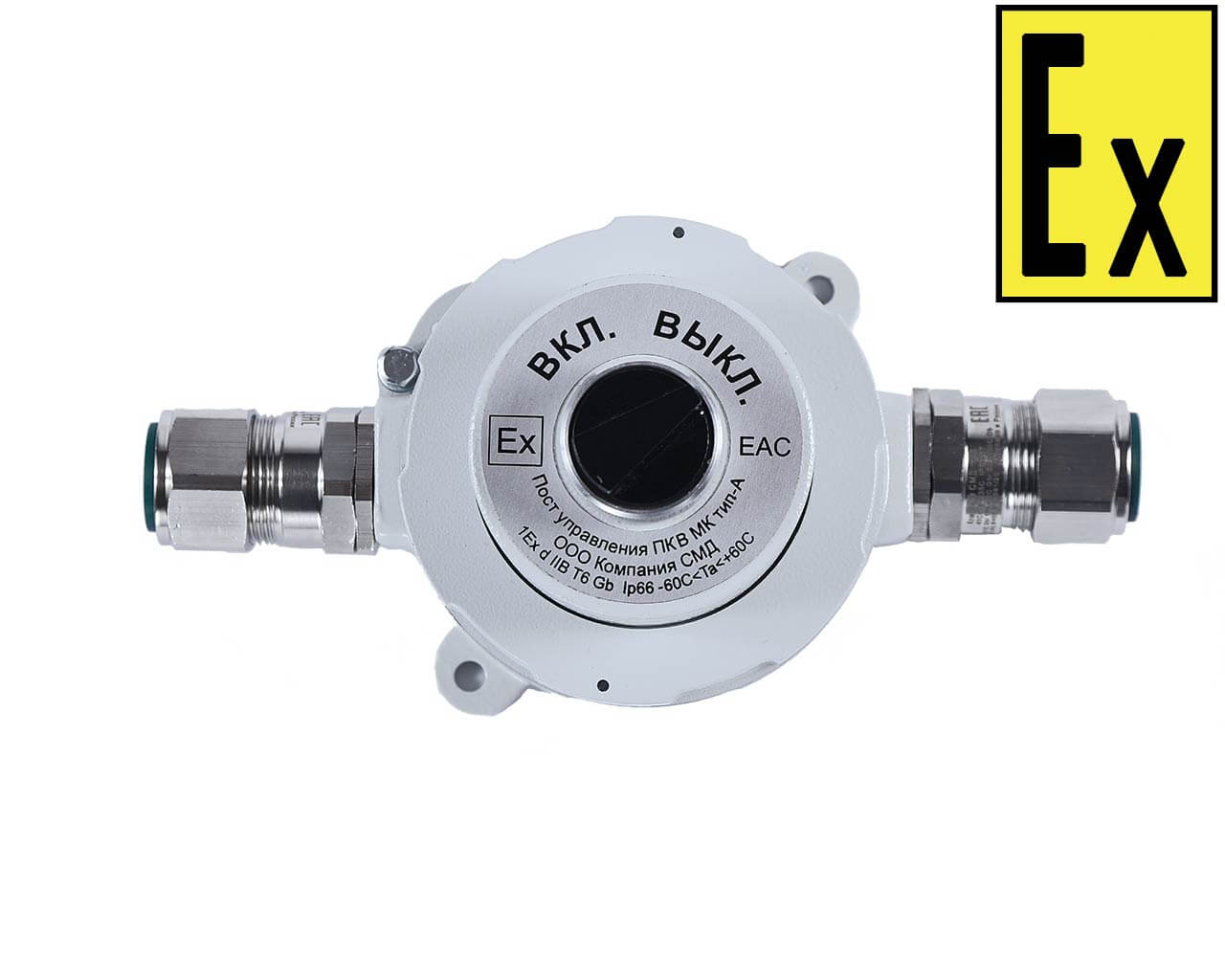

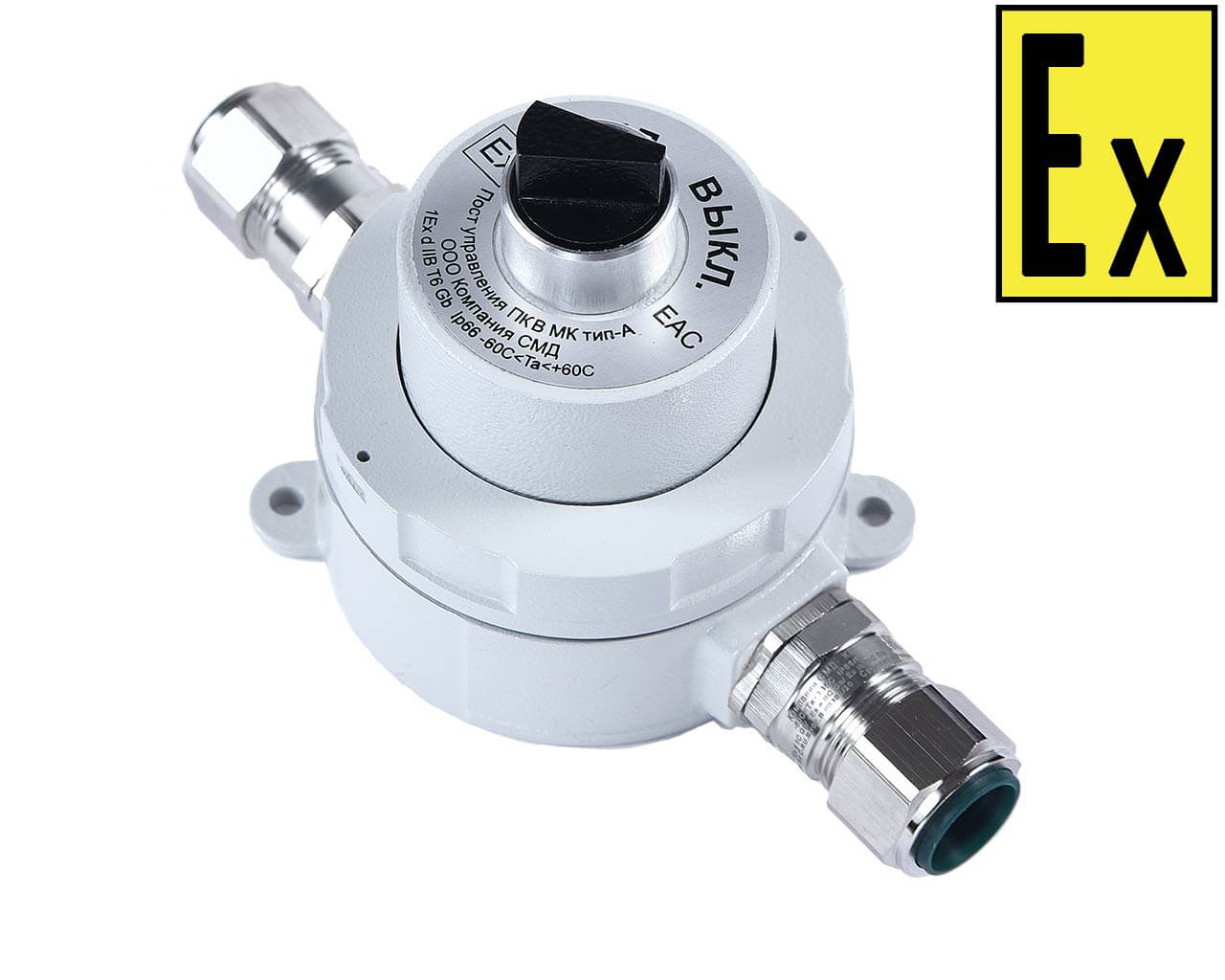

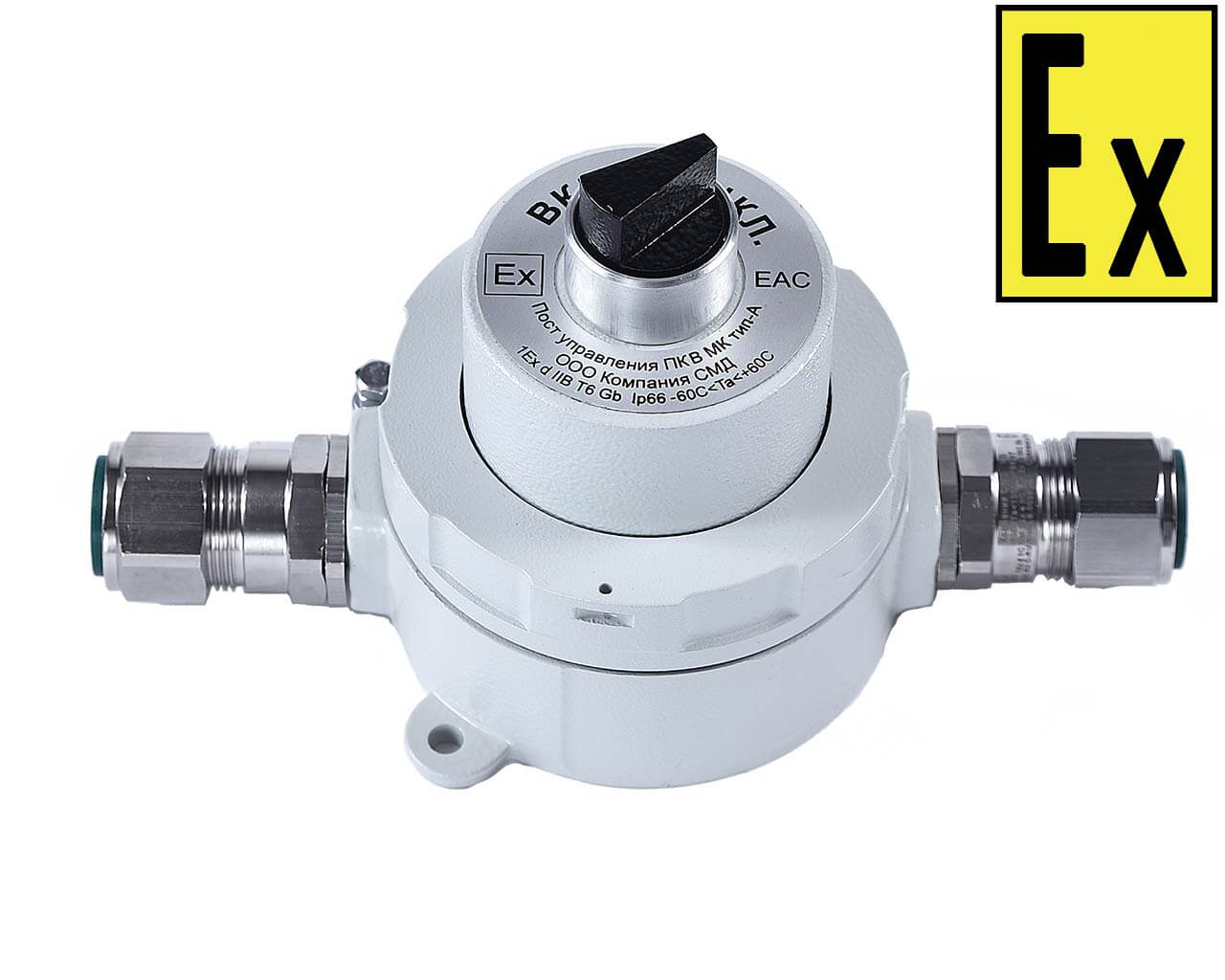

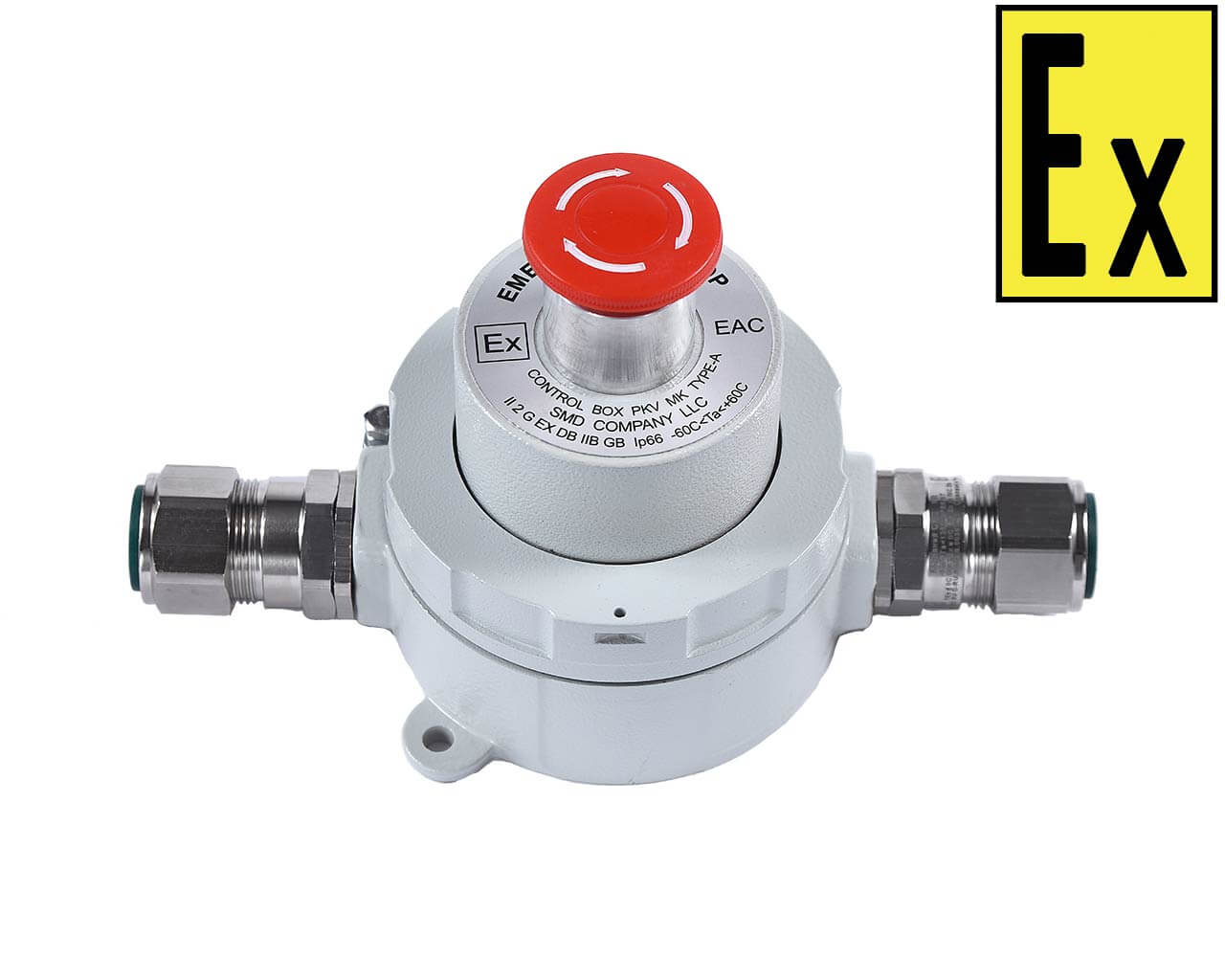

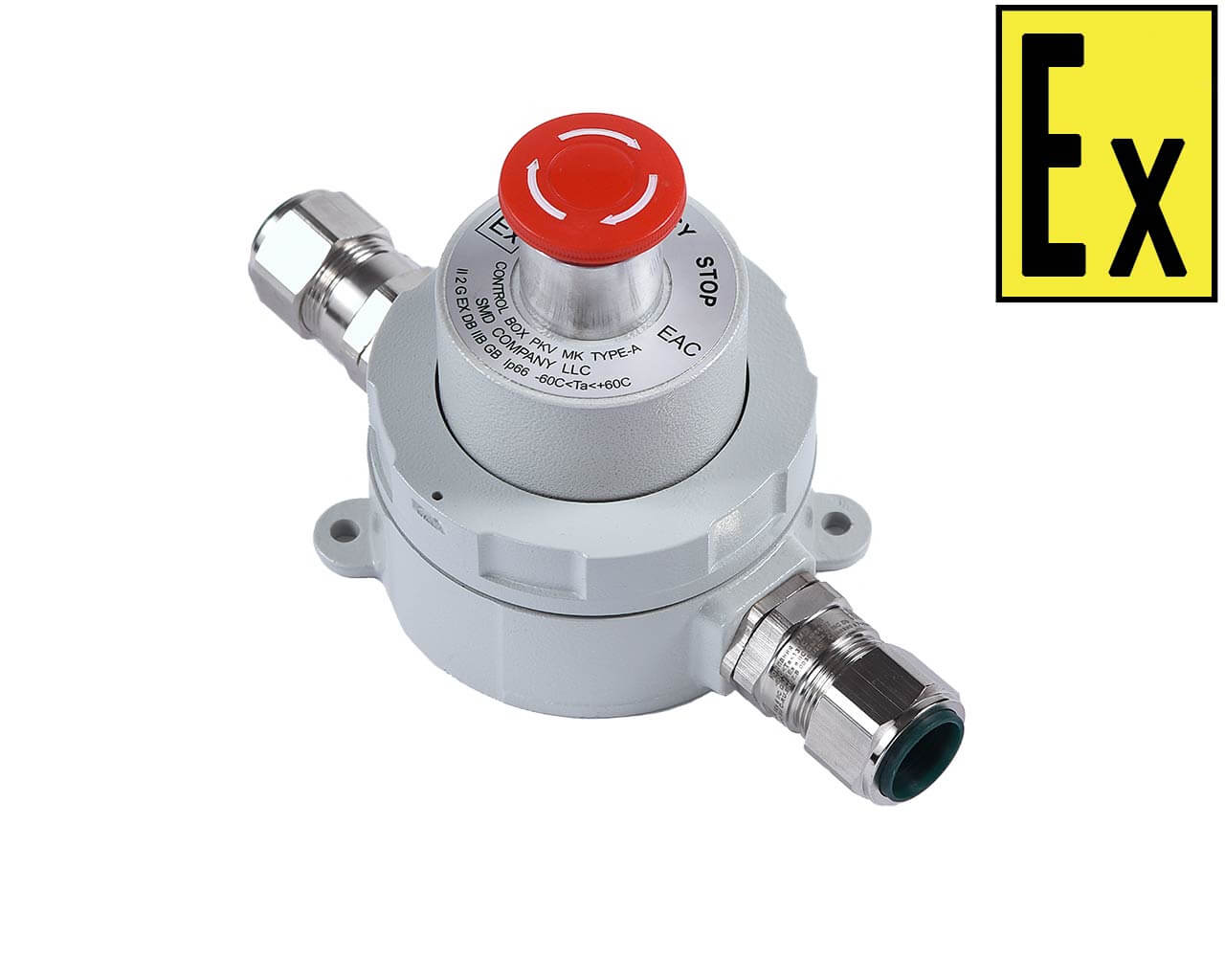

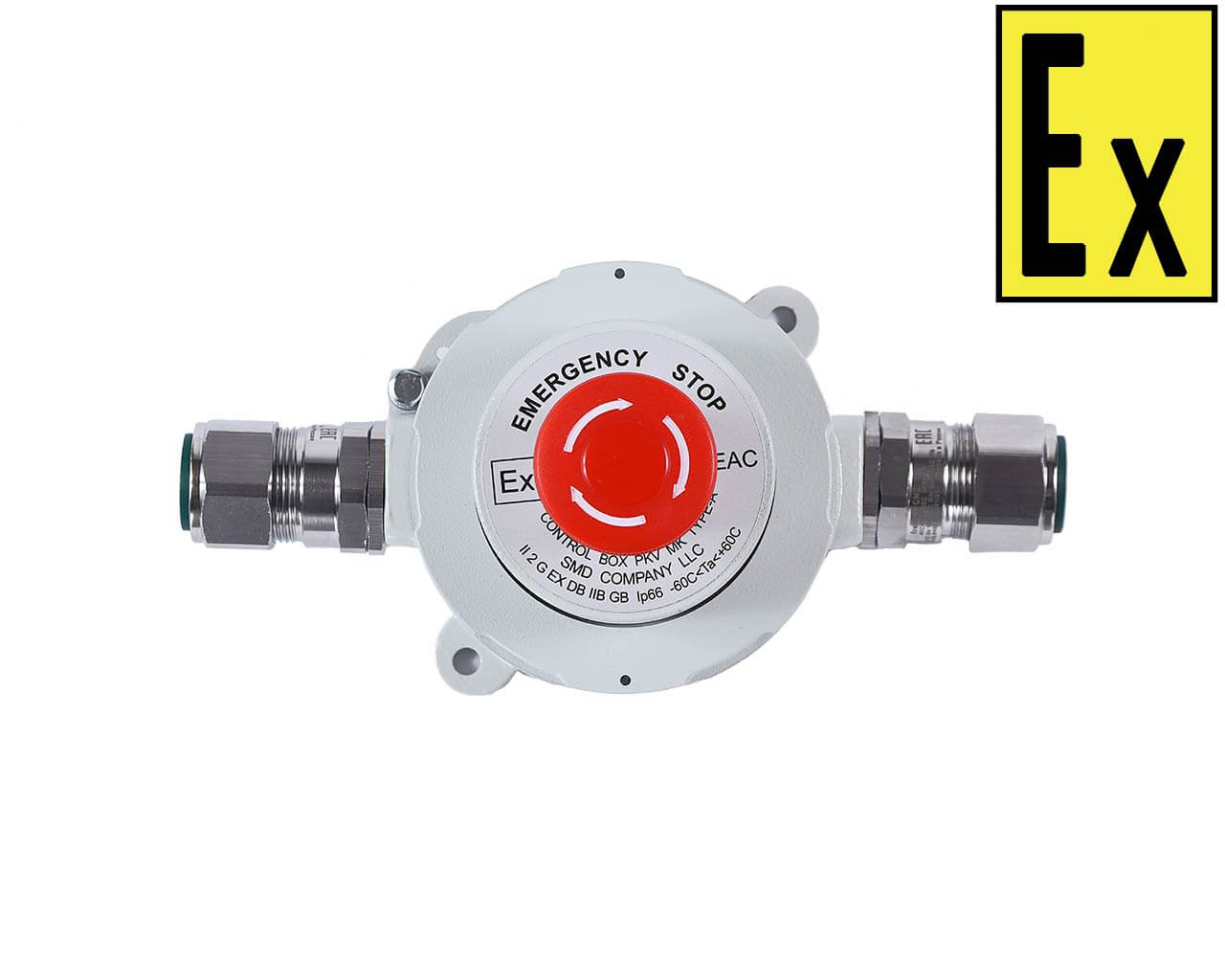

Control boxes are designed for connection or status indication of AC/DC circuits of commercial frequency in explosive zones. The boxes have explosion protection marking "1 ExdllBT6Gb" and can be used in explosive zones of Level 1 and 2. Enclosure material - aluminium alloy.

Control box contains one switching component (button, switch) or indication component (LED lamp). Component type is specified in the order. The boxes can have sign plates with explanatory inscriptions in Russian and foreign languages: 'Start', 'Stop', etc. The boxes are designed to accommodate armoured and non-armoured electrical cables of round cross-section, as well as cables in metal hose or pipe.

Boxes are supplied with cable glands of various versions:
  • for surface routing of the cable with diameter 6-12 mm;
  • for routing 6-12 mm cable in pipe with G 1/2 connection thread;
  • for connection of armoured cable with outer diameter 6-12 mm;
  • for connection of 6-12 mm armoured cable in metal hose RZTsH-15, 20.
All cable glands gave G 1/2 pipe thread.
Explosion protection marking 1Ex d IIB T6 Gb
Ingress protection IP66
Operating temperature range -60 .. +60°С
Number of cable glands 1
Maximum cross-section of connected conductors 2,5mm2
Overall dimensions without cable glands 115х100х120mm
Weight, max. 2kg
Contact group
Max. Voltage
alternating current ~660V
direct current =440V
Maximum contact current 10A
Minimum contact current 0,05А
Type of load Active / Inductive
Electrical wear resistance, VO cycles, no less than
buttons 6*105
switches 105
Mechanical durability, VO cycles, not less than
buttons 3*106
switches 3*105
Rated voltage of indicator lamps, direct current or alternating current 24V, 220V
