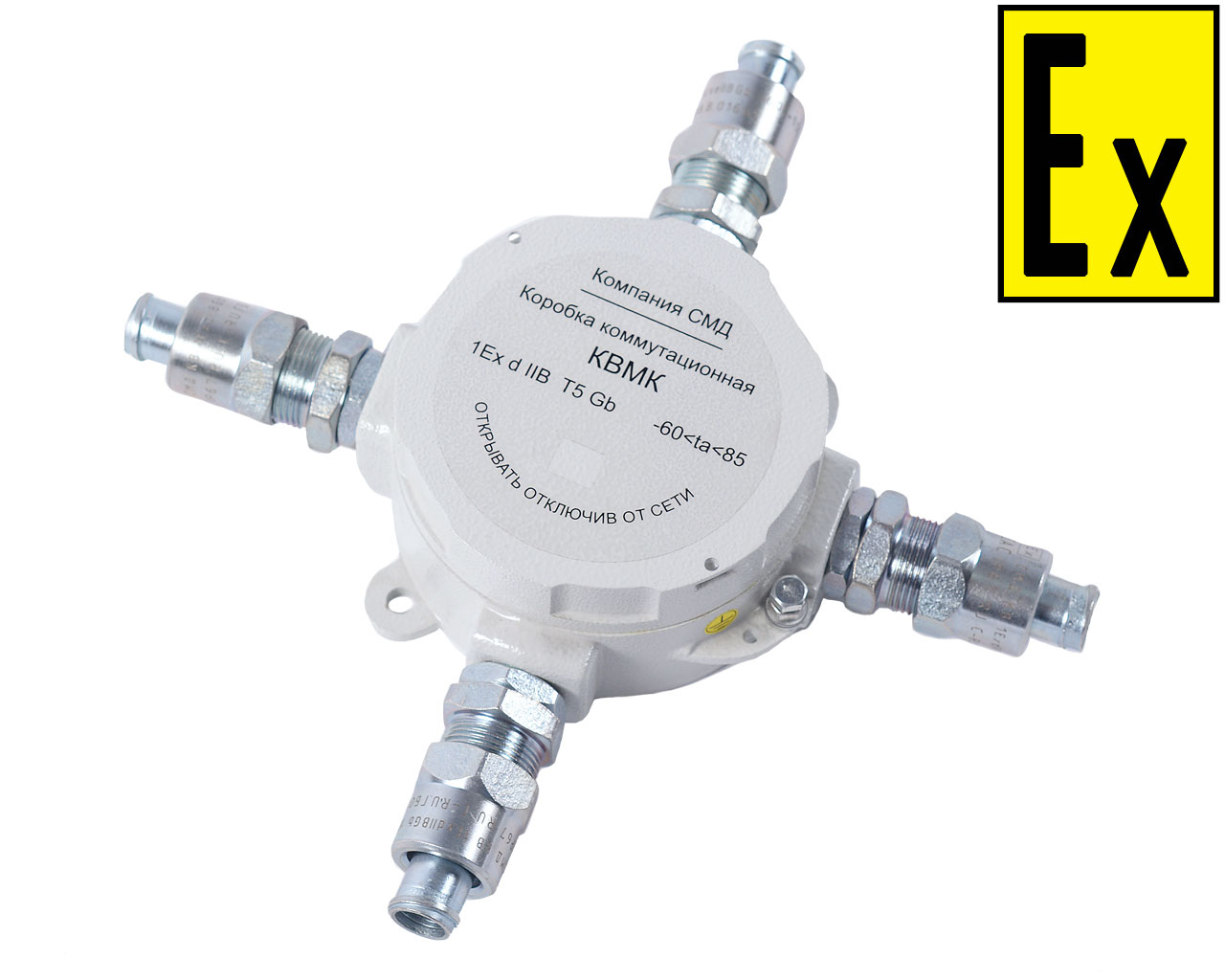

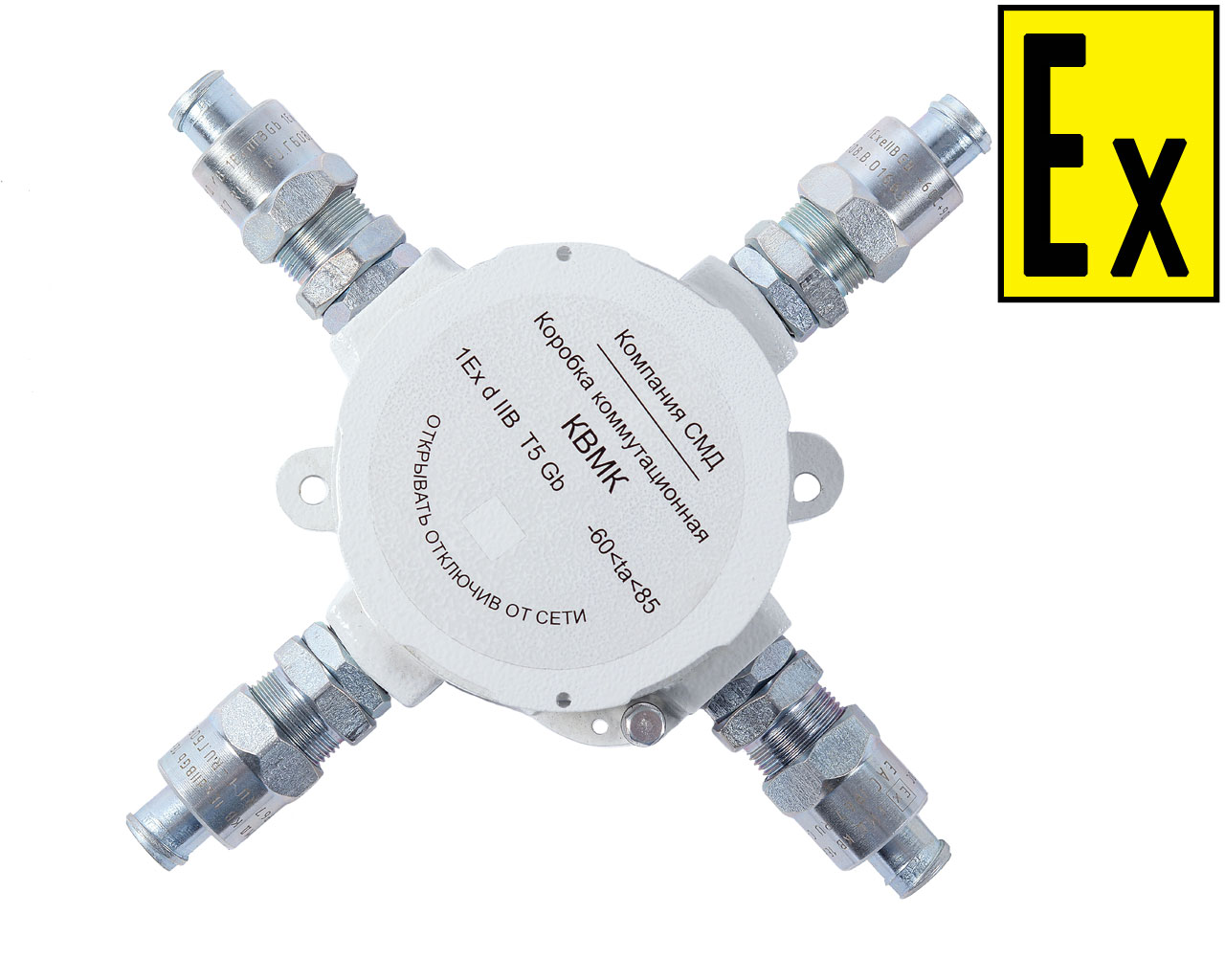

| Explosion protection marking | «1Ex d IIB T5 Gb» |
| Ingress protection | IP67 |
| Operating temperature range | -60 .. +85°С |
| Number of cable glands | 2 - 4 |
| Terminal connector type (delivery package) | WAGO 222-415 |
| Number of internal clamp terminals (delivery package) | 3 - 5 |
| Max. Voltage (for terminals in delivery package) | 400V |
| Terminal current (for terminals in delivery package) | 24A |
| Internal space | 65х65х40mm |
| Overall dimensions without cable glands | 115х115х55mm |
| Enclosure material | aluminium alloy |
| Weight, max. | 1 kg |
Junction boxes are supplied with cable glands of various versions:
Example of order information:
| «KVMK - type A | – [U] – | n1 K – [n2 B] | – [n3 ТG1/2] – [n4 ТG3/4]» |
| 1 | 2 | 3 |
1 – device kit type: KVMK - type А;
2 – at angle (U) or in line (no designation) position of two cable glands;
3 – number (n1…n4) and type (K, B, TG1/2, TG3/4) of cable glands:
К – For surface routing of the cable with diameter 6-12 mm;
B – For armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter;
TG1/2 – For routing 6-12 mm cable in pipe with G 1/2 connection thread;
TG3/4 – For routing 6-12 mm cable in pipe with G 3/4 connection thread.
КМ15, КМ20 – For connection of 6-12 mm armoured cable in metal hose RZTsH-15, 20.
If the box has only two cable glands, the position of glands must ne specified: angular ('U') or in line (no designation). For one gland of any type the quantity can be omitted.
Example of order information:
«Junction box KVMK-type А 1ExdIIBT5Gb –U–2 G1/2К»,
junction box with explosion protection marking 1Ex d IIB T5 Gb, two cable glands for surface routing of the cable with diameter 6-12 mm, position at angle, three Terminal connectors WAGO-222-415;
«Junction box KVMK -type А 1ExdIIBT5Gb – G1/2K – G1/2B – 2 G1/2Т1/2»,
junction box with explosion protection marking 1Ex d IIB T5 Gb fore four cable glands: one cable glands for surface routing of the cable with diameter 6-12 mm, one cable gland for armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter, two cable glands for routing 6-12 mm cable in pipe with G 1/2 connection thread, five Terminal connectors WAGO-222-415;
