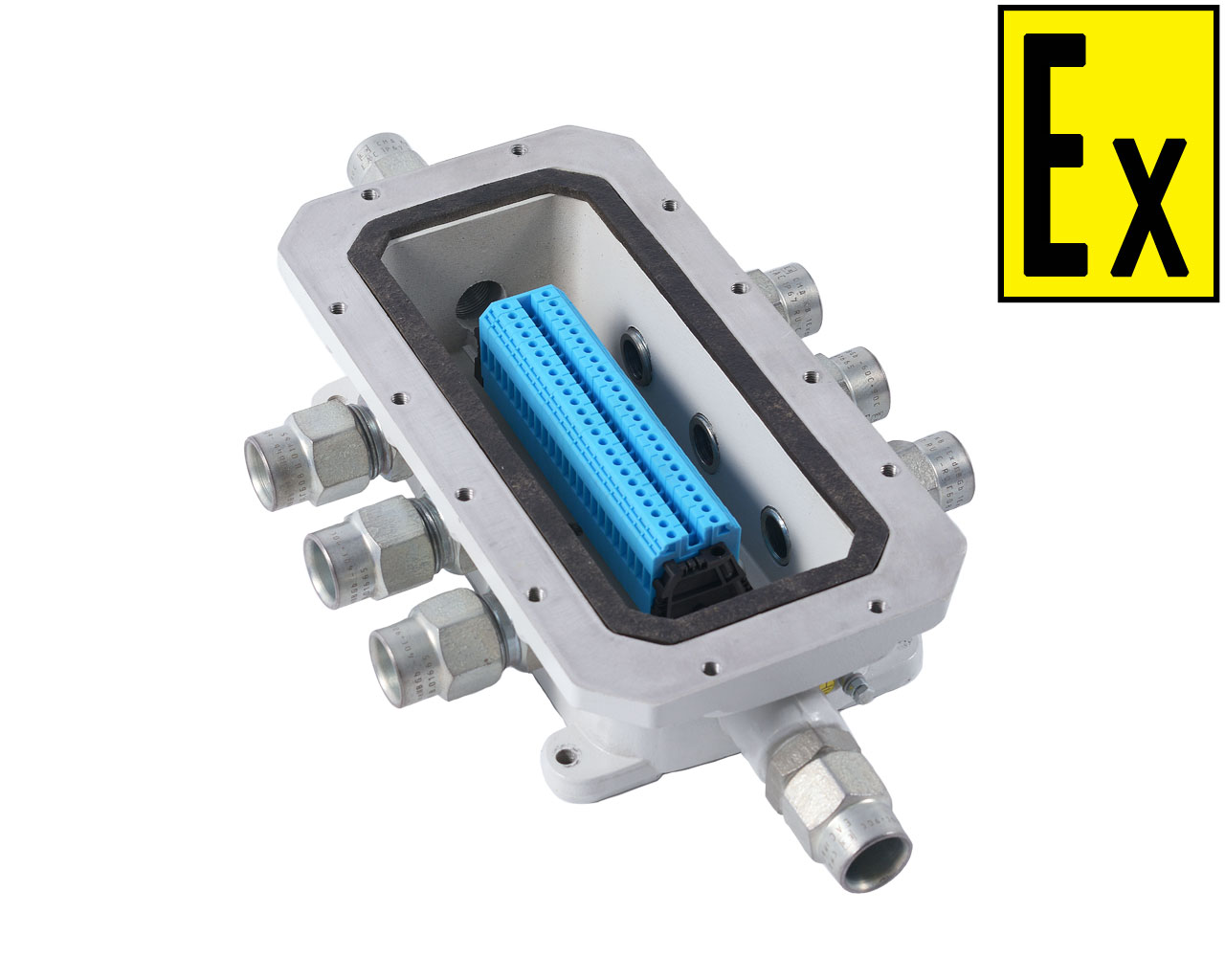

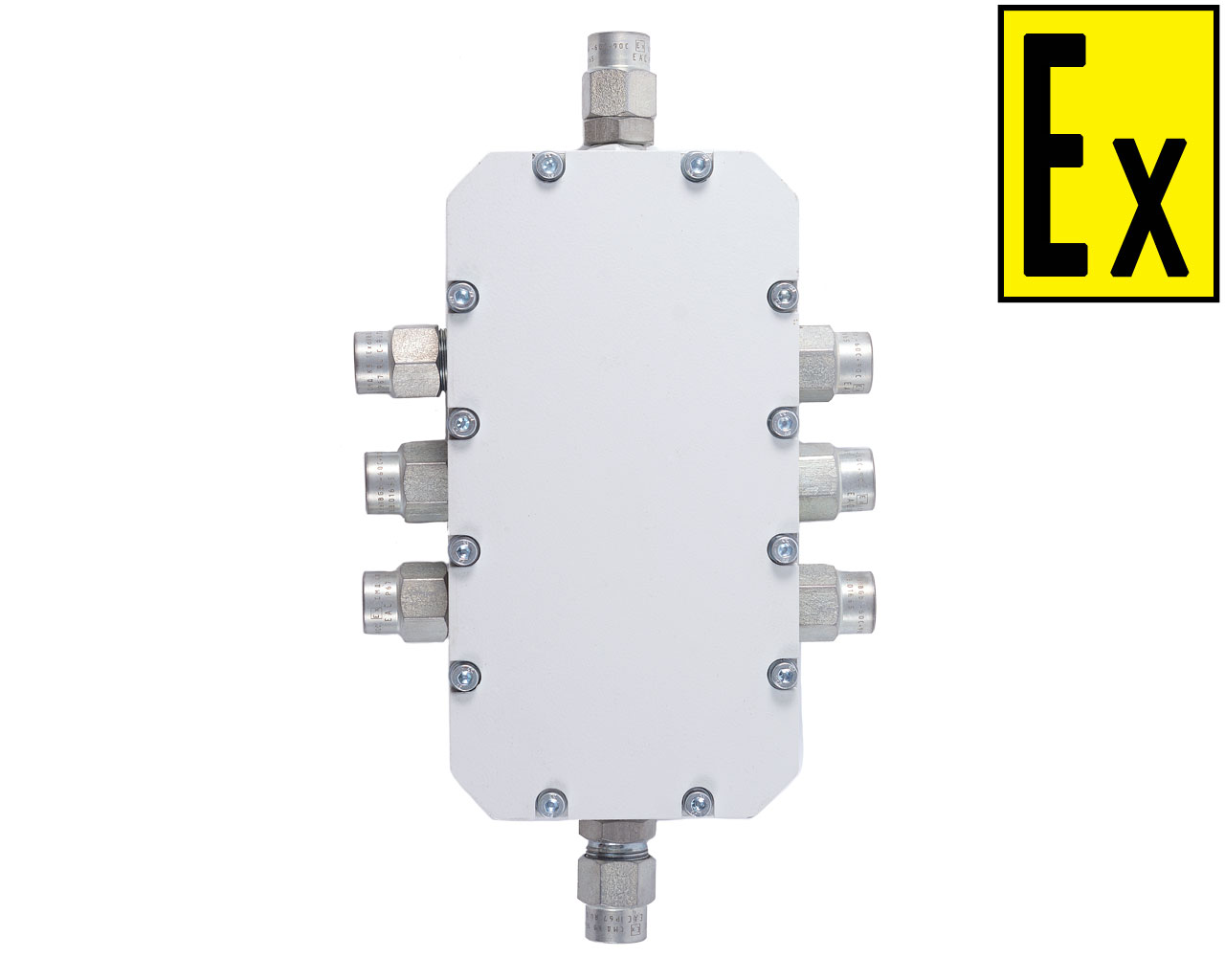

| Explosion protection marking | 1Ex d IIB T5 Gb |
| Ingress protection | IP67 |
| Operating temperature range | -60 .. +85°С |
| Number of cable glands | 1 - 12 |
| Connected voltage, max. | 600V |
| Overall current, max. | 570A |
| Internal space | 250х100х60mm |
| Overall dimensions without cable glands | 335х180х100mm |
| Enclosure material | aluminium alloy. |
| Weight, max. | 10kg |
Junction boxes are supplied with cable glands of various versions:
Example of order information:
| «KMVK – type Б – | А(n x1, n x2, … ) – B(x) – C(n x1, n x2, … ) – D(x) |
| 1 | 2 |
1 – device kit type: «KVMK- type B 1ExdIIBT5Gb»;
2 – Type, number and position of cable glands:
A, C – designation of large sides of the box;
B, D – designation of small sides of the box;
x, x1,x2… – type of cable glands:
G3/4K – For surface routing of the cable with diameter 10-18 mm;
G3/4B – For armoured cable with 10-18 mm drift diameter and up to 25 mm outer diameter;
G3/4T1/2 – For routing 6-12 mm cable in pipe with G 1/2 connection thread;
G3/4T3/4 – For routing 10-18 mm cable in pipe with G 3/4 connection thread;
G3/4КМ20, G3/4КМ25, G3/4КМ32 – For connection of 10-18 mm armoured cable in metal hose RZTsH-20, 25, 32 mm.
n – multiplier of the number of inputs of the corresponding type.
The number of cable glands on the sides A and C is determined when ordering.
The maximum number of cable glands located on the sides: A – 5; B – 1; C – 5; D – 1.
Example of order information:
«KVMK–type B 1ExdIIBT5Gb – А(3 G3/4Т1/2) – B(G3/4Т1/2) – C(3 G3/4Т1/2) – D(G3/4Т1/2)»:
junction box with explosion protection marking «1Ex d IIB T5 Gb» eight cable glands For routing 6-12 mm cable in pipe with G 1/2 connection thread.
