KVMK [101008] 1ExeIIBT5Gb, KVMK [101608] 1ExeIIBT5Gb, KVMK [161609] 1ExeIIBT5Gb, KVMK [122209] 1ExeIIBT5Gb, KVMK [163609] 1ExeIIBT5Gb, KVMK [232011] 1ExeIIBT5Gb, KVMK [233311] 1ExeIIBT5Gb

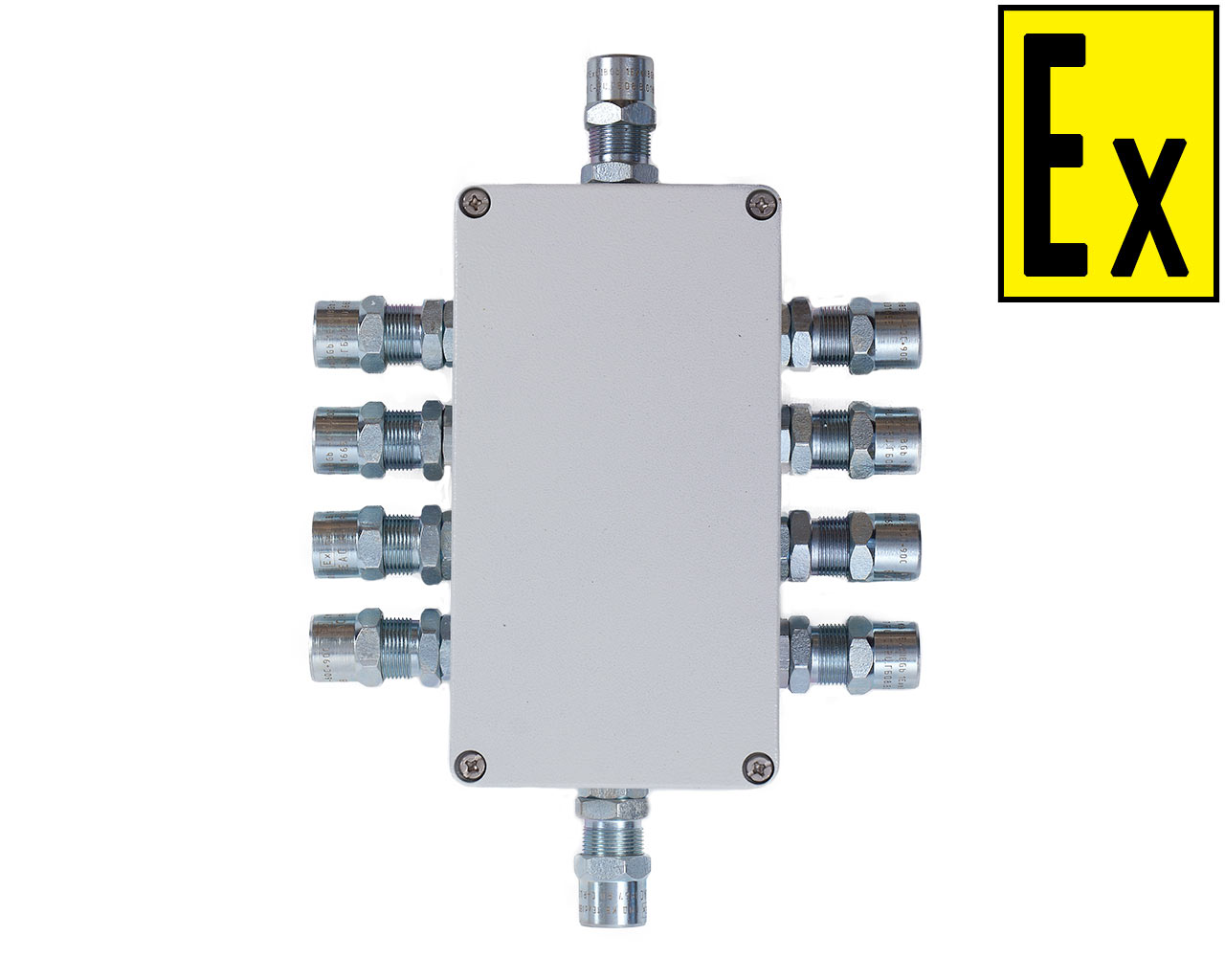

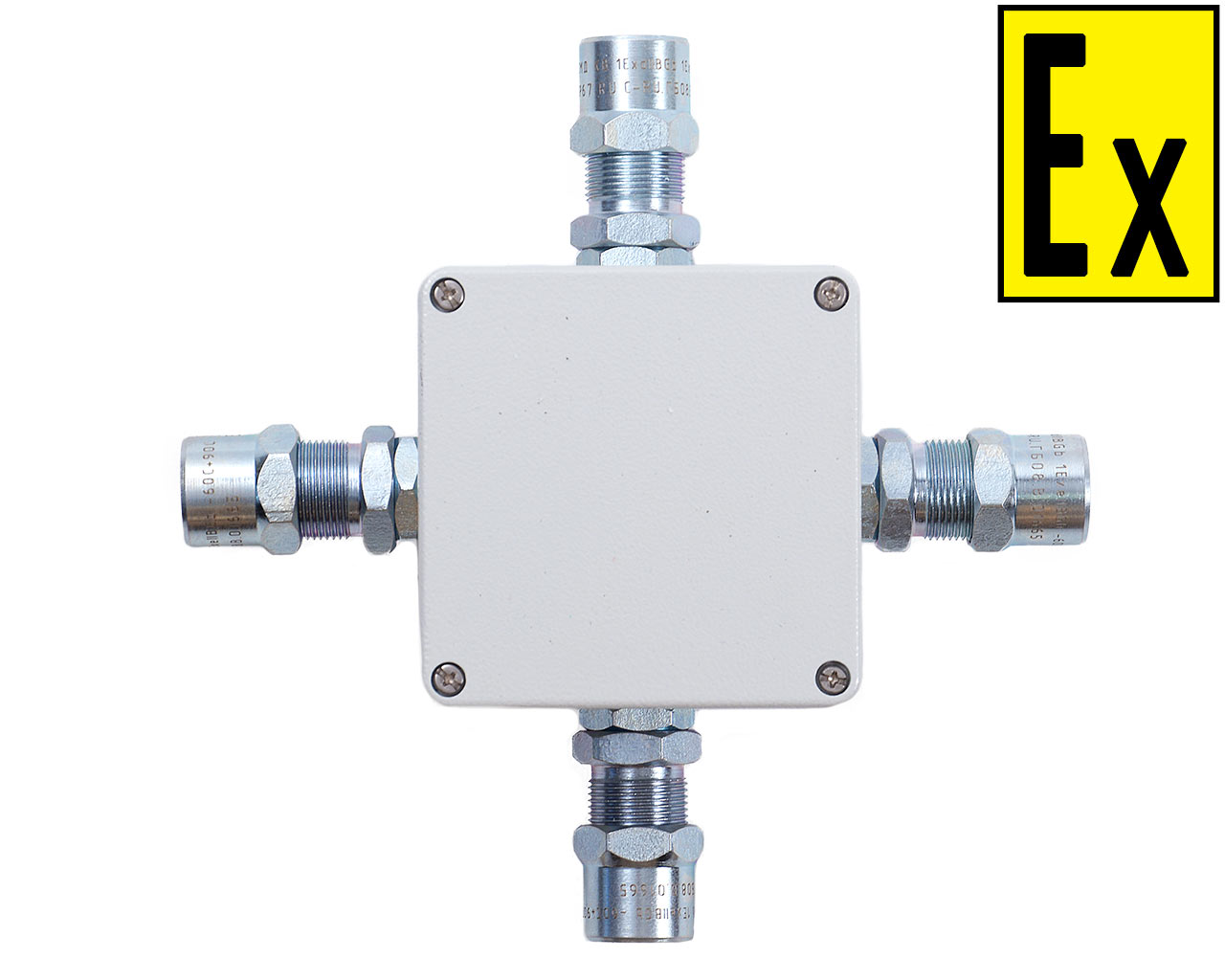

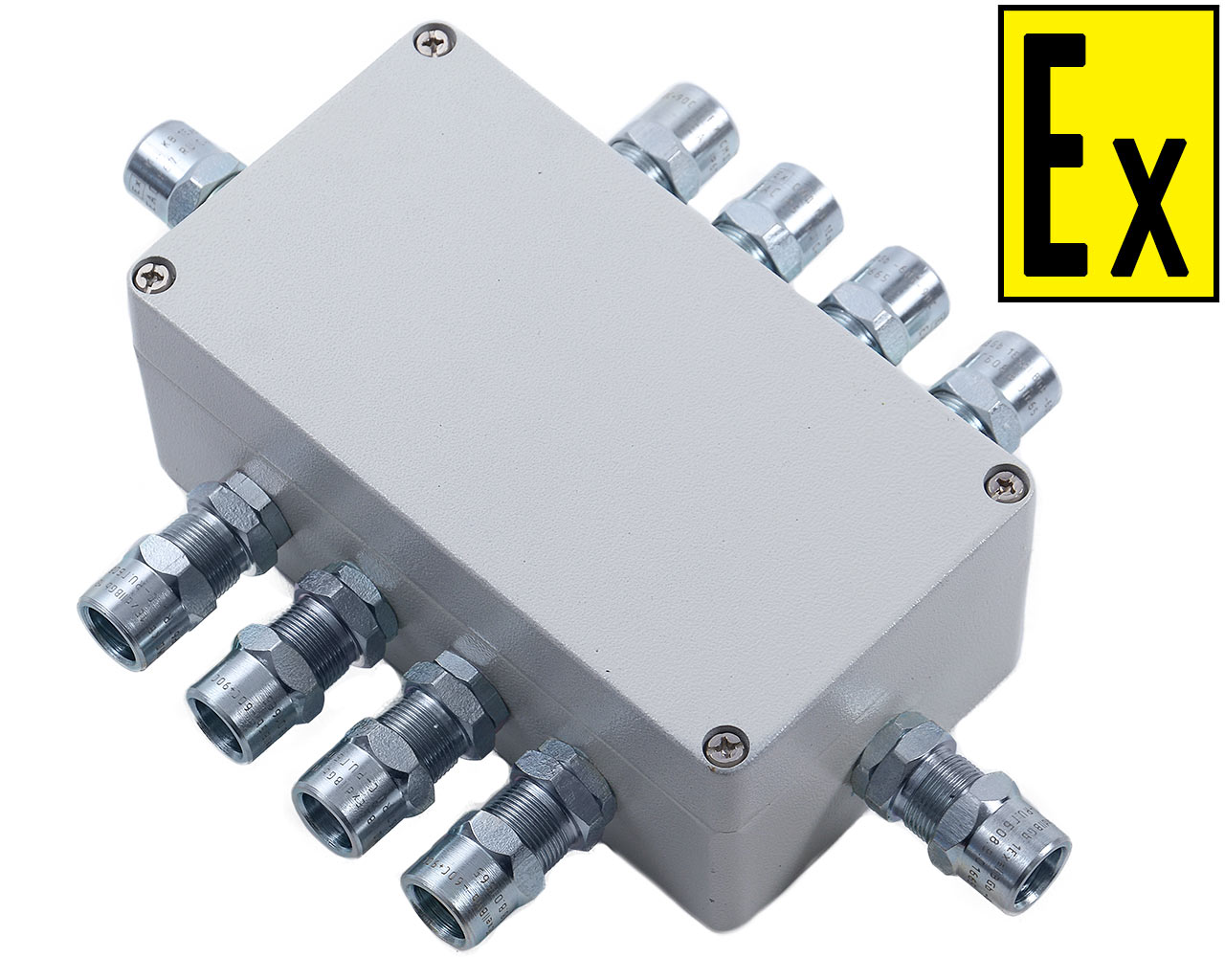

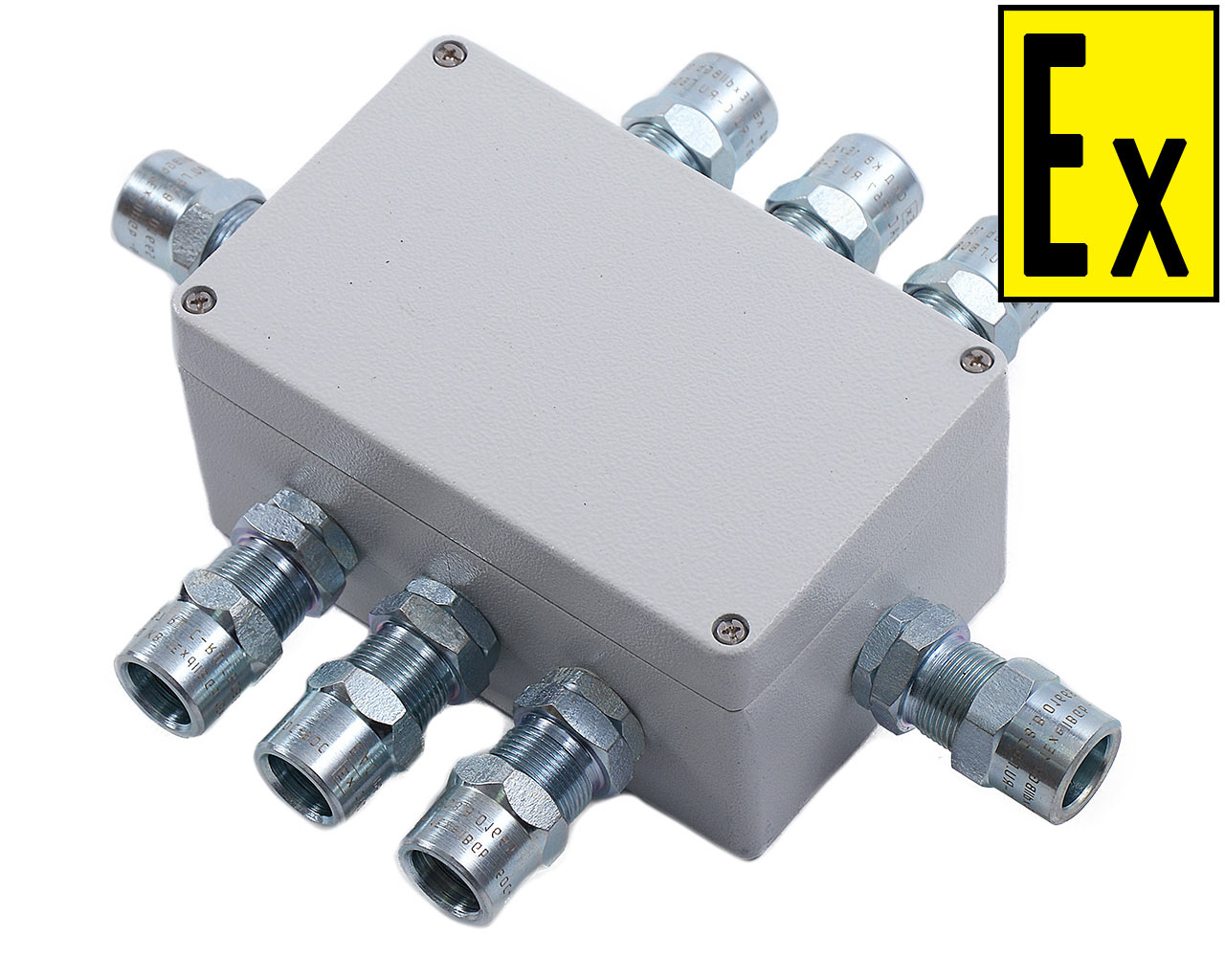

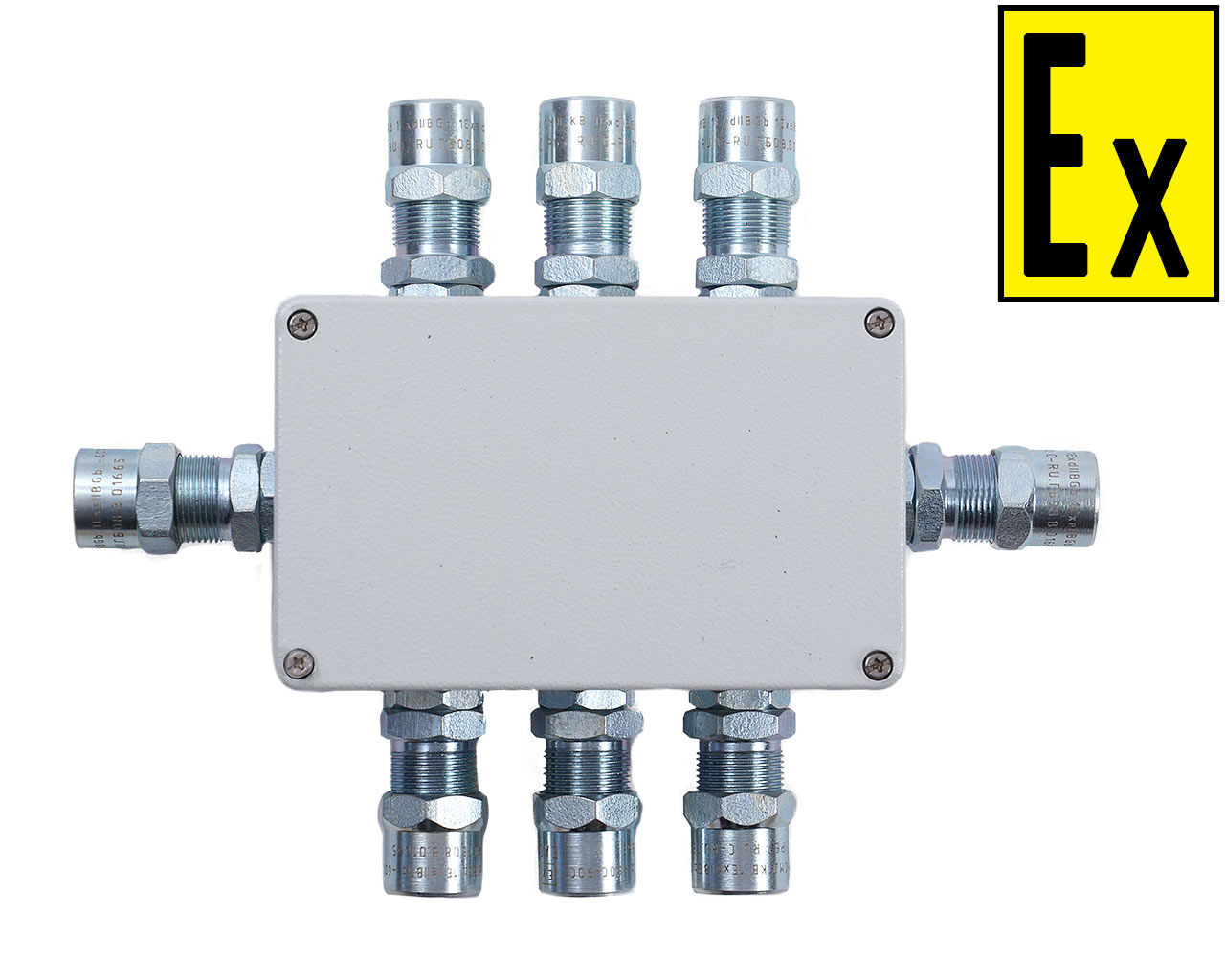

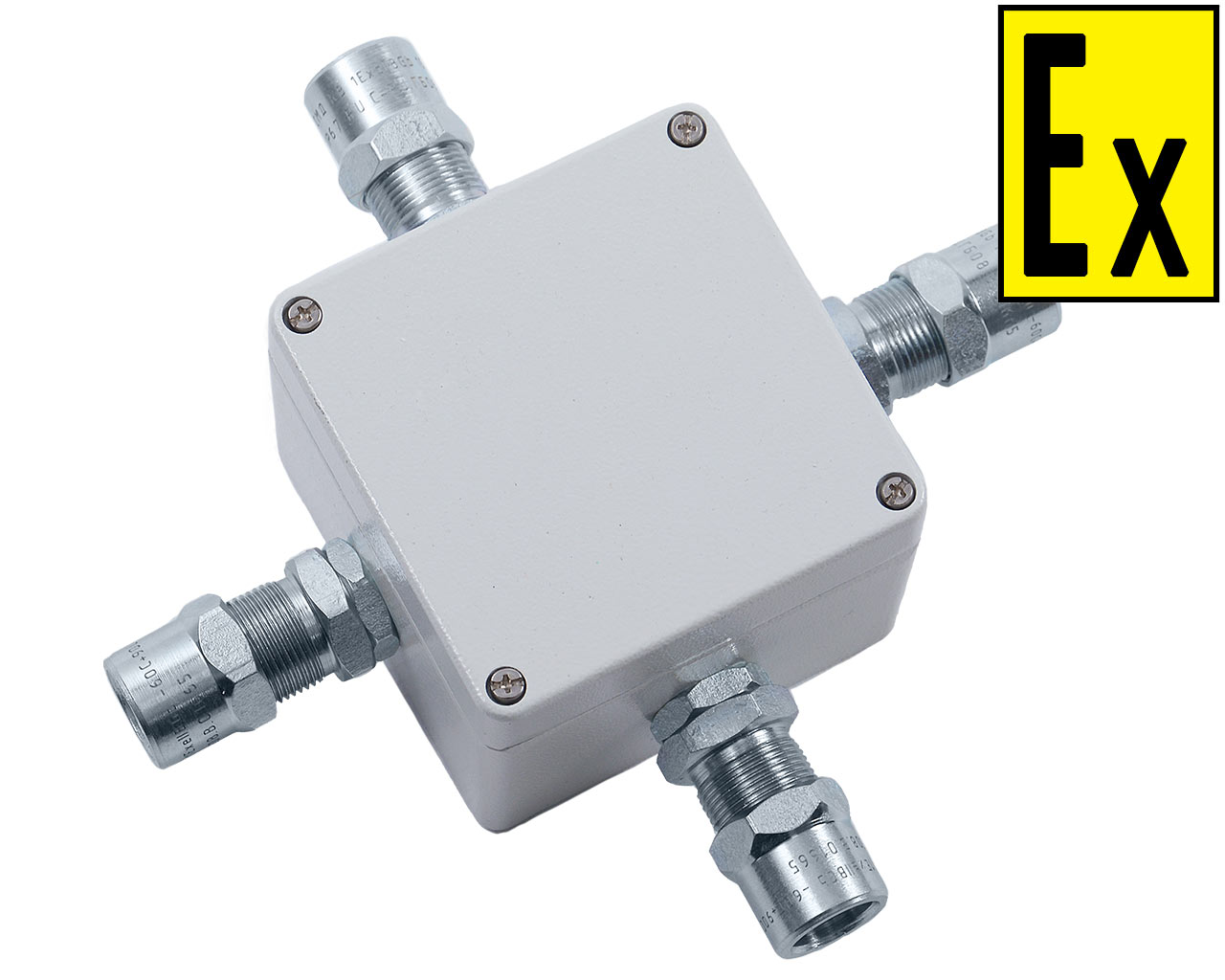

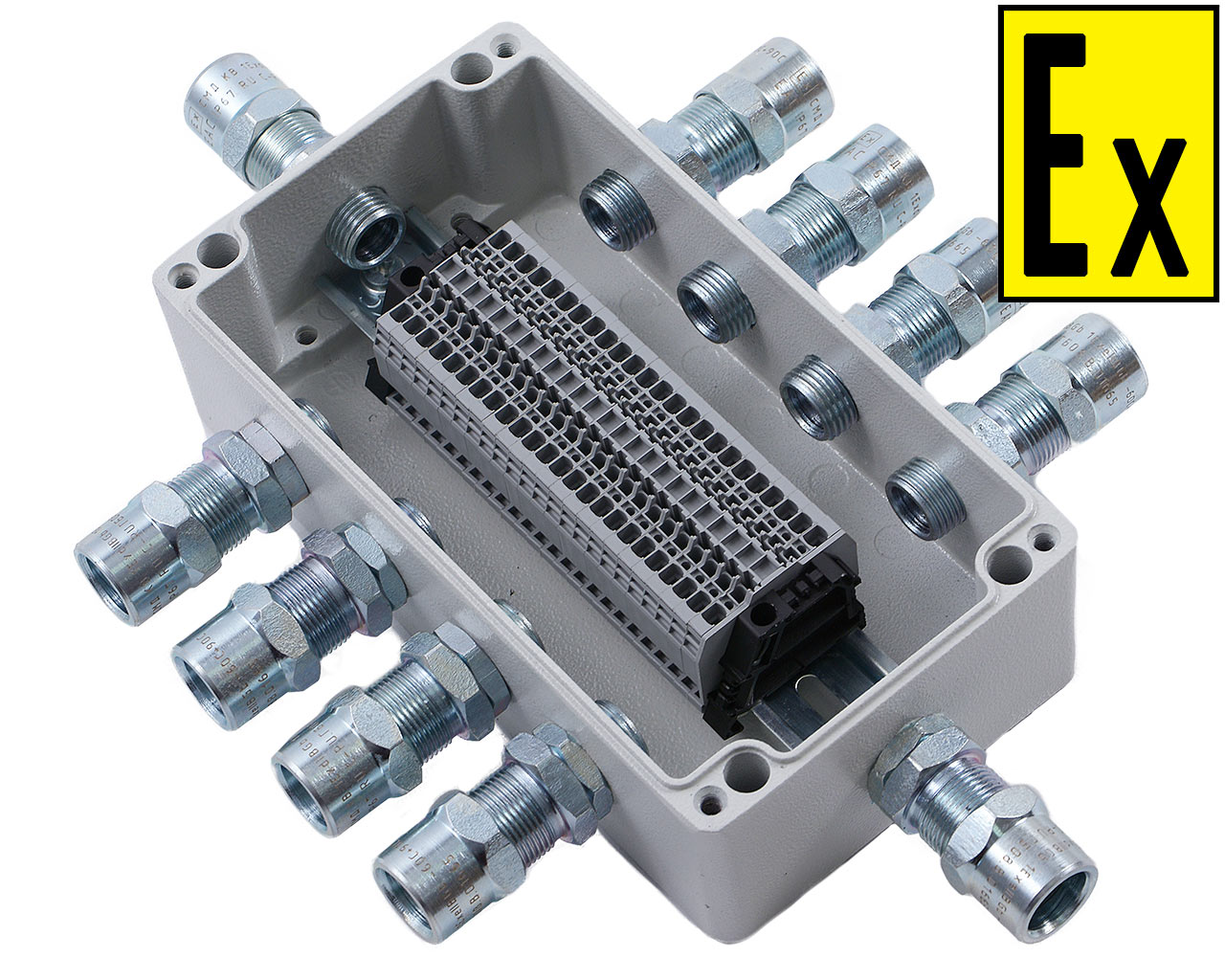

Boxes junction KVMK [ХХХХХХ] 1ExeIIBT5Gb are intended for making connections (branches) of electrical circuits of general and special purpose (power circuits, control circuits, signaling, etc.) in hazardous areas. & Nbsp; Boxes are designed to enter armored, non-armored electrical cables of circular cross-section and cables in metal hose.

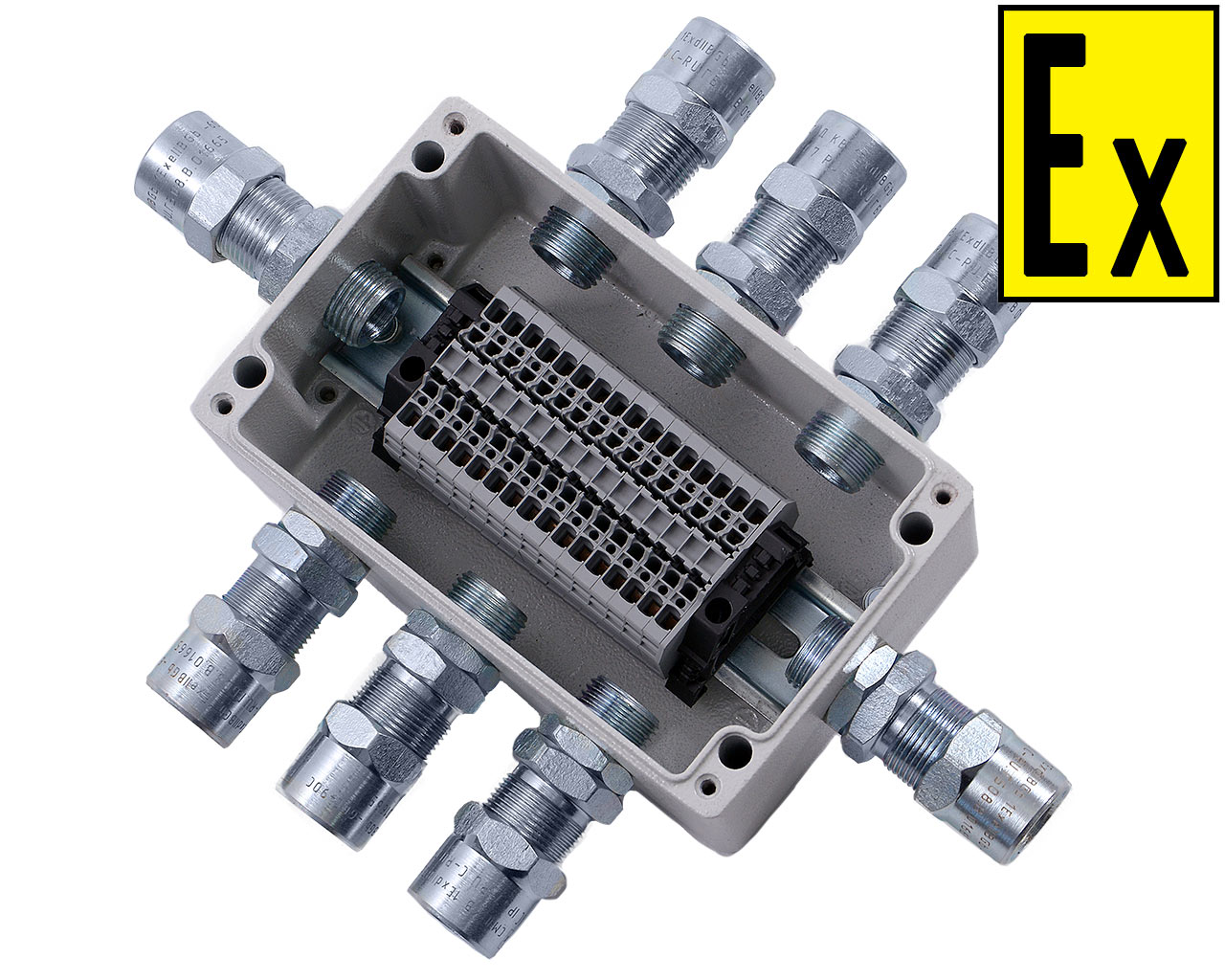

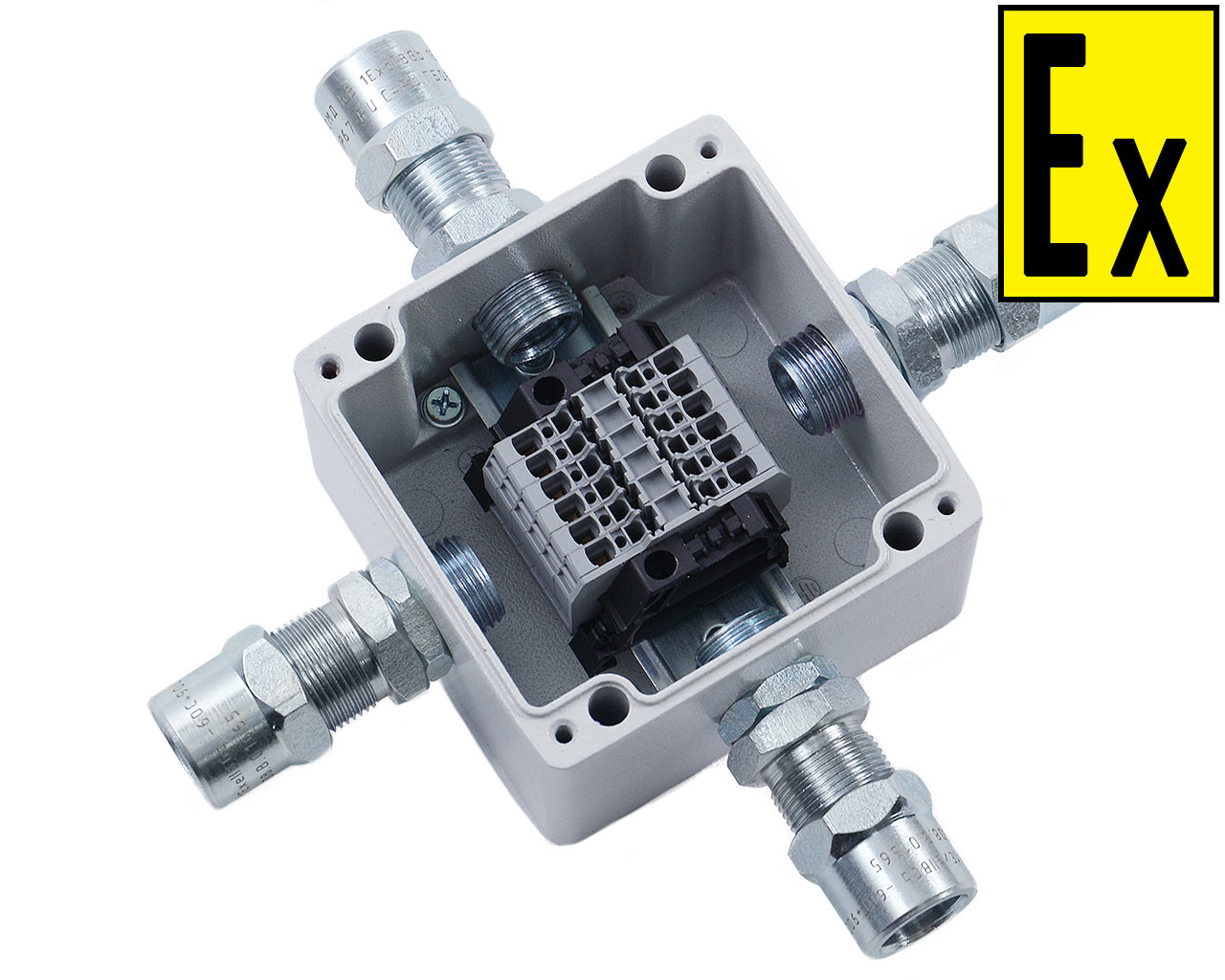

The boxes are supplied with screw (up to 25 mm2) or spring (up to 16 mm2) terminal clamps, which are mounted on a DIN rail. Boxes can contain a different number, type and location of terminal clamps, which are specified when ordering. Inside the enclosure, additional earth or shielding busbars can be installed.
The boxes are supplied with explosion-proof cable entries of the KV series TU 3449-138-81888935-2016 produced by OOO & la company SMD. The type, number and location of the cable glands is specified when ordering. Each cable entry is supplied with rubber seals for the cable.
| Explosion protection marking | «1Ex e IIB T5 Gb» | |||
| Enclosure material | aluminium alloy | |||
| Ingress protection | IP67 | |||
| Climatic rating | UHL1 | |||
| Operating temperature range | -60 ... +85°С | |||
| Overall dimensions: | Internal space (L x W x H): | Overall dimensions without cable glands (L x W x H): | Mounting dimensions: | Enclosure weight, max |
| [101008] | 92х92х74 mm | 100х100х81 mm | 66х86 mm | 0,6 kg |
| [101608] | 92х152х74 mm | 100х160х81 mm | 66х146 mm | 0,8 kg |
| [161609] | 151х151х83 mm | 160х160х91 mm | 110х140 mm | 1,5 kg |
| [122209] | 111х211х83 mm | 120х220х91 mm | 82х204 mm | 1,4 kg |
| [163609] | 151х351х83 mm | 160х360х91 mm | 110х340 mm | 2,9 kg |
| [232011] | 222х192х103 mm | 230х200х111 mm | 180х180 mm | 2,7 kg |
| [233311] | 220х320х103 mm | 230х330х111 mm | 180х310 mm | 3,9 kg |
| Service life to write-off, years | 10 | |||
Junction boxes are made in standard execution and under the order. All junction boxes have their own size range specified in the table. When ordering, you must complete and send the order form to the manufacturer https://smd-tlt.ru/image/db/files/Opros_kvmk_exe.doc
The customer chooses the number of terminals, cable glands and their type. The manufacturer reserves the right to dispose of all elements according to his project.
Example of entry in the standard documentation:
| KVMK | [ХХХХХ] | 1ExeIIBT5Gb | – А(nx1, nx2, …nx5) – B(x) – C(nx1, nx2, …nx5) – D(x) | – nts – PEnts |
| 1 | 2 | 3 | 4 | 5 |
Example designation of standard equipment:
«KVMK [122209] 1ExeIIBT5Gb - A(4 M20B) - B(GM20B) - C(4 M20B) - D(M20B) – 10p2.5 - PE1p4»:
KVMK – type box;
[122009] - Overall dimensions box(120х220х90 mm);
1ExeIIBT5Gb - explosion protection marking;
on the side А: Four cable glands for armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter;
on the sides B and D: one cable glands each for armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter;
on the side C: Four cable glands for armoured cable with 6-12 mm drift diameter and up to 18 mm outer diameter;
10 – spring clamps size 2.5mm2;
1 – grounding clamps;
p – spring clamps;
4 – clamp size.
