ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus
ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus
ИЗВЕЩАТЕЛЬ ПЛАМЕНИ ИП329/ИП330 ТЕЛОС ModBus
Spectrum
  • IR (IP329)
  • IR / UV (IP329 / IP330)
You choosed:
  • Spectrum

  • Type of protection

  • Housing material

  • Connection type

  • Cable gland

Detector is designed to detect fires accompanied by open flame simultaneously in the ultraviolet and infrared emission spectrum. Use of IR and UV regions of the spectrum allows to exclude false alarms of the detector.

Detector is equipped with electromechanical relay and can be used in two and four-wire alarm loops. There is a self-test function sending a fault signal to the receiving/monitoring equipment via 2- or 4-wire communication lines. The detector has a built-in optical indication of detection, standby and fault modes.

Detectors are produced in two types of explosion protection: 1Ex d IIB T6 Gb X (MK) и 0Ex ia IIB T6 Ga (VZ)

Detector is designed to detect fires accompanied by open flame simultaneously in the ultraviolet and infrared emission spectrum. Use of IR and UV regions of the spectrum allows to exclude false alarms of the detector.

The detectors differ in their connection types: equipped with an electromechanical relay and can be used in two and four wired alarm loops. With self-monitoring function with a fault signal on the control panel on two or four wire lines.

Support of HART and Modbus protocols allows to transmit the signals from the detector to the fire alarm systems, APCS, and industrial automation systems. Digital signals from the detector can spread through analog networks. Diagnostics and adjustment of devices can be done remotely, which is critically important for remote low-maintenance infrastructure objects. All events are recorded and archived automatically, the results are saved in the system.

Effective for harsh climatic conditions (-60 ... +75 С °) including areas of the Far North (internal heating). Detectors work with receiving/monitoring devices, addressable fire alarm systems, complex integrated safety management systems and automatic fire extinguishing systems made by all leading Russian and foreign manufacturers.

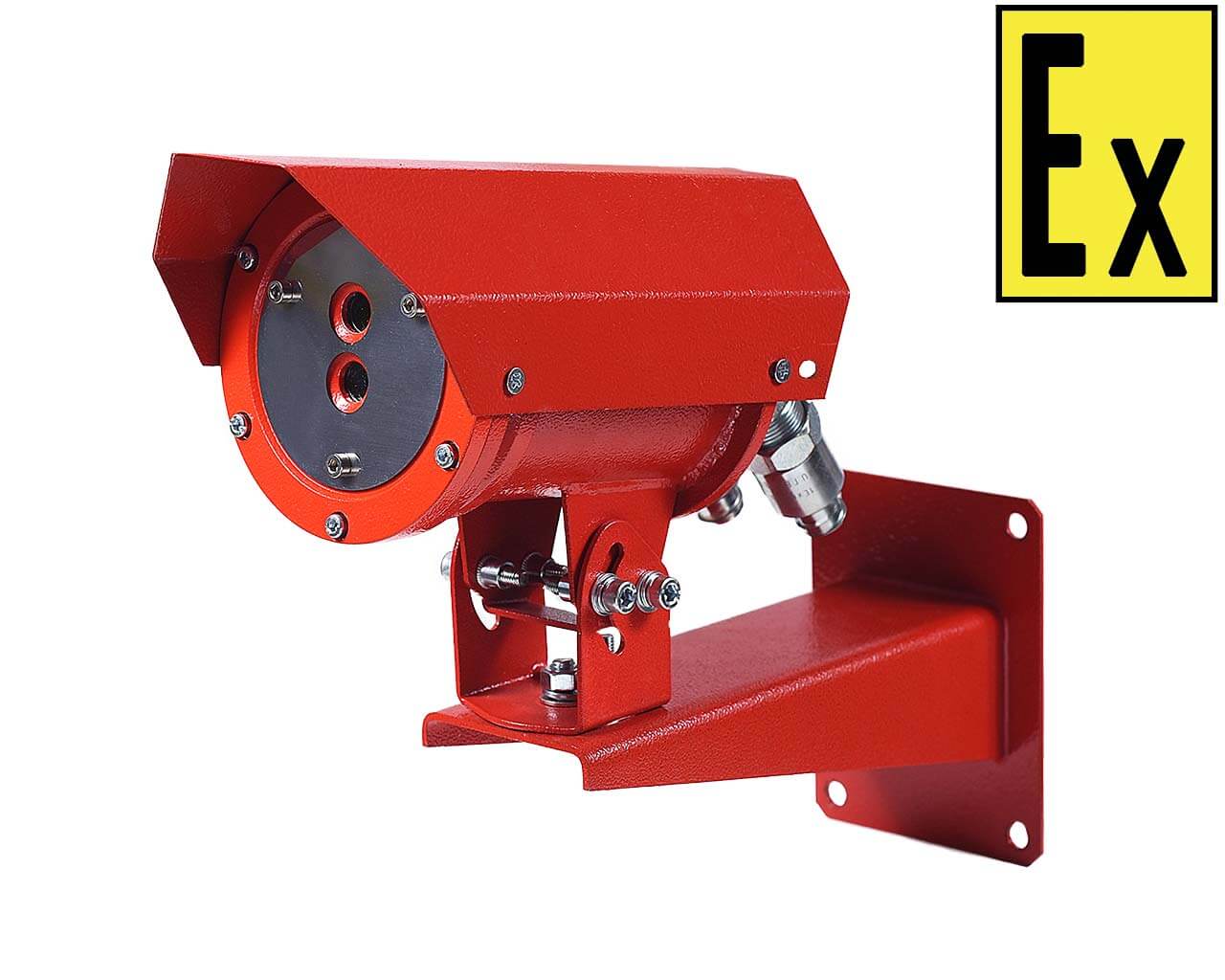

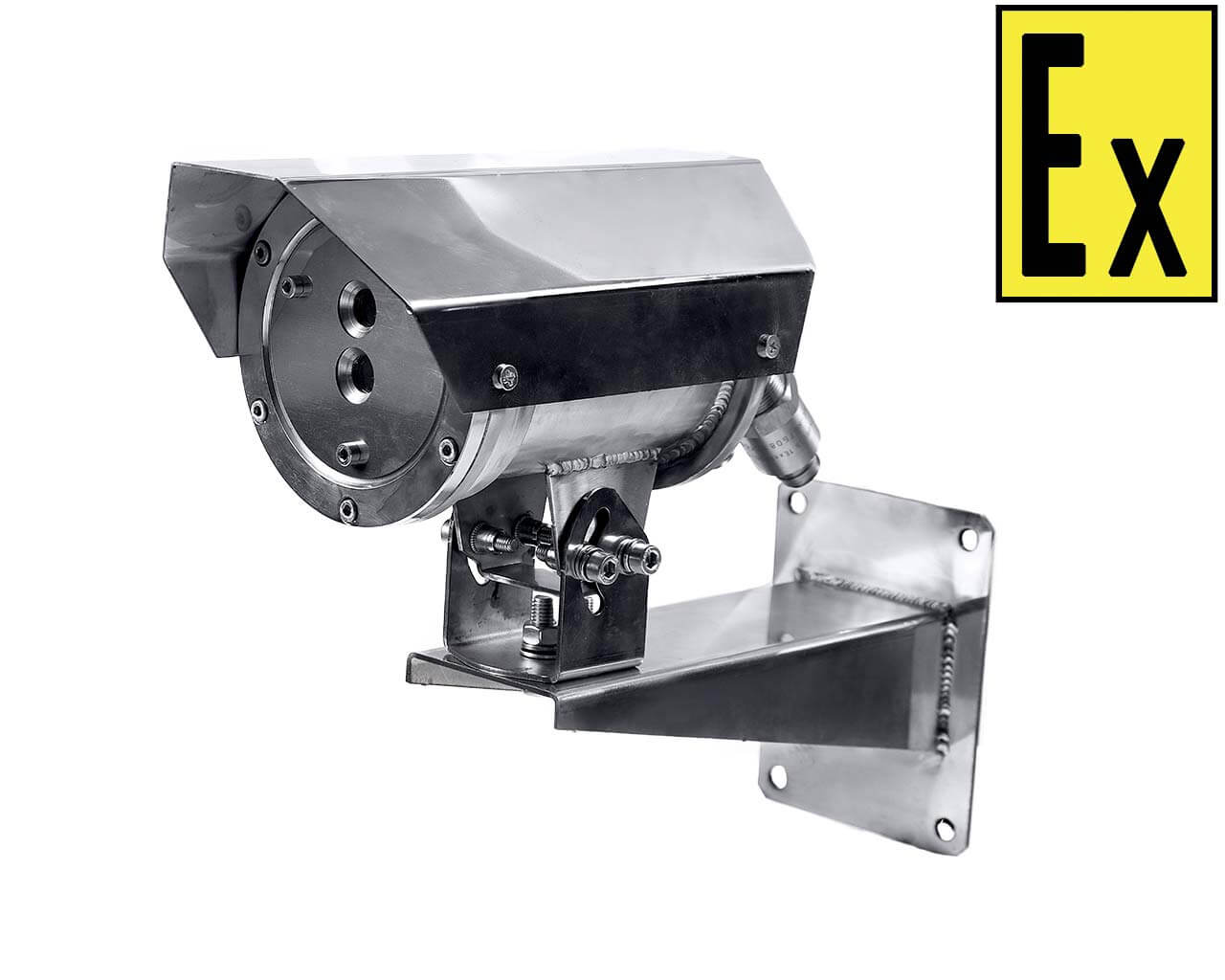

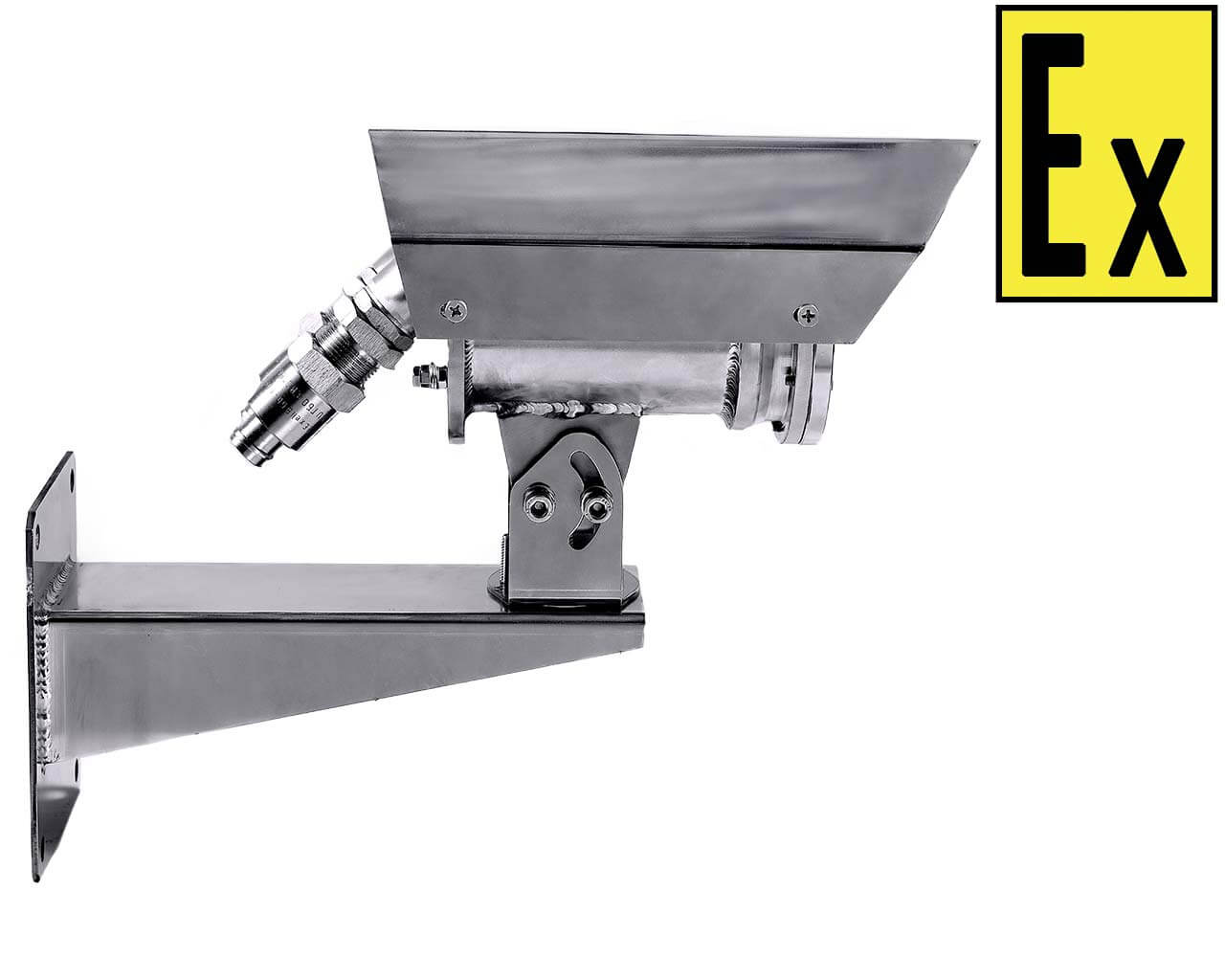

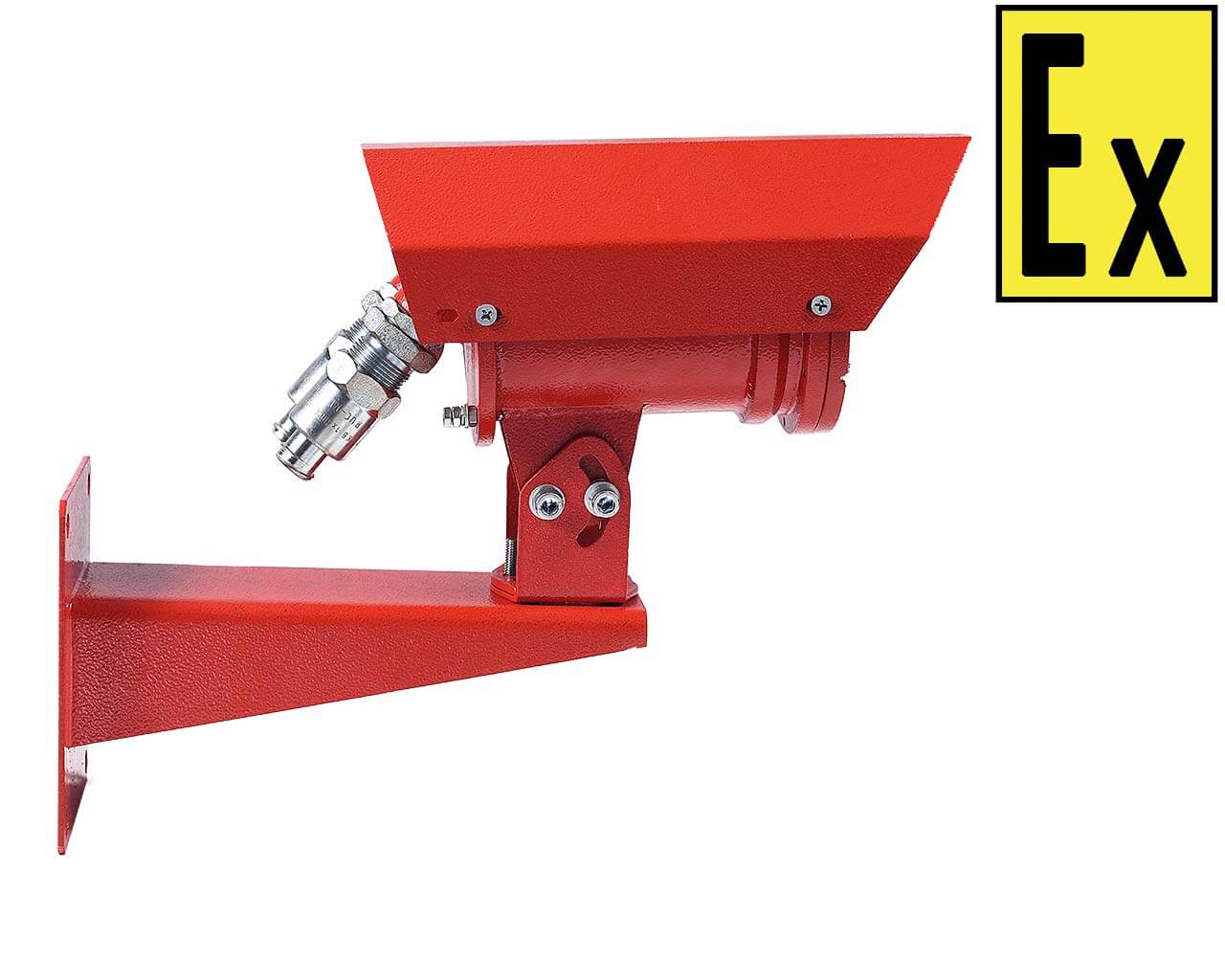

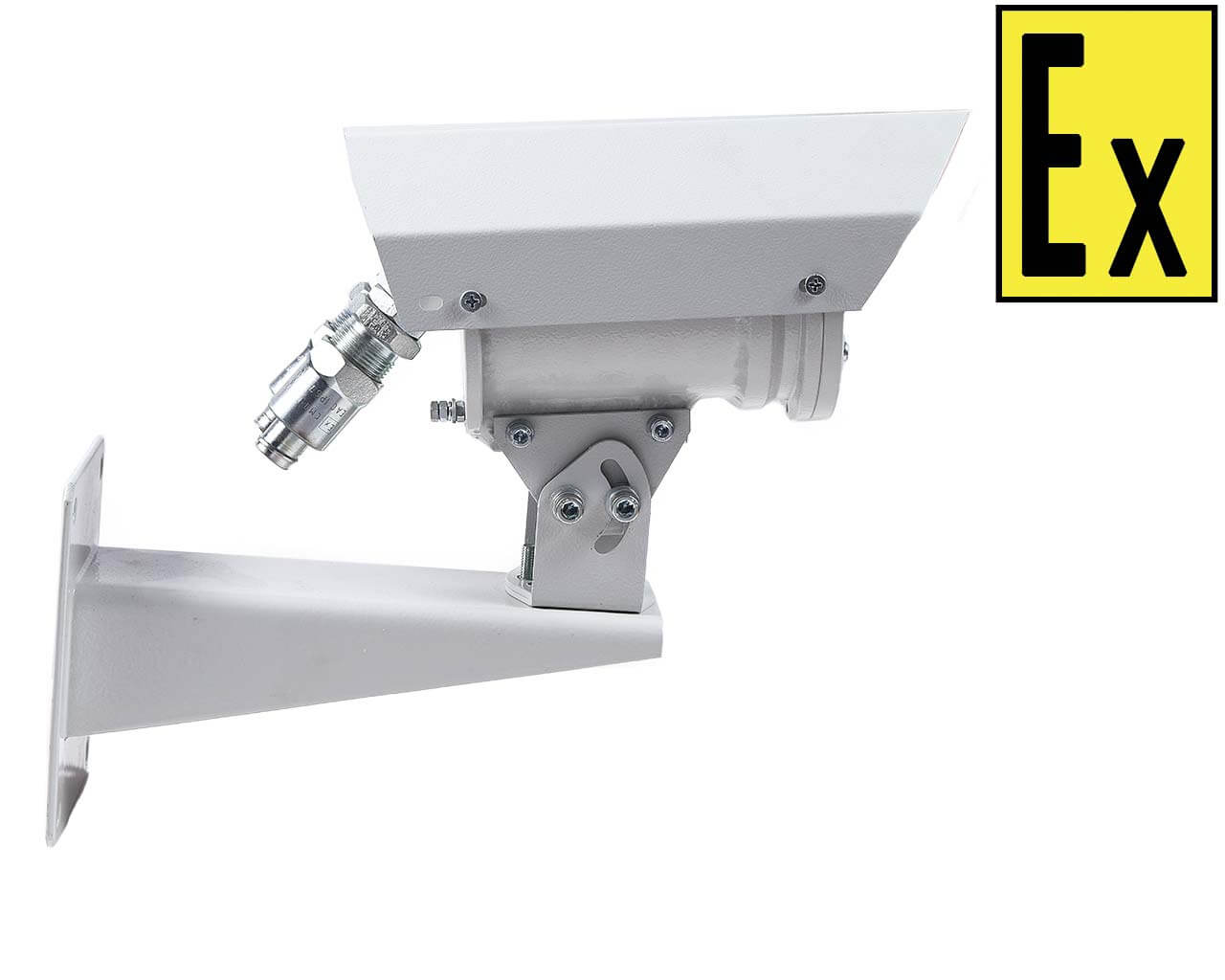

Available in enclosures of galvanized steel and stainless steel 12Х18Н10Т. Detectors in a stainless steel enclosure are resistant to the aggressive environments of chemical, petrochemical, and gas processing plants.

Detectors are equipped with electromechanical relay "Fire" and optically coupled SSR "Fault" and can be used in two and four-wire alarm loops. There is a self-test function sending a fault signal to the receiving/monitoring equipment via two- or four-wire communication lines.

  IP 329 / IP 330 Telos MK -HART/Modbus IP 329 / IP 330 Telos MK IP 329 Telos МК
IP 329 / IP 330 Telos VZ IP 329 Telos VZ
Explosion protection marking 1Ex d IIB T6 Gb Х 1Ex d IIB T6 Gb Х 1Ex d IIB T6 Gb Х
0Ex ia IIB T6 Ga 0Ex ia IIB T6 Ga
Ingress protection IP67 IP67 IP67
Spectral sensitivity:
UV 185 .. 260 nm 185 .. 260 nm 185 .. 260 nm
IR 800 .. 1100 nm 800 .. 1100 nm
Sensitivity:
TP5 25 m 30 m 50 m
TP6 25 m 12 m 25 m
Vision angle at k=1.9 90 degrees 100 degrees 100 degrees
Max. protected area 700m2 700m2 2000m2
Response time, max 30 s 3, 7, 15, 22 s 3, 7, 15, 22 s
Resistance to direct light:
incandescent lamp 250 lx 500 lx 500 lx
fluorescent lamp 2500 lx 2500 lx 2500 lx
visible spectral range 80000 lx 80000 lx 80000 lx
Operating voltage range 18 V .. 28 V 9 V .. 28 V 9 V .. 28 V
Input current in stanby mode, max:
  without heating 50 mA 0,45 mA 0,25 mA
  with heating 600 mA
Input current in 'Fire' mode, max.:
  without heating 70 mA 3 .. 15 мА (without use of relay) 3 .. 15 мА (without use of relay)
  with heating 600 mA 22 мА (with use of relay) 22 мА (with use of relay)
Digital communication interfaces HART or Modbus RTU/RS485 2- or 4-wire communication line. 2- or 4-wire communication line.
Analog interface (current loop 4÷20 mA), modes:
standby 4 mA
fire 10-11 mA
fault 2 mA
Relay contacts load characteristic 30V & 100 mA 30V & 100 mA 30V & 100 mA
Operating temperature range
without heating -40°С.. +75°С -60°С .. +75°С -60°С .. +75°С
with heating -60°С .. +75°С
Enclosure material Galvanized steel or stainless steel 12Х18Н10Т aluminium alloy aluminium alloy
Overall dimensions without bracket D100 x 180 mm D100 х 170 mm D100 х 170 mm

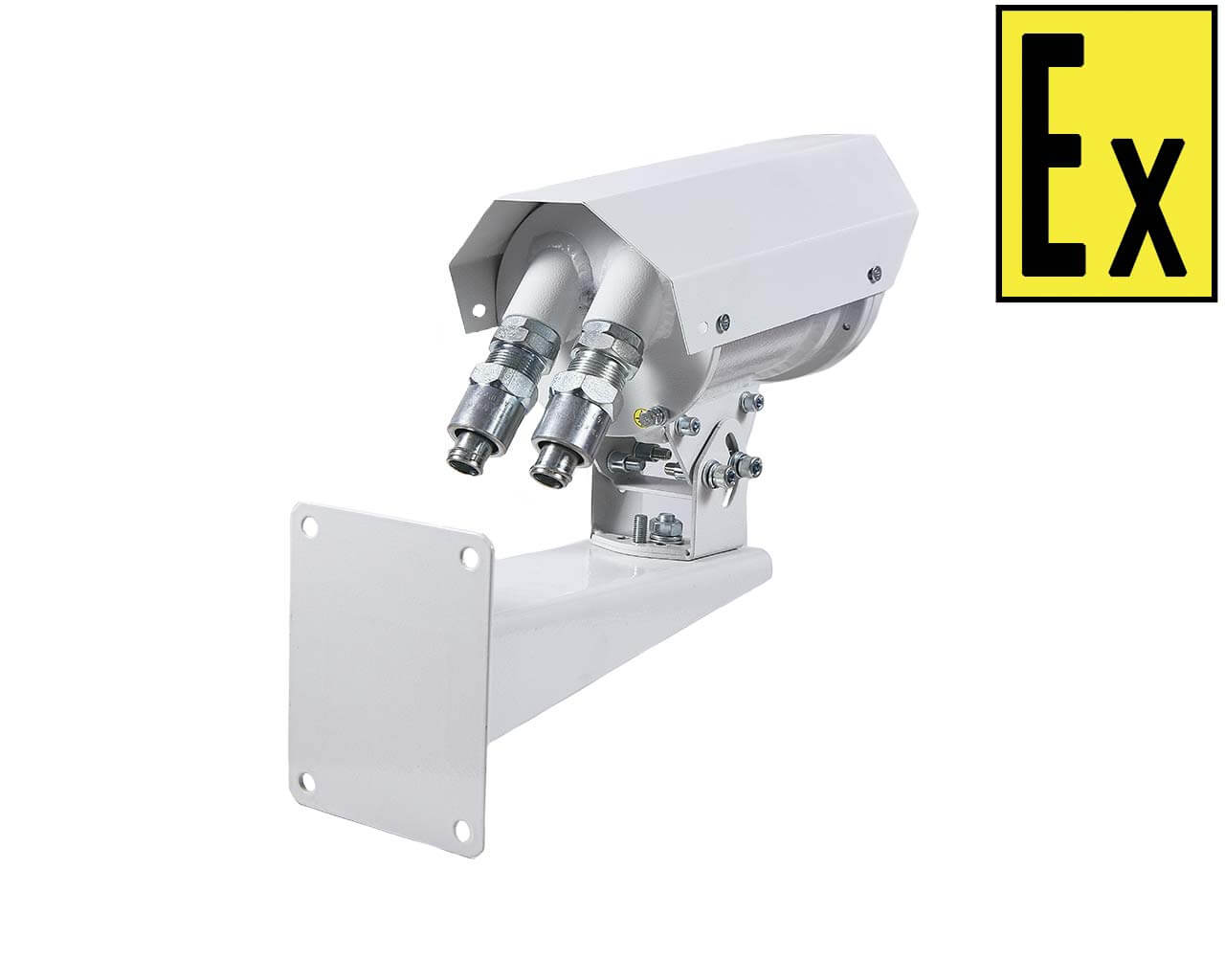

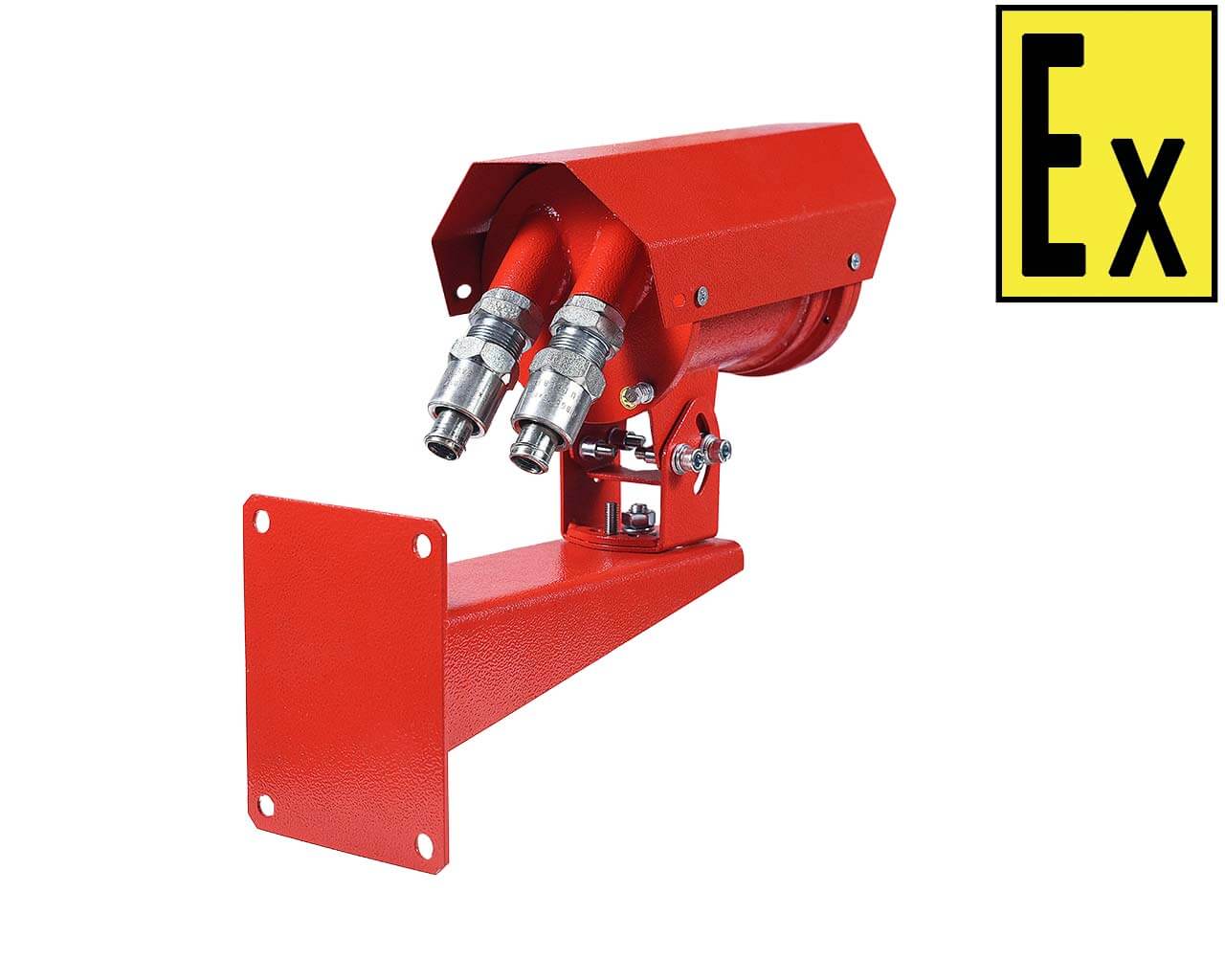

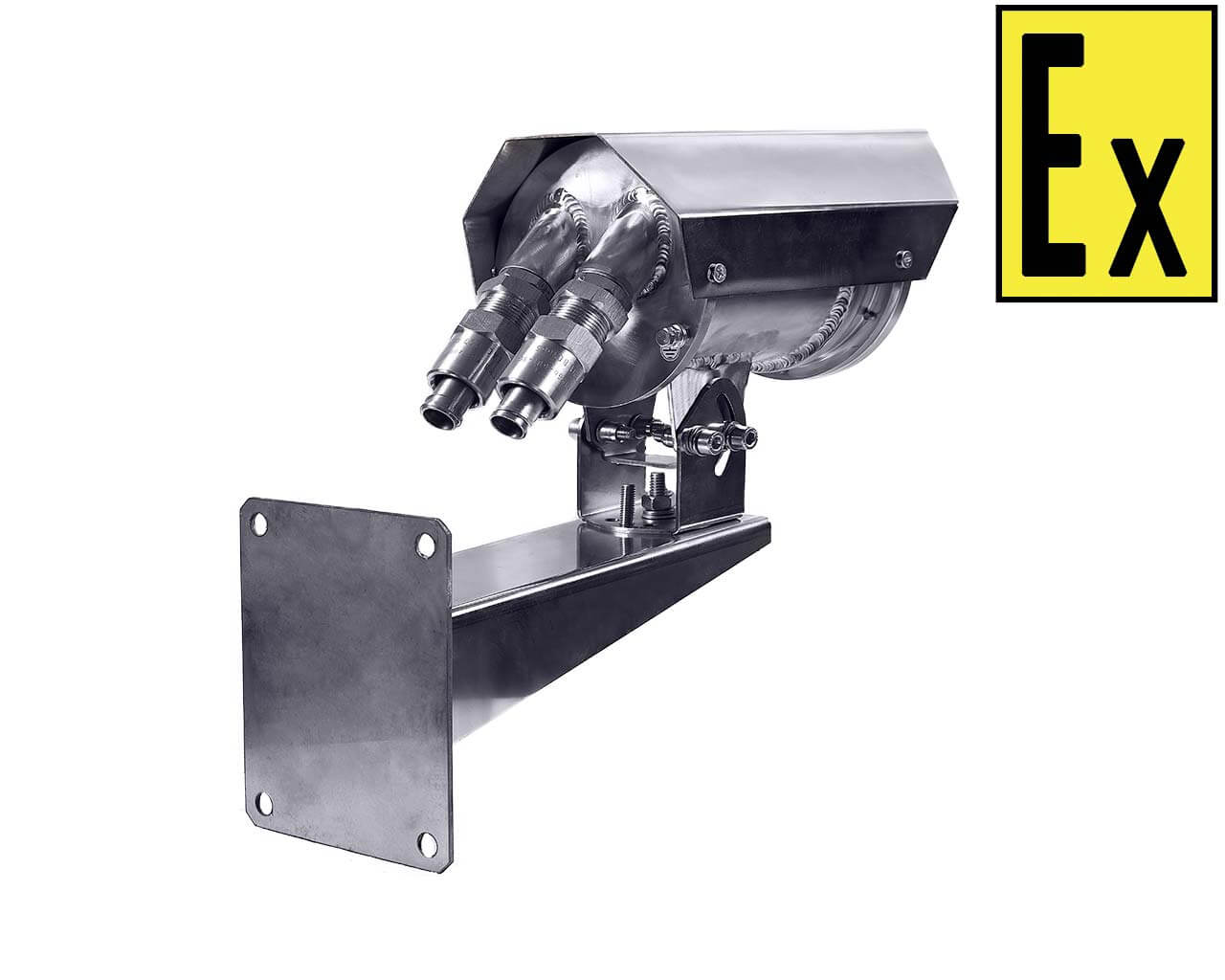

Detectors are supplied with cable glands of various versions:

  • For surface routing of the connecting 6-12 mm cable (designation 'К');
  • For routing the connection cable in pipe G1/2 (designation 'Т-1/2');
  • For routing the connection cable in pipe G3/4 (designation 'Т3/4');
  • For connection of the 6-12 mm armoured cable (designation 'B');
  • For routing the cable in metal hose RZTSH-15, RZTSH-20 (КМ15, КМ20).

A cable with a diameter of 8-12 mm can be inserted into the cable entry. The scope of supply includes rubber seals.
