S2000-PKV Version 1
S2000-PKV Version 1 S2000-PKV Version 1

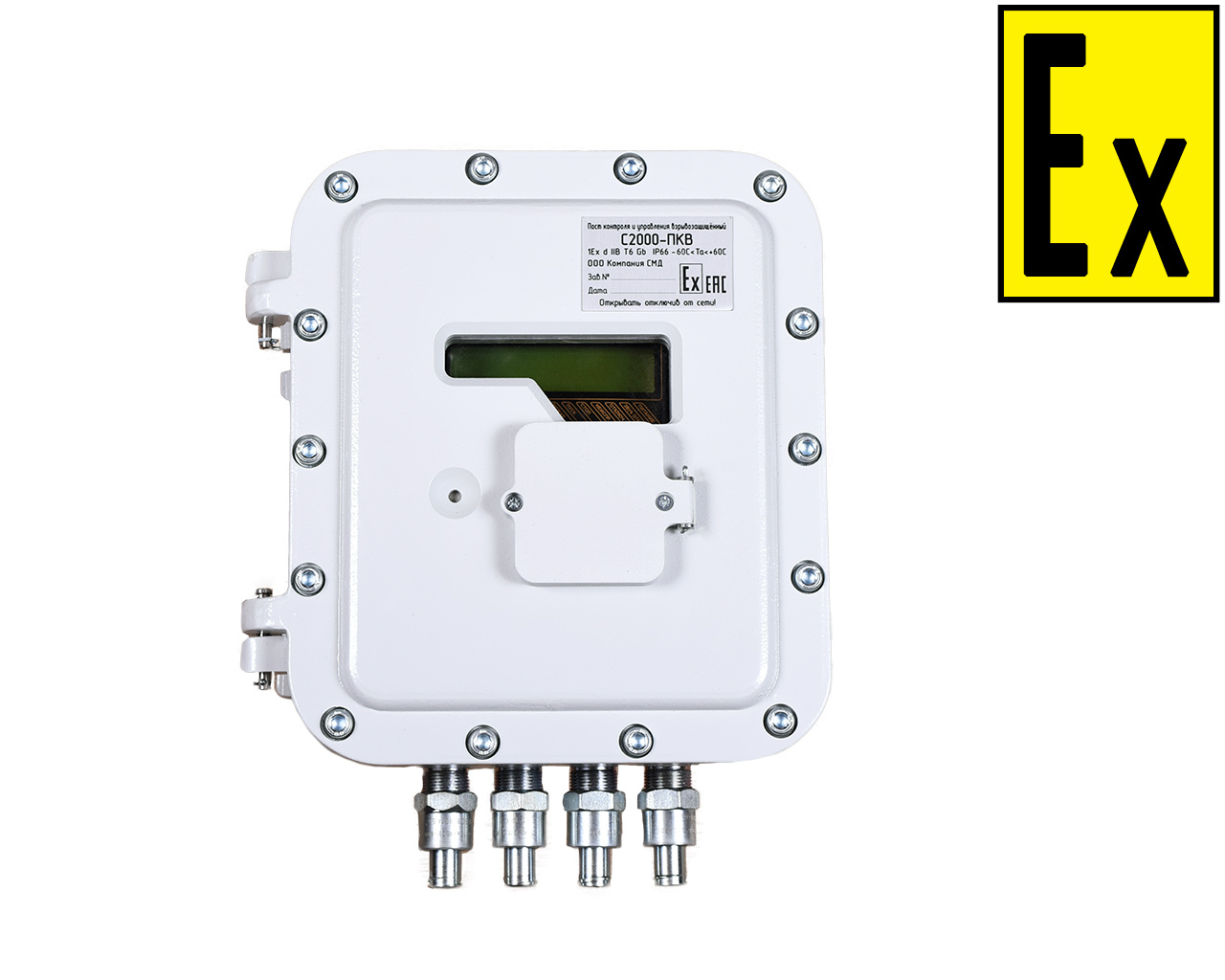

Control and management console explosion-proof S2000-PKV Version 1

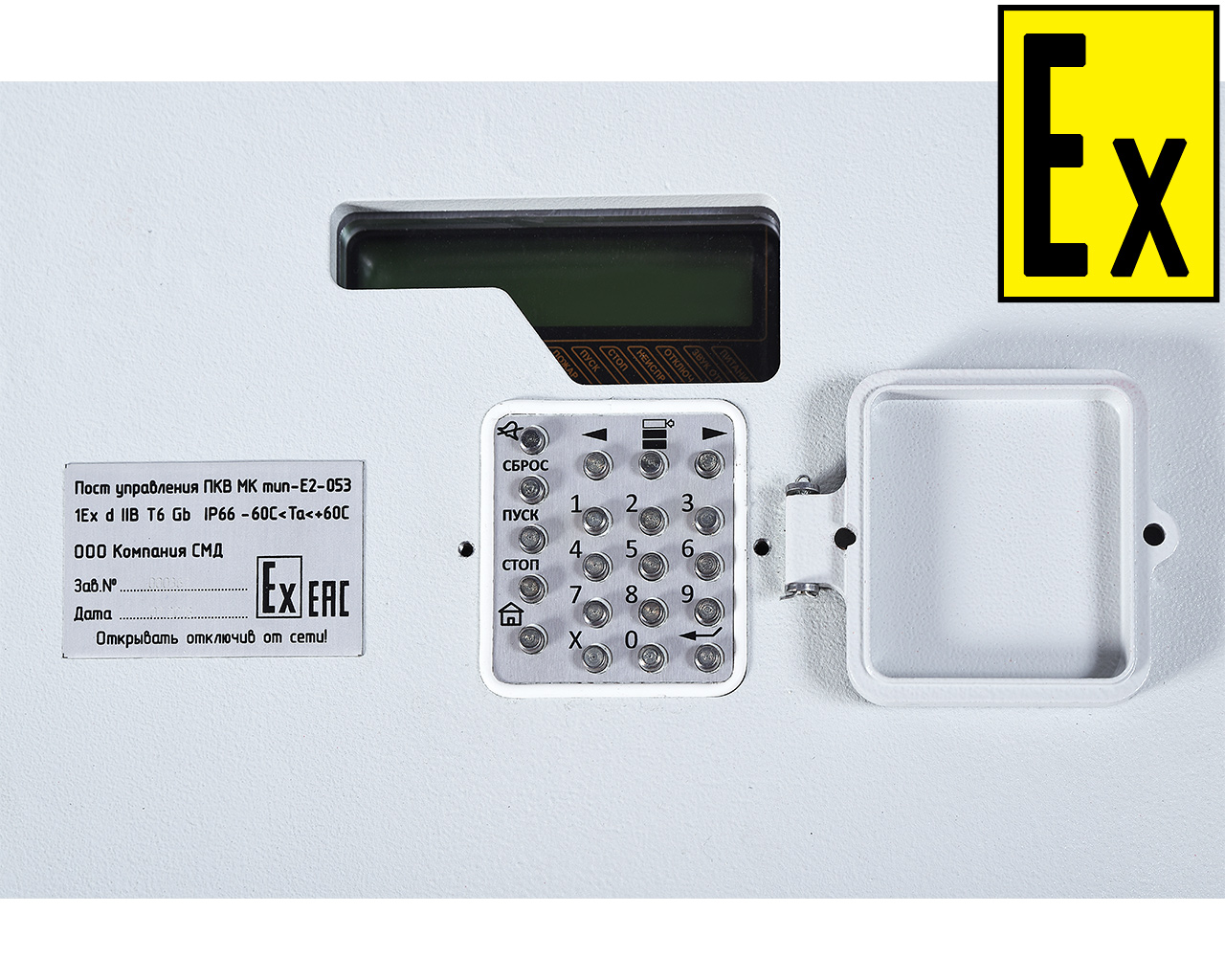

The S2000-PKV version 1 set is an explosion-proof enclosure with controls, cable entries and drainage device, as well as the S2000M remote control pre-installed in it. A thermostat and a heating element (plate) are provided inside the body to prevent the temperature from dropping below the allowable value and to mist over the viewing window. The S2000-PKV version 1 set can be installed in hazardous areas I and II. To build an OPS system, it is necessary to use additional devices (Signal 20P, etc.) and place them in explosion-proof shells (PKV MK, KVMK produced by SMD Company).

Scheme PKVc2000-v1

Explosion protection marking «1Ex d IIB T6 Gb / Ex tb IIIB T85°…T135°C Db»
Ingress protection IP66
Operating temperature range -60 .. +60°С
Rated supply voltage 24 VDC
Maximum current consumption in standby mode without connection 65 Ма
11 А
heating plate with heating plate connection 240х150mm
Window size 290х250х172mm
Overall dimensions without cable glands and external components 158х239mm
Installation dimensions 15kg
