S2000-PKV Version 2
S2000-PKV Version 2 S2000-PKV Version 2 S2000-PKV Version 2

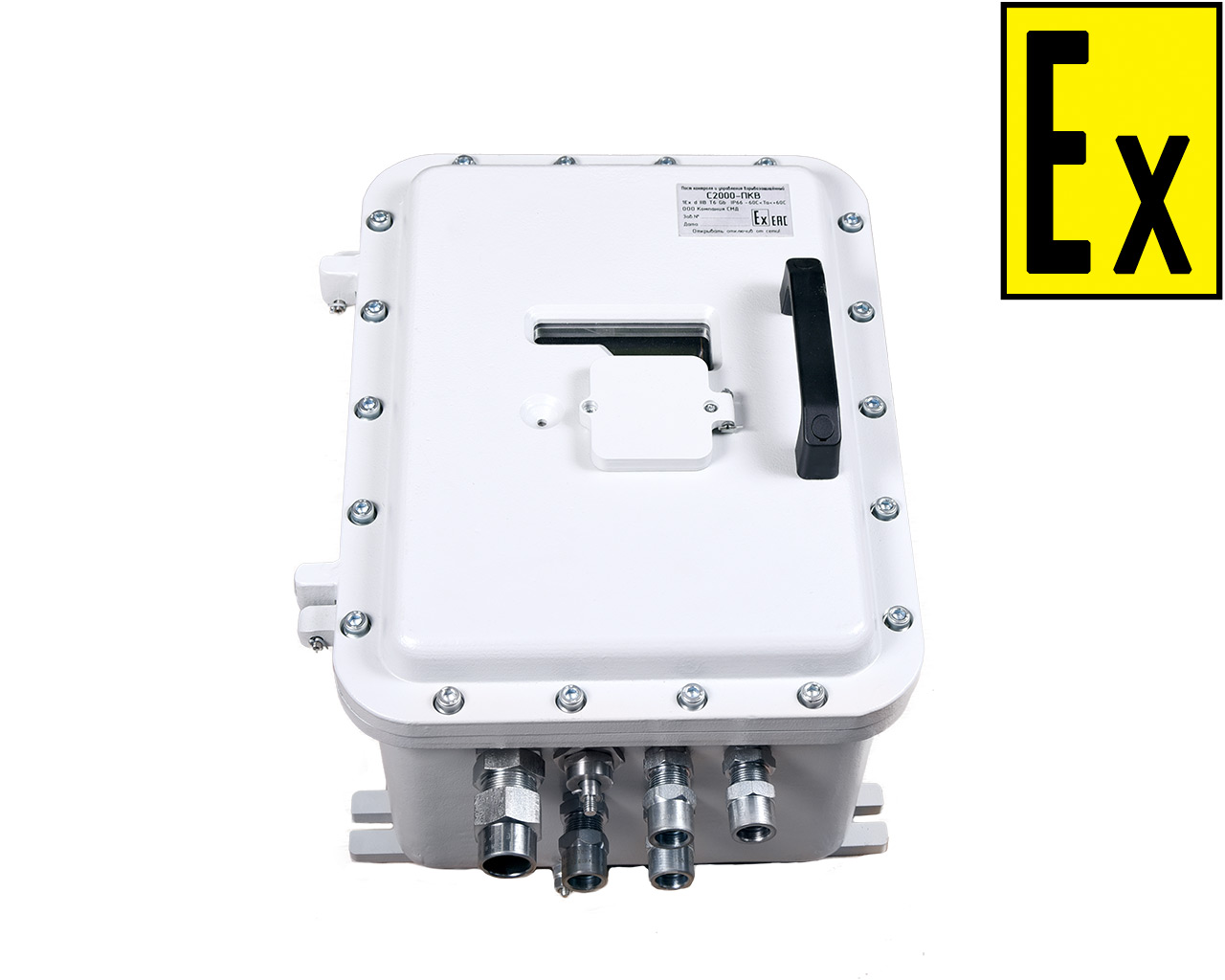

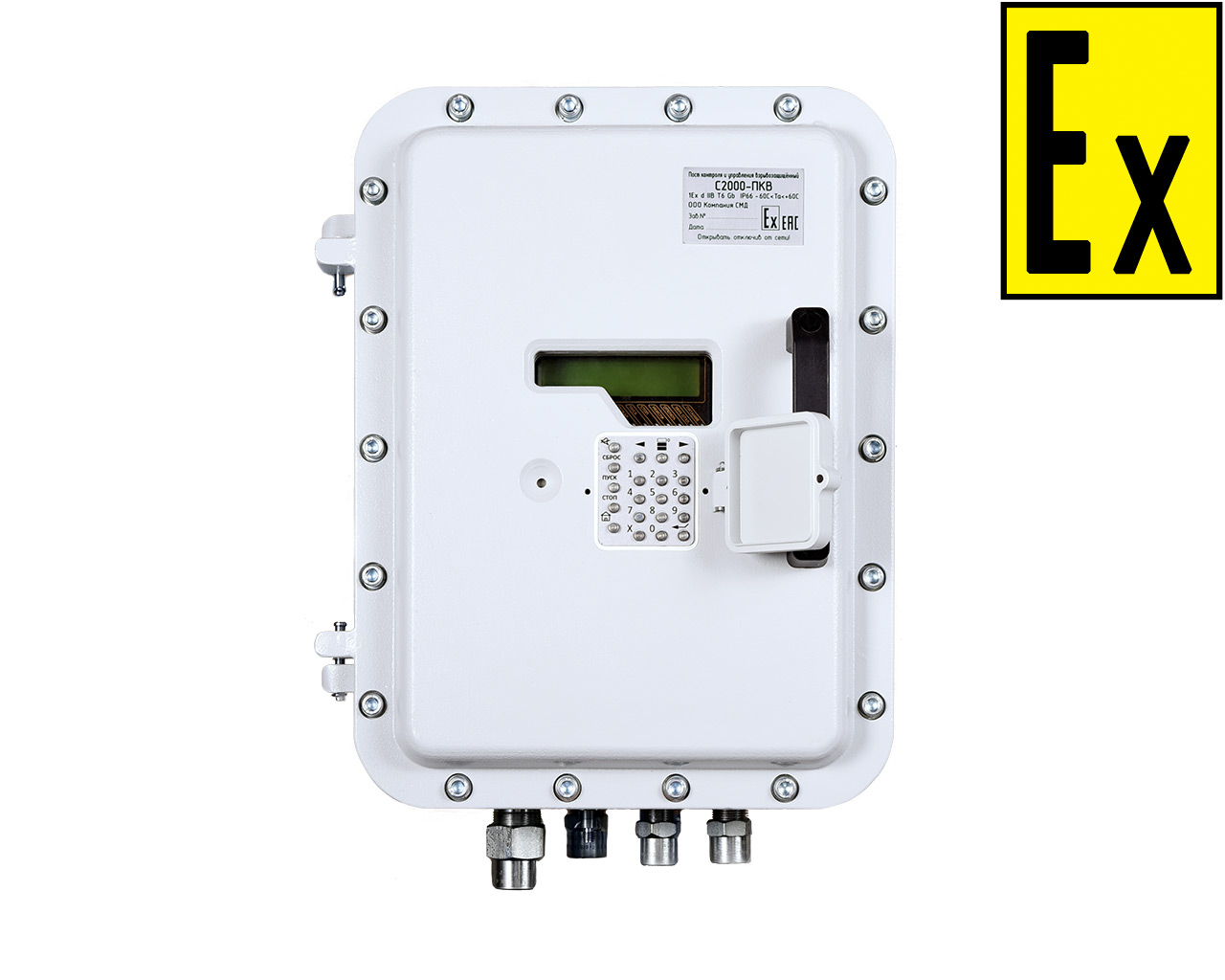

Remote control and management of explosion-proof S2000-PKV Version 2 The S2000-PKV version 2 is an explosion-proof enclosure with controls, cable entries and drainage device, as well as the S2000M remote control pre-installed in it. A thermostat and a heating element (plate) are provided inside the body to prevent the temperature from dropping below the allowable value and to mist over the viewing window. The S2000-PKV version 2 set can be installed in hazardous areas I and II. A distinctive feature of the S2000-PKV isp.1 is a larger case that allows you to place in it in addition to the S2000M console other devices, such as:

  1. reception and control security and fire blocks and devices
  2. interface converters
  3. devices and fire extinguishing control units
  4. Relay units
  5. Notice transfer devices.

Due to the possibility of installing additional elements, this solution is the most versatile. That also allows you to initially abandon the additional expensive explosion-proof enclosures for other equipment necessary for a complete system.

Схема подключения

Explosion protection marking «1Ex d IIB T6 Gb / Ex tb IIIB T85°…T135°C Db»
Ingress protection IP66
Operating temperature range -60 .. +60°С
Rated supply voltage 24 VDC
Maximum current consumption in standby mode without connection 65 Ма
11 А
heating plate with heating plate connection 240х150mm
Window size 421х322х250mm
Overall dimensions without cable glands and external components 290х302mm
Installation dimensions 25kg
