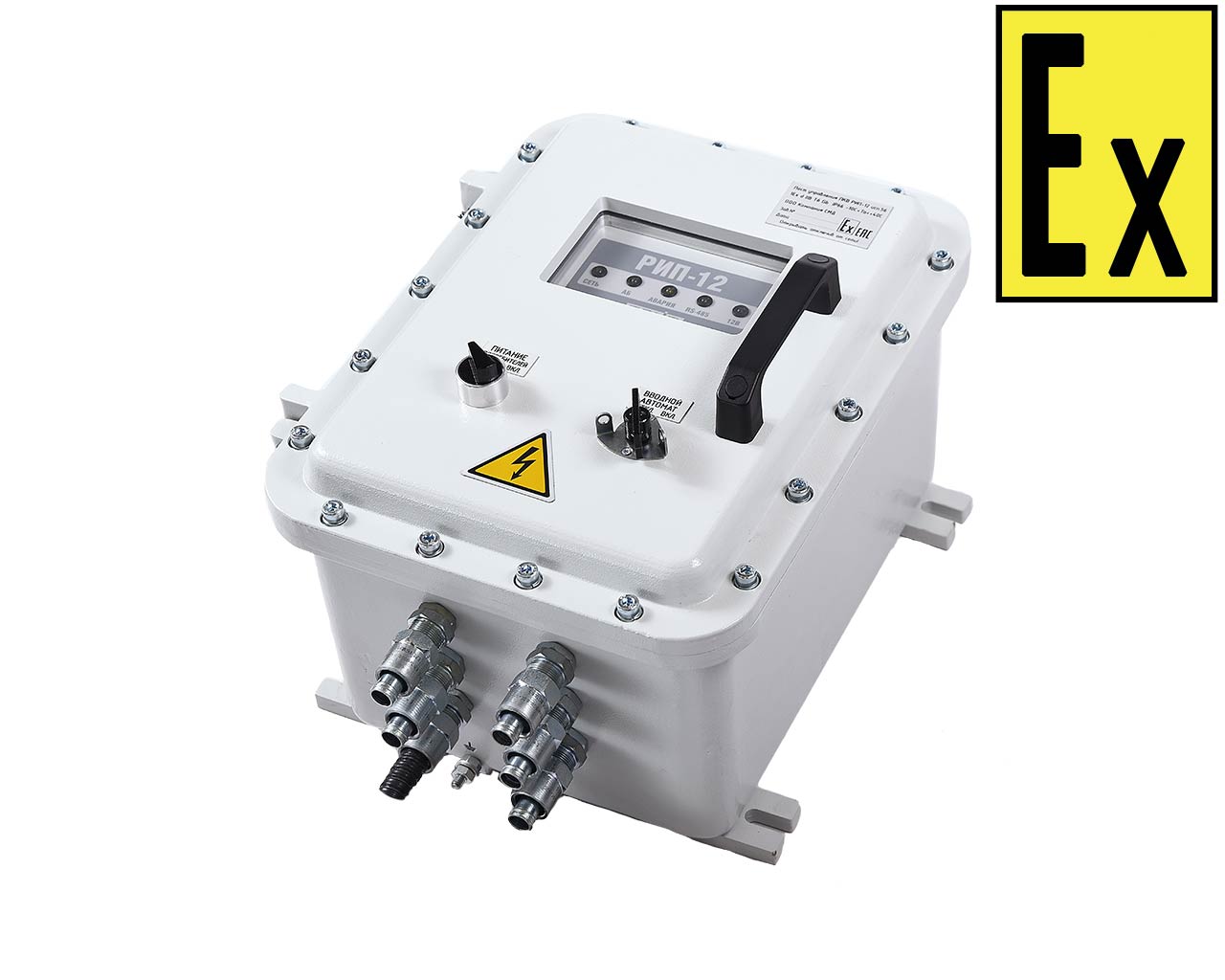

| Name | PKV Bat-12ver. 56 | PKV Bat-24 ver. 56 |
| Operating temperature range | -60 ... +60°С | |
| Explosion protection marking | 1Ex d IIB T6 Gb / Ex tb IIIB T85°С Db | |
| Ingress protection | IP66 | |
| Main power supply | AC power (150 – 250) V, 50 Hz | |
| Rated output voltage: - when powered from the network - battery powered |
(13,6±0,6) V (9,5 … 13,5) V |
(27±0,6) V (19 … 27) V |
| Rated load current | 6 А | 4 А |
| Maximum load current | 8 А | 5 А |
| Continuous operation time, not less | 10 h | 8 h |

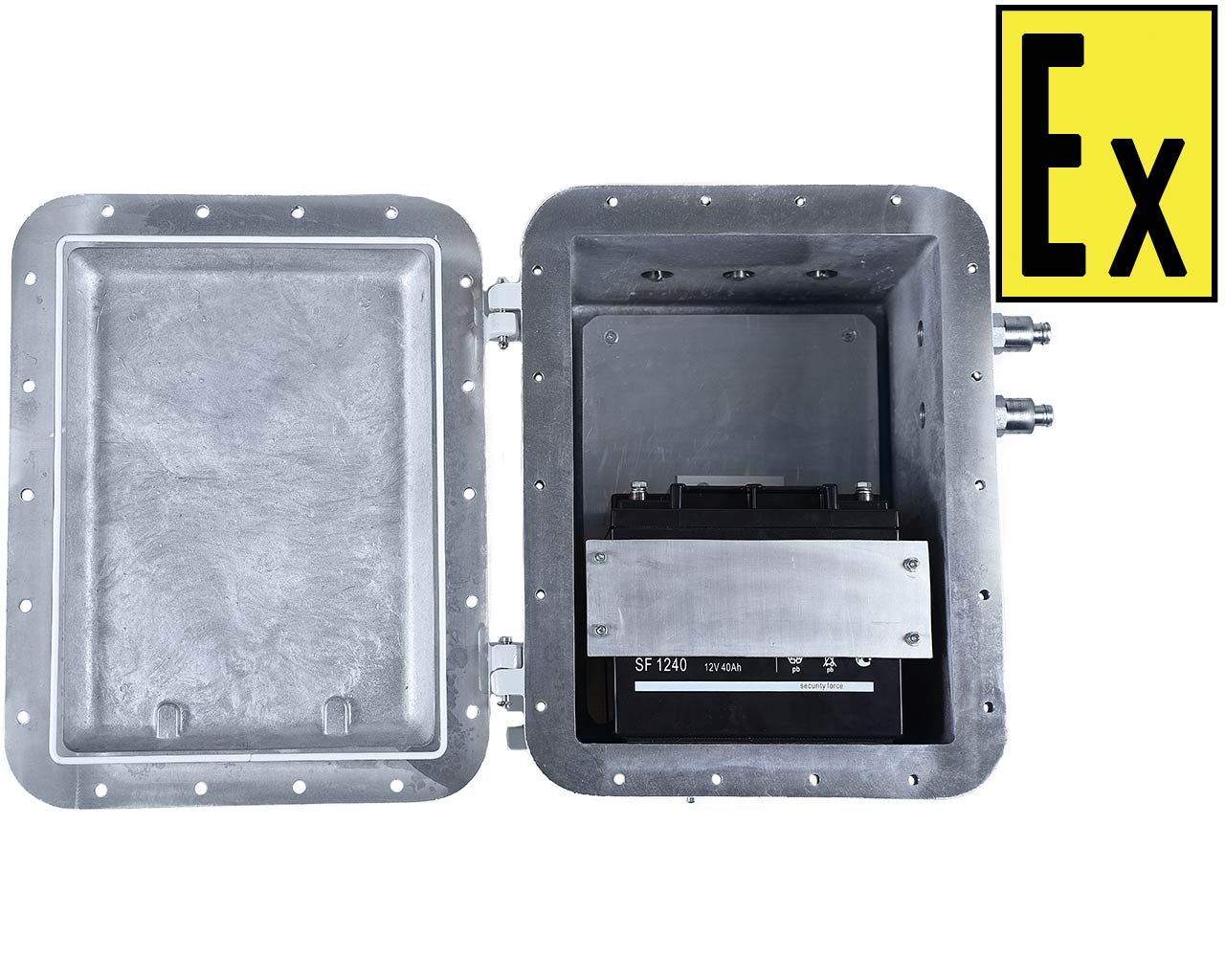

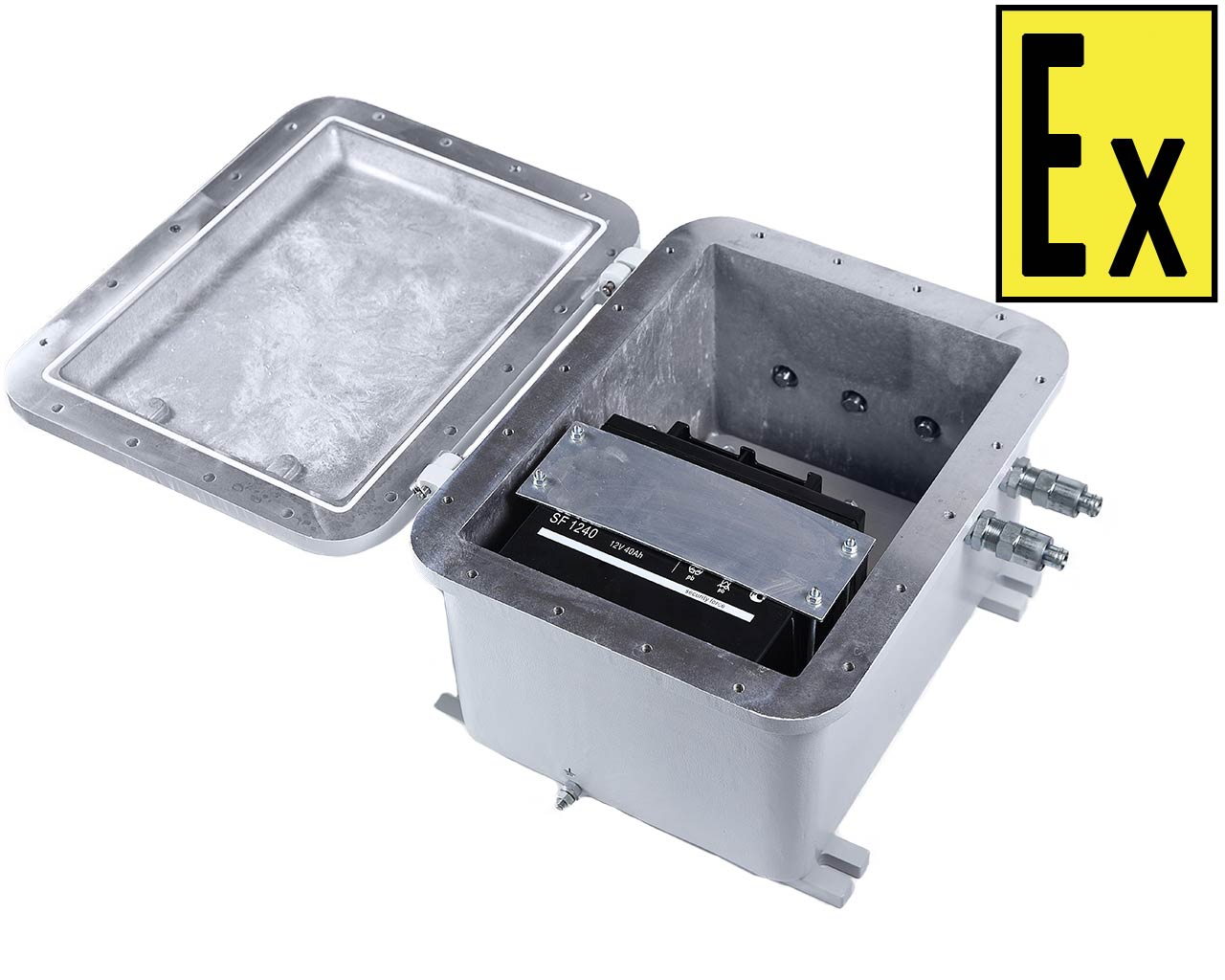

| Backup power supply | 2 PC (12 В, 40 A*ч) / (12 В, 26 A*ч) | |
| Own current consumption, not more | 70 мА | 80 мА |
| Battery charge time, not more | 48 hour | |
| Battery life, not less | 5 year | |
| Output Overvoltage Protection | yes | |
| Window size | 140 х 90 mm. | |
| Overall dimensions, not more than | 568 х 368 х 257 mm. | |
| Body material | Aluminium alloy | |
| Mass, not more | 55 kg | |
