POINT-TYPE DETECTOR IP212 TRION

POINT-TYPE DETECTOR IP212 TRION

Parameters

POINT-TYPE DETECTOR IP212 TRION

Housing material

P - polyamide
A - aluminum alloy
N - stainless steel 12X18H10T

You choosed:

Type of protection
Cable gland
Housing material

Smoke detector is designed for detecting fires accompanied by smoke or combustion products of low concentration in enclosed spaces of buildings and structures, and for sending "Fire" signal to the receiving/monitoring device. For use in indoor/outdoor explosion-hazard zones rated to Class 0 and lower depending on the version.

Name	IP 212 Trion МК	IP 212 Trion VZ
Explosion protection marking	1Ex d ia IIB T6 Gb	0Ex ia IIB T6 Ga
Marking of explosion protection parameters		LI: 10мкГн, СI: 1000пФ,
Marking of explosion protection parameters		Ui: 30B, Ii: 20мА, РI: 0,6Вт
Ingress protection	IP67/IP31	IP65/IP31
Operating temperature range	-40°С .. +75°С	-40°С .. +75°С
Operating voltage range	10V .. 30V	10V .. 30V
Input current:
stanby mode, max	90 uA	90 uA
'alarm' mode, max	20 mA	20 mA
Sensitivity detector	0,05 dB/m .. 0,2 dB/m	0,05 dB/m .. 0,2 dB/m
Response time, max	5 s.	5 s.

IP 212 Trion is detector of threshold type and can be used in alarm loops for short circuit (parallel connection). Fire alarm signal is generated by sharp drop of the detector's resistance.
The detector has built-in optical indication of detection.
Exchangeable current limiting resistor is used to adapt the detector to particular alarm control unit. Alarm signal of the detector is maintained after exposure to the combustion products ends. Reset of the detector to standby mode is triggered from alarm control unit.

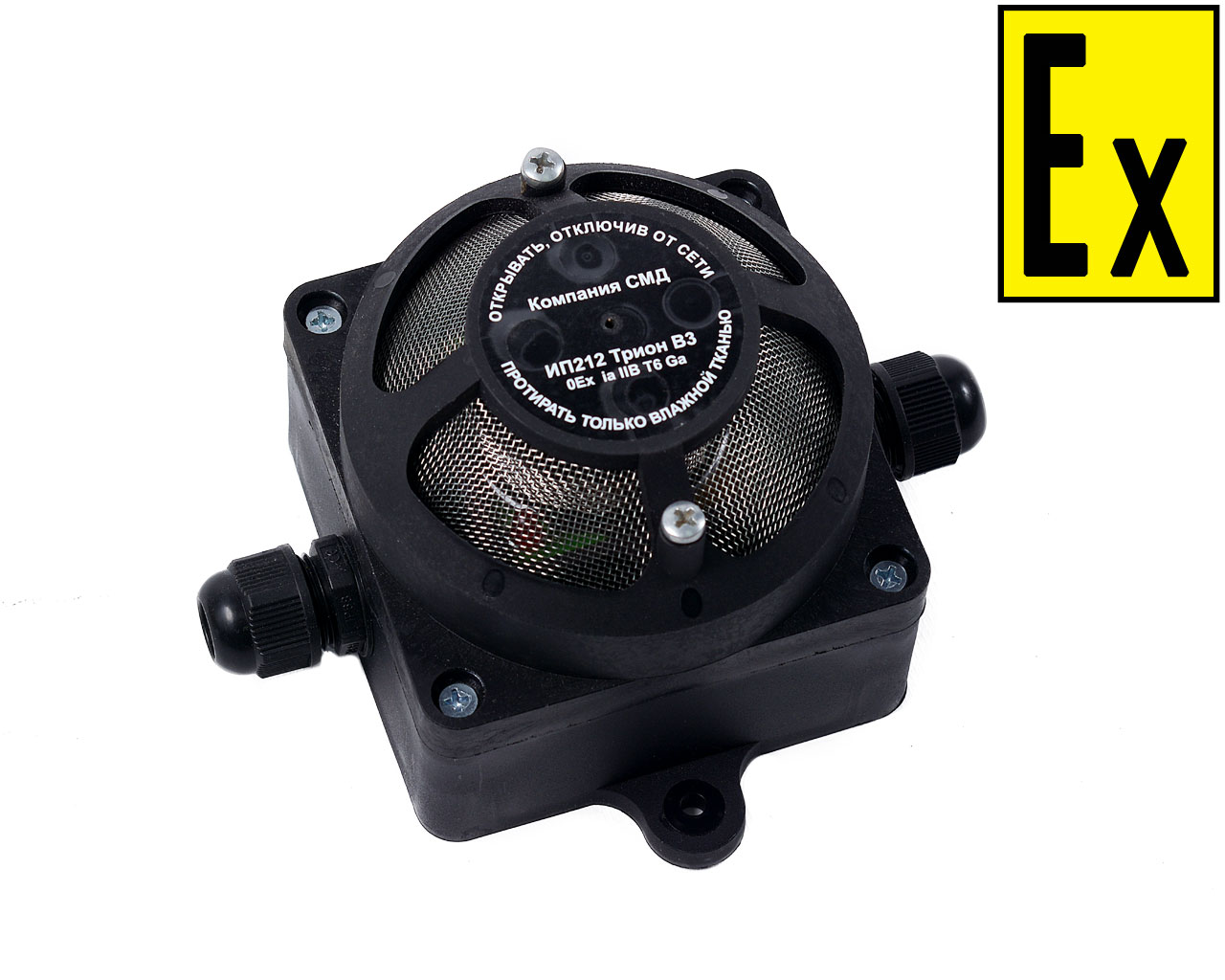

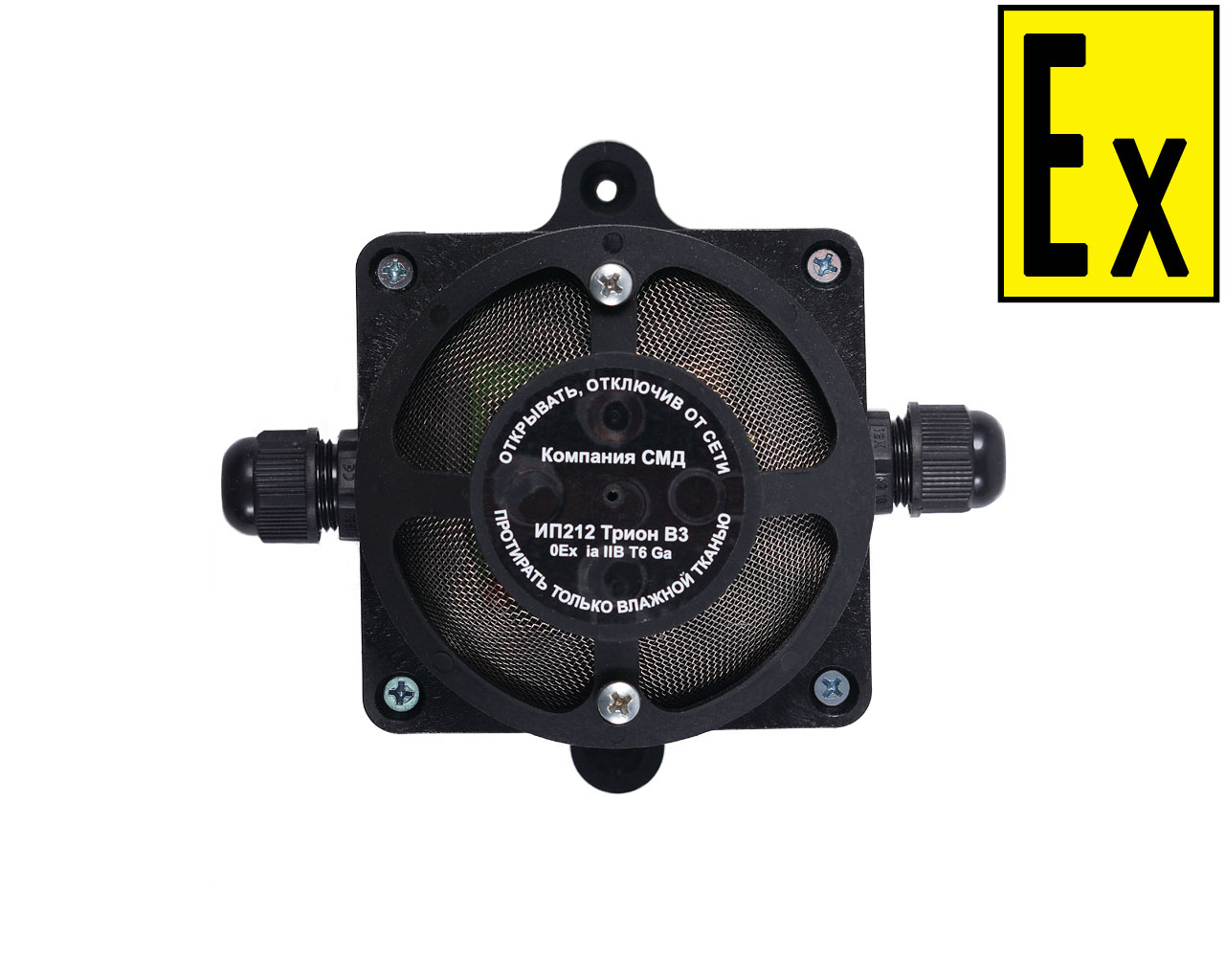

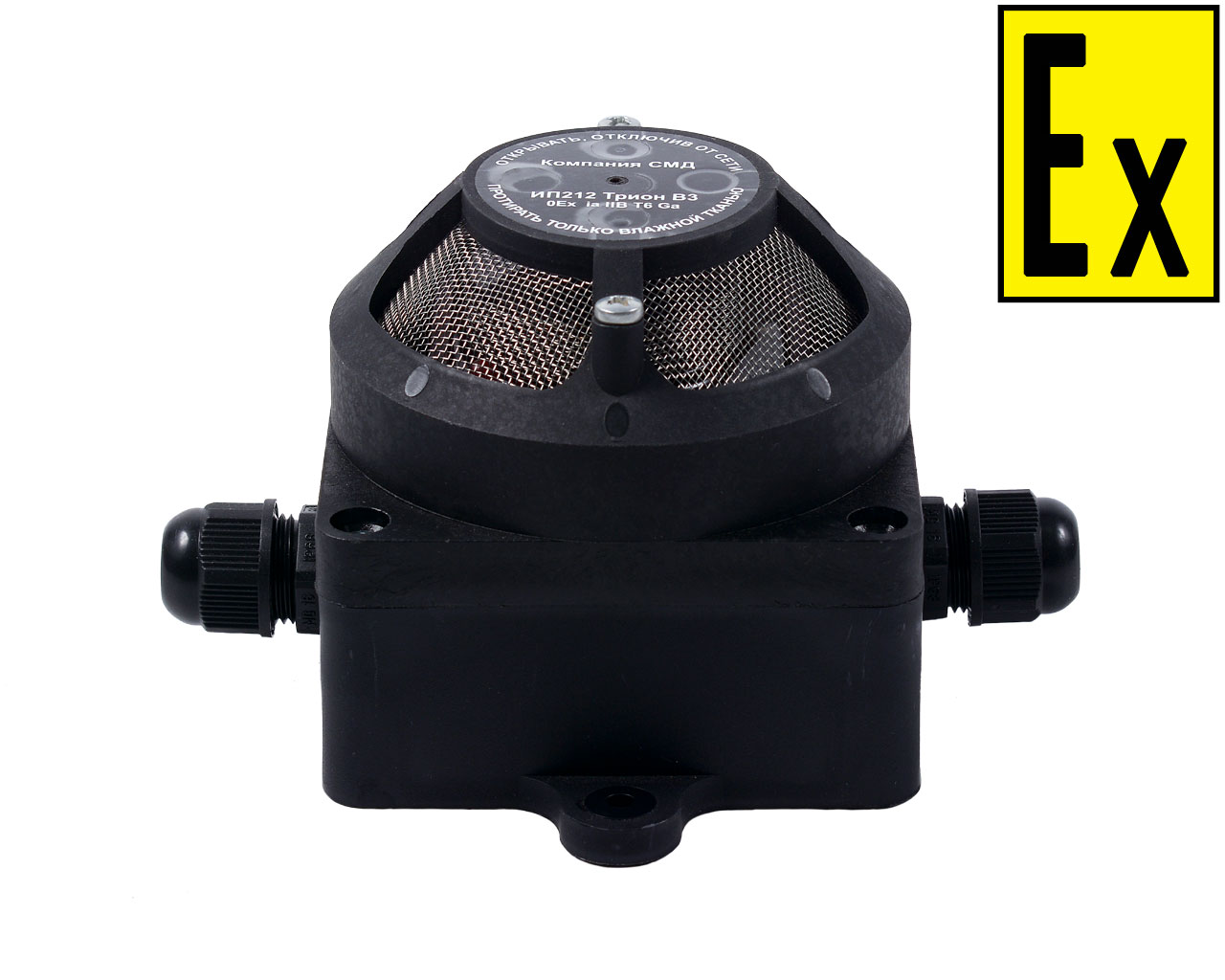

Detector IP 212 Trion VZ comes with two cable glands that allow to install the detector in the alarm loop with round cable of diameter 6-10 mm

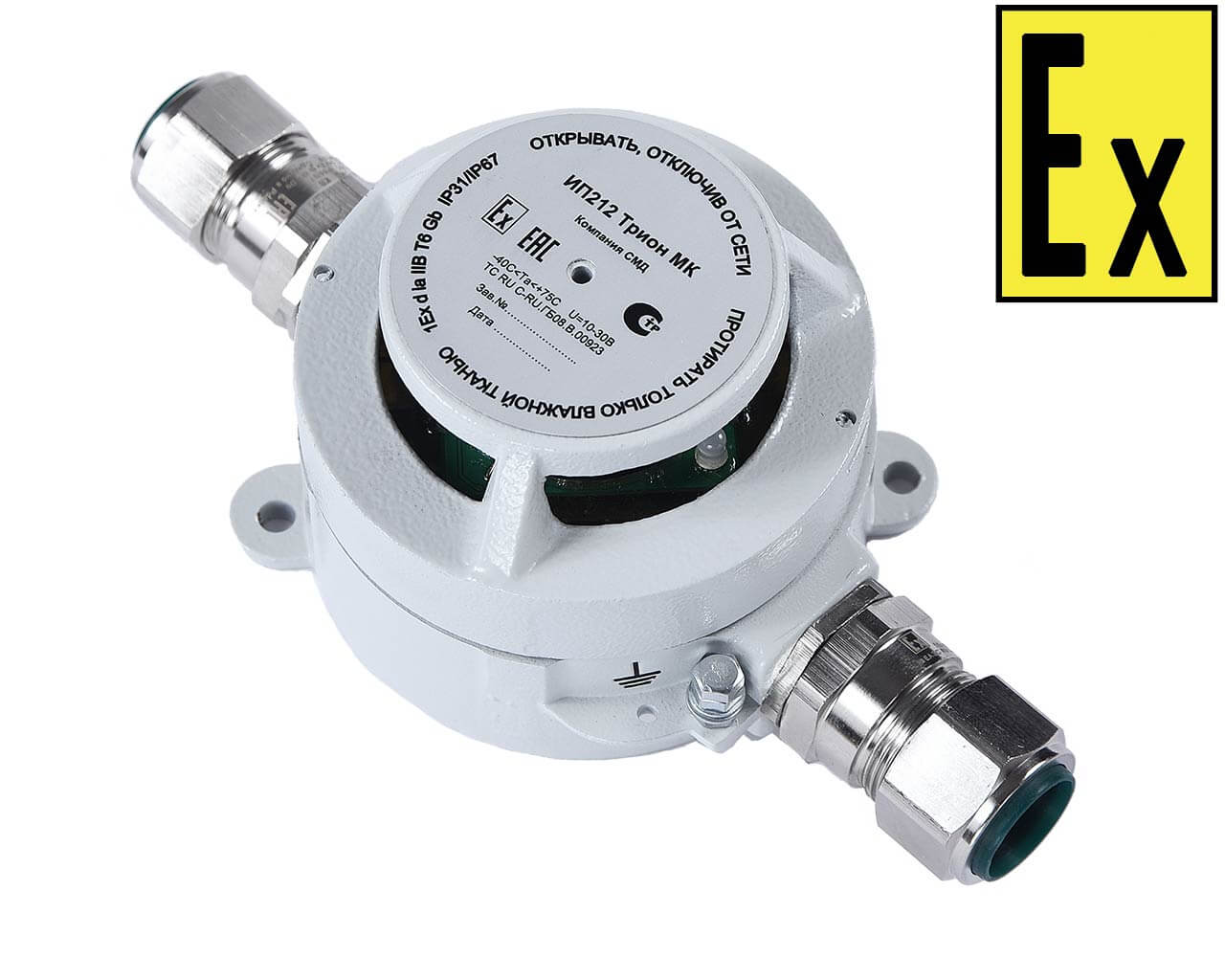

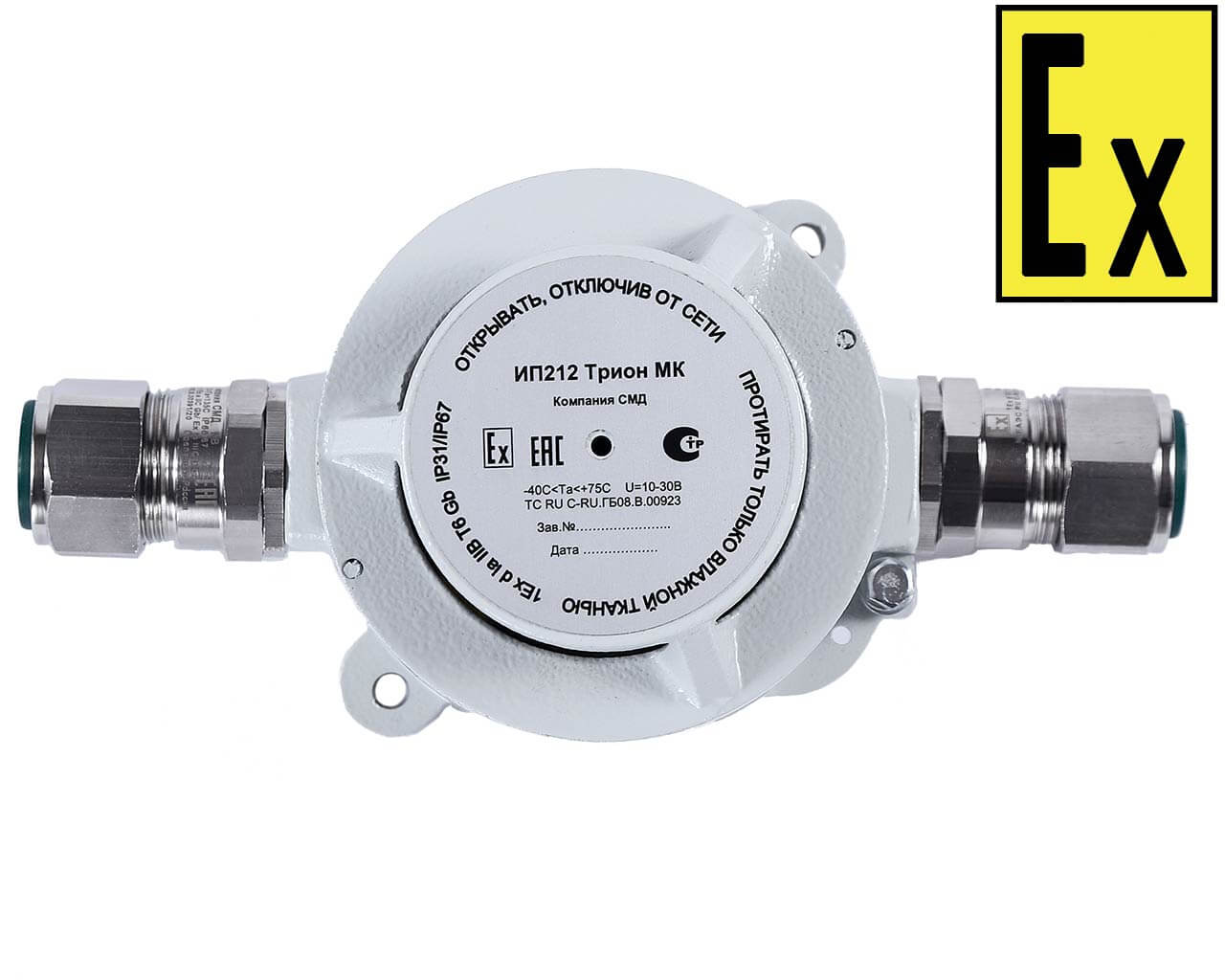

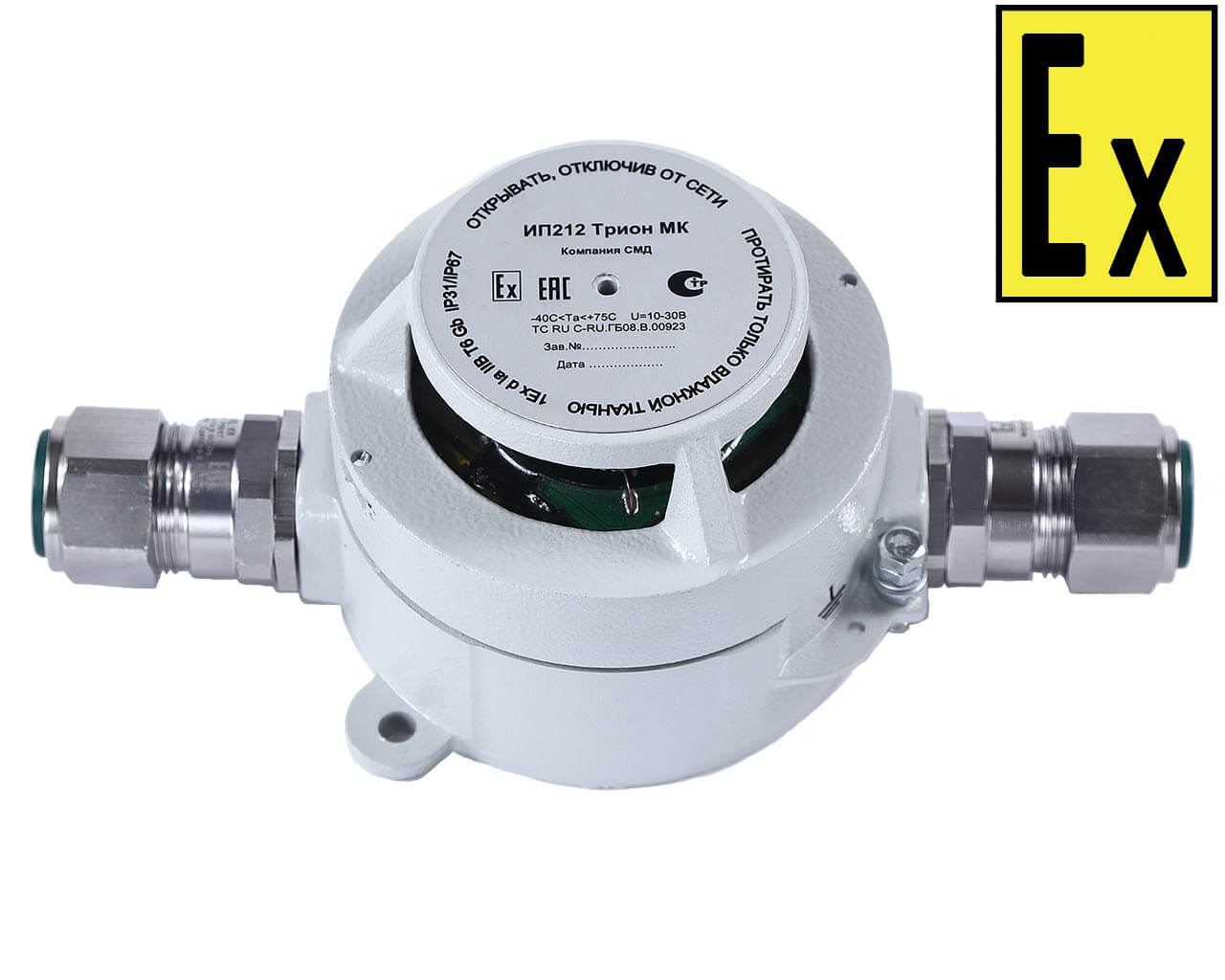

IP 212 Trion MK is supplied with cable glands of various versions:
- For surface routing of the 6-12 mm connecting cable (designation index - К);
- For routing the connection cable in pipe G1/2 ('ТG-1/2');
- For routing the connection cable in pipe G3/4 ('ТG-3/4');
- For connection of 6-12 mm armoured cable (B).

Downloads:

	FIRE SAFETY CERTIFICATE. Smoke detectors, explosion-proof.
	CERTIFICATE OF CONFORMITY TO EXPLOSION-PROTECTED ENVIRONMENTS. Smoke detectors, explosion-proof.
	Smoke detector, explosion-proof "IP 212 Trion MK". Manual. TU 4371-116-81888935-2015.
	Smoke detector, explosion-proof "IP 212 Trion VZ". Manual. TU 4371-116-81888935-2015.
	3D model of Point Detectors Trion (.stp)
