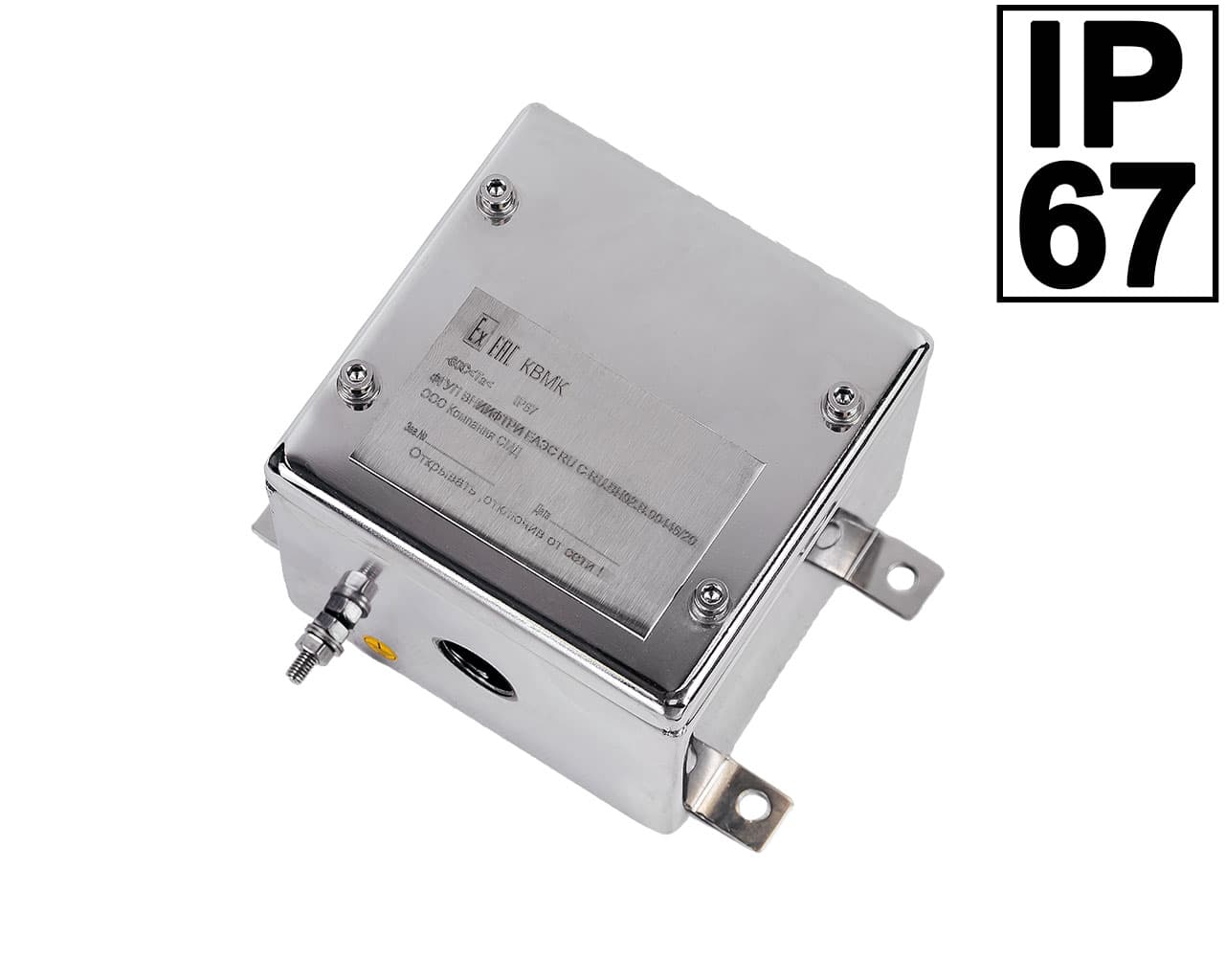

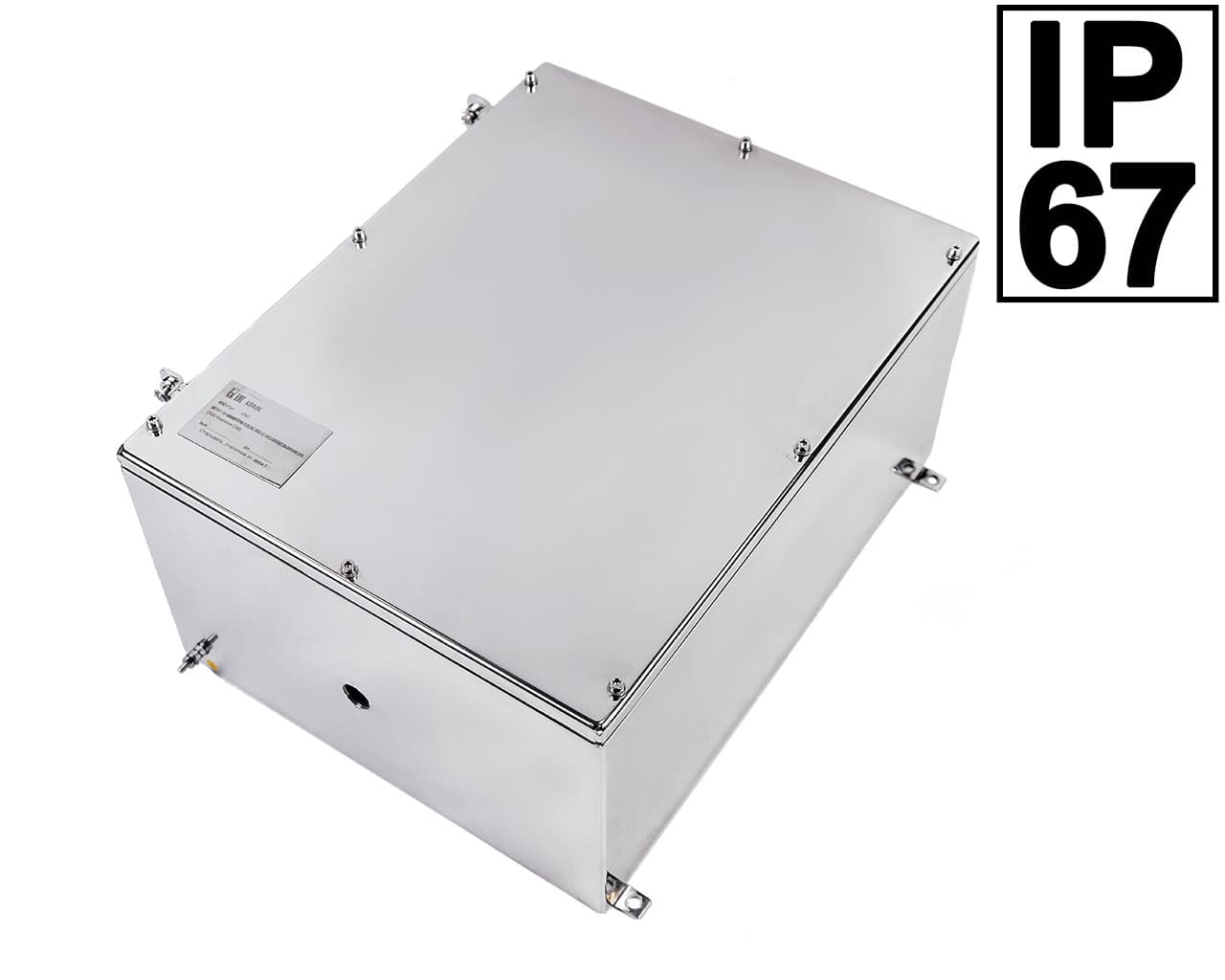

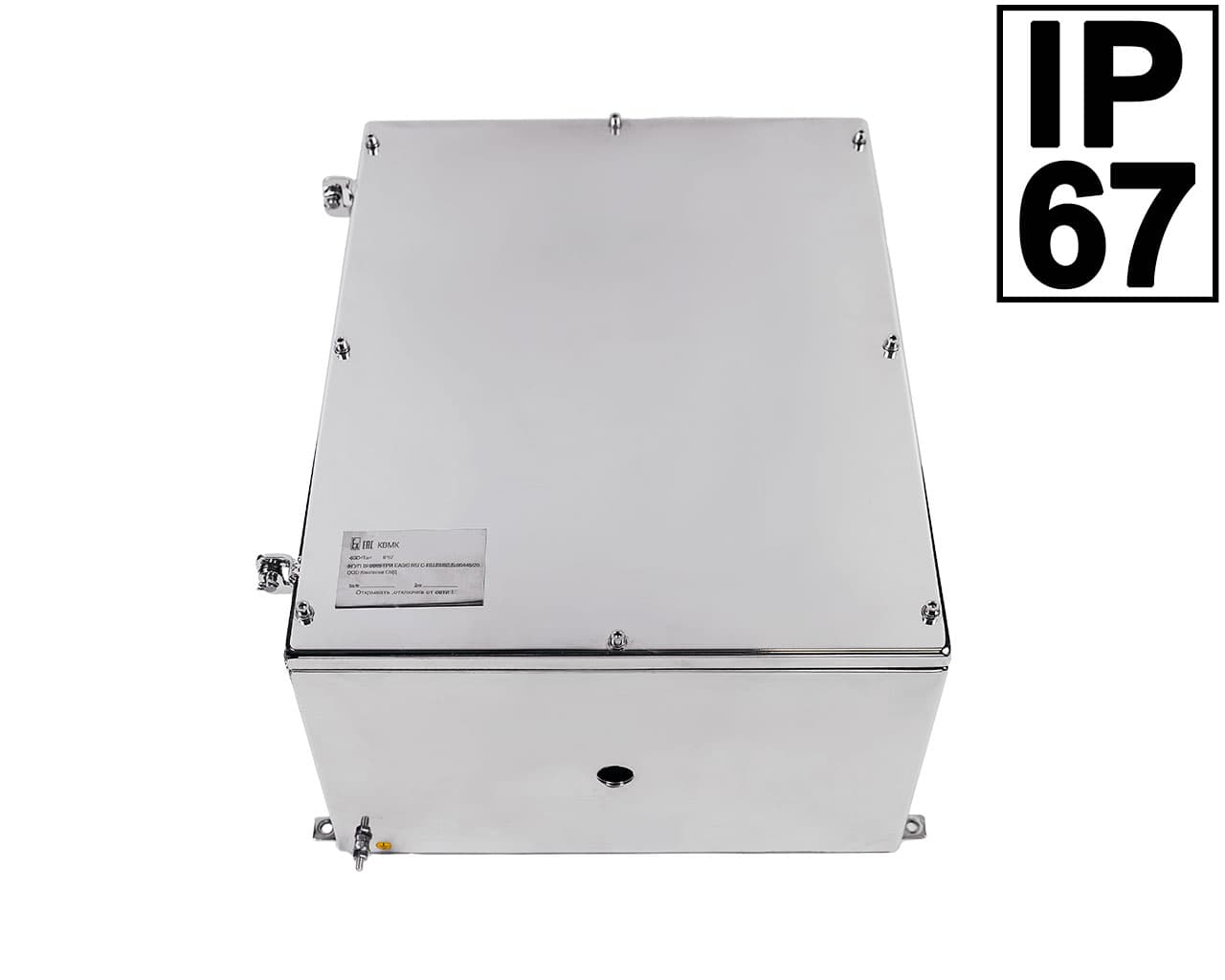

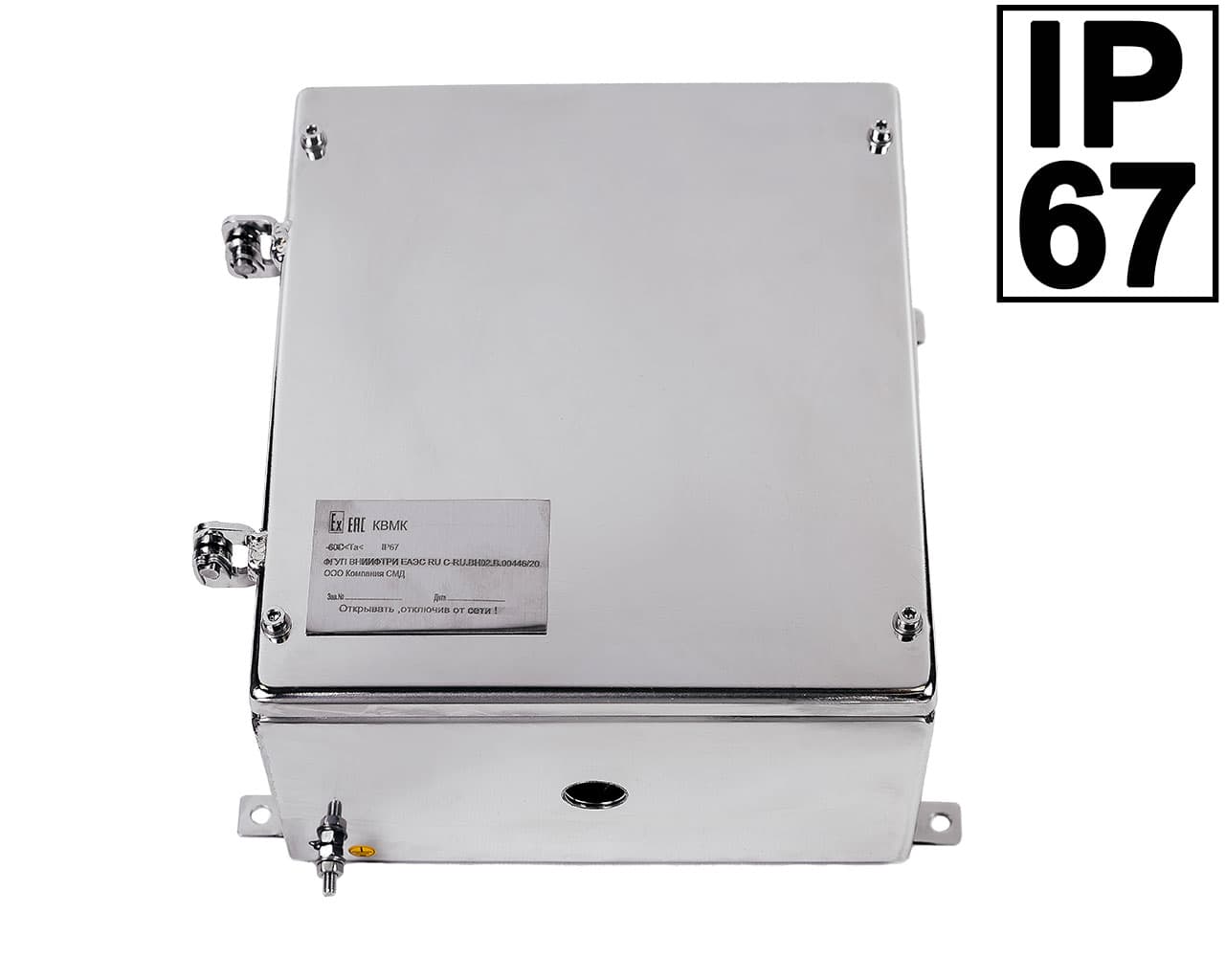

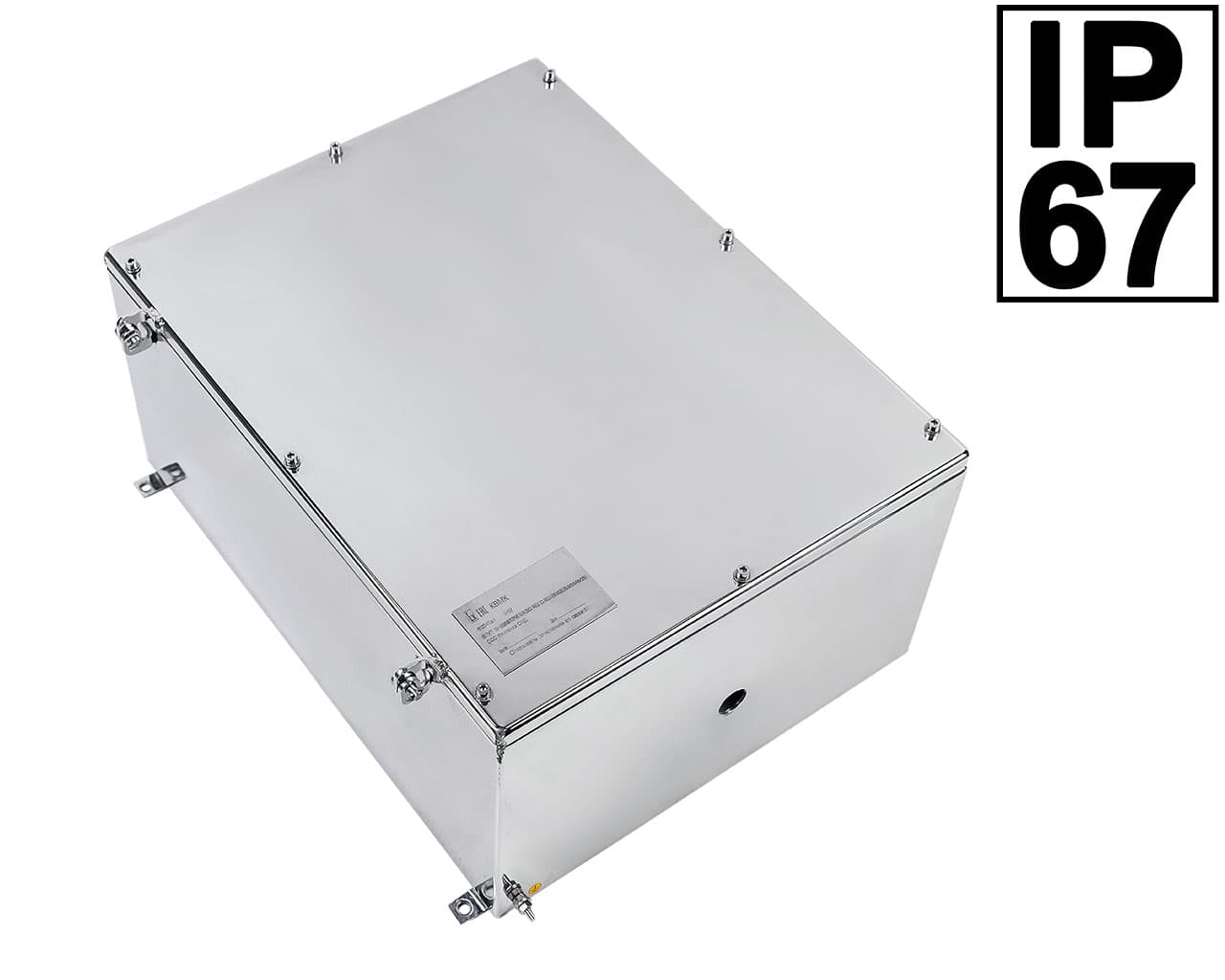

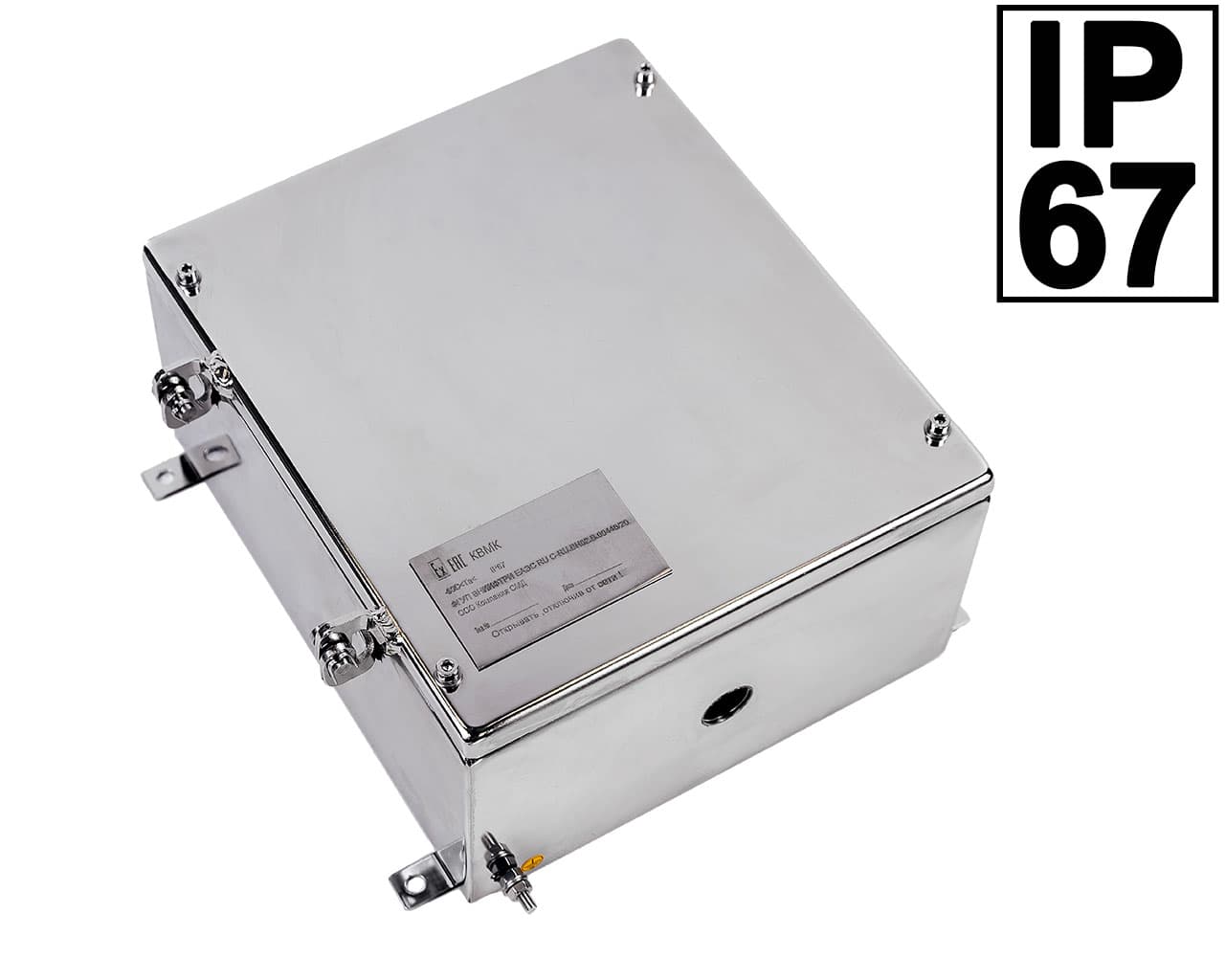

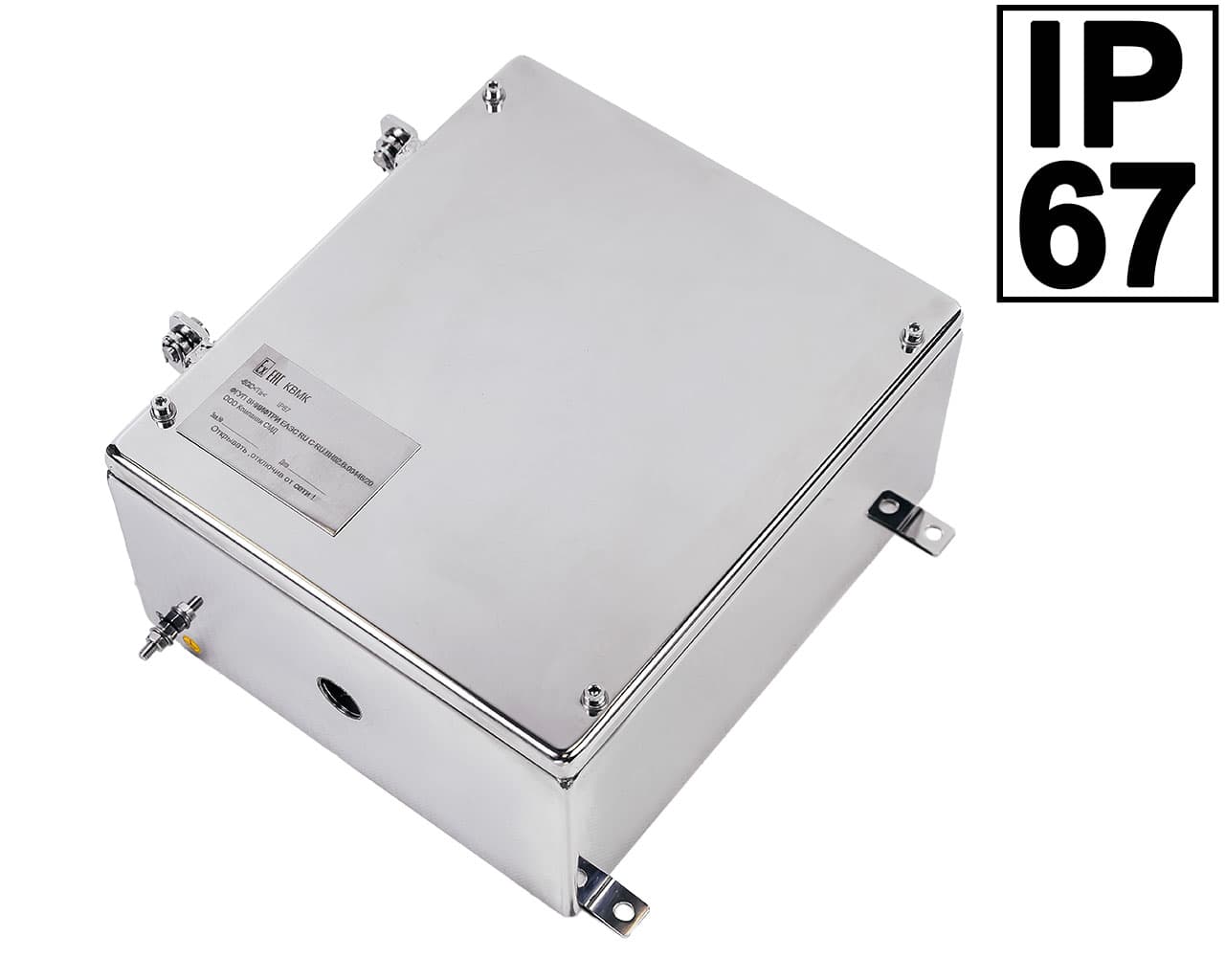

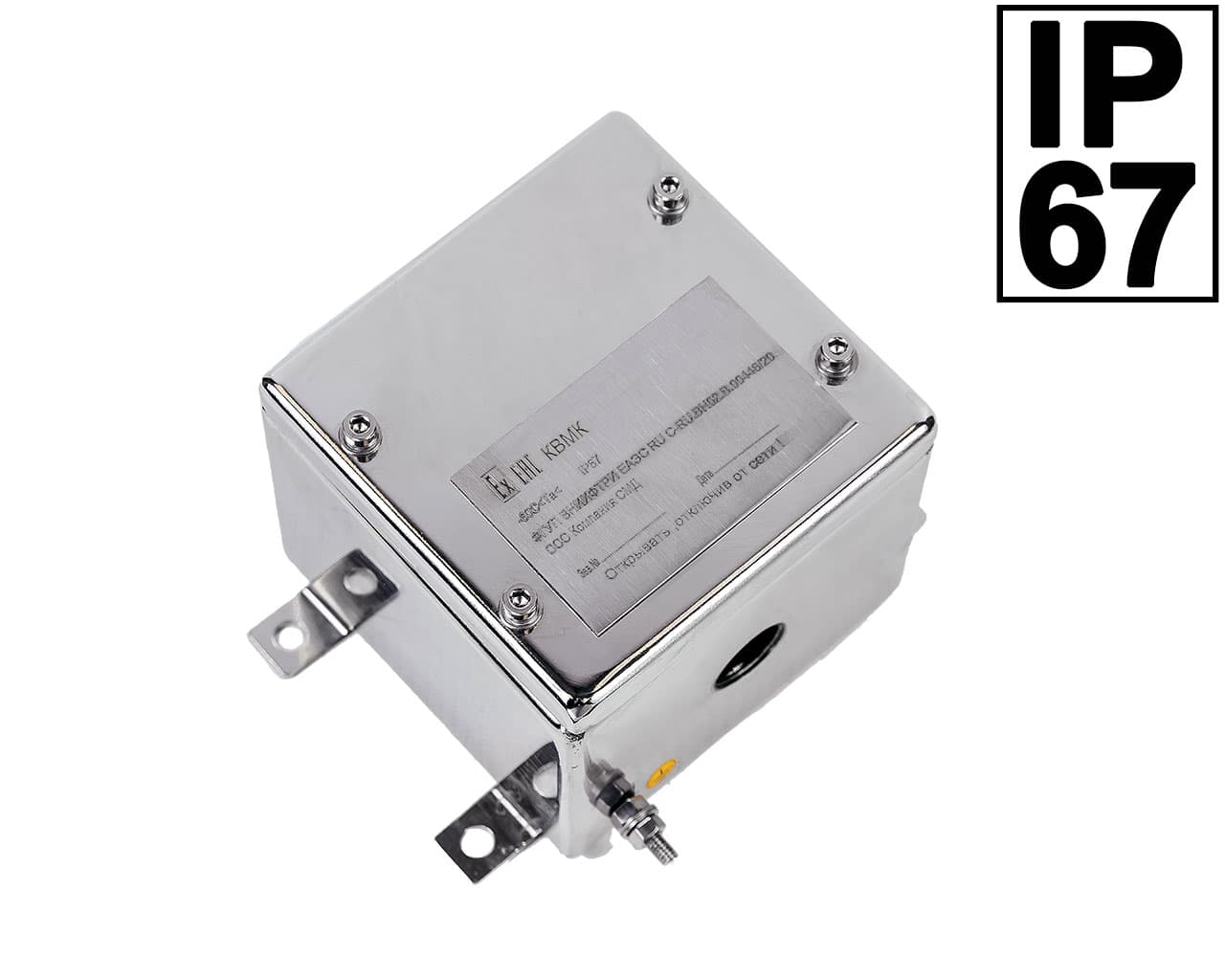

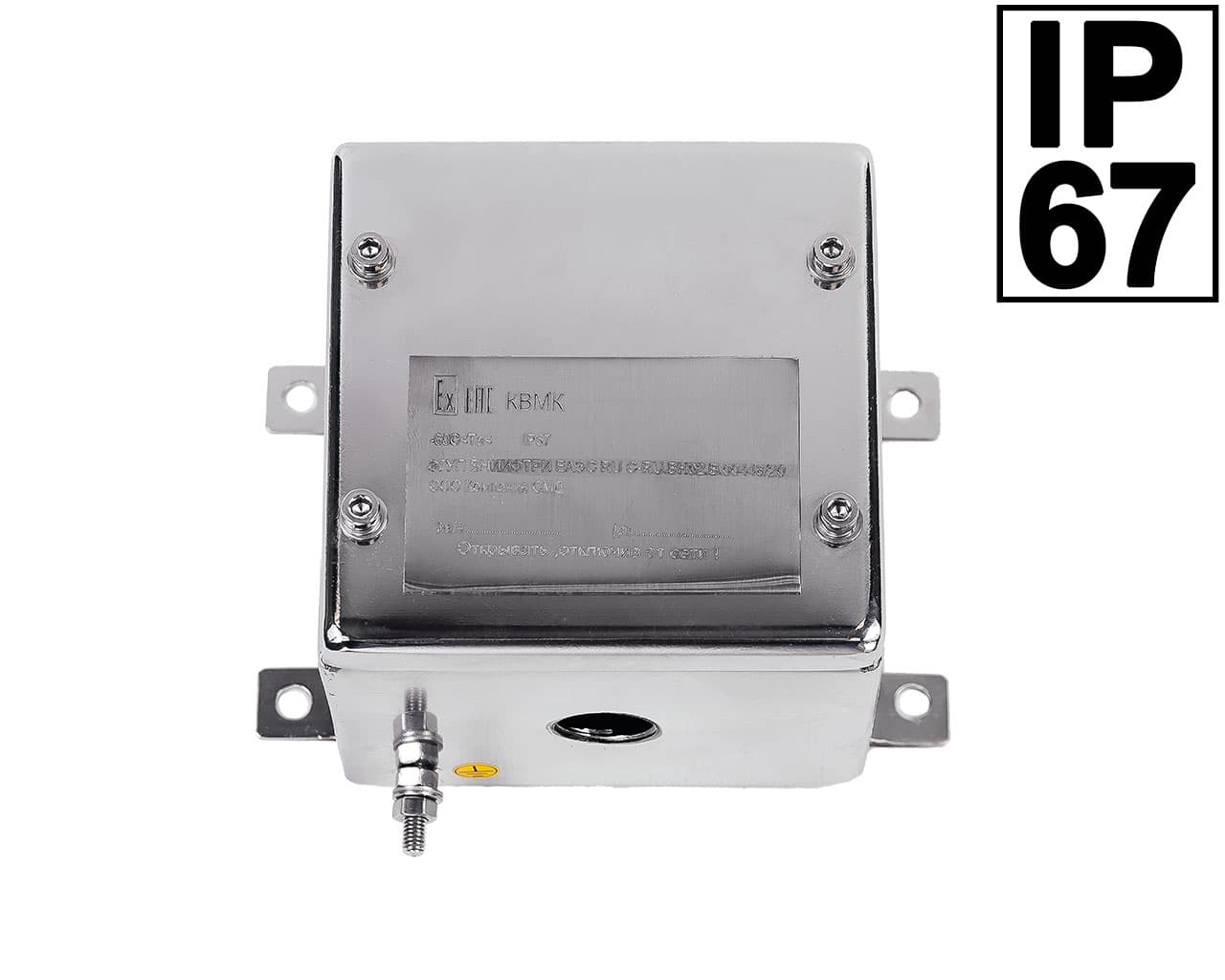

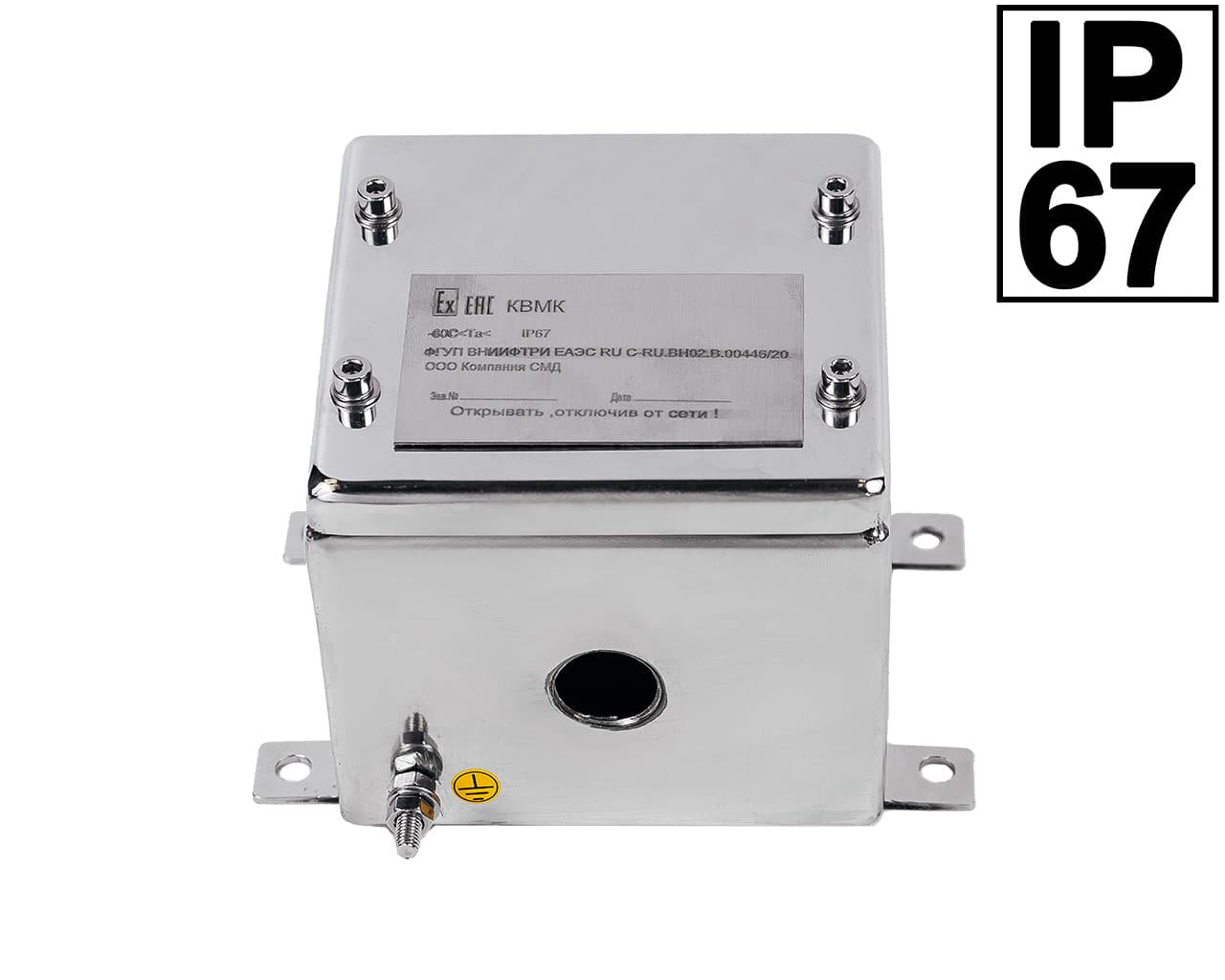

General-industrial boxes of models of KVOP N-101009 /101609 /121209 /123609 /161611 /162111 /122211 /181811 /162611 /163612 /232012 /232020 /232812 /233320 /403112 /403120, are designed for the compounds (branches) of electric chains destination (power circuits, control circuits, signaling, etc.). Boxes are used for the entry of armored, unarmored electric cables of round or flat section and cables in a metal hose.

The material used for the manufacture of boxes is stainless steel.

Switching box series - KVOP
Housing materialStainless steel
The degree of protection of the shell in accordance with GOST 14254-2015IP66/IP67
Ambient temperature in operationT4 from -60 0 C to +130 0 C
Climatic performanceHL (F), UHL (NF), OM (MU)
Switched current, A
- alternating current
- direct current
no more than 200
no more than 200
Switched voltage, V
- alternating current
- direct current
no more than 1000
no more than 1000
Modeldimensions
without cable glands
and external components		Installation dimensionsHull weight, no more
KVOP-N-101009100x100x91 mm65x121 mm
KVOP-N-101609100x160x91 mm121x125 mm
KVOP-N-121209120x122x91 mm141x87 mm
KVOP-N-123609120x360x91 mm141х325 mm
KVOP-N-161611160x160x110 mm125x181 mm
KVOP-N-162111160x210x110 mm181x175 mm
KVOP-N-122211120x220x110 mm141x185 mm
KVOP-N-181811180x180x110 mm145x201 mm
KVOP-N-162611160x260x110 mm181x225 mm
KVOP-N-163612160x360x120 mm181х325 mm
KVOP-N-232012230x200x120 mm195x221 mm
KVOP-N-232020230x200x200 mm195x221 mm
KVOP-N-232812230x280x120 mm251x245 mm
KVOP-N-233320230x330x200 mm251x295 mm
KVOP-N-403112403x313x120 mm368x334 mm
KVOP-N-403120403x313x200 mm368x334 mm

Order entry example:

KVOP H-121209– B [x1]– D [x2] –
12
  1. type of control post and type of explosion protection: KVOP-N-xxxxxx ;
  2. type of cable glands:
    A, C - designation of the large sides of the box;
    B, D - designation of the small sides of the box;
    n is the multiplier of the number of inputs of the corresponding type, if one is not indicated;
    x1, x2, x3, x4 - types of cable glands, for example:
    KV M20K - for open cable laying with connecting thread M20x1.5;
    KV M20KM15 - for metal hose 15mm with connecting thread M20x1.5.
