Fire detectors, thermal, point, explosion-proof, programmable, addressable
The detectors are designed to detect fire accompanied by an increase in temperature in the controlled space and transmit an information digital signal to the control and monitoring device via the standard RS485 communication interface with the Modbus RTU protocol. It is a maximum or maximum differential action detector with a variable response temperature - class "P" according to GOST 34698-2020. The detector measures the temperature of the controlled area in the range from -60 ° C to + 150 ° C. Temperature response classes according to GOST 34698-2020:
| A1 | A2 | A3 | B | C | D |
| A1R | A2R | A3R | BR | CR | DR |
Scope of application – explosion-hazardous areas of premises and outdoor installations according to GOST IEC 60079-14-2013 and other regulatory documents governing the use of electrical equipment in explosion-hazardous areas. It can be used as part of automatic fire extinguishing and fire alarm systems at special-purpose facilities: tanks with oil and oil products; pumping stations of main oil pipelines. The version with an external temperature sensor allows placing the sensor and processing unit in different classes of explosion-hazardous areas.
ATTENTION!
The detectors of the "Azimuth MK (OP) 485" series are not measuring instruments.
Depending on the housing material, explosion protection means and temperature sensor design, the detectors are produced in versions in accordance with Table 1. Table 1
| Model, designation | Body material | Explosion protection | Temperature sensor |
| IP 101-392.1-R Azimut MK 485 | Aluminum alloy | 1Ex db [ia Ga] IIC T6...T4 Gb X / Ex tb [ia Da] IIIС T85°C… T135°C Db X |

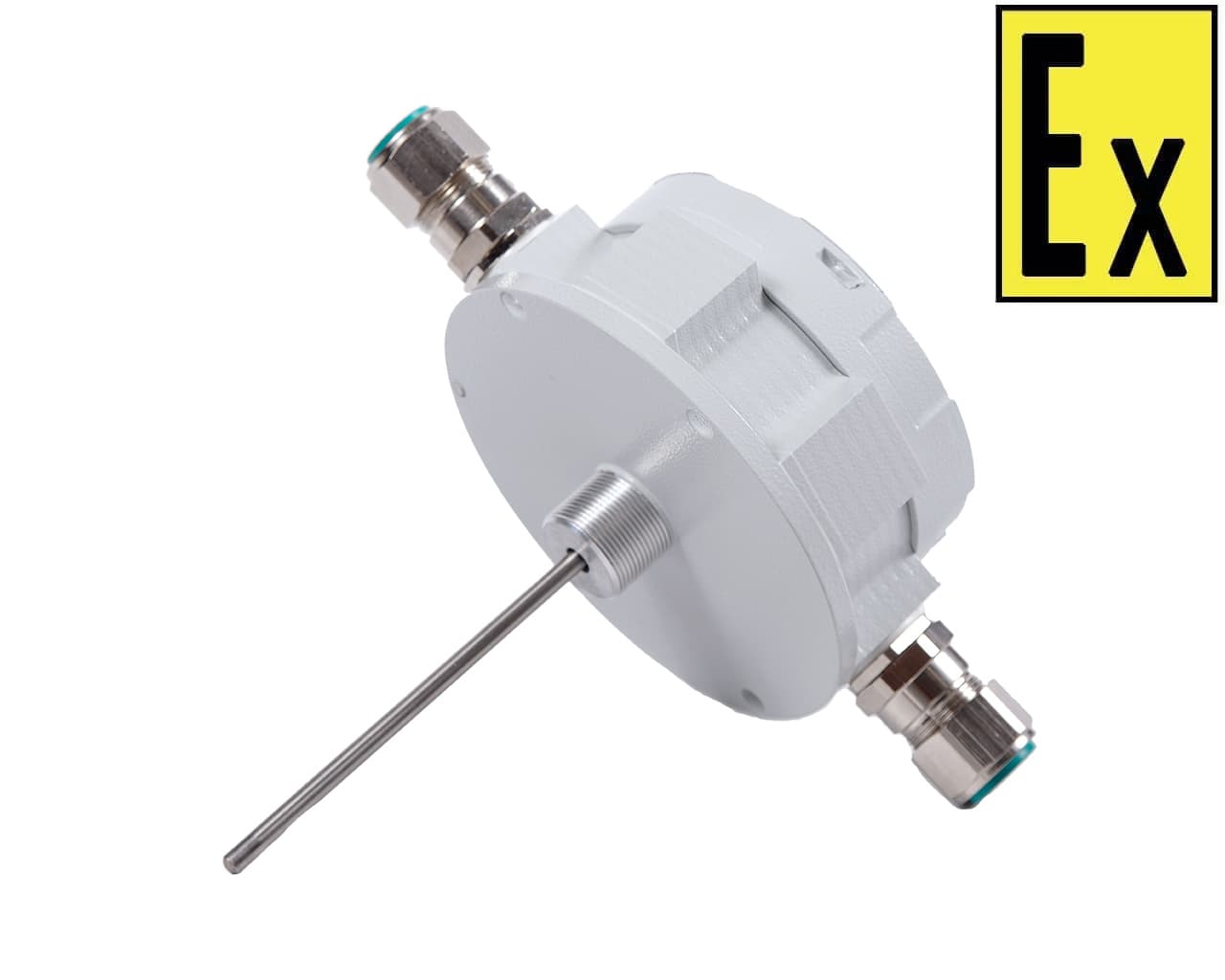

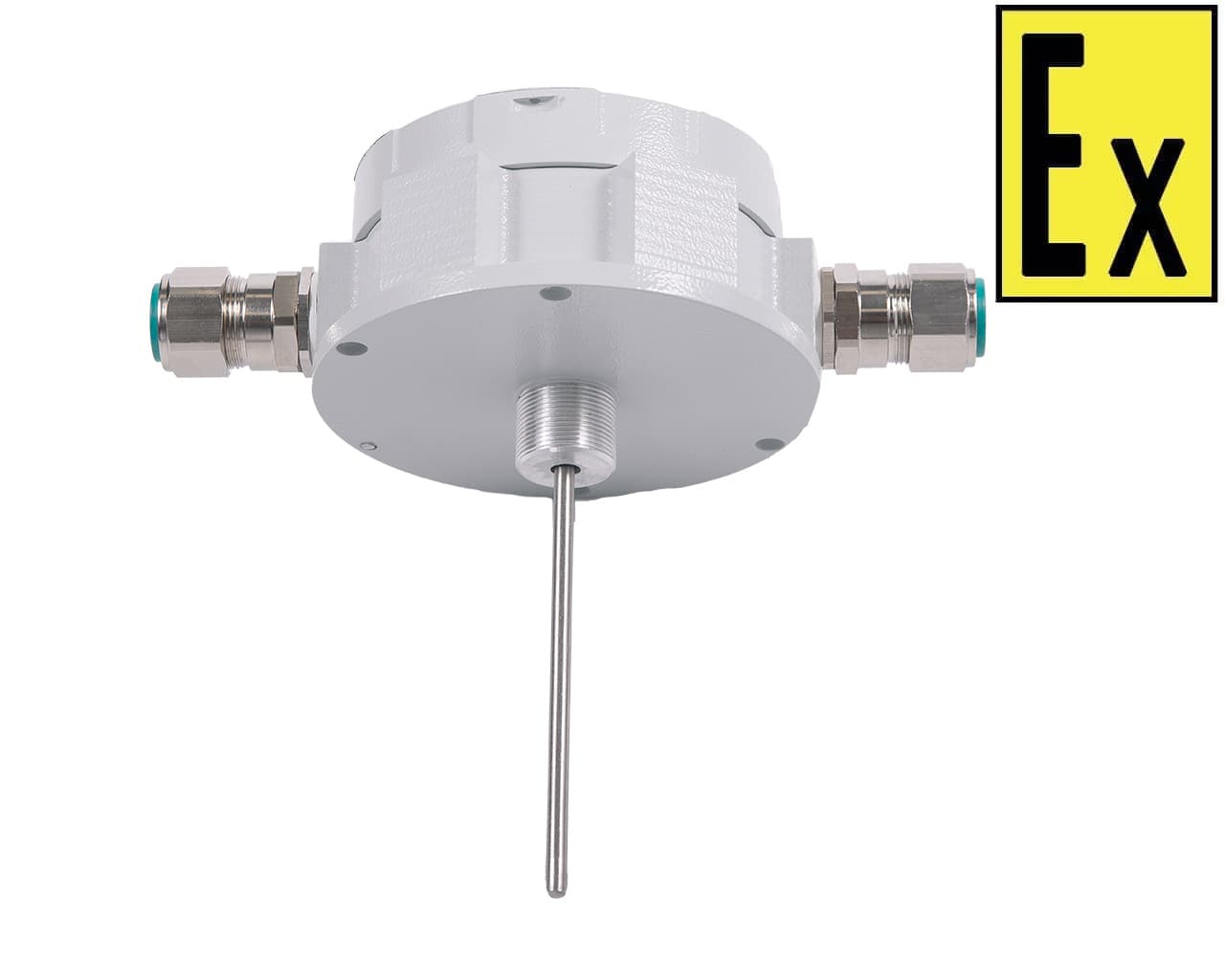

Built-in |

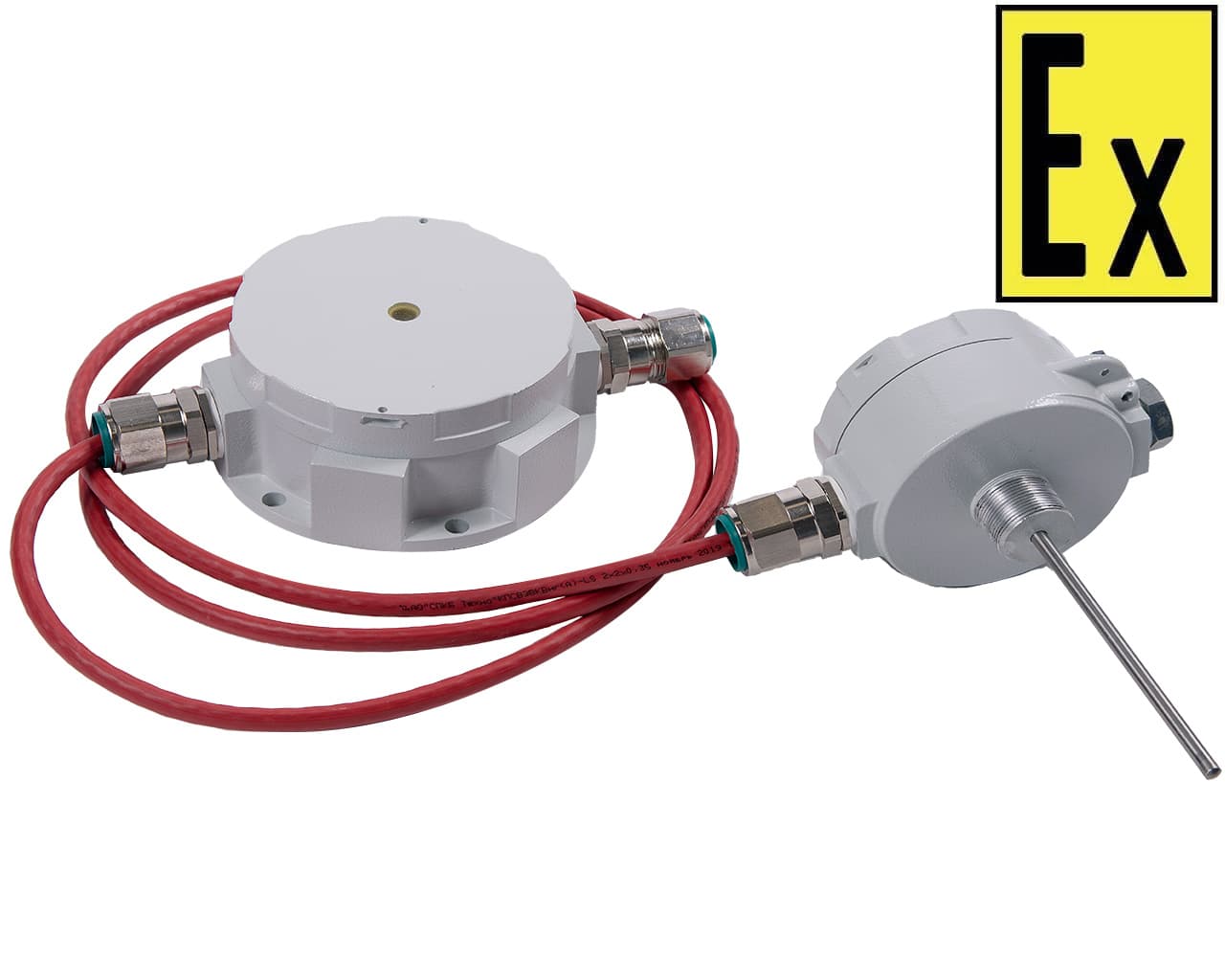

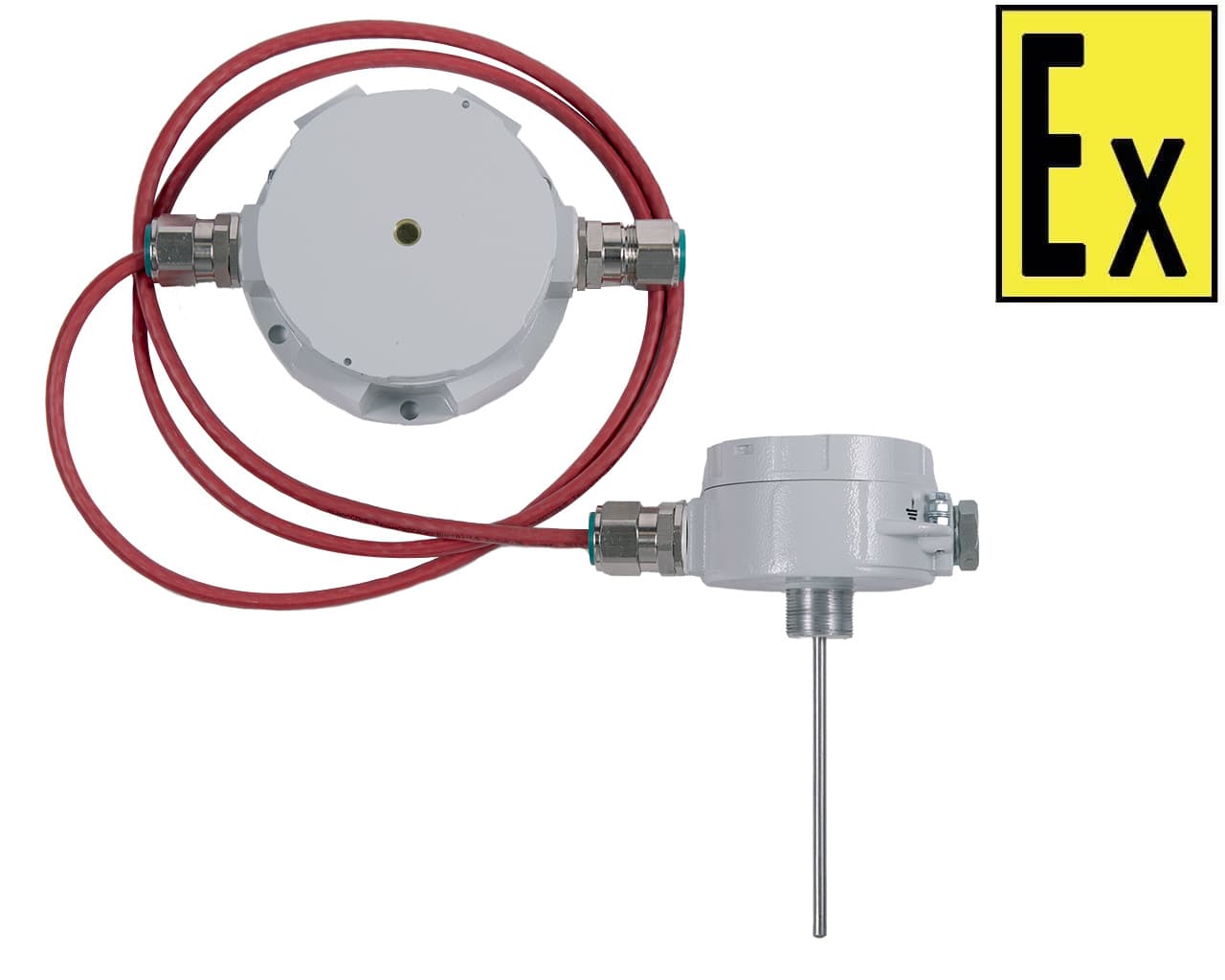

| IP 101-392.2-R Azimut MK 485 | External | ||
| IP 101-393.5-R Azimut MK 485 | Stainless steel | РВ Ex db [ia Ma] I Mb X / 1Ex db [ia Ga] IIC T6...T4 Gb X / Ex tb [ia Da] IIIС Т85°C…Т135°C Db Х |
Built-in |
| IP 101-393.6-R Azimut MK 485 | External |
Climatic version OM(MU), UHL (NF) and HL (F) category 1, atmosphere type II-IV according to GOST 15150. Enclosure protection rating – IP66/IP67 according to GOST 14254. Operating temperature of detectors depends on the version and assigned temperature class: from -60°С … +80°С to -60°С … +105°С.
| Parameter | Meaning |
| Nominal supply voltage (Uп) | 24V |
| Allowable supply voltage range | 8 – 28V |
| Current consumption (Uп=8-28V), no more than (all relays and indicators are on) | 25mA |
| Threshold temperature of operation | 0 … 150°С |
| Temperature threshold setting discreteness | 1°C |
| Differential response (at temperature +35°С … +150°С) | > 5°C/min |
| Activation threshold of the differential function if enabled | > +35°С |
| Frequency of differential temperature measurement | 1 min |
| Thermal inertia index, no more than | 30 sec |
| Range of measured temperatures | -60°С … +150°С |
| Maximum continuous voltage of the signal relays "Fire" and "Fault" | 300V |
| Maximum current of the signal relays "Fire" and "Fault" (constant or alternating) | 100mA |
| Address Line Interface | RS485 |
| Address Line Protocol (ALP) | Modbus RTU |
| Maximum length of LS (* Subject to an agreed communication line and a transmission speed of no more than 9600 bits/sec) |
1200m* |
|
Weight of converter unit, no more than Aluminum alloy |
2 kg |
|
Weight of external sensor unit, no more than Aluminum alloy |
0.8 kg |
| Overall dimensions of the converter unit, no more than (without cable entries) |
D150mm x 93mm |
| Overall dimensions of the external sensor unit, no more than (without cable entries) |
D110mm x 80mm |
| IP 101 | - 392.X 1 - | X 2 | AZIMUTH | X 3 | X 4 |
| 1 | 2 | 3 | 4 | 5 | 6 |
IP 101-392.1-R Azimut MK 485-N
Cable entry type, explosion protection marking, temperature response class, temperature sensor length and other additional parameters - specified in brackets when ordering.
Climatic version OM(MU), UHL (NF) and HL (F) category 1, atmosphere type II-IV according to GOST 15150. Enclosure protection rating – IP66/IP67 according to GOST 14254. Operating temperature of detectors depends on the version and assigned temperature class: from -60°С … +80°С to -60°С … +105°С.
