Sensors are designed to monitor the position of moving parts of structures and mechanisms, to block gates, railway containers, hangars and other structural elements of the buildings and structures with regard to opening or motion, followed by transmitting alert to the receiving/monitoring device. Sensors can be installed on structures made of magnetically conductive (steel) or magnetically non-conductive (aluminum, wood, plastic) materials. .
Sensors are available in explosion-proof and general-purpose versions. Explosion-proof sensors are available in modifications that differ in material and enclosure design, explosion protection type, contact type, and cable gland type. General purpose sensors are available in modifications that differ in enclosure material, contact type, and detecting range.
Aton series explosion-proof sensors. Available versions
| Name |
Description |
Enclosure material |
Explosion protection marking |

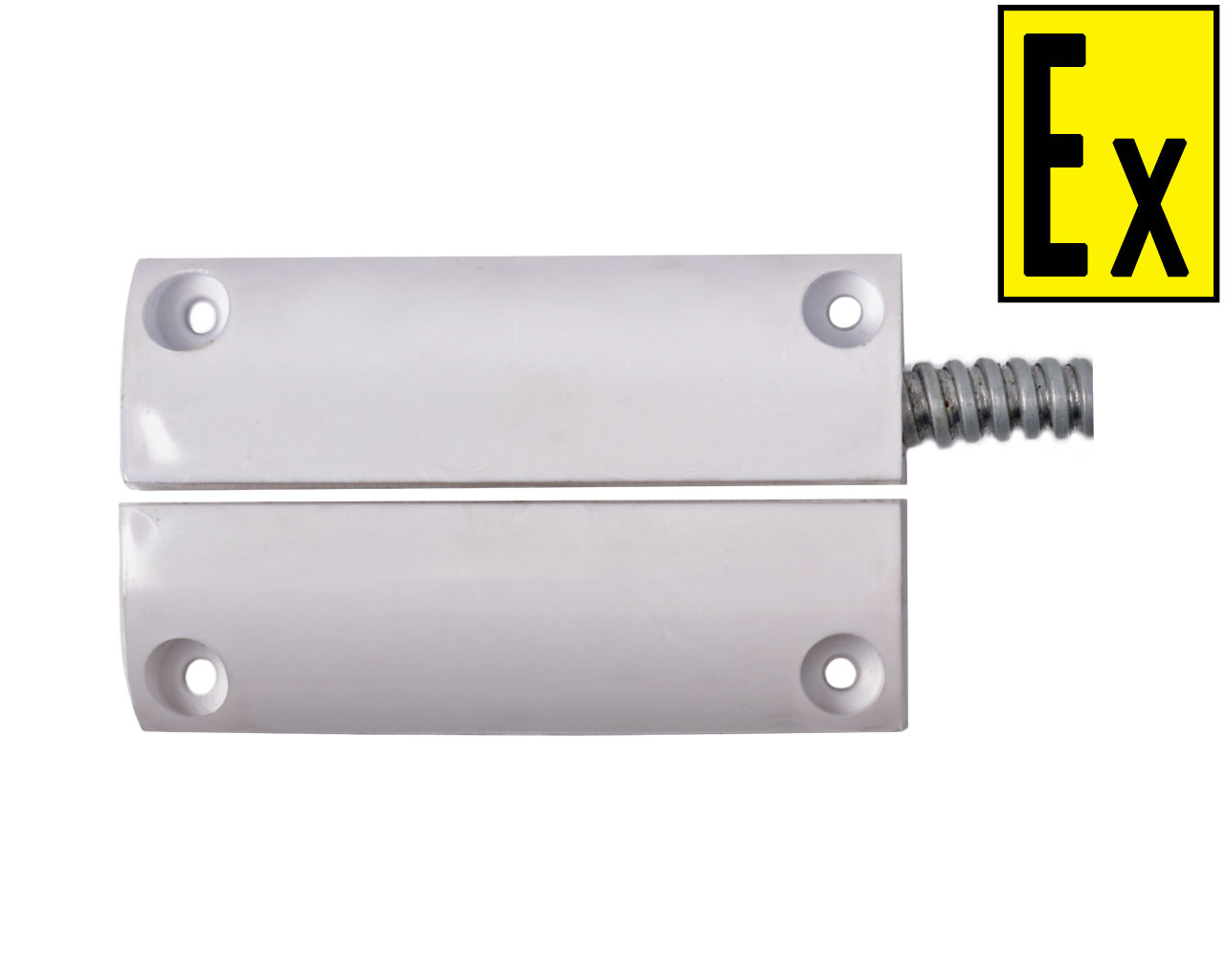

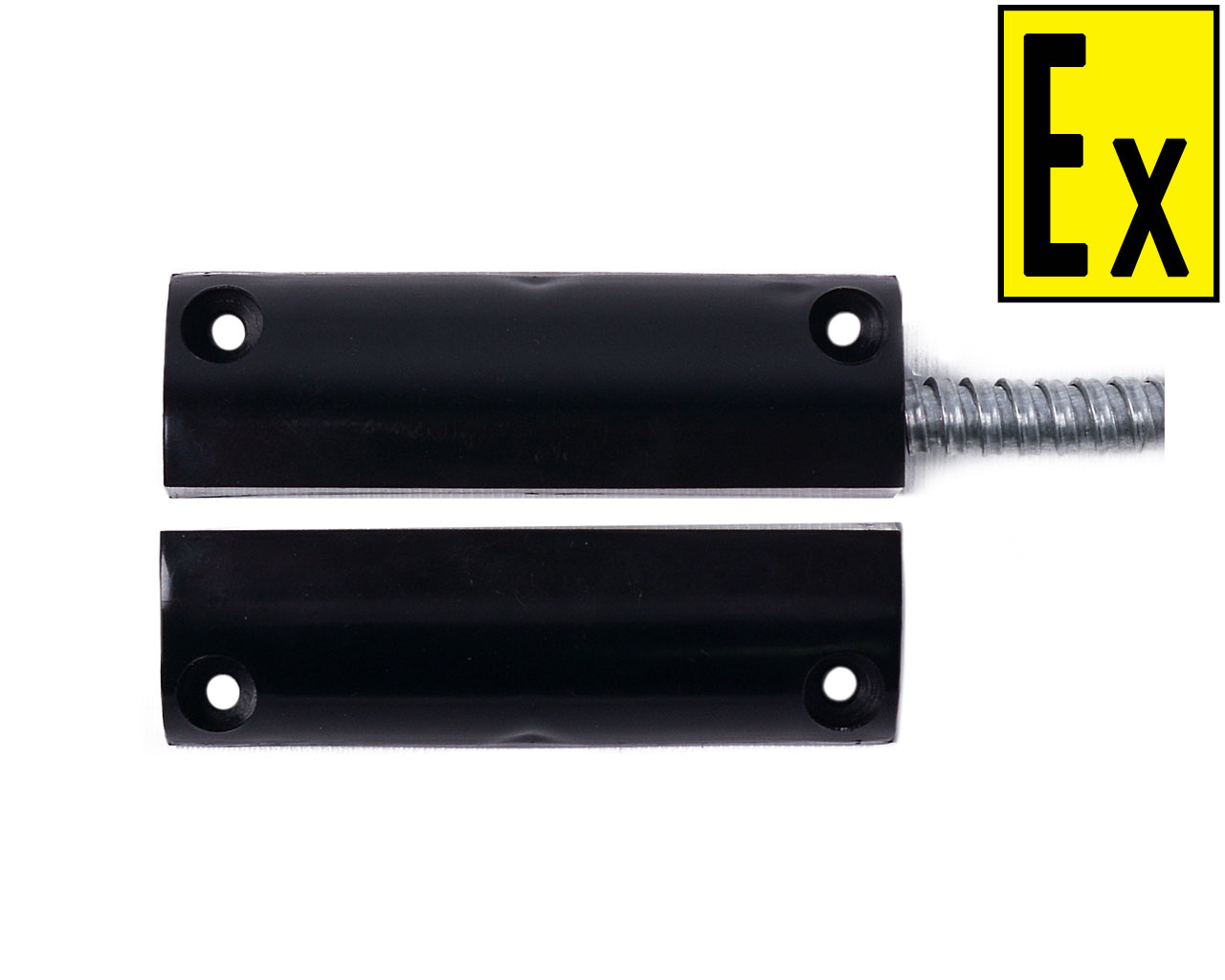

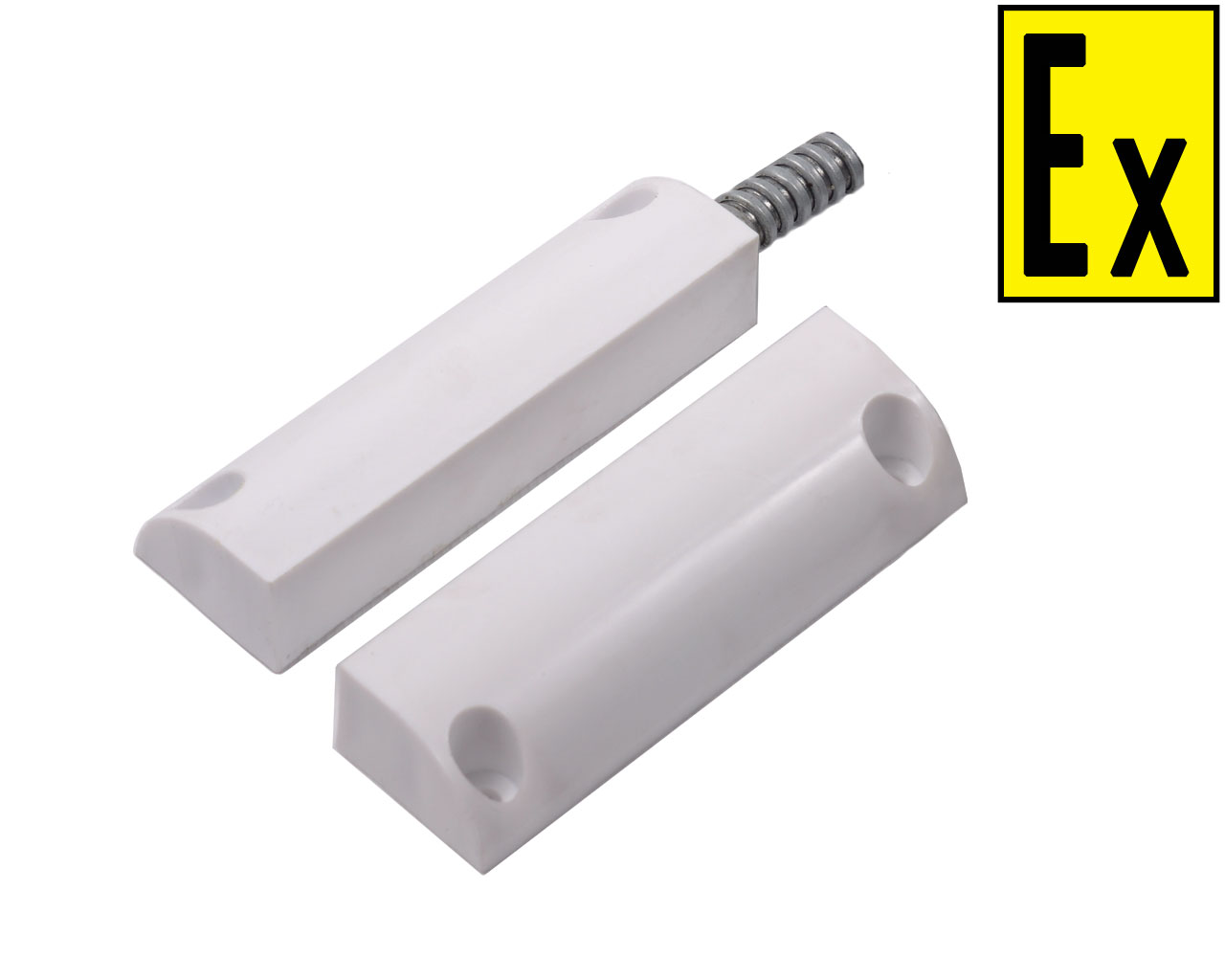

| IO102-VZ Aton ver.11 |
cable in metal hose 1m; N/O contact |
Antistatic polyamid |
0Ex ia IIC T6 Ga X |
| IO102-VZ Aton ver. 21 |
>cable in metal hose 1m;
switching contact |
| IO102-VZ Aton ver.12 |
armoured cable 1m;
N/O contact. |
| IO102-VZ Aton ver.22 |
armoured cable 1m;
switching contact |

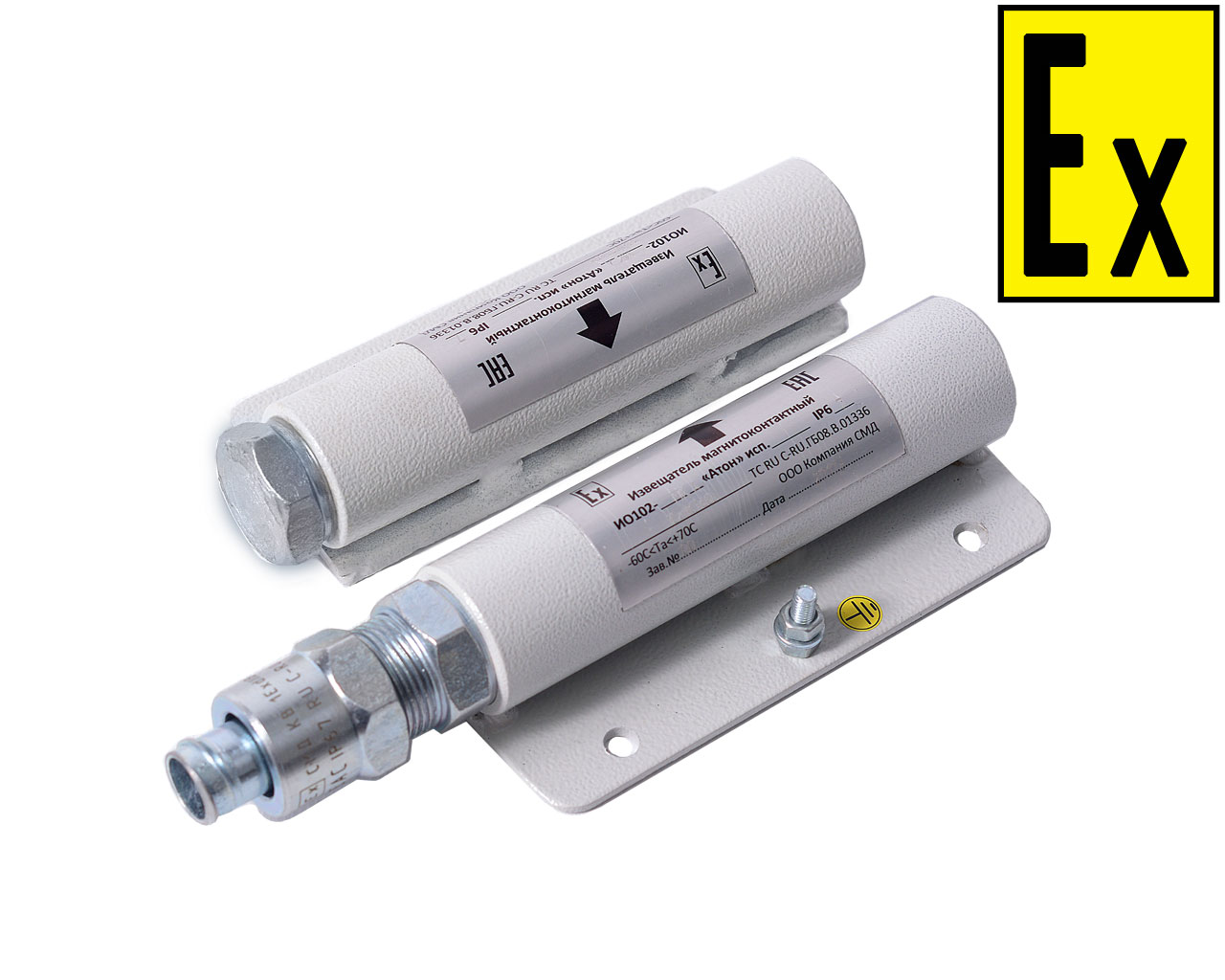

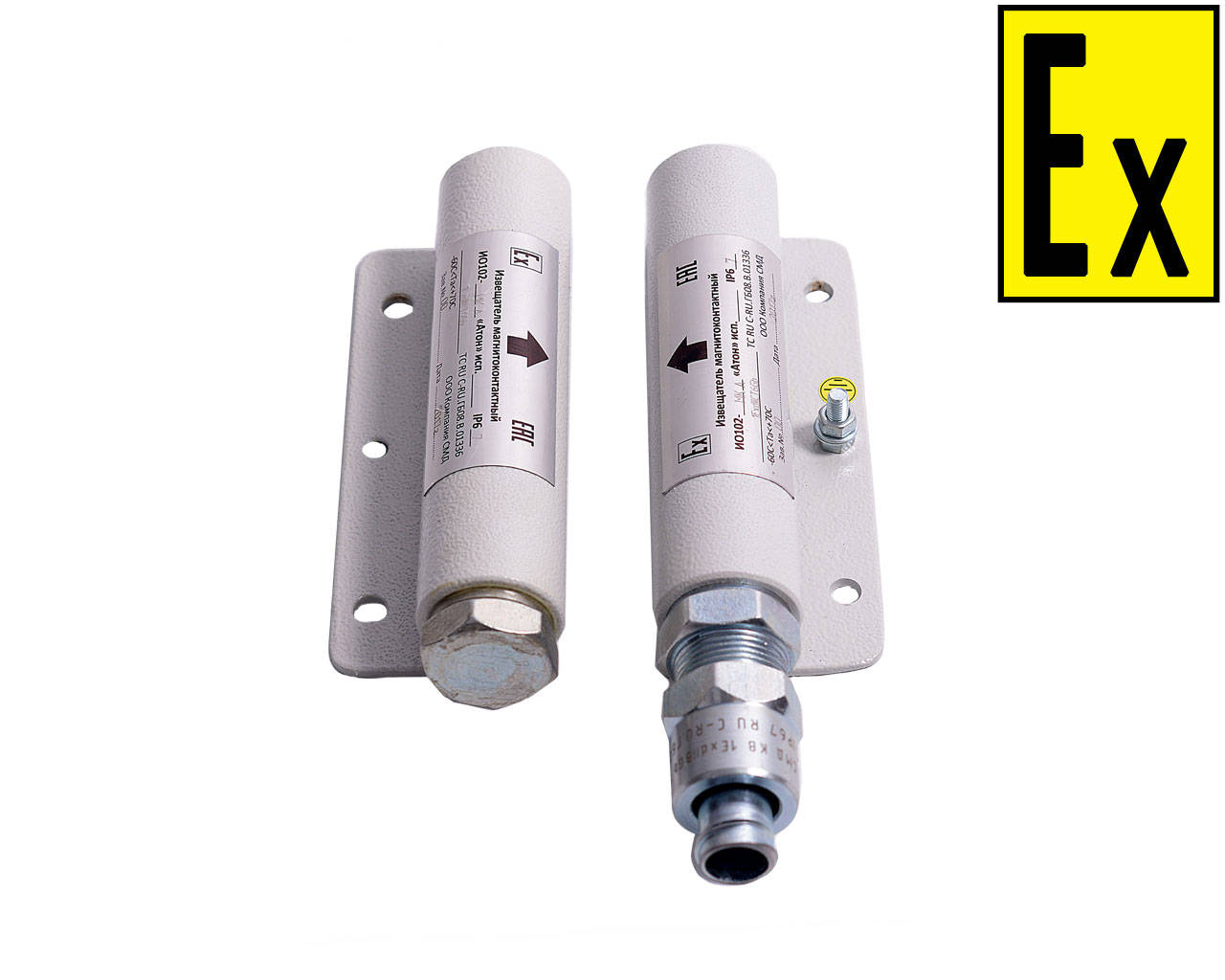

| IO102-VZ А Aton ver.12 |
armoured cable 1m;
N/O contact. |
Aluminum-silicon alloy. |
| IO102-VZ А Aton ver.14 |
armoured cable in metal hose RZTsH-12, 1 m;
N/O contact. |
| IO102-VZ А Aton ver.22 |
armoured cable 1m;
switching contact |
| IO102-VZ А Aton ver.24 |
armoured cable in metal hose RZTsH-12, 1 m;
switching contact |
|
|

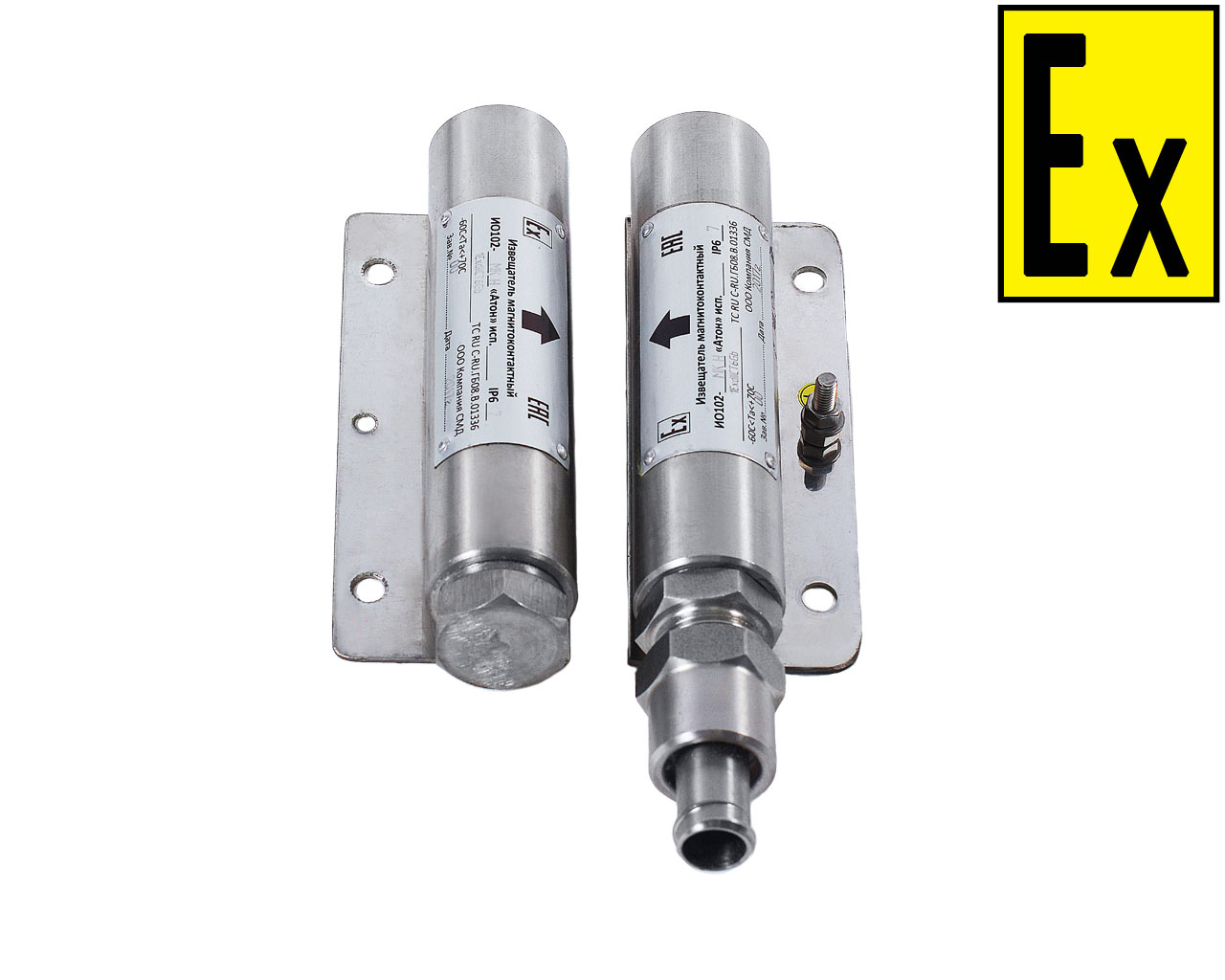

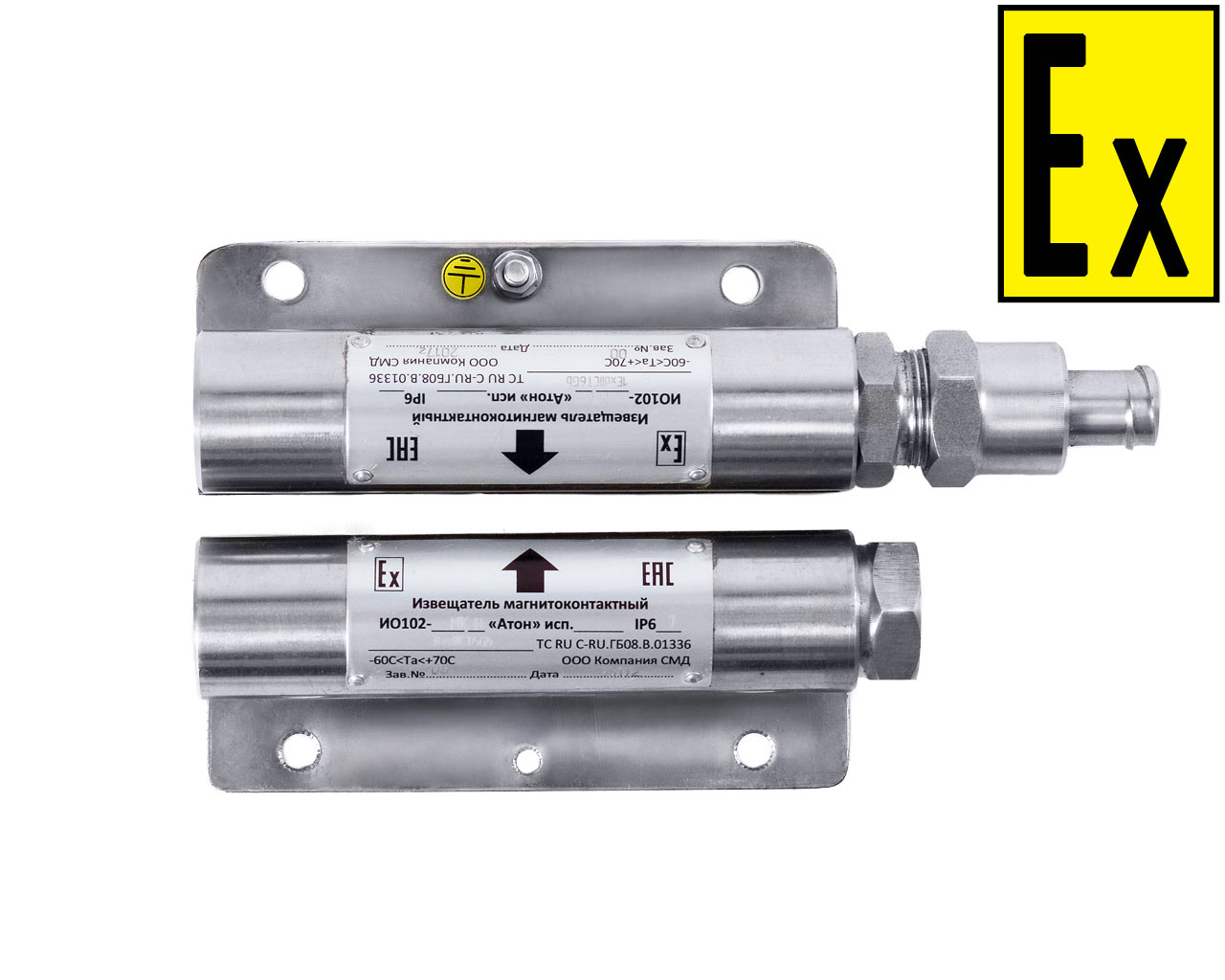

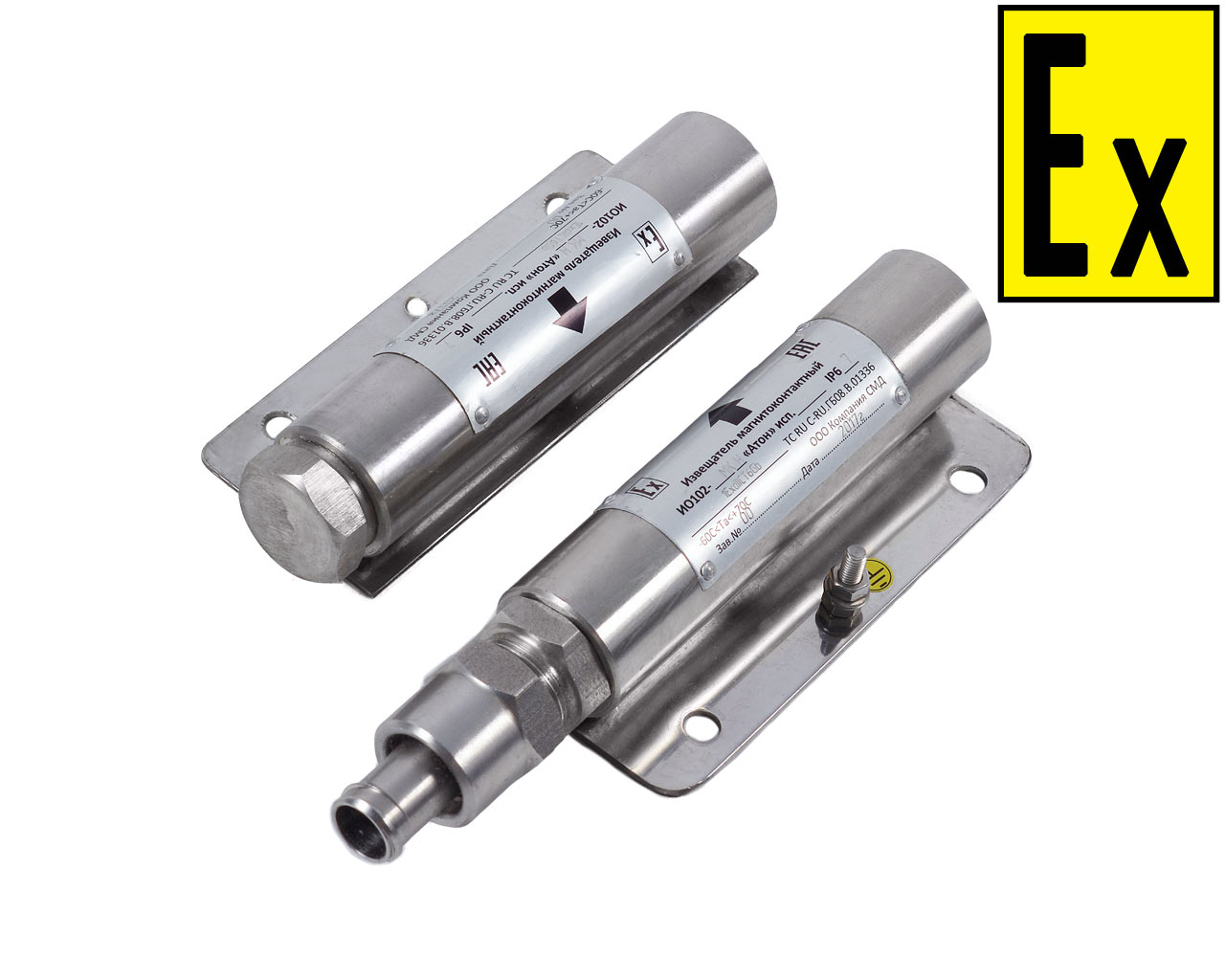

| IO102-VZ N Aton ver.12 |
Mine design;
armoured cable 1m;
N/O contact. |
stainless steel 12Х18Н10Т |
0Ex ia IIC T6 Ga X/ /PO Ex ia I Ma X |
| IO102-VZ N Aton ver.14 |
Mine design;
armoured cable in metal hose RZTsH-12, 1m;
N/O contact. |
| IO102-VZ N Aton ver.22 |
Mine design;
armoured cable 1m;
switching contact |
| IO102-VZ N Aton ver.24 |
Mine design;
armoured cable in metal hose RZTsH-12, 1m;
switching contact |
|
|
| IO102-МК A Aton ver.13 |
removable cable gland;
N/O contact. |
Aluminum-silicon alloy |
1Ex d IIC T6 Gb |
| IO102-МК A Aton ver.23 |
removable cable gland;
switching contact |
| IO102-МК N Aton ver.13 |
Mine design;
removable cable gland;
N/O contact. |
stainless steel 12Х18Н10Т |
1Ex d IIC T6 Gb /
/PB Ex d I Mb |
| IO102-МК Н Aton ver.23 |
Mine design;
removable cable gland;
switching contact |
Aton series general purpose detectors. Available versions
|
Name
|
Description |
Enclosure material
|
| IO102-А Aton ver.11 |
Cable KPKVng-FRLS-2x2x1.0 in metal hose RZ-TsH-12, 1 m; N/O contact |
Aluminium alloy |
| IO102-А Aton ver.21 |
Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; switching contact |
| IO102-Н Aton ver.11 |
Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; N/o contact |
Нержавющая сталь 12Х18Н10Т |
| IO102-Н Aton ver.21 |
Cable KPKVng-FRLS-2x2x1.0mm2 in metal hose RZ-TsH-12, 1 m; switching contact |
