The detectors are designed to monitor the position of moving parts of structures and mechanisms, to prevent gates, railway containers, hangars, and other building and structure elements from opening or moving, and to subsequently transmit an alarm to the control panel. The detectors can be installed on structures made of magnetically conductive (steel) or magnetically non-conductive (aluminum, wood, or plastic) materials.
Explosion-proof detectors are available in modifications that differ in the material and design of the housing, the type of explosion protection, the type of contact, and the type of cable entry.
| Name | Description | Body material | Explosion protection marking |

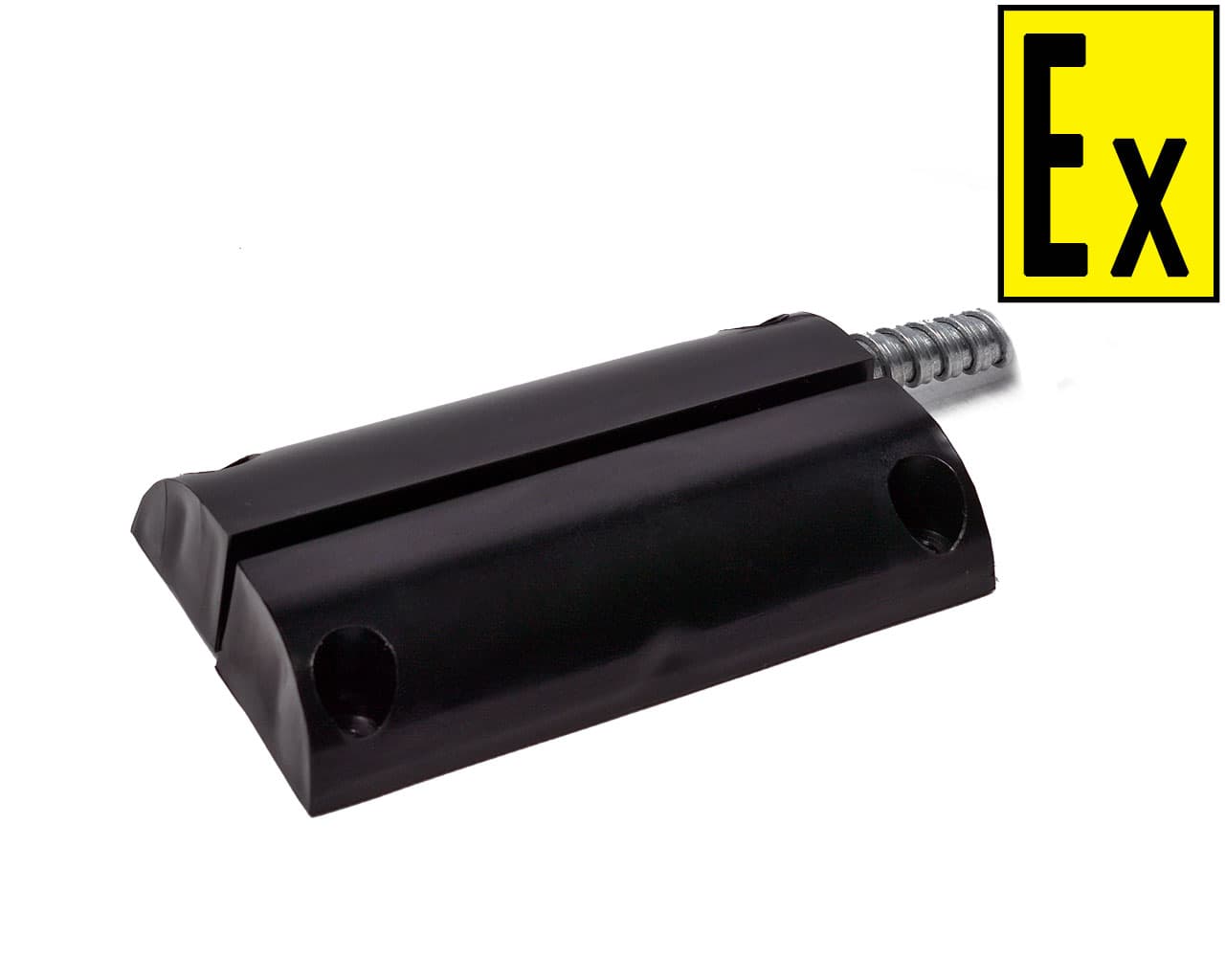

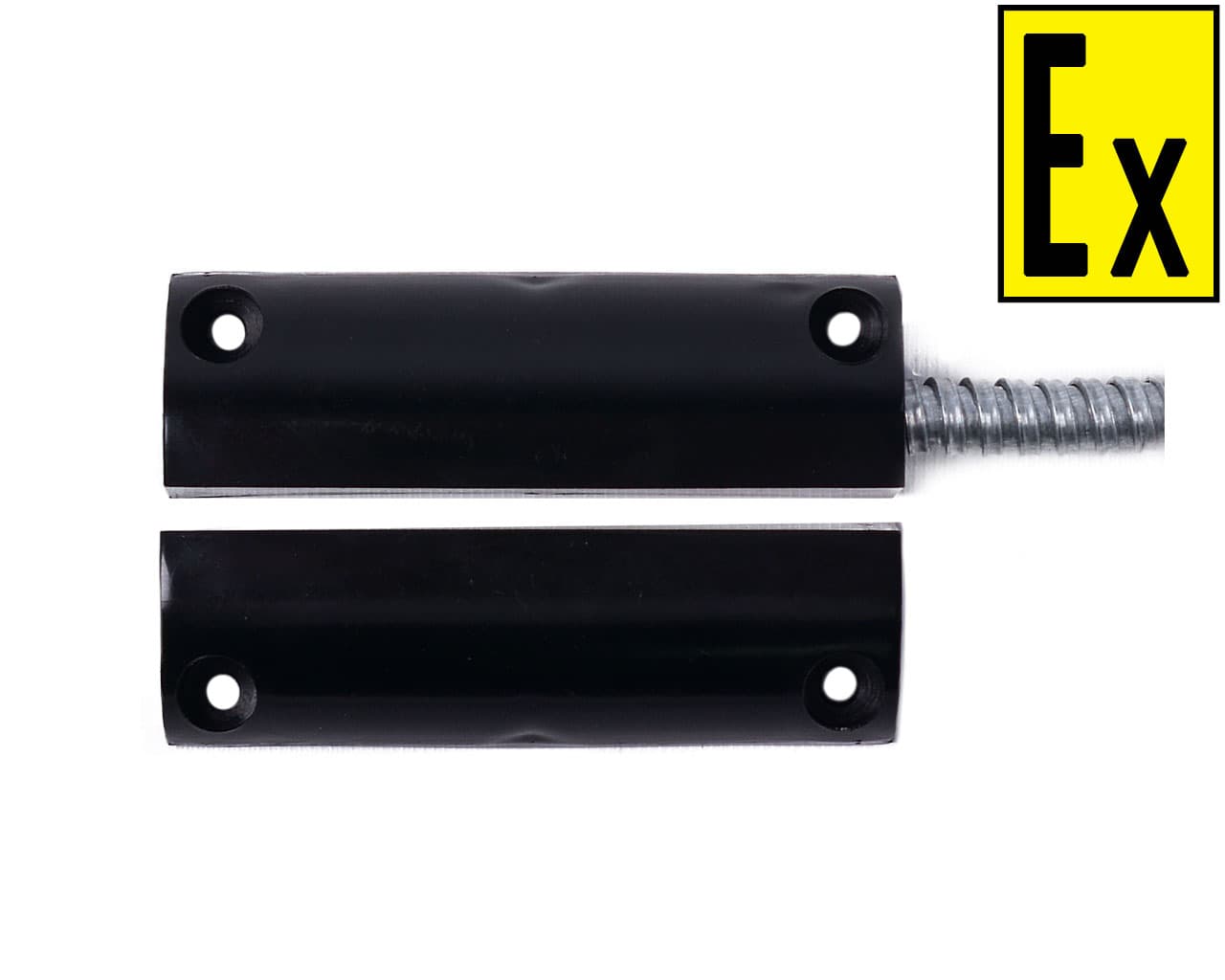

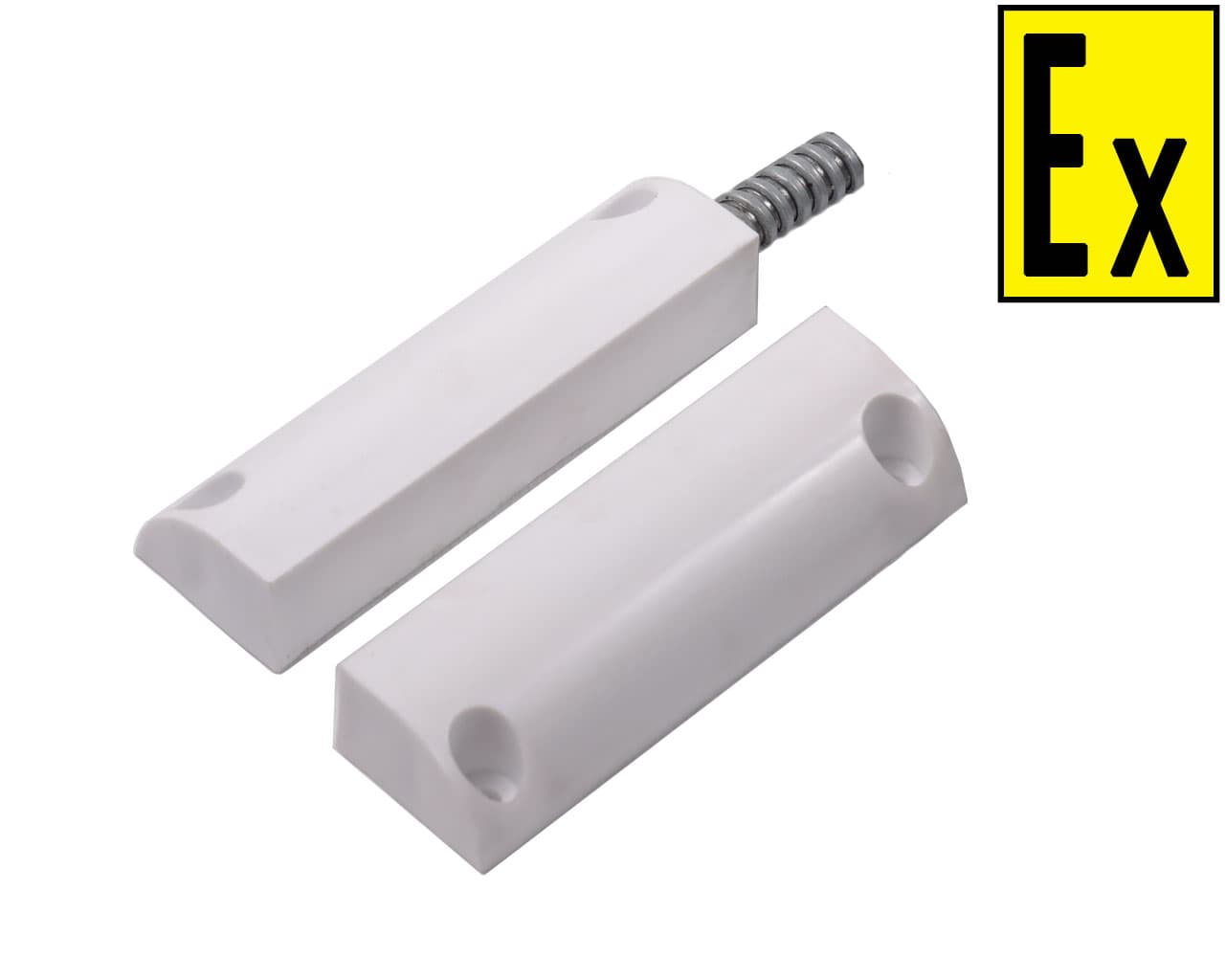

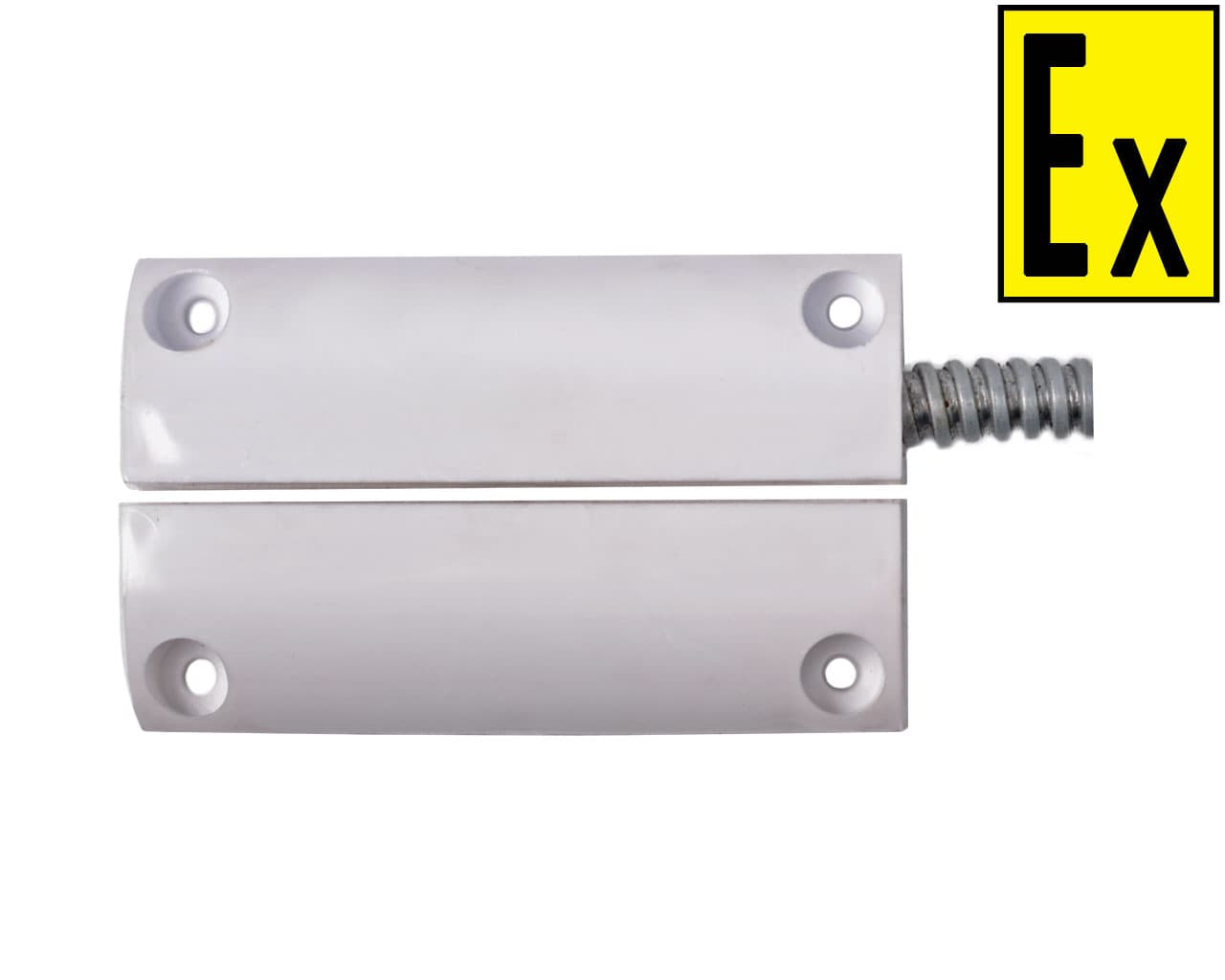

| IO102-VZ Aton isp.11 | cable in a metal sleeve 1m; NO contact. | Antistatic polyamide | 0Ex ia IIC T6 Ga X / Ex ia IIIC T85°C Da |
| IO102-VZ Aton isp. 21 | cable in a metal sleeve 1m; changeover contact. | ||
| IO102-VZ Aton isp.12 | Armored cable 1m; NO contact. | ||
| IO102-VZ Aton isp.22 | Armored cable 1m; changeover contact. | ||

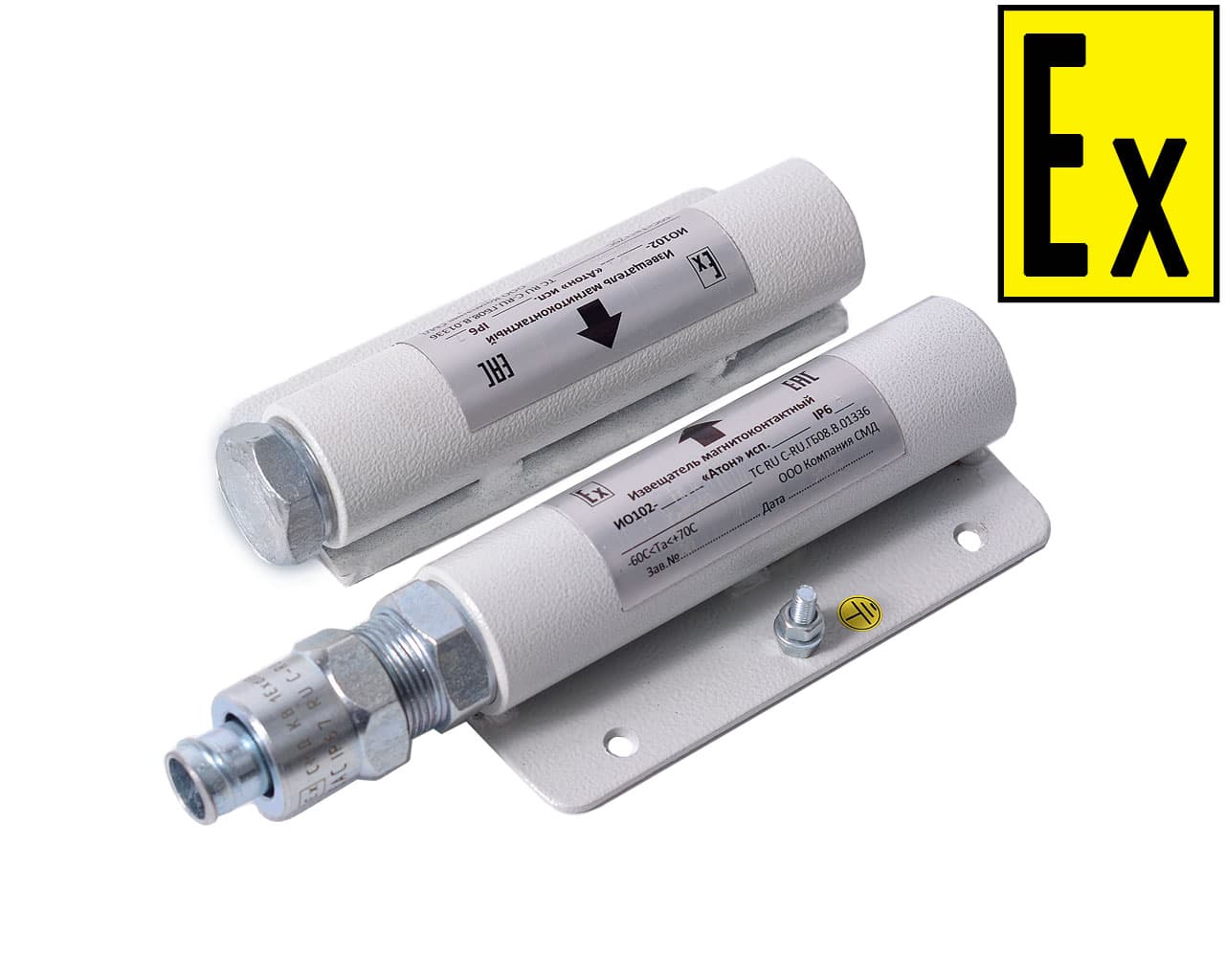

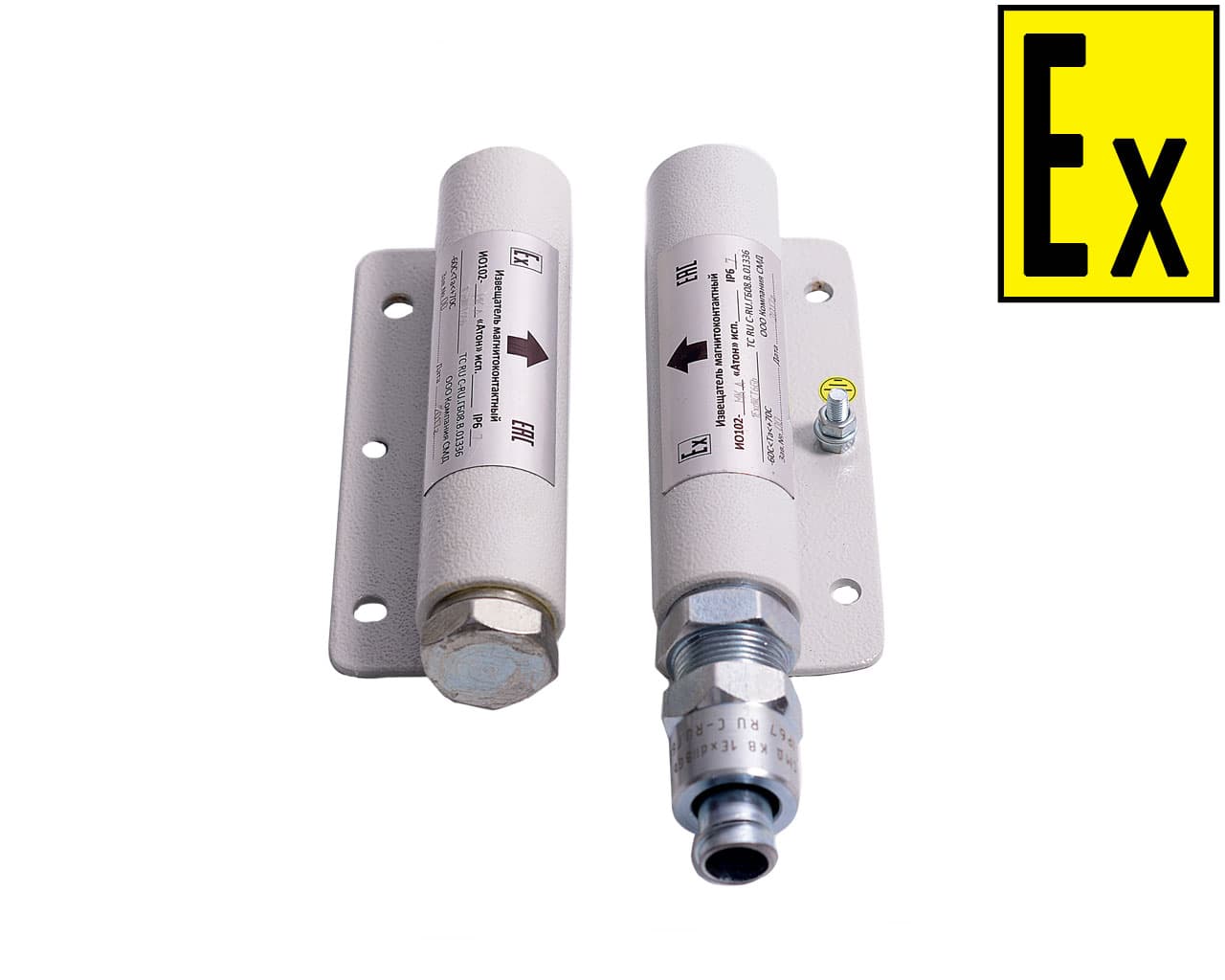

| IO102-VZ A Aton isp.12 | Armored cable 1m NO contact. | Silicon is an aluminum alloy. | |
| IO102-VZ A Aton isp.14 | Armored cable in a metal sleeve RZTSKH-12 - 1m; NO contact. | ||
| IO102-VZ A Aton isp.22 | Armored cable 1m; changeover contact. | ||
| IO102-VZ A Aton isp.24 | Armored cable in a metal sleeve RZTSKH-12 - 1m; changeover contact. | ||

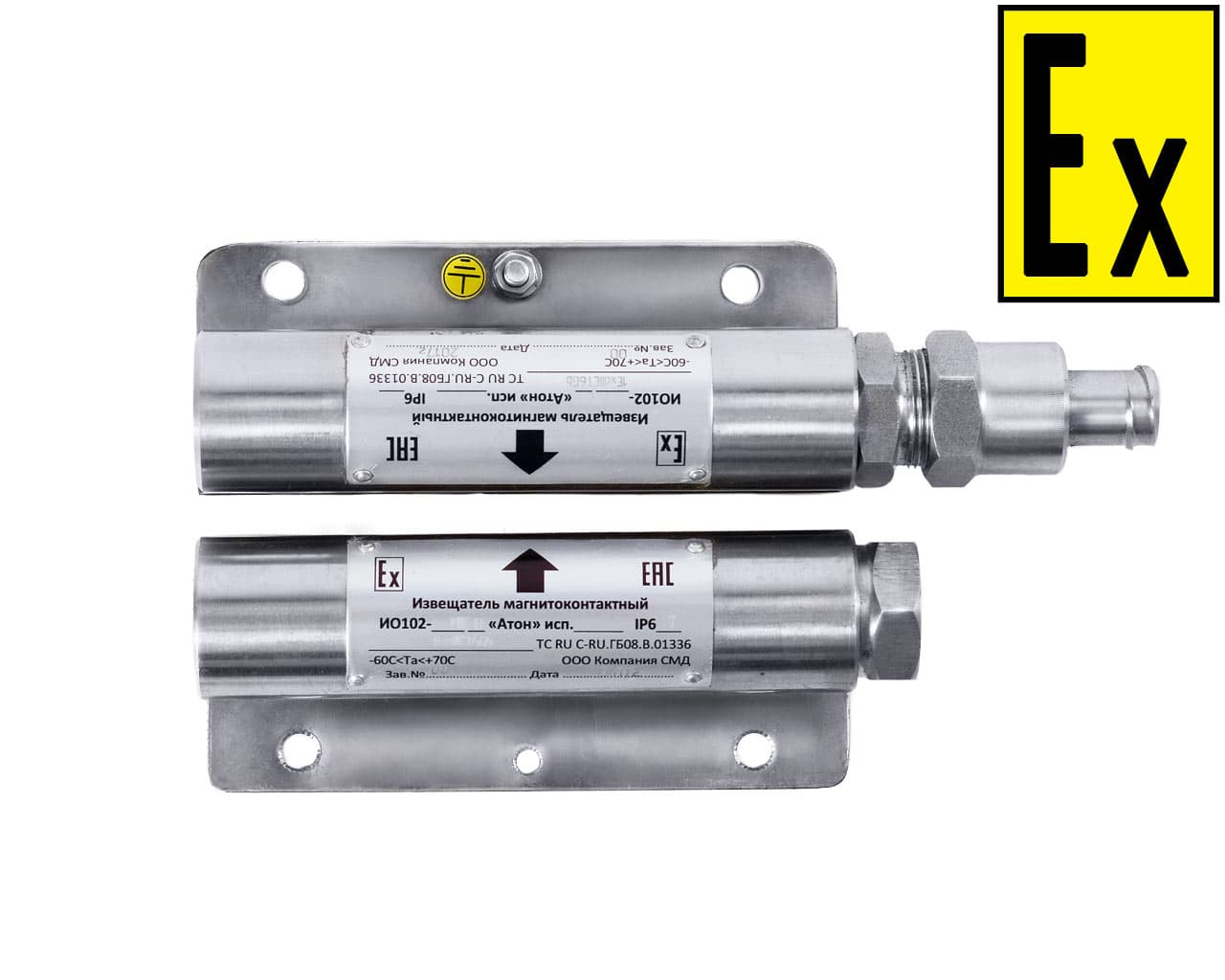

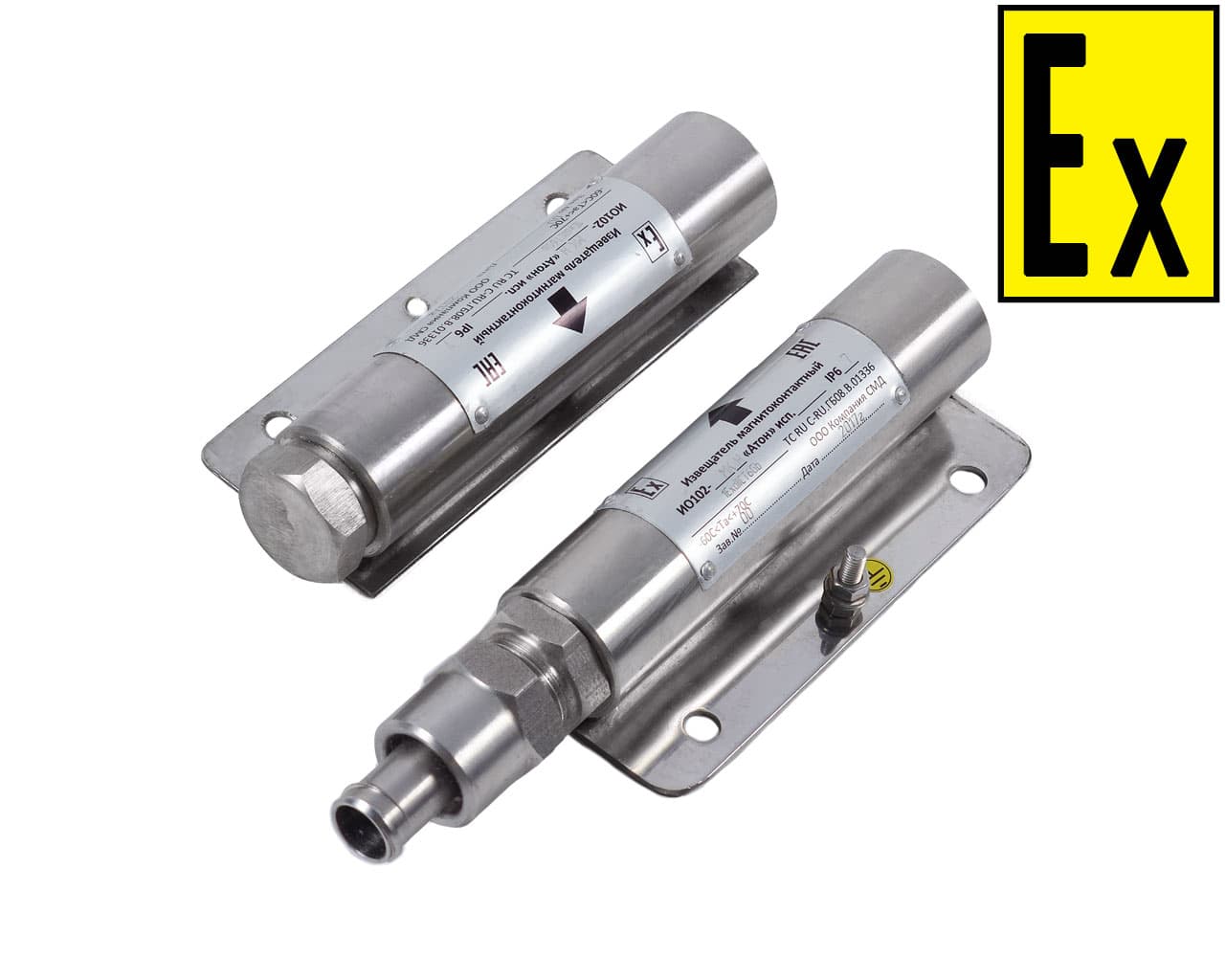

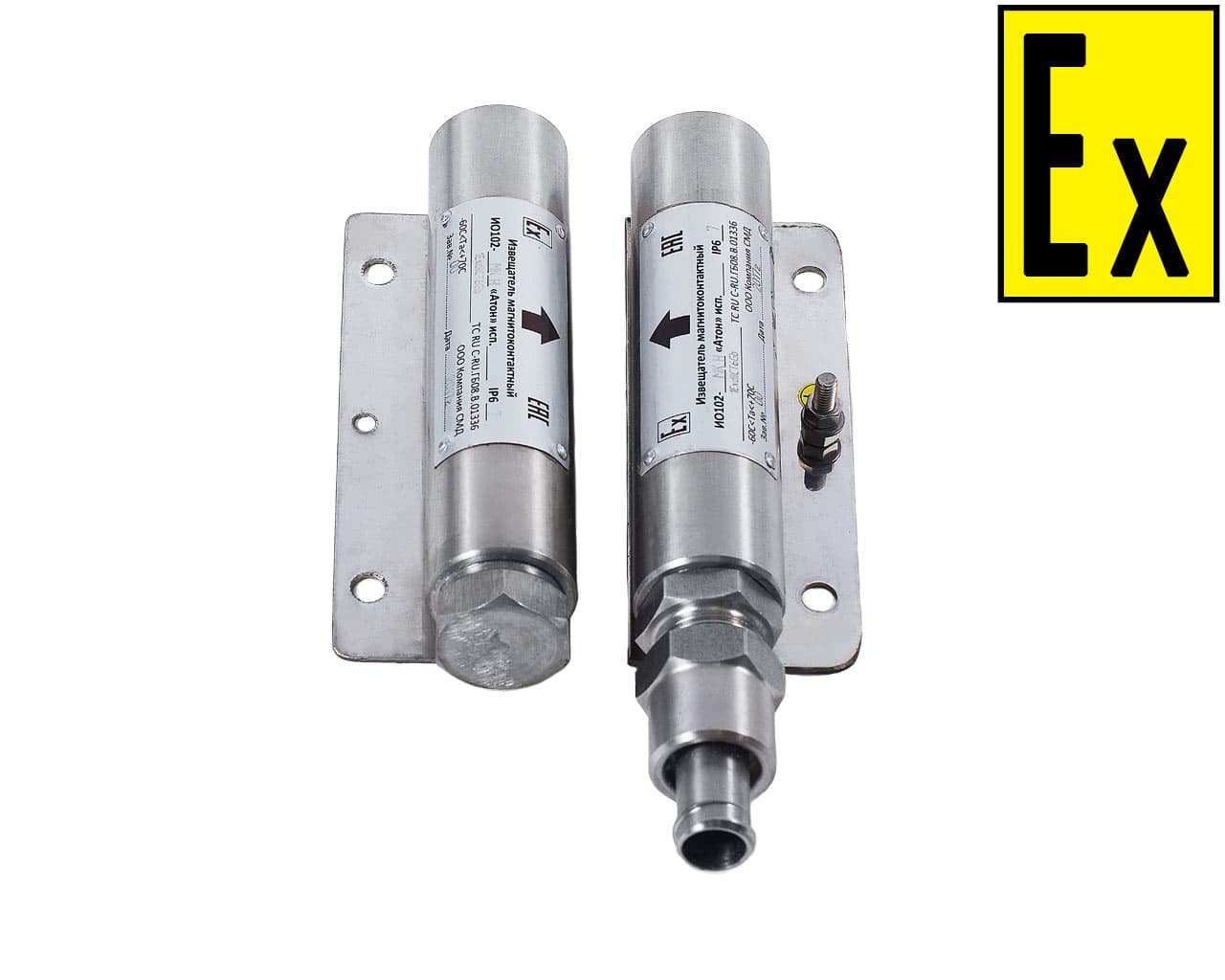

| IO102-VZ N Aton isp.12 | Mine version ; armored cable 1m NO contact. | Stainless steel 12X18H10T | PO Ex ia I Ma X / 0Ex ia IIC T6 Ga X / Ex ia IIIC T85°C Da |
|
IO102-VZ N Aton isp.14 |
Mine version; armored cable in a metal sleeve RZTSKH-12 - 1 m; NO contact. | ||
| IO102-VZ N Aton isp.22 | Mine version ; 1m armored cable; changeover contact. | ||
| IO102-VZ N Aton isp.24 | Mine version; Armored cable in a metal sleeve RZTSKH-12 - 1 m; changeover contact. | ||
| IO102-MK A Aton isp.13 | Replaceable cable entry; NO contact. | Silicon is an aluminum alloy. | 1Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| IO102-MK A Aton isp.23 | Replaceable cable entry; changeover contact. | ||
| IO102-MK N Aton isp.13 | Mine version ; Replaceable cable entry; NO contact. | Stainless steel 12X18H10T | PB Ex d I Mb / 1Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| IO102-MK N Aton isp.23 | Mine version ; Replaceable cable entry; changeover contact. |
| Parameter | Meaning |
| Maximum switching voltage, V: | |
| non-mine execution | 60 |
| mine execution | 27 |
| Maximum switching current, A | 0.25 |
| Maximum current, A | 0.5 |
| Cross-section of connected wires, mm2 (IO102-MK only) | from 0.35 to 1 |
| Degree of protection of the shell: | |
| IO102-VZ "Aton", | IP68 |
| IO102-MK "Aton" | IP67 |
| Operating temperature | from -60°C to +70°C |
| Overall dimensions, mm | |
| plastic case | 100x30x20 |
| metal case | 132x50x36 |
| Modification | Non-magnetic base | Magnetically conductive base | ||
| response, mm, | release, mm, | response, mm, | release, mm, | |
| Aton | 40 | 50 | 25 | 35 |
| Aton M | 100 | 115 | 40 | 45 |
AM – indicates the presence of a product modification with an address mark.
