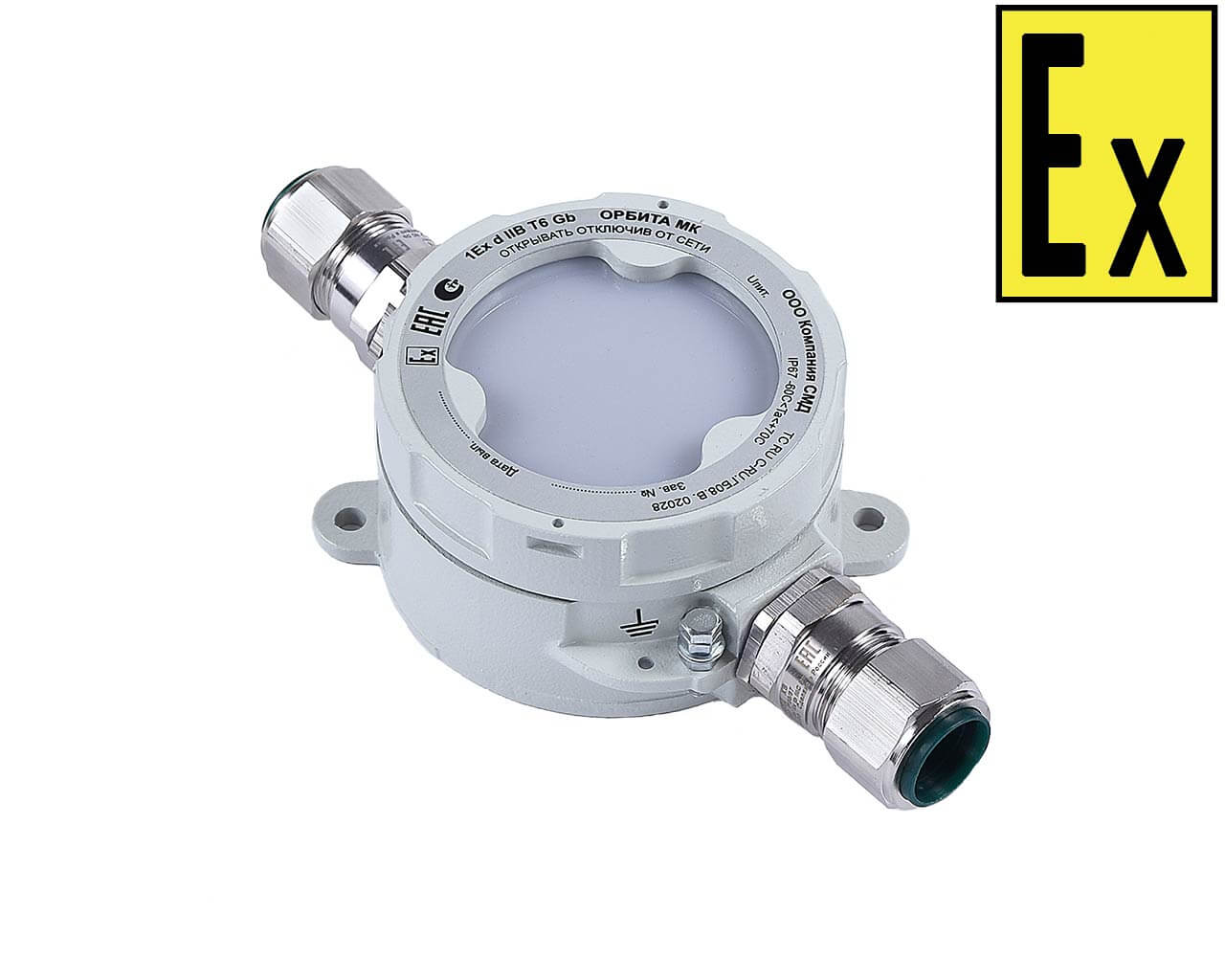

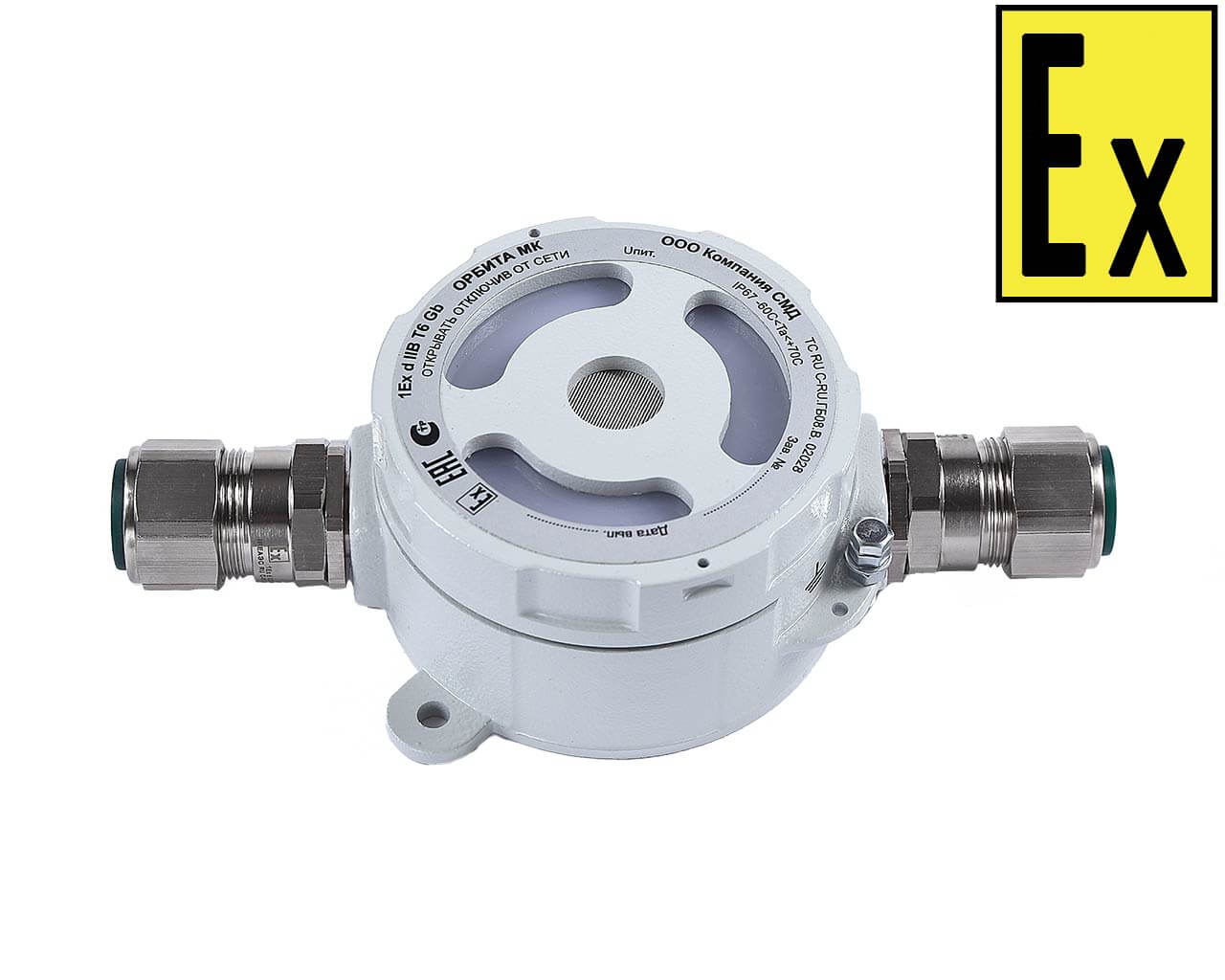

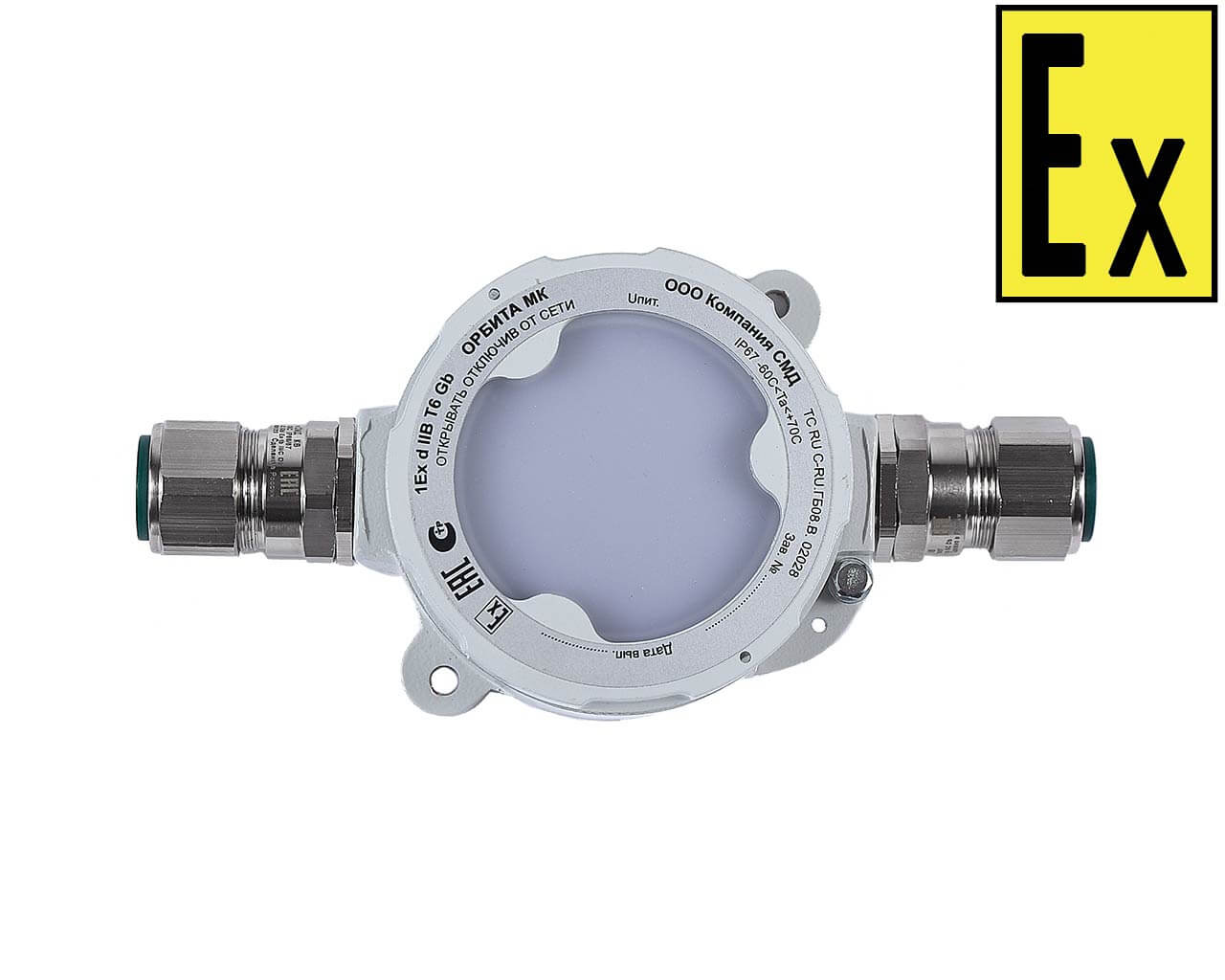

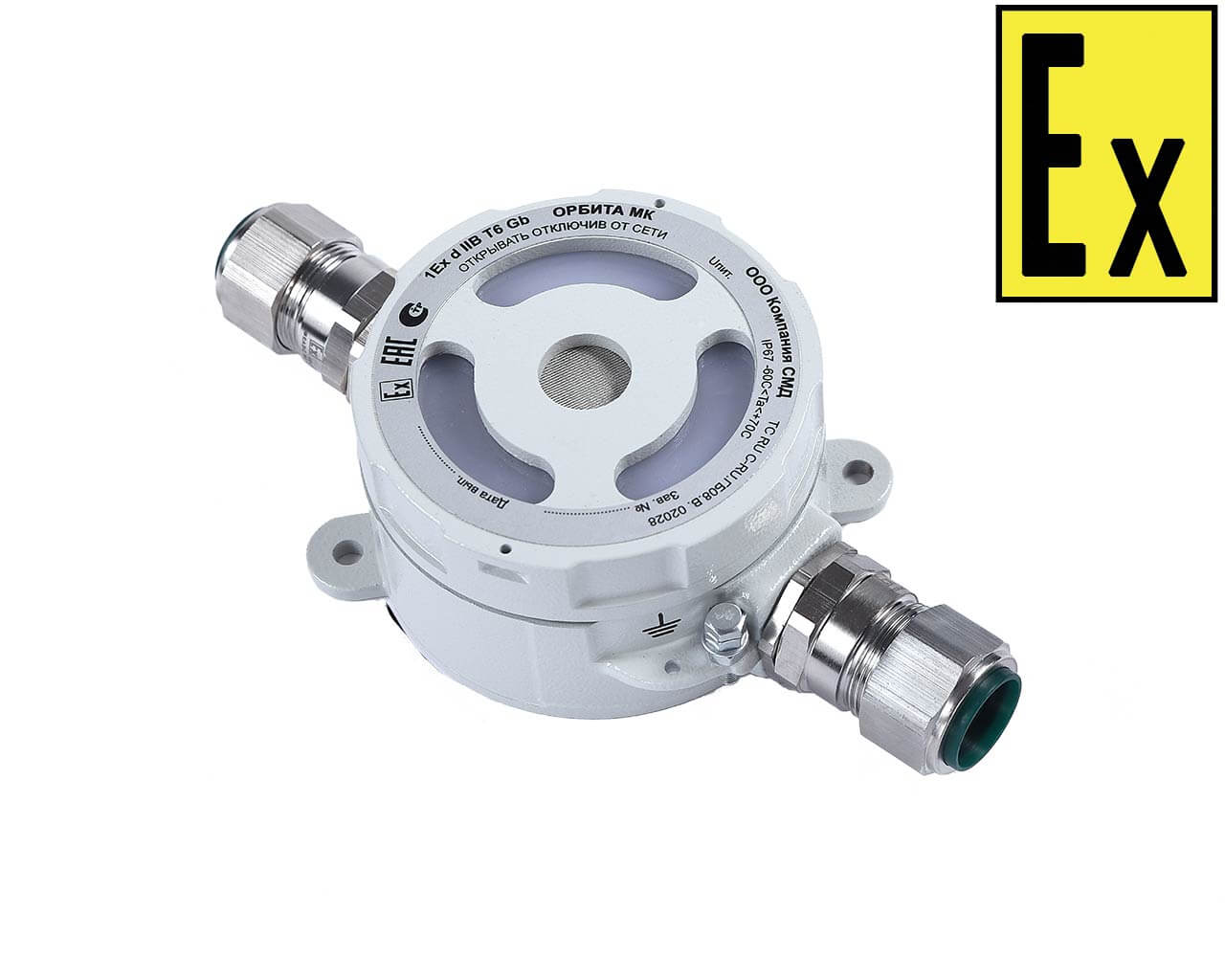

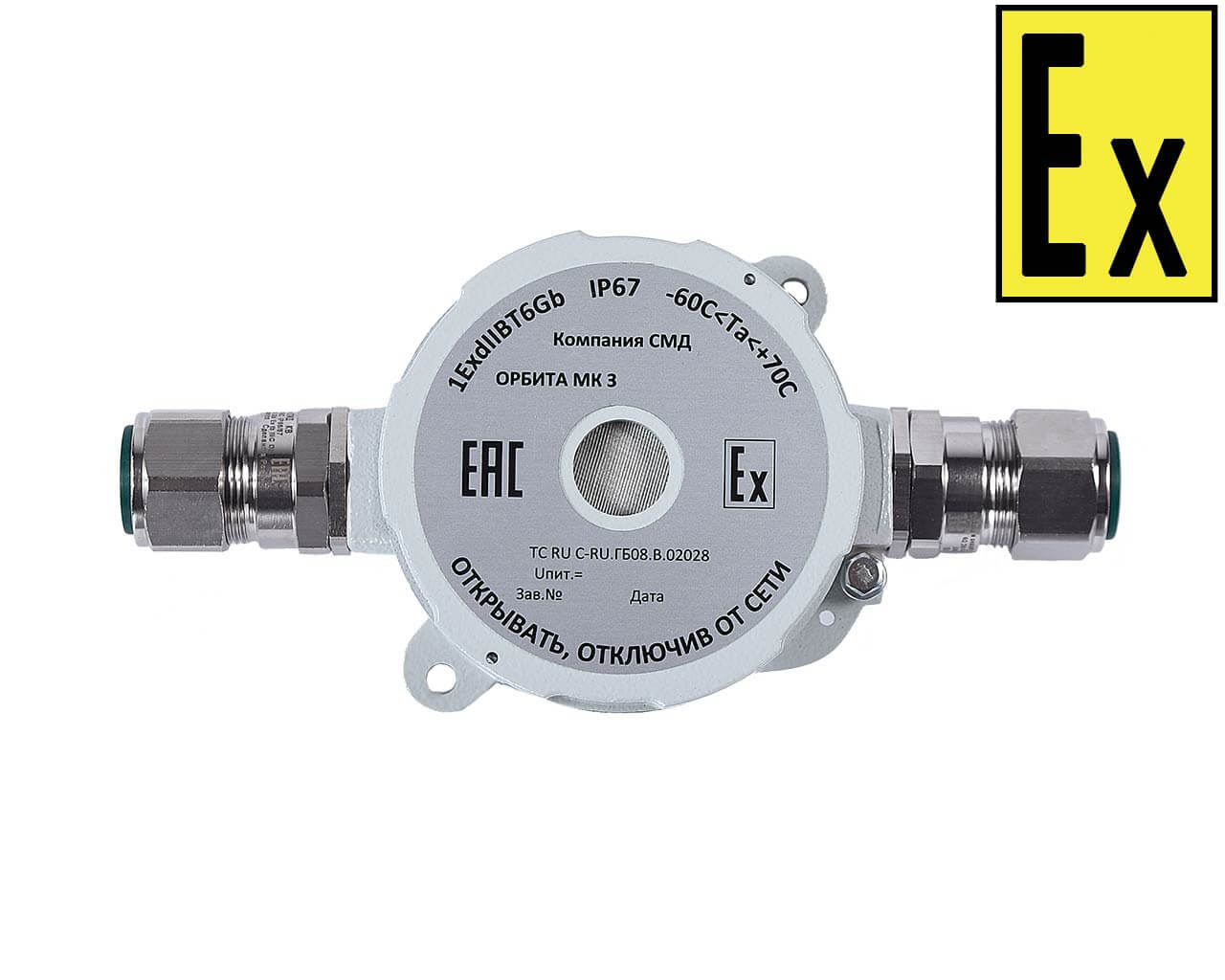

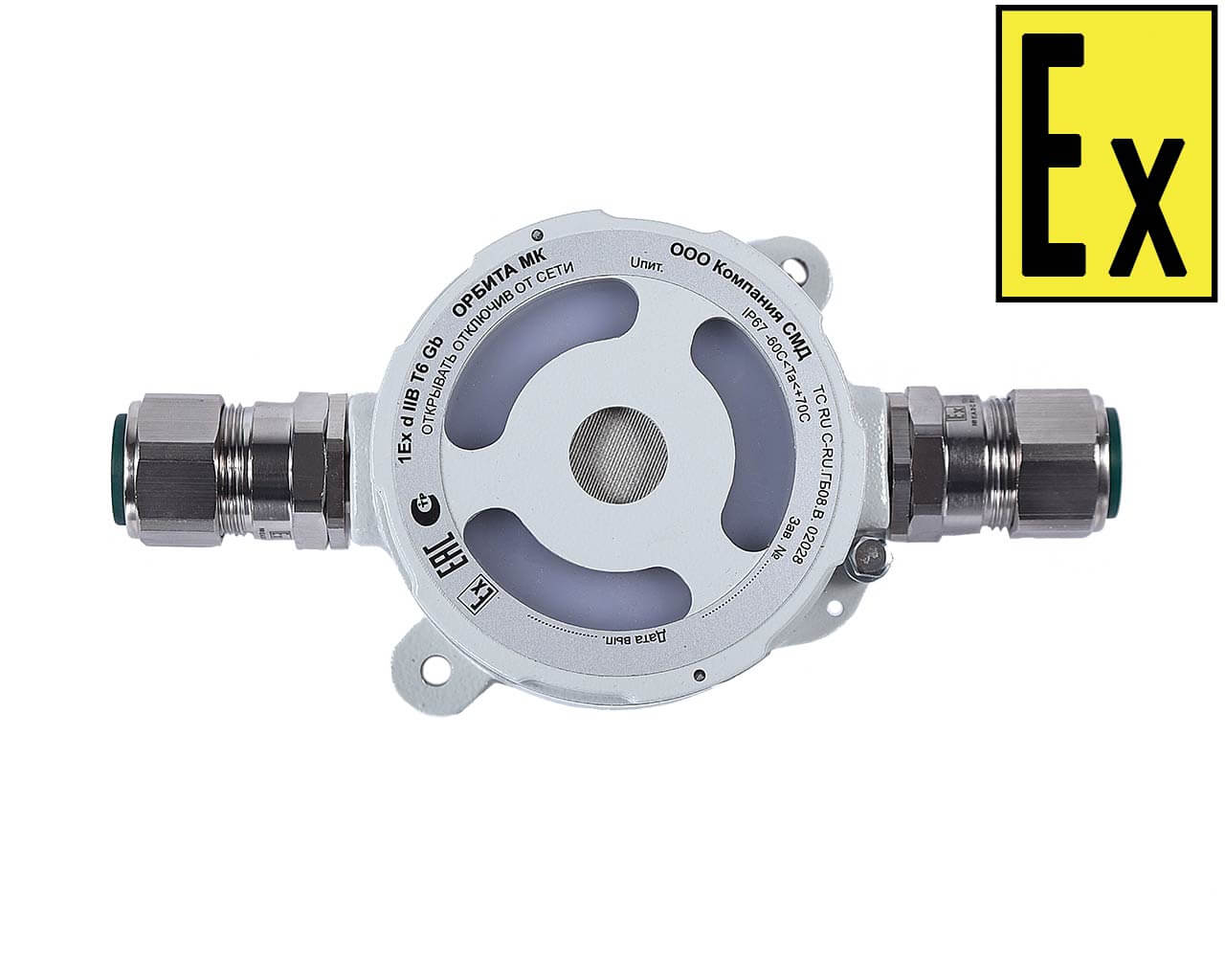

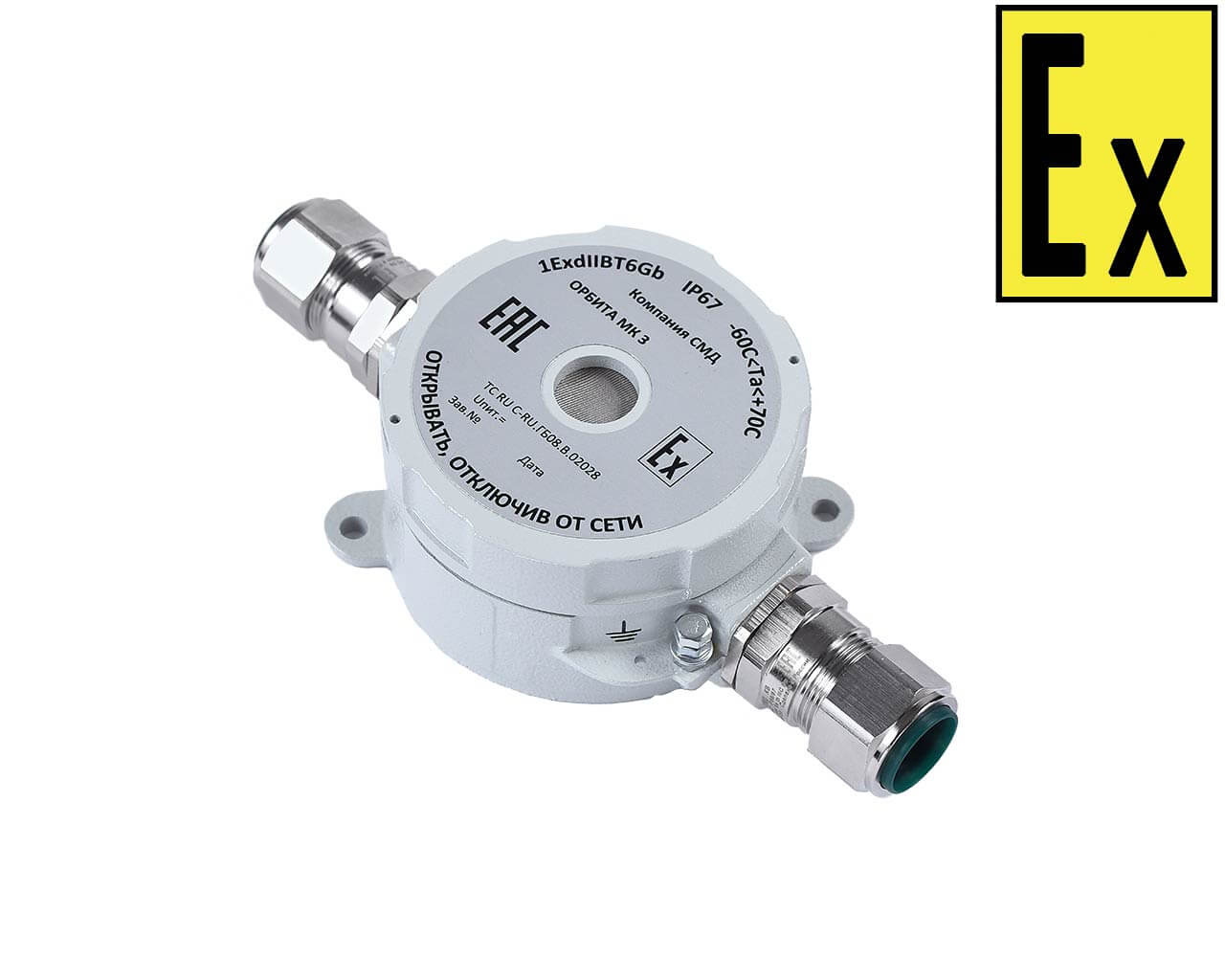

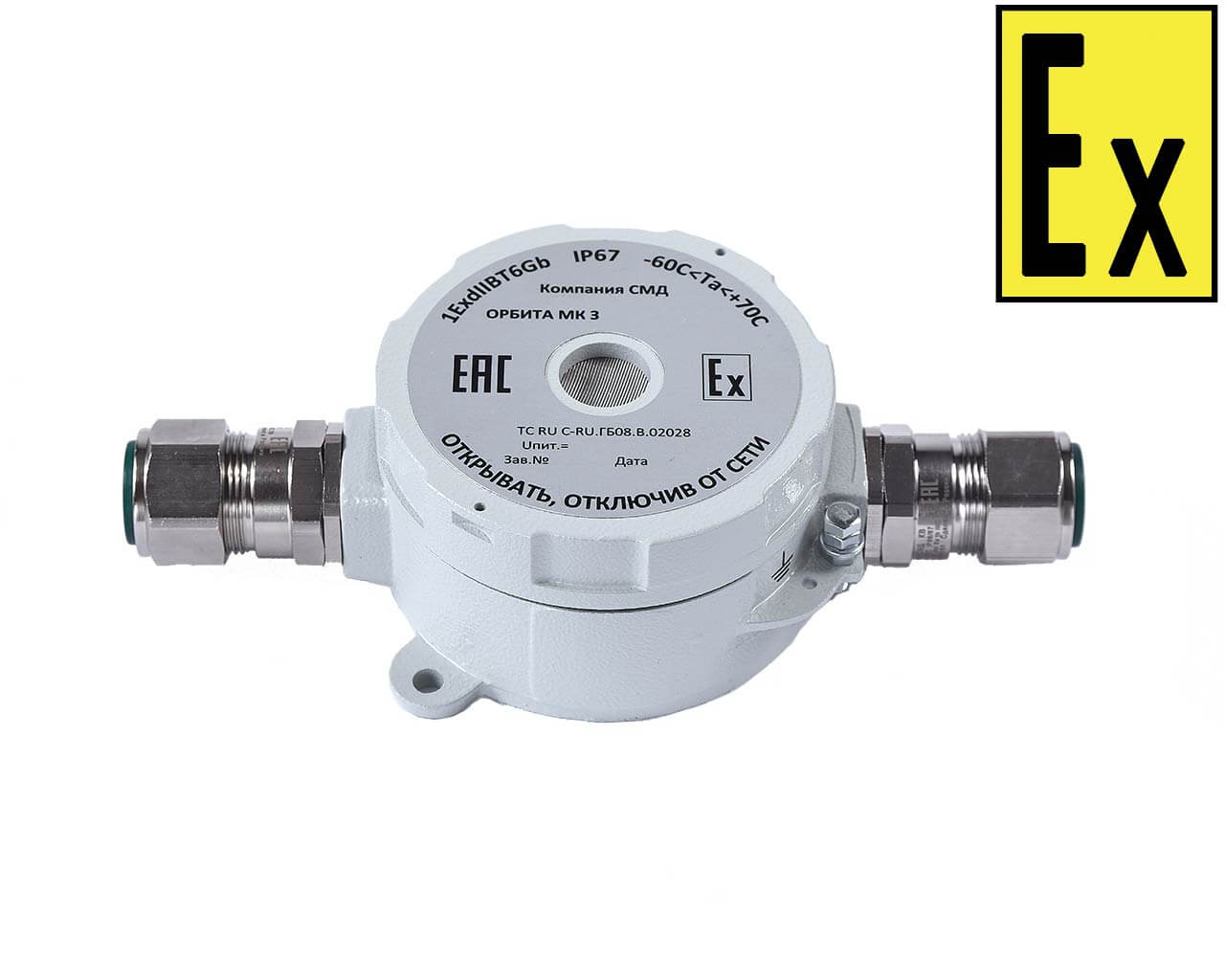

ORBITA MK 1ExdIIBT6Gb

ORBITA MK 1ExdIIBT6Gb

Parameters

ORBITA MK
1ExdIIBT6Gb

The type of annunciator

L (Light)
Z (Sound)
SZ (Light and sound)

You choosed:

The type of annunciator
Housing material
Cable gland
Supply voltage
The color of the signal
Visor

Alarm device is designed to provide audible alerts in fire alarm and fire fighting systems when operating in combination with receiving/monitoring devices. For use in Class 1 and 2 explosion-hazard zones and spaces.

	Orbita МК Z	Orbita MK S	Orbita MK SZ
Operating voltage	12-30 VDC	12-30 VDC	12-30 VDC
Input current, max.	0,15 A	0,1 A	0,2 A
	Orbita МК Z 220V	Orbita MK S 220V	Orbita MK SZ 220V
Operating voltage	220 VAC	220 VAC	220 VAC
Input current, max.	60 mA	40 mA	80 mA
Explosion protection type and category	1 Ex d IIB T6 Gb
Ingress protection	IP 67
Overall dimensions	115х100х60 mm
Sound pressure at 1 m distance, min.	105 dB		105 dB
Цвет сигнала		Red (default) Yellow Green White Blue	Red (default) Yellow Green White Blue
Weight, max	2,0 kg
Operating temperature range	-60°С…+70°C
Material	Aluminium alloy or stainless steel

Alarm devices are supplied with two cable glands of various versions and the plug:

For surface routing of the connecting 6-12 mm cable (designation 'К');
For routing the connection cable in pipe G1/2 (designation 'Т1/2');
For routing the connection cable in pipe G3/4 (designation 'Т3/4');
For connection of the 6-12 mm armoured cable (designation 'B');
For laying the cable in metal hose of the following diameters: 10 mm, 15 mm, 20 mm, 25 mm (designation 'КМ10', 'КМ15', 'КМ20').

Downloads:

	CERTIFICATE OF CONFORMITY. Announcers, light, fire, explosion-proof "Orbita MK".
	Orbita MK-S. Manual. Passport.
	Orbita MK-Z. Manual. Passport.
	Orbita MK-SZ. Manual. Passport.
	Orbita MK-S 220. Manual. Passport.
	Orbita MK Z 220. Manual. Passport.
	Orbita MK SZ 220. Manual. Passport.
	3D model of Orbita MK light (.stp)
	3D model of Orbita MK light and sound (.stp)
	3D model of Orbita MK sound (.stp)
